USERʼS MANUAL

Visit our website

www.iconsupport.eu

Model No. : PFIVEL86174.0

Serial No ___________

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

QUESTIONS ?

If you have questions, or if there are

missing parts, please contact us:

From UK: 0330 123 1045

From Ireland: 053 92 36102

Website: www.iconsupport.eu

E-mail UK: [email protected]

For our postal address and open-

ing hours, please check the infor-

mation in your warranty card

at www.iconsupport.eu to validate

the warranty on your product

Write the serial number in the

space above for reference.

Serial number decal

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS

. . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

WARNING DECAL PLACEMENT

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO PLUG THE POWERADAPTER. . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

HOW TO OPERATE THE ELLIPTICAL

. . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

FEATURES OF THE CONSOLE . . . . . . . .

. . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

MAINTENANCEAND TROUBLESHOOTING. . . . . . . . . . . . . . .

. . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

EXERCISE GUIDELINES . . . . . . . . . . . . . . . .

. . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

EXPLODED DRAWINGS.. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

ORDERING REPLACEMENT PARTS.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Last Page

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or

persons with pre-existing health problems.

2. Use the elliptical only as described in this

manual.

3. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

4. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

5. Keep the elliptical indoors, away from

moisture and dust. Place the elliptical on a

level surface, with a mat beneath it to protect

the oor or carpet. Make sure that there is at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2 ft. (0.6 m) on each

side.

6. Inspect and properly tighten all parts

regularly. Replace any worn parts

immediately.

7. Keep children under age 12 and pets away

from the elliptical at all times.

8.The elliptical should not be used by persons

weighing more than 250 lbs. (115 kg).

9. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

10. Hold the handlebars or the upper body

arms when mounting, dismounting, or using

the elliptical.

11. The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in

determining heart rate trends in general.

12. The elliptical does not have a freewheel;

the pedals will continue to move until the

ywheel stops. Reduce your pedaling speed

in a controlled way.

13. Keep your back straight while using the

elliptical; do not arch your back.

14. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

WARNING : To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. ICON

assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

115 Kg

ENGLISH

115 Kg

WARNING DECAL PLACEMENT

This drawing shows the location(s) of

the warning decal(s). If a decal is miss-

ing or illegible, call the telephone num-

ber on the front cover of this manual

and request a free replacement decal.

Apply the decal in the location shown.

Note: The decal(s) may not be shown

at actual size.

BEFORE YOU BEGIN

Thank you for purchasing the ProForm Semios2.

The elliptical provides an array of features de-

signed to make your workouts at home more ef-

fective and enjoyable.

For your benet, read this manual carefully be-

fore you use the elliptical. If you have questions

after reading this manual, please see the front

cover of this manual. To help us assist you, note

the product model

number and serial number before contacting us.

The model number is PFIVEL86174.0 and the lo-

cation of the serial number decal are shown on the

front cover of this manual.

Before reading further, please familiarize yourself

with the parts that are labeled in the drawing be-

low.

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and re-

move the packing materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires a Phillips screwdriver and

an adjustable wrench.

As you assemble the exercice bike, use the drawings below to identify small parts. The number in

parentheses below each drawing is the key number of the part, from the PART LIST near the end of

this manual. The number following the parentheses is the quantity needed for assembly.

Note: If a part is not in the hardware kit, check to see if it has been preassembled.

STEP 1 :

Fix the Front bottom tube (2) and the Rear bottom

tube (3) onto the Main frame (1) with the Allen pan

head screw (7) and Curved washer (9) as shown

STEP 2 :

Insert the Handlebar post cover (14) into the Han-

dlebar post (17) and then connect the Connection

Wire (15) well with the Sensor wire (12).

Then x the Handlebar post (17) on the post of the

Main Frame (1) with the Allen pan head screw (13)

the Spring washer (8) and the Curved washer (9)

as shown.

Finally, cover the Handlebar post cover (14) to the

joint of Handlebar post (17) and the Main frame (1).

STEP 3 :

1. Fix the Right swing tube(28R) onto the

Handlebar post(17) with the Bolt(55) and

the Flat washer(54).

Note: First not tight them up.

2. Fix the Right pedal support tube(41R)

onto the Crank(10) with the Pedal bolt(43)

and the Wave shape washer(44),and then

attach the Thin spring washer(50) and the

Nylon nut(51).

Note: First not tight them up.

3.Connect the Right swing tube(28R)

and the Right pedal support tube(41R)

with the Bolt(34) Flat washer(35) and Ny-

lon nut(36), then tighten the Bolt(55) the

Bolt(34) and Nylon nut(51), nally cover

the Collar cap (31) the Collar cap (48) the

Collar cap (52) and the Collar cap (60).

4.Fix the Right pedal (40R) onto the Right

pedal tube (41R) with the Bolt (37) the

Flat washer (38) and Nylon nut (39).

5.Use the same way to x the Left pedal

tube (41L) the Left swing tube (28L) onto

the Crank (10) and the Handlebar

post (17),and nally x the Left pedal (40L)onto the Left pedal tube

(41L).

STEP 4 :

Pull the Pulse sensor wire (57) out of the con-

sole bracket hole of the Handlebar post (17),

and then fasten the handlebar (16) onto the

Handlebar post (17) with the Allen pan head

screw (58) and the Curved washer (30) and the

Cap nut(25).

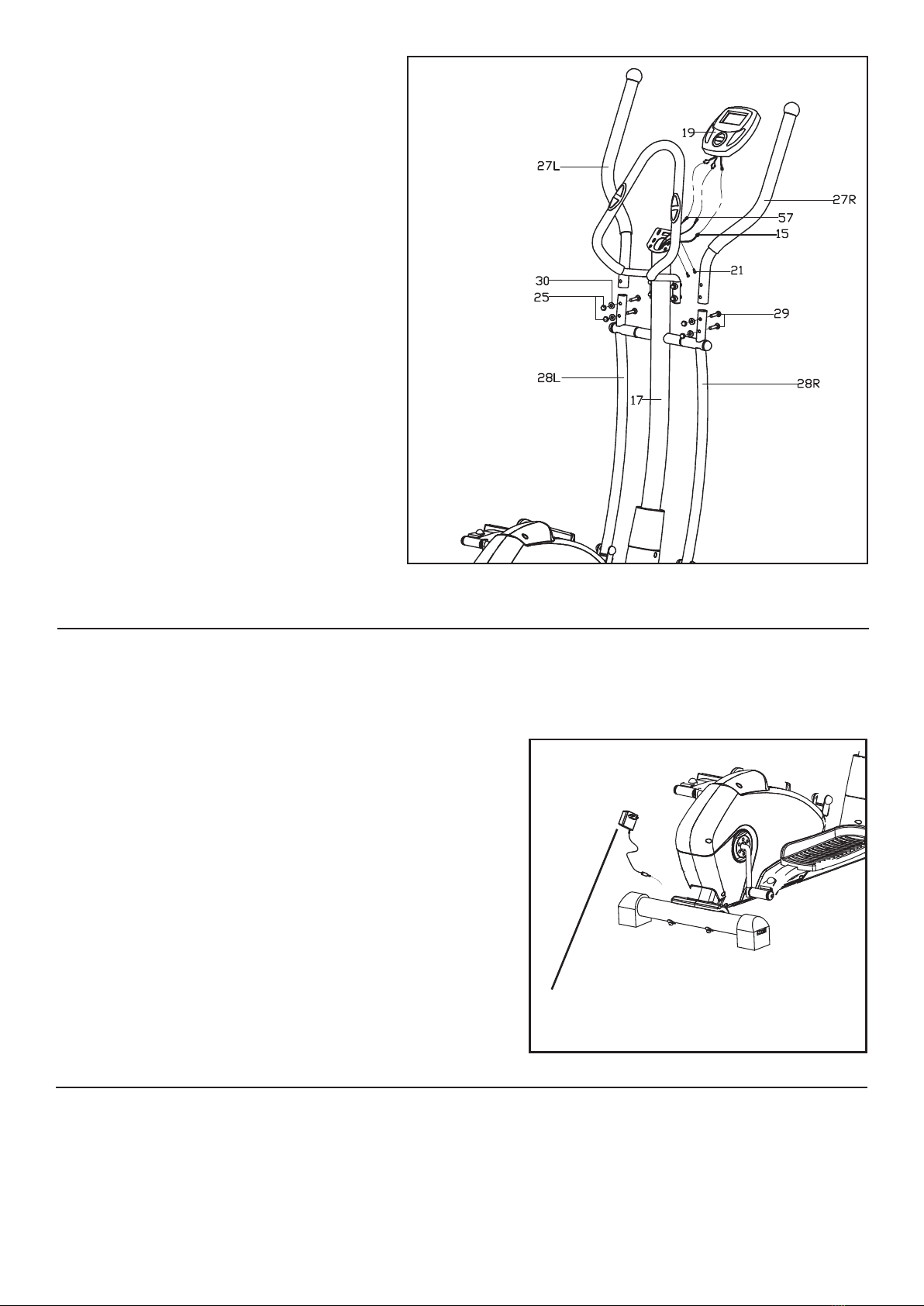

STEP 5 :

1.Fasten the Handlebar(27R/L) with the

Bolt(29)the Curved washer(30) and the Cap

nut(25) onto the Swing tube(28L/R).

2. Connect the Pulse sensor wire (57) and

the Connection wire (15) with the wires of

console (19) respectively, and then fasten

the console (19) onto the console bracket of

the Handlebar post (17) with the Cross pan

head screw (21).

3. Insert one side of adapter into the tail of

bike, and another plug insert to power sup-

ply.

Now, your machine is ready to use.

HOW TO PLUG THE POWER ADAPTER

IMPORTANT: If the exercise elliptical has been exposed to cold temperatures, allow it to warm to room

temperature before plugging in the power adapter. If you do not do this, you may damage the console

displays or other electronic components.

Plug the power adapter into the receptacle on the frame of the

exercise elliptical.

Next, plug the power adapter into the plug adapter.

Then, plug the plug adapter into an appropriate outlet that

is properly installed in accordance with all local codes and

ordinances.

IMPORTANT: The adapter is only needed for the UK market. It

is useless for the other markets.

Power Adaptator

IInspect and tighten all parts of the exercise cycle

regularly.

Replace any worn parts immediately.

To clean the exercise cycle, use a damp cloth and a

small amount of mild detergent.

Important: To avoid damaging the console, keep

liquids away from the console and keep the console

out of direct sunlight.

MAINTENANCE AND TROUBLESHOOTING

HOW TO EXERCISE ON THE ELLIPTICAL

EXERCISER

To mount the elliptical exerciser, hold the upper body

arms and step onto the pedal that is in the lowest

position. Then, step onto the other pedal. Push the

pedals until they begin to move with a continuous

motion.

Note: The pedal discs can turn in either direction. It is

recommended that you move the pedal discs in the

direction shown by the arrow;

however, for variety, you may turn the pedal discs

in the opposite direction.

The upper body arms are designed to add upper-

body exercise to your workouts. As you exercise,

push and pull the upper body arms to work your

arms, shoulders, and back. To focus on lower-body

exercise, hold the upper body arms but do not push

or pull them as you exercise.

To dismount the elliptical exerciser, wait until the

pedals come to a complete stop. Note: The elliptical

exerciser does not have a free wheel; the pedals

will continue to move until the ywheel stops.

When the pedals are stationary, step off the highest

pedal rst. Then, step off the lower pedal.

MEASURE YOUR HEART RATE IF DESIRED

You can measure you heart rate using either the

handgrip pulse sensor or the optional chest pulse

sensor.

Note: If you hold the handgrip pulse sensor and

wear the chest pulse sensor at the same time, the

console will not display your heart rate accurately.

If there are sheets of clear plastic on the metal

contacts on the handgrip pulse sensor, remove

the plastic. In addition, make sure that your hands

are clean. To measure your heart rate, hold the

handgrip pulse sensor with your palms resting

against the metal contacts. Avoid moving your

hands or gripping the contacts tightly.

When you are nished exercising

If the pedals do not move for several minutes and

the buttons are not pressed, the console will turn

off and the display will be resetéconomies des piles.

HOW TO USE THE ELLIPTICAL

Contacts

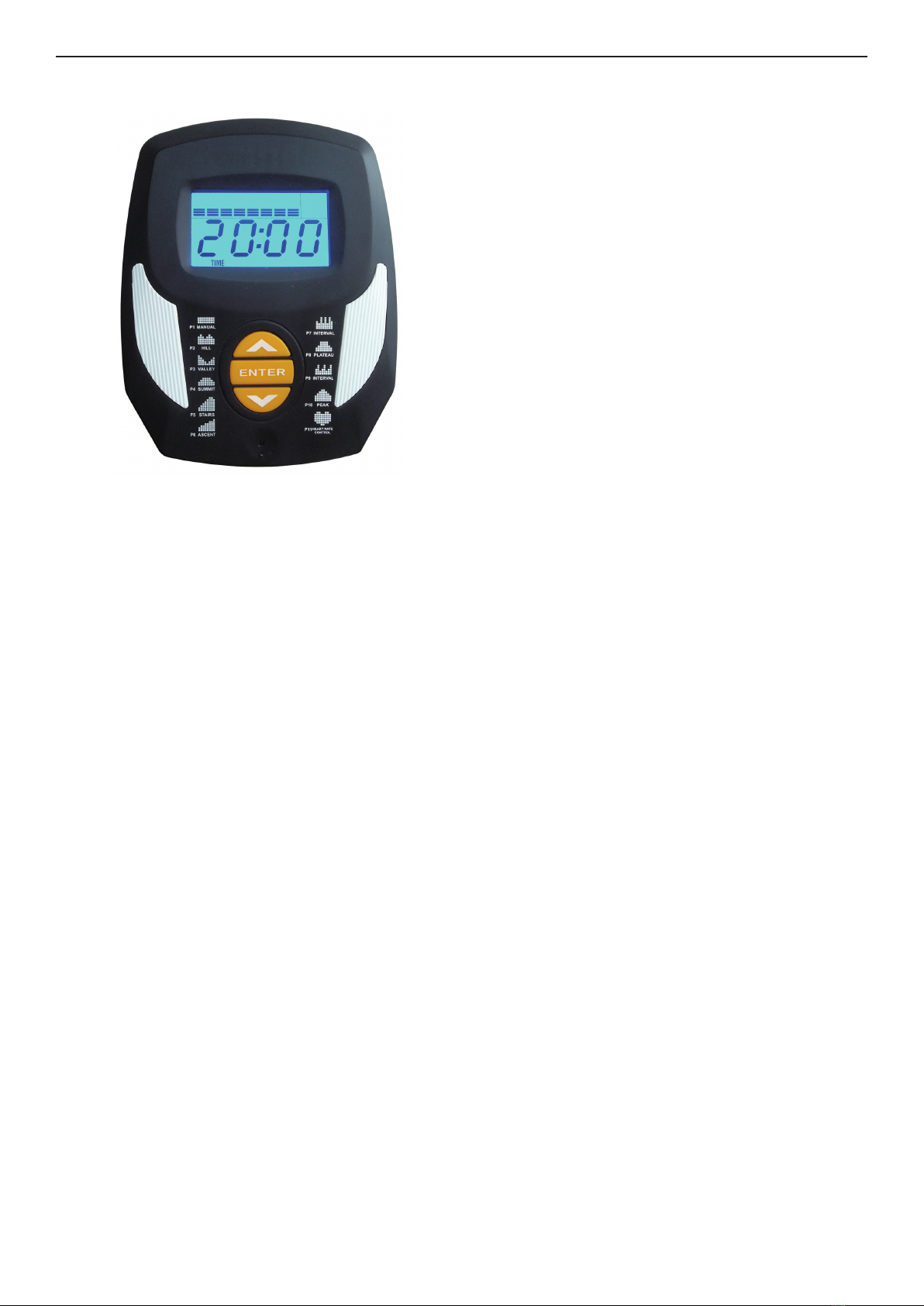

Follow your progress with the display.

The console has seven displays that show the

following workout information:

Speed—This display shows your pedaling speed,

in kilometer per hour (Km/h).

RPM—This display shows your Number of

mouvement in revolutions per minute (rpm).

Time—This display shows the elapsed time.

Note: When a smart program is selected, the display

will show the time remaining in the program

instead of the elapsed time.

Distance—This display shows the distance you

have pedaled, in total revolutions.

Calories—This display shows the approximate

number of calories you have burned.

Watt—This display shows the watts you’ve

developed during the workout.

Programs [P]—This display shows the number

of the program you are going to or that you are

currently using.

HOW TO USE THE CONSOLE

Make sure that the product is correctly plug (see

page MAINTENANCE AND TROUBLESHOOTING).

If there is a sheet of clear plastic on the face of the

console, remove it.

1. Turn on the console

To turn on the console, press any button on the

console or simply begin pedaling.

2. Press the buttons :

UP:

Press this button to increase the resistance during the

workout or during the setting mode to increase the

values of Work Time or Target Pulse or programs.

DOWN :

Press this button to decrease the resistance during

the workout or during the setting mode to decrease

the values of Work Time or Target Pulse or programs.

ENTER :

During the time setting mode, press this button to

validate the hours and minutes.

During the setting mode, press this button to

validate the adjusted values.

During the STOP mode, press this button to reset

the values.

A long press on this button, will reset the console.

3. Start pedaling and follow your progress with

the display :

While you exercise, the console will display the

selected mode.

4. When you are nished exercising, the console

will automatically turn off.

If the pedals do not move for a few seconds, the

word STOP will appear in the display, and the

console will pause. The console has an “auto-

off” feature. If the pedals do not move and the

console buttons are not pressed for a few minutes,

the power will turn off automatically to save the

batteries.

HOW TO USE THE MANUAL MODE

1. Turn on the console.

To turn on the console, press one button or begin

pedaling. The entire display will light for a moment

with a long bip; the console will then be ready for

use.

2. Select the manual mode

When you turn on the console, the rst workout is

the manual mode.

press Enter and start pedaling

3. Change the resistance of the pedals as

desired.

As you pedal, change the resistance of the pedals

by pressing the Resistance increase and decrease

buttons. There are 8 resistance levels. Note: After

you’ve pressed the buttons, it will take a moment for

the pedals to reach the selected resistance level.

4. Follow your progress with the display.

CONSOLE FEATURES

Tabla de contenidos

Otros manuales de Entrenador elíptico de Pro-Form

Pro-Form

Pro-Form PCEL87076 Manual de usuario

Pro-Form

Pro-Form PFEL54930 Manual de usuario

Pro-Form

Pro-Form Stride Select PFEL09807.0 Manual de usuario

Pro-Form

Pro-Form 795 Manual de usuario

Pro-Form

Pro-Form 790 Hr Elliptical Manual de operación y mantenimiento

Pro-Form

Pro-Form 900 CardioCrossTrainer Manual de usuario

Pro-Form

Pro-Form PFEL57916.1 Manual de usuario

Pro-Form

Pro-Form PFEL03907.0 Manual de usuario

Pro-Form

Pro-Form PFEL69720-INT.3 Manual de usuario

Pro-Form

Pro-Form 510 E Elliptical Guía de inicio rápido

Pro-Form

Pro-Form 780 Cse Elliptical Manual de usuario

Pro-Form

Pro-Form 420 Zle Elliptical Guía del usuario

Pro-Form

Pro-Form 400 Zle Elliptical Guía de inicio rápido

Pro-Form

Pro-Form 330 Elliptical Manual de usuario

Pro-Form

Pro-Form 19.0 RE PFEL09812.0 Manual de usuario

Pro-Form

Pro-Form 545 Ekg Elliptical Manual de usuario

Pro-Form

Pro-Form PFEL15910.1 Manual de usuario

Pro-Form

Pro-Form 470 Hr Elliptical Manual del sistema

Pro-Form

Pro-Form 750 Rx Manual de operación y mantenimiento

Pro-Form

Pro-Form PFEVEL95910.1 Manual de usuario

Pro-Form

Pro-Form 220 Zle Elliptical Manual de usuario

Pro-Form

Pro-Form PFIVEL74613.0 Manual de usuario

Pro-Form

Pro-Form 710 E Elliptical Manual de usuario

Pro-Form

Pro-Form ZE5 Manual de usuario

Manuales populares de Entrenador elíptico de otras marcas

Weslo

Weslo Momentum 4.0 Elliptical Manual de operación y mantenimiento

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manual de usuario

Torque Fitness

Torque Fitness XPLLP Manual de usuario

Octane Fitness

Octane Fitness PRO3700C Manual de usuario

Xterra

Xterra FS5.8e Manual de usuario

Bodyguard

Bodyguard E-40 Manual de usuario

Bonn Germany

Bonn Germany Concept 2.2 Manual de usuario

Precor

Precor Resolute RSL 620 Manual de usuario

NordicTrack

NordicTrack E 9.2 Elliptical Manual de usuario

Vision Fitness

Vision Fitness X6600iNetTV Manual de usuario

Matrix

Matrix MX-A5x Manual de usuario

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manual de usuario

Sears

Sears FREE SPIRIT C249 30737 0 Manual de usuario

True

True FS-64 Manual de usuario

Sport-thieme

Sport-thieme ST 310 Manual de usuario

VIRTUFIT

VIRTUFIT CTR 1.1 Manual de usuario

Kettler

Kettler GIRO C 1 Manual de usuario

CIRCLE FITNESS

CIRCLE FITNESS E7 Manual de usuario
