FS5.8e ELLIPTICAL

OWNER’S MANUAL

PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL

Table Of Contents

ATTENTION

THIS ELLIPTICAL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS

WARRANTED FOR THIS APPLICATION. ANY OTHER APPLICATION VOIDS

THIS WARRANTY IN ITS ENTIRETY.

Product Registration

Important Safety Instructions

Important Electrical Instructions

Important Operation Instructions

Features

FS5.8e Assembly Instructions

Operation of Your Console

General Maintenance

Manufacturer’s Limited Warranty

FS5.8e Elliptical

Record Your Serial Number

Please record the Serial Number of this tness product

in the space provided below.

Serial Number

The self-addressed product registration card must be completed in full and returned to

XTERRA Fitness. You can also go to www.xterratness.com/warrantyreg.html

to register online.

Thank you for your purchase of this quality elliptical from XTERRA Fitness. Your new

elliptical has been manufactured by one of the leading tness manufacturers in the world.

XTERRA Fitness will do all we can to make your ownership experience as pleasant as

possible for many years to come. If you have questions, or if parts are missing or damaged,

or you require customer service, call (870)336-4286. Please have your model number and

serial number handy when you call.

Please take a moment to record where you purchased your machine, as well as the date of

purchase for future reference. We appreciate your condence in XTERRA Fitness and we

will always remember that you are the reason that we are in business. Please complete and

mail your registration card today and enjoy your new elliptical.

Yours in Health,

XTERRA Fitness

Congratulations On Your New Elliptical and Welcome to the XTERRA Fitness Family!

Product Registration

FS58e_20130610

Purchase Location

Purchase Date

FS5.8e Elliptical

• To disconnect, turn all controls to the off position, then remove the plug from the outlet.

• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and

equipment may result.You can purchase a oor mat directly from www.xterratness.com.

• Before beginning this or any exercise program, consult a physician. This is especially important for

persons over the age of 35 or persons with pre-existing health conditions.

• Keep hands away from all moving parts.

• The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the

accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart

rate trends in general.

• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.

• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your

equipment. Quality athletic shoes are recommended to avoid leg fatigue.

Important Safety Instructions

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

DANGER - To reduce the risk of electric shock:

1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning.

WARNING - To reduce the risk of burns, re, electric shock, or injury to persons:

1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and

before putting on or taking off parts.

2. Do not operate under blanket or pillow. Excessive heating can occur and cause re, electric shock, or injury

to persons.

3. Close supervision is necessary when this appliance is used by, on, or near children, or disabled persons.

4. Use this appliance only for its intended use as described in this manual. Do not use attachments not

recommended by the manufacturer.

5. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been

dropped or damaged, or dropped into water. Return the appliance to a service center for examination and

repair.

6. Do not carry this appliance by supply cord or use cord as a handle.

7. Keep the cord away from heated surfaces.

8. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the

like.

9. Never drop or insert any object into any opening.

10. Do not use outdoors.

11. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

12. Connect this appliance to a properly grounded outlet only.

13. The appliance is intended for household use.

SAVE THESE INSTRUCTIONS - THINK SAFETY!

Fitness Equipment Safety Instructions

CAUTION!! Please be careful when unpacking the carton.

Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose

yourself (and possibly others) to injury, and reduce the longevity of the equipment.

FS5.8e Elliptical

WARNING!

• NEVER remove any cover without rst disconnecting AC

power supply.

• If A.C. voltage varies by ten percent (10%) or more, the performance

of your elliptical may be affected. Such conditions are not covered

under your warranty. If you suspect the voltage is low, contact your

local power company or a licensed electrician for proper testing.

• NEVER expose this elliptical to rain or moisture. This product is NOT

designed for use outdoors, near a pool or spa, or in any other high

humidity environment. Maximum

environmental ratings are 40-120 degrees Fahrenheit, 95% humidity

non-condensing (no water droplets forming on surfaces).

• NEVER operate this elliptical without reading and completely understanding the results of

any operational change you request from the computer.

• Understand that changes in resistance do not occur immediately. Set your desired level on

the computer console and release the adjustment key. The computer will obey the

command gradually.

• NEVER use your elliptical during an electrical storm. Surges may occur in your household

power supply that could damage elliptical components.

• Use caution while participating in other activities while using your elliptical such as

watching television, reading, etc. These distractions may cause you to lose balance,

resulting in serious injury.

• Always hold on to a handlebar while making control changes.

Important Electrical Instructions

Important Operation Instructions

The FS 5.6e has an exciting electronic incline feature that will increase the variety of your

workouts. When the incline is at its lowest position you get a traditional elliptical workout. As

the incline increases you will feel your knees rise higher with each step, which changes the

emphasis of the muscles being used. The power incline is controlled by keys on the console

and also automatically during the built-in workout programs.

Incline Adjustment

The elliptical is equipped with transport wheels, which are engaged when the rear of the

elliptical is lifted.

Transportation

Features

Power Switch / Plug-In

FS5.8e Elliptical

#116. M5 x 10mm

Phillips Head Screw

(4 pcs)

#105. 3/8” x 2-1/4”

Hex Head Bolt

(1 pc)

#130. 3/8” x 7T

Nyloc Nut

(2 pcs)

#137. 3/8” x 19 x 1.5T

Flat Washer

(2 pcs)

#153. 3/8” x 23 x 2T

Curved Washer

(2 pcs)

#154. 5/16”

Star Washer

(4 pcs)

#142. 5/16” x 20 x 1.5T

Flat Washer

(4 pcs)

#151. 5/16” x 1.5T

Split Washer

(4 pcs)

#152. 3/8” x 2T

Split Washer

(1 pc)

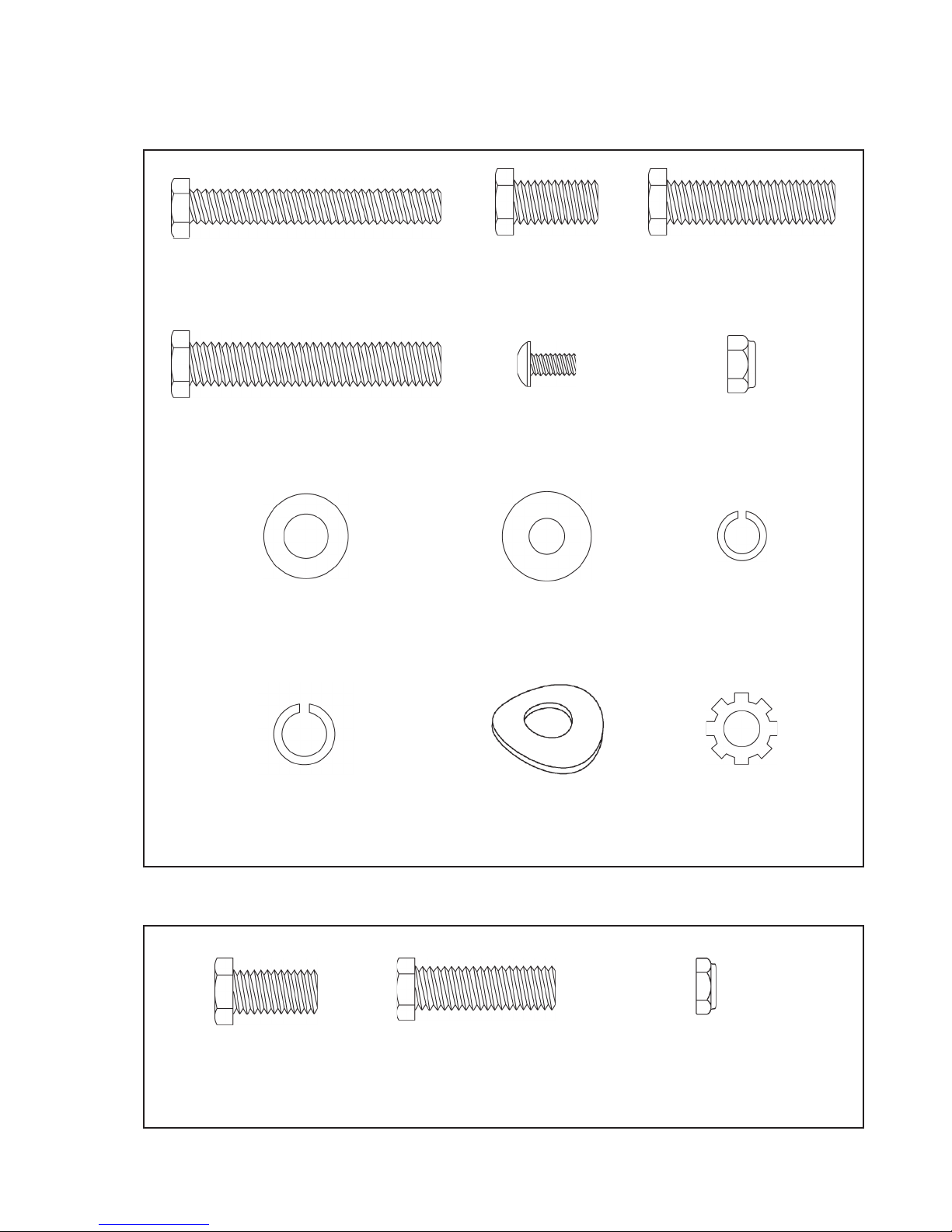

FS5.8e Assembly Pack Checklist

Hardware Step 1

#103. 3/8” x 3/4”

Hex Head Bolt

(2 pcs)

#102. 5/16” x 2-1/4”

Hex Head Bolt

(4 pcs)

#104. 3/8” x 1-1/2”

Hex Head Bolt

(2 pcs)

#99. 5/16” x 15mm

Hex Head Bolt

(2 pcs)

Hardware Step 2

#127. 5/16” x 7T

Nyloc Nut

(2 pcs)

#101. 5/16” x 1-1/4”

Hex Head Bolt

(2 pcs)

FS5.8e Elliptical

Assembly Tools

#141. 5/16” x 23 x 1.5T

Flat Washer

(2 pcs)

#150. 17mm

Wave Washer

(4 pcs)

Hardware Step 2

#159. 5/16” x 1-3/4”

Hex Head Bolt

(6 pcs)

#127. 5/16” x 7T

Nyloc Nut

(6 pcs)

#142. 5/16” x 20 x 1.5T

Flat Washer

(2 pcs)

Hardware Step 3

#119. 3.5 x 12mm

Sheet Metal Screw

(8 pcs)

#115. M5 x 15mm

Phillips Head Screw

(14 pcs)

#122. M6 x 10mm

Phillips Head Screw

(4 pcs)

Hardware Step 4

#155. 13/14mm Wrench #158. 12/14mm Wrench

#157. Phillips

Head Screwdriver

#160. 5/16” x 23 x 1.5T

Curved Washer

(4 pcs)

#161.Switch

Wire Cap

(2 pcs)

FS5.8e Elliptical

1. Slide the Incline Rail Assembly (2) into the U channel of the Main Frame

(1). Be very careful not to damage the wires that exit each part.

2. Connect the Incline Rail Assembly (2) horizontally to the U channel of

the Main Frame (1) with two Hex Head Bolts (104), two Flat Washers

(137) and two Nyloc Nuts (130). Secure it vertically with four Hex Head

Bolts (102), four Split Washers (151), four Flat Washers (142) and four

Star Washers (154). Tighten using the Wrenches provided (155 & 158).

3. Connect the Incline Motor wires (49 & 50) to the wiring harness that

exits the Incline Rail Assembly (2), by matching the colors red, white

and black. Push the excess cable inside the U channel. Guide the twist

tie that is attached to the Computer Cable (44) through the bottom of

the Console Mast (12) until it exits the top of the steel tube. Secure the

Console Mast (12) by loosely threading two Hex Head Bolts (103) from

the front and two Curved Washers (153) rst. Then secure the mast from

the side by loosely threading a Hex Head Bolt (105) and a Split Washer

(152). Note: There is one bolt already installed in the receiving bracket

that will engage with the slot at the bottom of the Console Mast. Tighten

the two bolts from the left side last.

4. Tighten the two front bolts rst, then the side bolts with the Wrench

(155).

5. Untie the twist tie from around the Computer Cable (44). Plug the

Computer cable (44 - wide white end) & the two Hand Pulse Cables (47)

into the bottom of the Console (43). Insert the Resistance Cable (165)

into the white port labeled “Load” and the Incline Cable (166) into the

Incline port on the back of the Console. Secure the Console (43) onto

the mounting plate with four Phillips Head Screws (116). Tighten them

with the Phillips Head Screw Driver (157).

6. Install the water bottle holder onto the handlebar in any position you like.

FS5.8e Assembly Instructions

Hardware Step 1

Rear Rail, Console Mast & Console

#102. 5/16” x 2-1/4”

Hex Head Bolt (4 pcs)

#103. 3/8” x 3/4”

Hex Head Bolt (2 pcs)

#104. 3/8” x 1-1/2”

Hex Head Bolt (2 pcs)

#105. 3/8” x 2-1/4”

Hex Head Bolt (1 pc)

#116. M5 x 10mm

Phillips Head Screw

(4 pcs)

#130. 3/8” x 7T

Nyloc Nut (2 pcs)

#137. 3/8” x 19 x 1.5T

Flat Washer (2 pcs)

#142. 5/16” x 20 x 1.5T

Flat Washer (4 pcs)

#151. 5/16” x 1.5T

Split Washer (4 pcs)

#152. 3/8” x 2T

Split Washer (1 pc)

#153. 3/8” x 23 x 2T

Curved Washer (2 pcs)

#154. 5/16”

Star Washer (4 pcs)

FS5.8e Elliptical

Rear Rail, Console Mast & Console

FS5.8e Elliptical

#99. 5/16” x 15mm

Hex Head Bolt (2 pcs)

#101. 5/16” x 1-1/4”

Hex Head Bolt (2 pcs)

#127. 5/16” x 7T

Nyloc Nut (2 pcs)

#141. 5/16” x 23 x 1.5T

Flat Washer (2 pcs)

#142. 5/16” x 20 x 1.5T

Flat Washer (2 pcs)

#150. 17mm

Wave Washer (4 pcs)

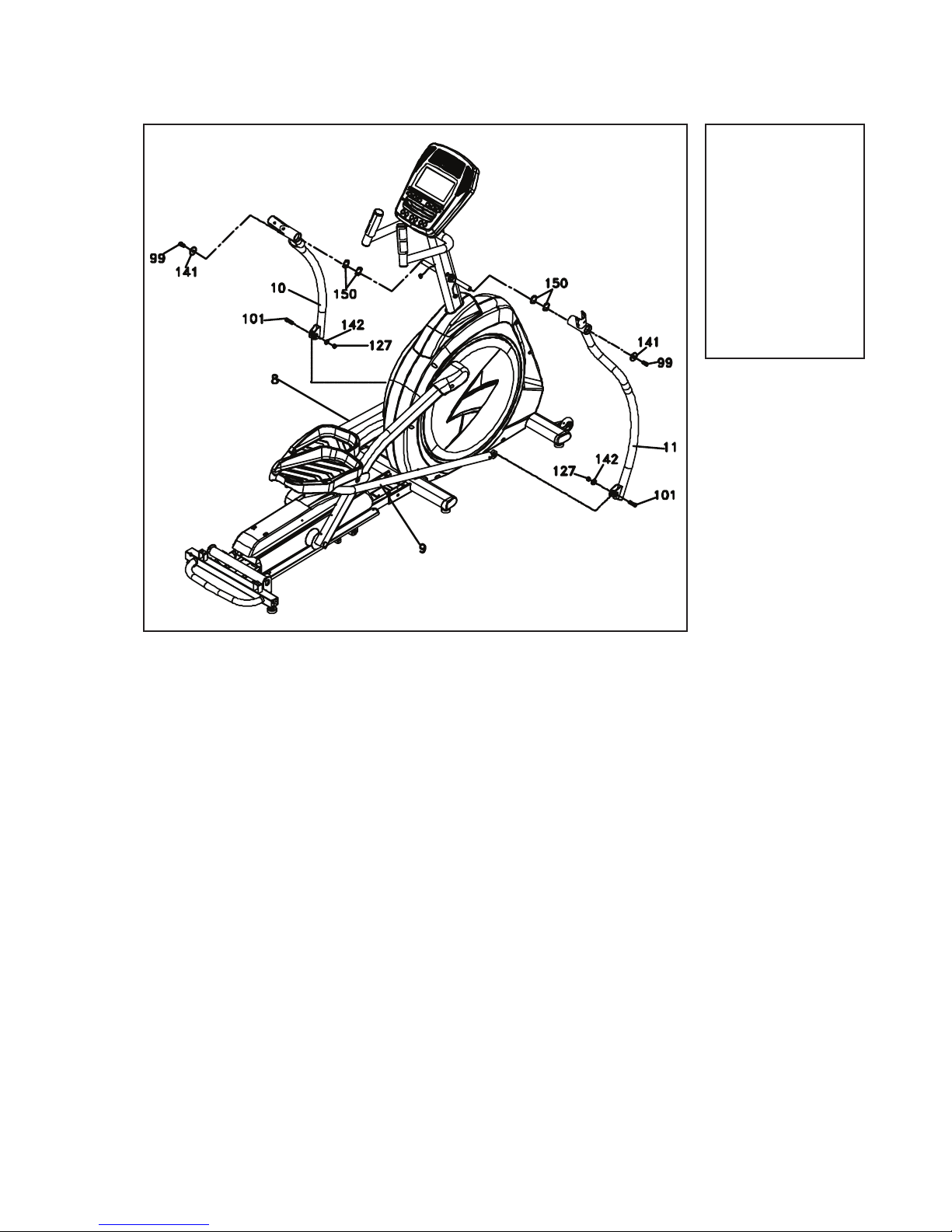

2Hardware Step 2

1. Slide two wave washers (150) onto each side of the swing arm axle.

Slide the lower swing arms (10 Left, 11 Right) onto the axles and secure

with the two Hex Head Bolts (99) and Flat Washers (141). Do not force

the swing arms onto the axle. They should slide on, but you may need

to jiggle them to get them lined up properly. The swing arms have been

previously installed at the factory so they do t properly.

2. Remove the tie that holds the spacer (25) in the rod end located at the

end of the right connecting arm (9) and line up the rod end with the

bracket at the bottom of the lower right swing arm (11). Slide the Hex

Head Bolt (101) through the bracket of the lower swing arm and then

through the rod end. Install the Flat Washer (142) and Nyloc Nut (127)

on the bolt and tighten as much as possible. Repeat this step for the left

side.

Connecting & Lower Swing Arms

Otros manuales para FS5.8e

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Entrenador elíptico de Xterra

Xterra

Xterra FS3.0 Manual de usuario

Xterra

Xterra FS3.0 Manual de usuario

Xterra

Xterra 164174535US Manual de usuario

Xterra

Xterra FS1.5 ELLIPTICAL Manual de usuario

Xterra

Xterra FS5.9e Manual de usuario

Xterra

Xterra FS220e Manual de usuario

Xterra

Xterra EU150 Manual de usuario

Xterra

Xterra XTR0003 CARDIOFIT 2000 Manual de usuario

Xterra

Xterra FS3.9e Manual de usuario

Xterra

Xterra 16417255 Manual de usuario

Xterra

Xterra FS3.5 Manual de usuario

Xterra

Xterra FS2.5 Manual de usuario

Xterra

Xterra FS5.4e Manual de usuario

Xterra

Xterra FS420e Manual de usuario

Xterra

Xterra FS4.0e Manual de usuario

Xterra

Xterra FS4.0e Manual de usuario

Xterra

Xterra FS400 Manual de usuario

Xterra

Xterra 16417320 Manual de usuario

Xterra

Xterra FS5.5e Manual de usuario

Xterra

Xterra FSX3500 Manual de usuario

Xterra

Xterra 16604701500 Manual de usuario

Xterra

Xterra 16417681US Manual de usuario

Xterra

Xterra FS5.25e Manual de usuario

Xterra

Xterra FS5.3e Manual de usuario

Manuales populares de Entrenador elíptico de otras marcas

Weslo

Weslo Momentum 4.0 Elliptical Manual de operación y mantenimiento

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manual de usuario

Torque Fitness

Torque Fitness XPLLP Manual de usuario

Octane Fitness

Octane Fitness PRO3700C Manual de usuario

Bodyguard

Bodyguard E-40 Manual de usuario

Bonn Germany

Bonn Germany Concept 2.2 Manual de usuario

Precor

Precor Resolute RSL 620 Manual de usuario

NordicTrack

NordicTrack E 9.2 Elliptical Manual de usuario

Vision Fitness

Vision Fitness X6600iNetTV Manual de usuario

Matrix

Matrix MX-A5x Manual de usuario

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manual de usuario

Sears

Sears FREE SPIRIT C249 30737 0 Manual de usuario

True

True FS-64 Manual de usuario

Sport-thieme

Sport-thieme ST 310 Manual de usuario

VIRTUFIT

VIRTUFIT CTR 1.1 Manual de usuario

Kettler

Kettler GIRO C 1 Manual de usuario

CIRCLE FITNESS

CIRCLE FITNESS E7 Manual de usuario

Reebok

Reebok 1000 Zx Elliptical Manual de usuario
