CYP PU-1H2HBTE Manual de usuario
PU-1H2HBTE
1 HDMI to 2 HDBaseT™ Splitter (100m) including HDMI
output bypass
OPERATIONS MANUAL
5-Play™
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 29/01/13 First Release
CONTENTS
1. Introduction ...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features ..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel ................................................... 8
6.2 Rear Panel ..................................................... 9
6.3 IR Pin Assignment ....................................10
7. Connection Diagram .......................... 11
8. Specications ...................................... 12
9. Acronyms ............................................. 13
6
1. INTRODUCTION
The PU-1H2BTE splitter accepts 1x HDMI input and distributes to 2
HDBaseT™ outputs, plus 1 HDMI bypass output. The HDBaseT™ outputs
allow uncompressed HDMI, LAN, PoE, IR, and RS-232 signals to be
transmitted over a Single CAT5e/6/7 cable up to 100m. Installers can
condently distribute HDMI signals to 3 displays, and if required, use
the HDMI bypass output to cascade the HDMI signal up to 5 times with
additional HDBaseT™ splitters.
PU-507RX Receivers are recommended to utilise the full 5-Play™
functionality of the HDBaseT™ outputs of this device.
2. APPLICATIONS
Household entertainment sharing and control
Lecture room display and control
Showroom display and control
Meeting room presentation and control
Classroom display and control
3. PACKAGE CONTENTS
1 x HDMI over HDMI & CAT5e/6/7 Transmitter
2 x IR Extender
1×IR Emitter 'Y' Cable
2 x 3.5mm phone jack to D-Sub 9-pin adaptor cable
24V/2.7A DC Power Adaptor
Power Cord
Operation Manual
4. SYSTEM REQUIREMENTS
Source equipment with HDMI output connector
Display TV/monitor with HDMI input connector
HDMI over CAT5e/6/7 receivers with industry CAT5e/6/7 cables
7
5. FEATURES
Supports all v1.4 HDMI resolutions plus 4k.
HDMI, HDCP, & DVI compliant
Supports uncompressed video/audio up to 10.2Gbps
Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i,
1080p, 1080p24, 4K2K; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA,
WUXGA.
Supports HDCP repeating and CEC functions
Uncompressed data transfer over single CAT cable (100m - CAT6/7;
80m - CAT5e)
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
Supports full 5-Play™ Convergence : HDMI / LAN / PoE (Power over
Ethernet) / IR / RS-232
Supports 3D signals
8
6. OPERATION CONTROLS AND FUNCTIONS

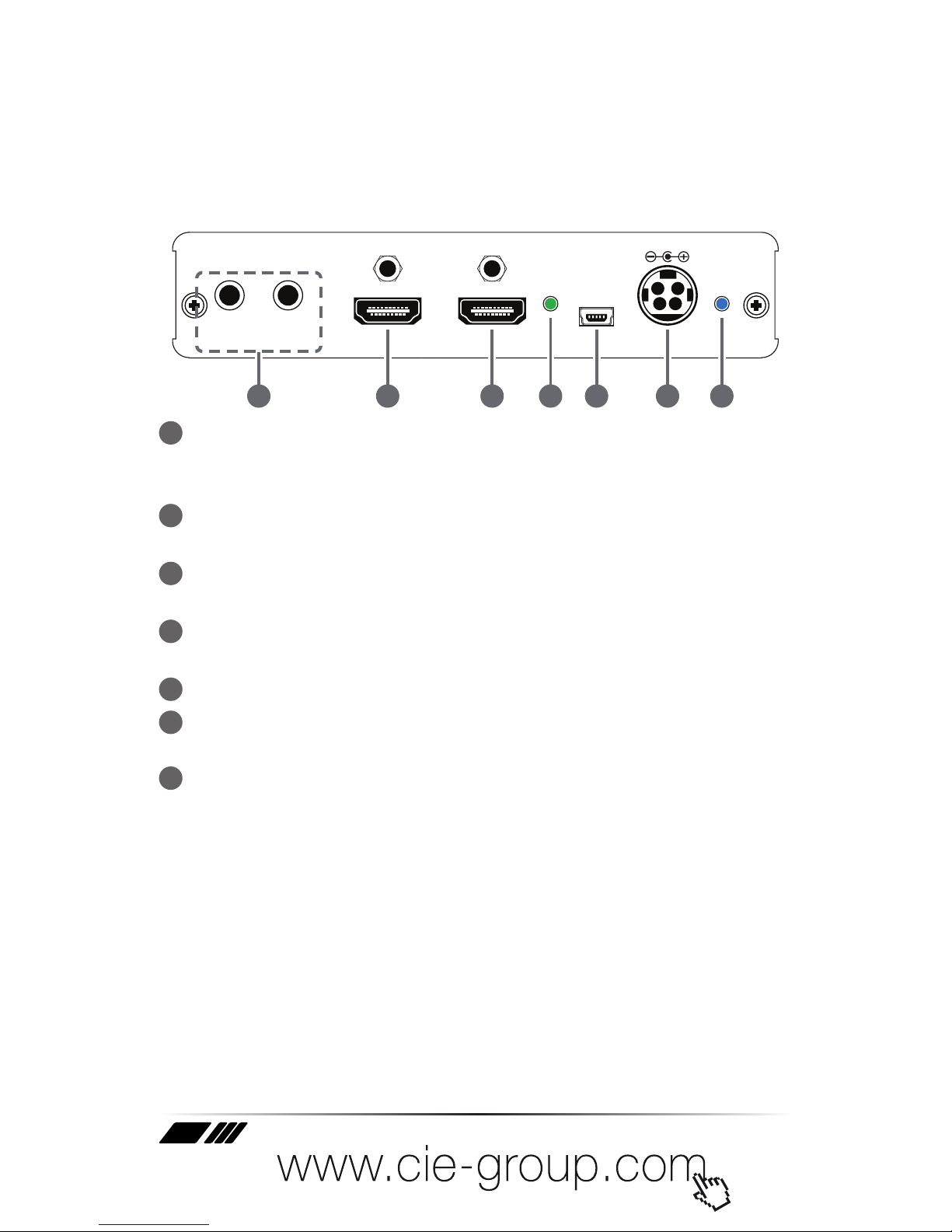

6.1 Front Panel
RS232 IN
A
RS232 IN
B
HDMI OUT HDMI IN
REWOPKNIL
SERVICE
DC 24V
1 2 3 4 5 6 7
1 RS232 IN A/B: Connect to a PC/laptop or RS-232 control system
(with supplied 3.5mm phone jack to D-Sub 9 pin adaptor) for the
transmission of RS-232 commands.
2 HDMI OUT: Connect to a HDMI equipped TV/monitor for display of
the HDMI input source signal.
3 HDMI IN: Connect to HDMI source equipment such as a DVD or Blu-
ray player.
4 LINK LED: The yellow LED will illuminate when both the input and
output signals are connected.
5 SERVICE: Reserved for service only.
6 DC 24V: Connect the 24 V DC power supply to the unit and plug the
adaptor into an AC outlet.
7 POWER LED: The LED will illuminate when the device is connected to
a power supply.
9
6.2 Rear Panel
IR A1
Extender
IR B1
Extendrt
IR A2
Blaster
IR B2
Blaster
LAN TUO 6/e5TACTUO 6/e5TAC
MODE
LINK
BA
MODE LINK
21 3 4 6 4 625 3 5
1 LAN: Connect to an active network for LAN serving. When any
compatible LAN equipped receivers are connected, this allows the
network access (including internet access if available) to be shared
between any connected LAN equipped receivers. Connect any
Ethernet equipped device e.g. a Smart TV or games console to the
LAN port of a receiver for that device to share the network/internet
access.
2 IR A1/B1 IR Extender: Connect the IR extenders for IR signal reception
. Ensure that the remote being used is within the direct line-of-sight of
the IR extender.
3 IR A2/B2 IR Blaster: Connect to the IR blasters for IR signal
transmission. Place the IR blaster in direct line-of-sight of the
equipment to be controlled. Use the supplied IR 'Y' Cable to ensure
control from each HDBaseT zone.
4 MODE LED: When the device is powered the LED will ash.
5 CAT5e/6 OUT A & B: Connect to HDMI to CAT5e/6/7 receivers (with or
without PoE function) with CAT5e/6/7 cable to extend the signal up to
100m.
NOTE: Non PoE receivers will require their own power supply
6 LINK LED: When the device is powered on and this slot is connected
to a compatible receiver device with CAT5e/6/7 cable the LED will
illuminate.
10

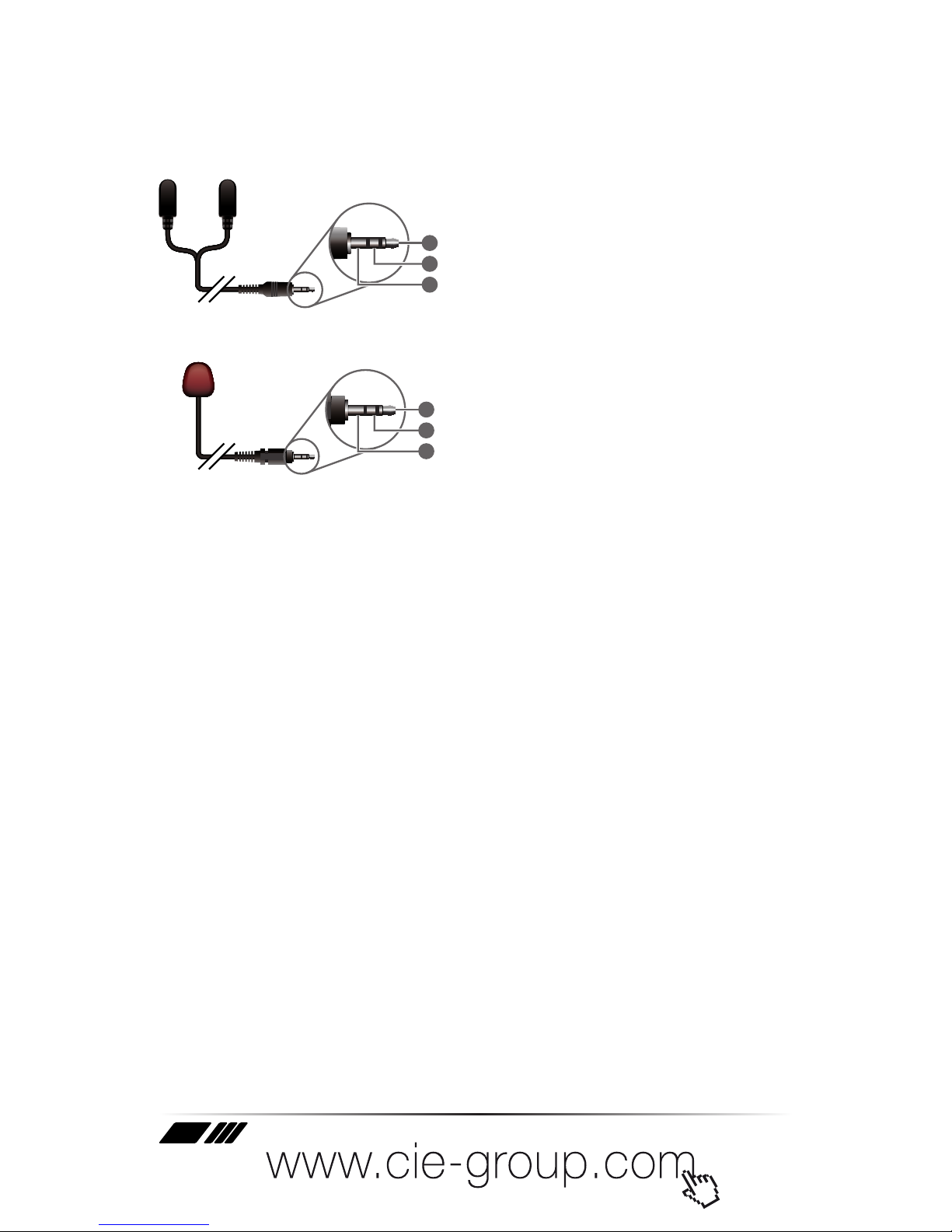

6.3 IR Pin Assignment
3
1
3
2
2
1Power 5 V
NC
IR Blaster Signal
IR Signal
Power 5 V
Grounding
IR Extender
Twin IR Blaster
11
7. CONNECTION DIAGRAM
