OPERATION MANUAL
EL-42S
v1.3 HDMI 4 Way Switcher
with 2 Identical Outputs
Table of Contents
1. Introduction 1
2. Features 1
3. Package Contents 1
4. Operation Controls and Functions 2
4.1 Front Panel Diagram 2
4.2 Rear Panel Diagram 2-3
4.3 Remote Control 3
5. RS232 Pinouts 4
6. Commands Sets 4
7. Connection Diagram 5
8. Specications 5
Page 1
1. Introduction
The EL-42S switcher allows the user to input four HDMI sources and switch
between these sources to display HD content on 2 displays. This switcher can be
controlled via the supplied remote control, RS-232, or by using the input switching
button on the front of the device.
2. Features
• v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant
• HDMI 4 Way Switcher with 2 Identical Outputs
• Resolutions Supported: PC - VGA, SVGA, XGA, SXGA, UXGA & WUXGA
(1920x1200). HDTV - 480i, 576i, 480p, 576p, 720p, 1080i, 1080p and
1080p24fps
• High Denition Audio supported - Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio plus LPCM
• Auto signal enhancement feature can improve signal quality after long distance
transmission
• RS232 & IR Remote Control
• Supports ‘Deep Colour’ (10 & 12 bit)
• Dual HDMI outputs for simultanious connection to two HD Displays
• Supports 3D signals
• Supports xvYCC
3. Package Contents
• 1 x Power Supply Unit
• 1 x Manual
• 1 x CR-23 Remote Control
Page 2
4. Operation Controls and Functions
4.1 Front Panel
1. Remote control sensor.
2. HDMI input Select/Indicator: Press the “Input” button sequentially to switch to
your desired input (HDMI 1 to HDMI 4), the LED will illuminate to indicate which
input source is selected.
3. POWER Switch/Indicator: Press the “POWER” button to turn on/off the power,
the power LED illuminate in red colour means the power is turned on, when the
LED not illuminate power is turned off.
4.2 Rear Panel
POWERINPUT
4321
SPLITTER
4x2
HDMI 1.3/2.25G
HDMI
1 3 2
RS-232
HDMI OUT HDMI OUT
2 1
HDMI IN
4
HDMI IN
3
HDMI IN
2
HDMI IN
DC 5V
1
23
1
Page 3
1. HDMI Outputs 1 and 2: Connect each of the output ports to the HDMI display.
When more than one output connected, the HDMI outputs play identical video
signal simultaneously.
2. RS232: 9-pin D-Sub connector for connecting to your PC or other control
console for remote control.
3. HDMI Inputs 1 to 4: Connect each of the input ports to the HDMI or DVI output
of your source equipment such as DVD player or set-top-box.
4. Power: Plug the 5V DC power supply into this unit and connect the adaptor to AC
wall outlet.

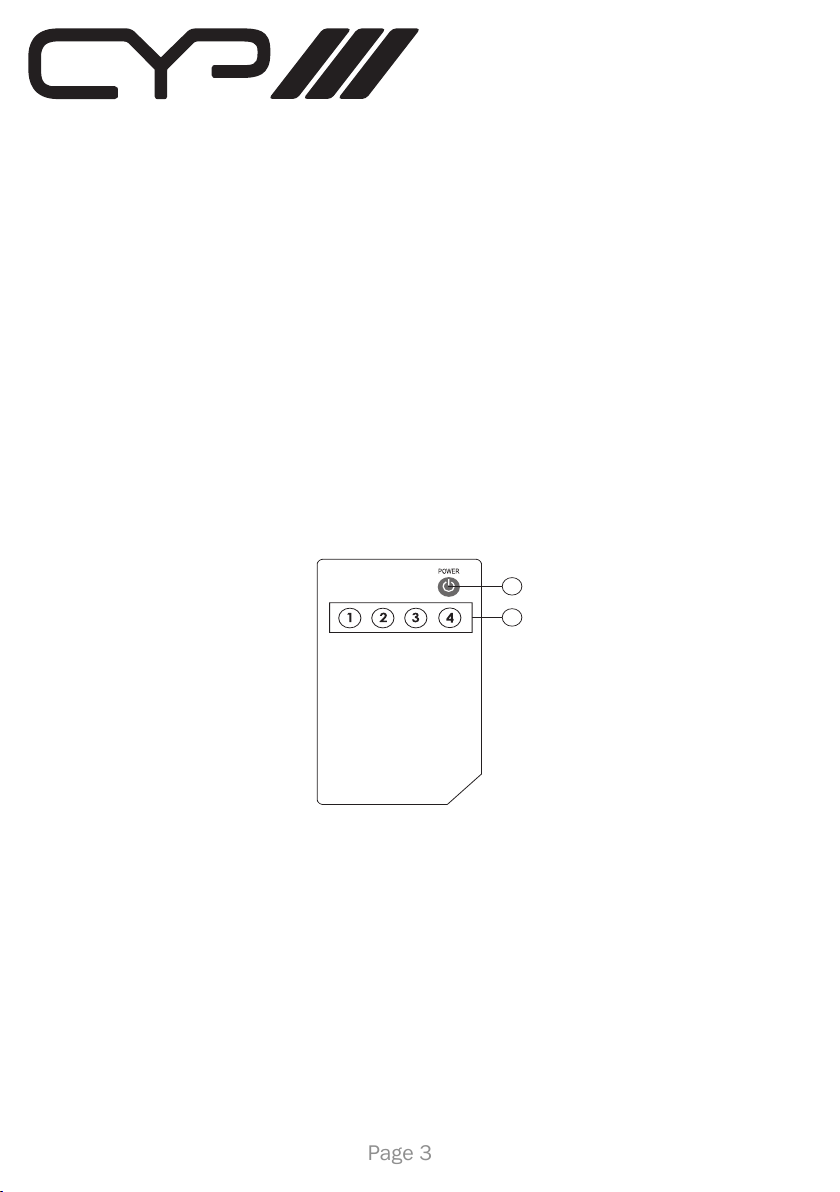

1. Power: Press the button to turn on/off the unit.
2. Direct input selector: Press 1, 2, 3 or 4 to select the desired input source.
4.3 Remote Control
1
2
CR-23
Page 4
5. RS232 Pinouts
EL-42S Remote Control Console
PIN Denition PIN Denition
1 NC 1 NC
2 TxD 2 Rx
3 RxD 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
EL-42S transmission format:
• Baud Rate: 9600 bps
• Data bit: 8 Bits Parity: None
• Stop Bit: 1 bit
6. Command Sets
RS 232 COMMAND
Operation
POWER 00 Select Power OFF
POWER 00 Select Power OFF
PORT 01 Select port 1
PORT 02 Select port 2
PORT 03 Select port 3
PORT 04 Select port 4
Page 5
7. Connection Diagram
7. Specications
Frequency bandwidth 2.25Gbps (single link)
Input Ports 4 x HDMI female ports
HDCP Version v1.1
Output Port 2 x HDMI female ports
Remote Control Discrete IR remote
Power Supply 5V/2.6A DC (US/EU standards, CE/
FCC/UL certied)
Dimensions (mm) 240 (W) x 104 (D) x 50(H)
Chassis Colour Black
Chassis Material Aluminium
Operating Temperature Operating from 0°C ~ 40°C
Gross Weight (g) 820
Net. Weight (g) 600
www.cypeurope.com
