Operation Manual
Operation Manual
UHD+8x2 Multi-Format to HDMI/HDBaseT Switcher
with Scaler
CSC-6030CVE
DISCLAIMERS
The information in this manual has been carefully checked and is believed
to be accurate. Cypress Technology assumes no responsibility for any
infringements of patents or other rights of third parties which may result from
its use.
Cypress Technology assumes no responsibility for any inaccuracies that
may be contained in this document. Cypress also makes no commitment to
update or to keep current the information contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer fi le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express written
permission and consent from Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document are trademarks of
the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain, moisture
or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings
or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it
is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to
be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings
in the unit housing that provide ventilation and allow for suffi cient space
for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use to
avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
RDV1 2020/03/18 Preliminary release
RDV2 2020/08/12 Added Audio Delay and Trigger confi guration
RDV3 2020/10/13 Updated branding
VS1 2020/12/03 Added front panel lock
CONTENTS
1. Introduction...................................................... 1
2. Applications ..................................................... 1
3. Package Contents ........................................... 2
4. System Requirements..................................... 2
5. Features............................................................ 3
6. Operation Controls and Functions ................ 4
6.1 Front Panel.................................................. 4
6.2 Rear Panel................................................... 5
6.3 IR Cable Pinouts.......................................... 8
6.4 RS-232 Pinout and Defaults........................ 8
6.5 OSD Menu................................................... 9
6.6 WebGUI Control ........................................ 24
6.6.1 Video Tab ......................................... 26
6.6.2 HDCP Tab ........................................ 28
6.6.3 Picture Tab ....................................... 29
6.6.4 Audio Tab.......................................... 31
6.6.5 OSD Tab........................................... 33
6.6.6 EDID Tab .......................................... 34
6.6.7 System Tab....................................... 36
6.7 Telnet Control ............................................ 38
6.8 Serial and Telnet Commands .................... 38
7. Connection Diagram ..................................... 59
8. Specifi cations ................................................ 60
8.1 Technical Specifi cations ............................ 60
8.2 Video Specifi cations .................................. 62
8.2.1 Bypass Output.................................. 62
8.2.2 Scaled Output................................... 64
8.3 Audio Specifi cations .................................. 66
8.3.1 Digital Audio ..................................... 66
8.3.2 Analog Audio .................................... 67
8.4 Cable Specifi cations.................................. 68
8.5 HDBaseT Features.................................... 69
9. Acronyms ....................................................... 70
1
1. INTRODUCTION
This 8 by 2 multi-format scaling switcher provides HDMI, USB-C, DisplayPort,
and VGA inputs which can be freely selected for output at a scaled resolution
of the user’s choosing over the mirrored HDMI and HDBaseT outputs. The
HDMI, DisplayPort, and USB-C inputs and HDMI output support resolutions
up to 4K@60 (4:4:4, 8-bit) while the VGA input supports resolutions up to
WUXGA. The HDBaseT output supports automatic color subsampling of
4K50/60(4:4:4) sources to 4K50/60(4:2:0) and provides a great solution to
extend your audio and video up to 100 meters over a single run of Cat.6A
cable as well as providing PoH power to a compatible HDBaseT receiver.
This unit also includes multiple analog stereo audio inputs and a microphone
input along with an amplifi ed analog stereo output to provide a range of audio
routing and mixing fl exibility. The built-in audio mixer function allows the
user to mix audio from any LPCM 2.0 source with the microphone input for
presentation or lecture usage. The ability to switch back and forth between
mixed and non-mixed audio greatly simplifi es the presentation experience.
A trigger input interface is also provided to allow the easy addition of a
remote control keypad, or other trigger-supporting products, which can be
installed within a podium or within a table in a conference room or classroom.
This interface can allow the user to activate functions with the simple press
of a button. Standard control is available via front panel buttons with an On-
Screen Display (OSD), WebGUI, Telnet, Triggers, and RS-232 making it
exceptionally versatile.
2. APPLICATIONS
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
2
3. PACKAGE CONTENTS
• 1× UHD+ 8x2 Multi-Format to HDMI/HDBaseT Switcher with Scaler
• 1× 24V/6.25A DC Power Adapter
• 1× Rackmount Ears (Set of 2)
• 1× Shockproof Feet (Set of 4)
• 1× Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI/DisplayPort/USB-C source equipment such as media players, video
game consoles or set-top boxes.
• VGA source equipment such as a PC, or laptop.
• HDMI receiving equipment such as an HDTV, monitor, or audio amplifi er.
• Analog audio receiving equipment such as audio amplifi ers or powered
speakers.
• A compatible HDBaseT receiver with PoH(PD) support is recommended.
• The use of Premium High Speed HDMI cables, and industry standard
Cat.6, Cat.6A or Cat.7, is highly recommended.
3
5. FEATURES
• HDMI 2.0 and DVI 1.0 compliant
• HDCP 1.x and 2.2 compliant
• 8 video inputs (1×USB-C, 1×DisplayPort, 5×HDMI, 1×VGA)
• 2 mirrored video outputs (1×HDMI, 1×HDBaseT)
• Supports switching and scaling of all AV inputs for display over the
mirrored HDMI and HDBaseT outputs
• Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) digital video
input (HDMI, USB-C, DP) and output (HDMI)
• VGA input supports resolutions up to 1080p60/WUXGA (RB)
• HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) or
4K@30Hz (4:4:4, 8-bit). 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-
bit) sources will be automatically color space converted to fi t within the
available bandwidth
• Supports Deep Color input and output up to 12-bit (Bypass only)
• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output (HDMI
Bypass only)
• HDBaseT output extends video, audio, and data over a single Cat.5e/6/7
cable and can reach distances up to 100m/328ft at 4K when using
Cat.6A/7
• Supports pass-through of many audio formats including LPCM (up to 8
channels), Bitstream and HD Bitstream
• Audio mixer function allows the mixing of audio from any LPCM 2.0 audio
source with the microphone input
• Trigger Control Keypad support for easy, single-button, function activation
(Optional)
• Supports standard PoH (PSE) from the HDBaseT output to a connected
HDBaseT (PD) receiver (compatible receivers only)
• USB Type-C port provides up to 60W of power to connected devices
• Comprehensive EDID and HDCP management
• Controllable via front panel controls with OSD, RS-232, Telnet, WebGUI,
and triggers
4
6. OPERATION CONTROLS AND FUNCTIONS

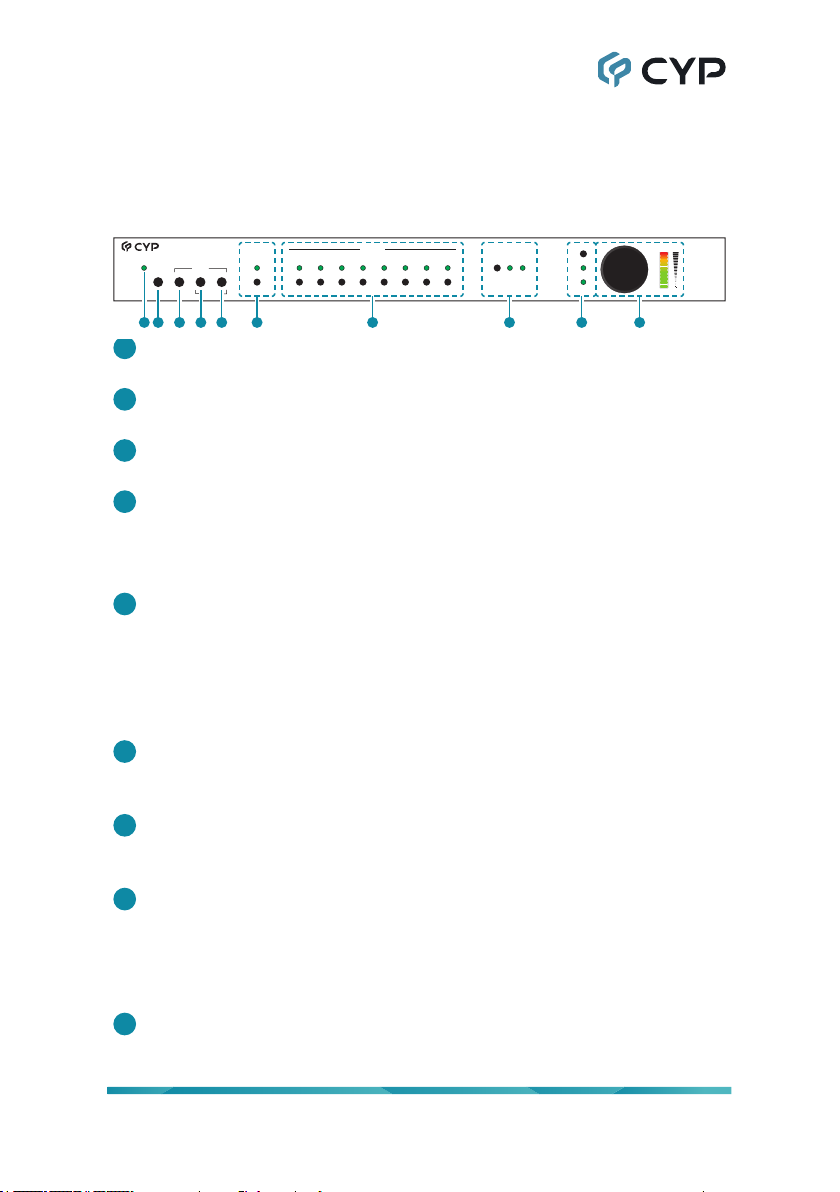

6.1 Front Panel
USB-C DP HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5 VGA MIC MIX
AUDIO OUT SELECT
POWER HDMI OUT
AMPLIFIER
LINE OUT
VOLUME
MENU ENTER
-
+
WUXGA
1080P
BYPASS
VIDEO IN
1 2 3 4 5 6 7 8 9 10
1POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
2MENU Button: Press to enter the OSD menu, or to back out from menu
items.
3MINUS (-) Button: Press to move down or adjust selections within OSD
menus.
4PLUS (+) Button: Press to move up or adjust selections within OSD
menus.
Note: Pressing the “+” button when not in a menu will toggle the video
freeze feature.
5ENTER Button: Press to confi rm a selection within the OSD or to go
deeper into a menu item. Pressing and holding this button when not in a
menu will lock or unlock the front panel buttons.
Note: Pressing “ENTER” and “+” together will reset the output resolution
to WUXGA (1920×1200@60Hz). Pressing “ENTER” and “-” together will
reset the output resolution to 1080p@60Hz.
6HDMI OUT BYPASS Button & LED: Press this button to enable or
disable the HDMI video Bypass function. When bypass is enabled, the
LED will illuminate.
7VIDEO IN Buttons & LEDs: Press any of these buttons to switch
immediately to the corresponding input. An LED will illuminate to indicate
which source is currently selected.
8AUDIO OUT SELECT Button & LEDs: Press this button to select the
microphone mix mode of the unit. The LED will illuminate to indicate the
current mix mode. When both LEDs are off , the mixer is disabled.
Note: Activating Mixer On mode, or MIC Only mode will automatically
disable HDMI Out Bypass mode.
9VOL. Button & LEDs: Press this button to select which audio output’s
volume is controlled by the volume knob. When both LEDs are off , the
knob controls the HDMI audio output (LPCM 2.0 only).
USB-C DP HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5 VGA MIC MIX
AUDIO OUT SELECTHDMI OUT
AMPLIFIER
LINE OUT
VOLUME
MENU ENTER
-
+
WUXGA
1080P
BYPASS
VIDEO IN
POWER
1 2 3 4 5 6 7 8 9 10
5
10 VOL. Rotary Knob & LEDs: Rotating the knob increases or decreases
the currently selected audio output’s volume level. The LED bar will
change according to the current level. Pressing in on the knob toggles
the audio mute function.
6.2 Rear Panel
123456 IR IN IR OUT
L+
L+ L- R+ R-
L- GR+R-
HDMI OUTCAT5e/6/7 OUT
SERVICE
LAN DC 24V
AUDIO OUT RS-232
TX1
TX2
RX1
RX2
G
G
24V
24V
OFF
48V
5V
TRIGGER IN
5V
G
1
5
2
6
4
8
3
7
RELAY
12
ANALOG AUDIO
DP HDMI 1 HDMI 2HDMI 3HDMI 4HDMI 5
INPUT
USB-C
MIC IN
VGA
109 11 12 13 14 15 16 17
1 2 3 4 5 6 7 8
1MIC IN Port & 48V/OFF/5V Switch:Connect to a standard microphone
using a 6.35mm plug. Set the switch based on the phantom power
requirements of the connected microphone.
Note: If no phantom power is required, this switch should remain in the
“Off ” position to avoid potential damage to connected equipment.
2ANALOG AUDIO INPUT 1~6 Ports: Connect to the analog stereo output
of a device such as an audio player or PC.
Note: By default, Analog Audio 1 is paired with the VGA input.
3AUDIO OUT 5-pin Terminal Block: Connect to powered speakers or an
amplifi er for analog stereo audio output.
4AUDIO OUT L/R 2-pin Terminal Blocks: Connect to unpowered 4Ω
speakers for analog stereo audio output. Up to 20W of power is provided
to each speaker.
5TRIGGER IN 10-pin Terminal Block: Connect to the Trigger Control
Keypad (Optional) or any device with trigger switch functionality such as
window security alarms, motion detectors, door switches, etc. Each of
the 8 triggers will activate an assigned unit function when triggered.
Note: A minimum of 5V DC is required to activate a trigger.
6RELAY 1~2 2-pin Terminal Blocks: Connect to devices that can be
powered and controlled via a DC 0~24V/5A relay connection such as a
curtain, projection screen, or lights.
7IR IN Port: Connect to an IR Extender to receive local IR control signals
and extend them to devices connected to the other end of the HDBaseT
connection. Ensure that the remote being used is within direct line-of-
sight of the IR Extender.
Tabla de contenidos
Otros manuales de Cambiar de CYP
CYP
CYP CED-1M Manual de usuario
CYP
CYP EL-8100V Manual de usuario
CYP
CYP CDPS-U42HPIP Manual de instalación
CYP
CYP PU-1H2HBTE Manual de usuario
CYP
CYP CPLUS-V3H1H Manual de usuario
CYP
CYP OR-HD62CD-4K22 Manual de usuario
CYP
CYP EL-41X Manual de usuario
CYP
CYP CPRO-U4H1HFS Manual de usuario
CYP
CYP PUV-2608TX Manual de usuario
CYP
CYP CPLUS-V3H1H-TB Manual de usuario
CYP
CYP EL-42S Manual de usuario
CYP
CYP CDPS-41SQN Manual de usuario
CYP
CYP EL-31TT-4K22 Manual de usuario
CYP
CYP CPRO-3D41GAME Manual de usuario
CYP
CYP CH-1539TXPLPD Manual de usuario
CYP
CYP DCT-31 Manual de usuario
CYP
CYP EL-21SY Manual de usuario
CYP
CYP CPLUS-V4H1HP Manual de usuario
CYP
CYP CH-2537TXWPUS Manual de instalación
CYP
CYP EL-C61C Manual de usuario
