CYP OR-HD62CD-4K22 Manual de usuario

OR-HD62CD-4K22

6x2 HDMI Matrix Switch with Audio De-Embedding

(4K HDR, 18Gbps (6G) resolution support & HDCP2.2)

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer file, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of fire,

electrical shock and injury to persons.

• To prevent fire or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

v1.00 12/03/2018 First release

CONTENTS

1. Introduction...........................................6

2. Applications ...........................................6

3. Package Contents ..................................6

4. System Requirements ...........................7

5. Features..................................................7

6. Operation Controls and Functions.......8

6.1 Front Panel................................................... 8

6.2 Rear Panel...................................................10

6.3 Remote Control........................................11

6.4 IR Cable Pin Assignments .....................12

6.5 RS-232 Protocol........................................12

6.6 RS-232 and Telnet Commands............13

6.7 Telnet Control............................................17

6.8 WebGUI Control .......................................18

7. Connection Diagram .......................... 25

8. Specifications...................................... 26

8.1 Technical Specifications ........................26

8.2 Video Specifications................................27

9. Acronyms............................................. 28

1. INTRODUCTION

This 4K UHD+ 6 by 2 Matrix provides the ability to connect up to six 4K

UHD HDMI sources to up to two 4K UHD HDMI displays and freely switch

between them. This unit comes with full support for 18Gbps (600Mhz)

resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support

for 16-bit Deep Colour (up to 1080p@60Hz), HDR (High Dynamic Range),

HD audio and other features defined by the HDMI 2.0 specification.

With a comprehensive EDID management feature that includes the ability

to select between six built in default EDIDs, or an EDID copied from a

connected sink device, this matrix can solve many interconnectivity

problems.

Added flexibility comes from the ability to extract audio from each HDMI

output’s source and output it as optical digital audio (LPCM 2.0 and

standard Bitstream only). Six fully configurable presets are also provided

to simplify the routing process. This unit provides an intuitive set of front

panel controls with associated LCD, as well as RS-232, Telnet, WebGUI, and

IR remote control options.

2. APPLICATIONS

Entertainment Rooms & Home Theaters

Lecture Rooms

Showrooms & Demo Rooms

Public Commercial Displays

3. PACKAGE CONTENTS

1×4K UHD+ 6 by 2 HDMI Matrix

1×Remote Control (CR-175)

1×IR Extender Cable

1×5V/3A DC Power Adaptor

1×Rack Mount Ears (Set of 2)

1×Operation Manual

4. SYSTEM REQUIREMENTS

HDMI source equipment such as media players, video game consoles

or set-top boxes.

HDMI receiving equipment such as HDTVs, monitors or audio

amplifiers.

The use of “Premium High Speed HDMI”cables is highly recommended.

5. FEATURES

HDMI input and output with 18Gbps (600MHz) 4K UHD support

DVI 1.0 compliant with the use of an HDMI-DVI adaptor

HDCP 1.4 and 2.2 compliant

Supports HD resolutions up to 3840×2160@60Hz (YUV 4:4:4, 8-bit) and

4096×2160@60Hz (YUV 4:4:4, 8-bit)

Supports 16-bit Deep Colour up to 1080p@60Hz

6 HDMI inputs and 2 HDMI outputs

Supports pass-through of audio formats including LPCM 2.0/5.1/7.1,

Bitstream, and HD Bitstream

Display any of 6 high-definition sources on up to 2 HDTV displays

simultaneously

Optical audio extraction paired with each HDMI output (LPCM 2.0 or

Bitstream only)

Supports 6 internal EDIDs or 2 external EDIDs copied from connected

devices

Controllable via front panel buttons with LCD, WebGUI, Telnet, RS-232,

and IR remote

6. OPERATION CONTROLS AND FUNCTIONS

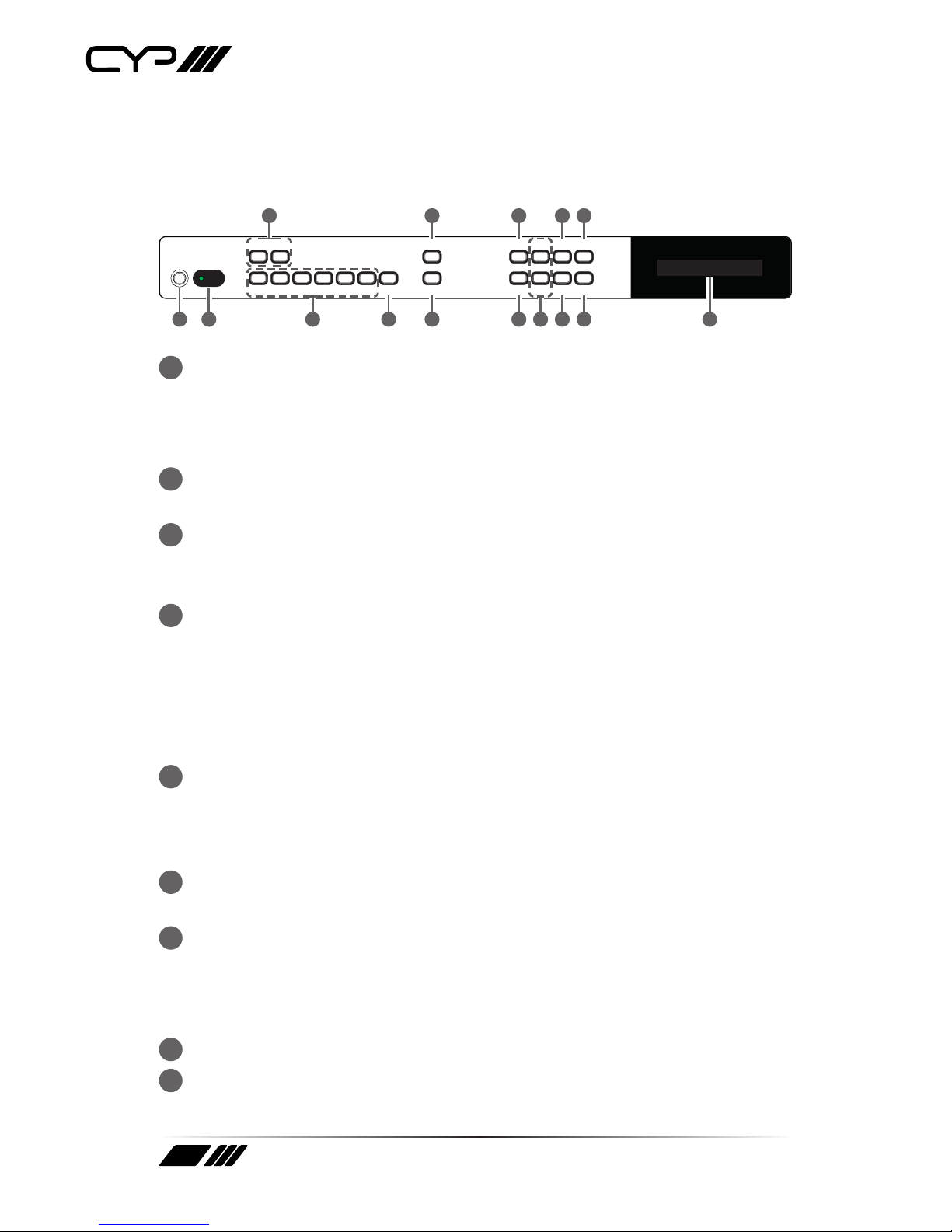

6.1 Front Panel

POWER

OUT AOUT B

IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 MUTE CONFIRM

CANCEL

ENTER

PRESET

ALL

INFO

LOCK

1 2 4 5 7 9

3 6 8 11 13

10 12 14 15

1POWER: Press this button to power the unit on (green LED) or place it

into stand-by mode (red LED).

Note: Ethernet, RS-232, and IR remain active while the unit is in stand-by

mode.

2IR WINDOW: Accepts IR signals from the included IR remote for

control of this unit only.

3OUT A~B: Press the “OUT” keys (A or B) of the outputs you wish to

route a source to (the letter will flash in the LCD to indicate selection).

Pressing an OUT button a second time will de-select that output.

4IN 1~6: After selecting one or more outputs, press the “IN”key of

the input (1~6) you wish to route to the selected output(s). In Preset

selection mode, these buttons are used to select the saved preset to

use.

Note: The “CONFIRM” button (Item 7) must be pressed to activate the

selected routing configuration.

5MUTE: The “MUTE” button functions as a blank audio/video source.

To use it, follow the standard matrix routing instructions, but use the

“MUTE” button as the input to blank out the selected outputs. When a

“MUTE” input is in use it will show up as “M” within the routing display.

6CANCEL: Press to cancel/undo any un-confirmed routing change

selections.

7CONFIRM: Press to confirm and activate newly made input/output

routing selections.

Note: It is possible to configure multiple I/O routes prior to pressing the

“CONFIRM” button.

8MENU: Press to enter the LCD menu, or to back out from menu items.

9ENTER: Press to confirm a selection within the LCD menu or to go

deeper into a menu item.

10 + & −: Press to move up and down or adjust selections within the LCD

menus.

11 ALL: Press this button to select all outputs simultaneously for routing

(the letters will flash in the LCD to indicate selection). Press it a second

time to de-select all outputs.

12 PRESET: Press to enter the preset recall menu in the LCD window.

Press the numbered“IN” button of the Preset you wish to activate

followed by the“CONFIRM” button to activate it.

13 LOCK: Press to lock all button functions on the front panel. Press and

hold for 3 seconds to release the lock function. The LCD will display

“Lock” when the function is active.

14 INFO: Press to show the current input/output routing and detected

resolution on each output’s OSD.

15 LCD WINDOW: Displays the unit’s menu, settings, and information.

6.2 Rear Panel

IR IN DC 5V

RS232

CONTROLSERVICE

OPTICAL OUT

HDMI OUT

HDMI IN

123456

1 2 3 4 5 6 7 8

1HDMI IN 1~6: Connect to HDMI source equipment such as media

players, game consoles or set-top boxes. DVI source equipment may

be connected by using HDMI to DVI adapters.

2HDMI OUT A~B: Connect to HDMI TVs, monitors or amplifiers for

digital video and audio output. DVI display equipment may be

connected by using HDMI to DVI adapters.

3OPTICAL OUT A~B: Connect to powered speakers or amplifiers for

digital audio output using appropriate optical cables. The audio from

each optical output will be the same as the HDMI output it is paired

with (LPCM 2.0 and standard Bitstream only).

4SERVICE: This slot (USB 2.0) is reserved for firmware update use only.

5CONTROL: Connect directly, or through a network switch, to your PC/

laptop to control the unit via Telnet/WebGUI.

6RS-232: Connect directly to your PC/laptop to send RS-232 commands

to control the unit.

7IR IN: Connect to the provided IR Extender to extend the IR control

range of the unit. Ensure that the remote being used is within direct

line-of-sight of the IR Extender.

8DC 5V: Plug the 5V DC power adapter into the unit and connect it to

an AC wall outlet for power.
