CLUX-4S2

4x2 HDMI v1.3

switch

Operation Manual

CLUX-4S2

TABLE OF CONTENTS

1. Introduction.................................................................................1

2. Features.......................................................................................1

3. Package Contents..................................................................... 1

4. Hardware Description................................................................ 1

4.1 Front Panel.............................................................................1

4.2 Rear Panel............................................................................. 2

5. Remote Control...........................................................................2

6. Connection and Installation......................................................3

7. Specifications............................................................................. 3

1

1. Introduction

This is a 4 to 2 HDMI v1.3 switcher/selector which allows 4 HDMI ports to be

switched to two independent display output. This is compatible with HDMI

v1.3 specifications, a cutting-edge technology which defines the support

to transfer Deep Color (12 bits/color) and new lossless compressed (Dolby

TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a

high bandwidth up to 225MHz.

2. Features

●HDMI 1.3 HDCP 1.1and DVI 1.0 compliant.

●Supports four HDMI inputs and switchs to two independent display output

(can’t supports output simultaneously).

●Supports digital video formats in Deep Color Mode at up to 36 bits

(12bits/color) and new lossless compressed (Dolby TrueHD, Dolby Digital

Plus and DTS-HD Master Audio) digital audio.

●Supports equalization and recovers incoming TMDS data before

re-transmitting them with optimal quality regardless of the incoming signal

quality.

●Supports high definition input up to 1080p@60Hz, output resolution follows

input.

●Full HDCP Compliant.

●Supports CEC function.

●Easy to install and to operate

3. Package Contents

●4 x 2 HDMI v1.3 switch.

●5V/1A DC power supply adaptor.

●Operation Manual.

4. Operation Controls and Functions

4.1. Front Panel

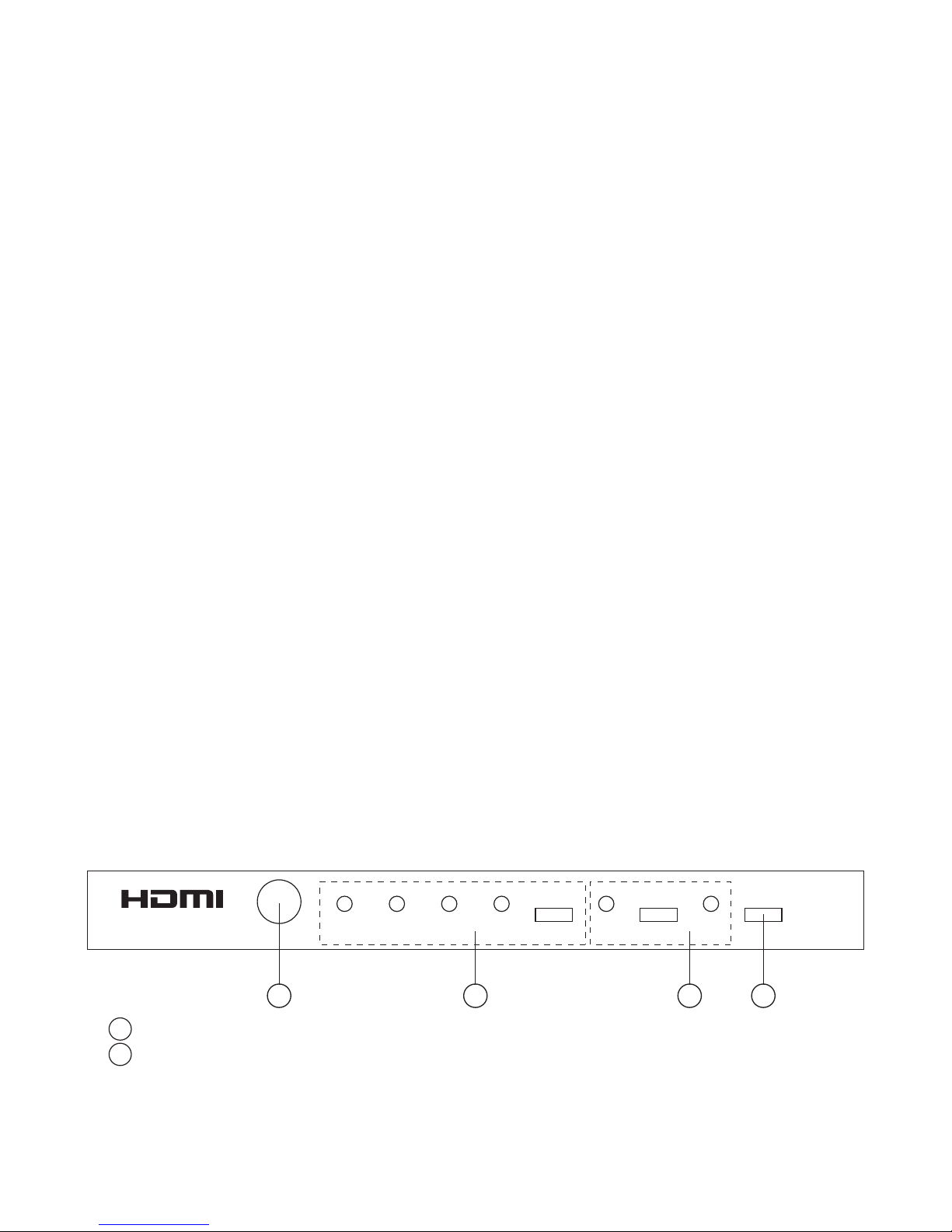

1 . Remote Control Sensor.

2 . HDMI input selection/Indicator: Press the "Input" button sequentially to

switch to your desired input (HDMI 1 to HDMI 4), the LED will illuminate to

indicate which input source is selected.

4321

1 12 23 4 OUTPUT

INPUT POWER

CLUX-4S2

2

3 . HDMI output selection: Press the “Output” button to select your desired

output port, the LED will illuminate to indicate which output port is

selected (can’t support simultaneously output).

4 . POWER Switch/Indicator: Press the "POWER" button to turn on/off the

power.

4.2. Rear Panel

1 . HDMI Outputs 1 and 2: Connect each of the output ports to the HDMI

display.

2 . HDMI Inputs 1 to 4: Connect each of the input ports to the HDMI or DVI

output of your source equipment such as DVD player or set-top-box.

3 . Power: Plug the 5V DC power supply into this unit and connect the

adaptor to AC wall outlet.

5. Remote Control

1. Power: Press the button to turn on/off the unit.

2. Direct input selector: Press 1, 2, 3 or 4 to select the

desire input source.

3. Direct output selector: Press 1 or 2 to select the

desire output port.

IN 1IN 2IN 3IN 4OUTPUT 1

DC 5V

OUTPUT 2

321

OUTPUT

CR-51

POWER

INPUT

3 4

1 2

1 2

1

2

3

3

6. Connection and Installation

7. Specifications

LCD TV

DVD 3

LCD TV

STBDVD 2DVD 1

Input Ports

Output Ports

Power Supply

Dimensions (mm)

Weight(g)

Chassis Material

Silkscreen Color

Operating Temperature

4 x HDMI

2 x HDMI

5V/1A DC (US/EU standards, CE/FCC/UL certified)

206(W) x 111(D) x 32(H)

248

Plastic

Black

0°C ~ 40°C

2008.4.3 MPM-CLUX4S2

Home page: http://www.cypress.com.tw

CYPRESS TECHNOLOGY CO., LTD.
