Operation Manual
Operation Manual
HDMI/Mini DisplayPort/USB Type-C to HDMI Switch
CPLUS-31PS
DISCLAIMERS
The information in this manual has been carefully checked and is believed
to be accurate. Cypress Technology assumes no responsibility for any
infringements of patents or other rights of third parties which may result from
its use.
Cypress Technology assumes no responsibility for any inaccuracies that
may be contained in this document. Cypress also makes no commitment to
update or to keep current the information contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express written
permission and consent from Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document are trademarks of
the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain, moisture
or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings
or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it
is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to
be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings
in the unit housing that provide ventilation and allow for sucient space
for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use to
avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
RDV1 2020/03/18 Preliminary release
CONTENTS
1. Introduction...................................................... 1
2. Applications ..................................................... 1
3. Package Contents ........................................... 1
4. System Requirements..................................... 1
5. Features............................................................ 2
6. Operation Controls and Functions ................ 3
6.1 Front Panel.................................................. 3
6.1 Front Panel.................................................. 4
6.2 Rear Panel................................................... 4
7. Connection Diagram ....................................... 5
8. Specications .................................................. 6
8.1 Technical Specications .............................. 6
8.2 Video Specications .................................... 7
8.3 Audio Specications .................................... 9
8.3.1 Digital Audio ....................................... 9
8.4 Cable Specications.................................. 10
9. Acronyms ....................................................... 11
1
1. INTRODUCTION
This 3x1 Multi-Format to HDMI Switch is a 4K@60Hz (4:4:4) switch featuring
USB Type-C, HDMI and Mini DisplayPort inputs which are automatically
converted to a standard HDMI format for use with projectors or displays. This
unit provides easy switching functionality with both a manual input selection
button and an optional autosensing “last memory” feature which can
automatically switch to a newly connected source or revert to the previous
source, if the current one becomes disconnected, with no user intervention
necessary. This switch is an ideal addition to any conference room, lecture
hall or home entertainment setup with its portable and easy to install design.
This unit is controllable via a single rear panel button.
2. APPLICATIONS
• Conference rooms and boardrooms
• Lecture halls, auditoriums, and classrooms
• Household entertainment sharing and control
3. PACKAGE CONTENTS
• 1× HDMI/Mini DisplayPort/USB Type-C to HDMI Switch
• 1× 5V/1.2A DC Power Adapter
• 1× Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI, DisplayPort, or USB-C source equipment such as media players,
video game consoles, set-top boxes or PCs.
• HDMI receiving equipment such as an HDTV, monitor or audio amplier.
• The use of Premium High Speed HDMI cables is highly recommended.
• The use of 30AWG (Gen 2) USB Type-C cable is highly recommended.
• The use of DisplayPort 1.2 or higher spec cable is highly recommended.
2
5. FEATURES
• HDMI 2.0, DisplayPort 1.4, and DVI 1.0 compliant
• HDCP 1.x and 2.2 compliant
• 1 HDMI, 1 Mini DisplayPort, and 1 USB Type-C input
• 1 HDMI output
• Supports up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and
output
• Supports Deep Color input and output up to 12-bit
• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
• Supports pass-through of many audio formats including 8 channel LPCM,
Bitstream, and HD Bitstream
• Supports auto-switch functionality with a “last memory” feature
• EDID bypass with an optimized algorithm to ensure optimal resolution and
feature support
• Easy to read LEDs to indicate input selection and operational mode
• Powered via the Mini-USB port (1.2 Amps required)
• Small and portable switch box design
• Controllable via a single rear panel button with LEDs
3
6. OPERATION CONTROLS AND FUNCTIONS

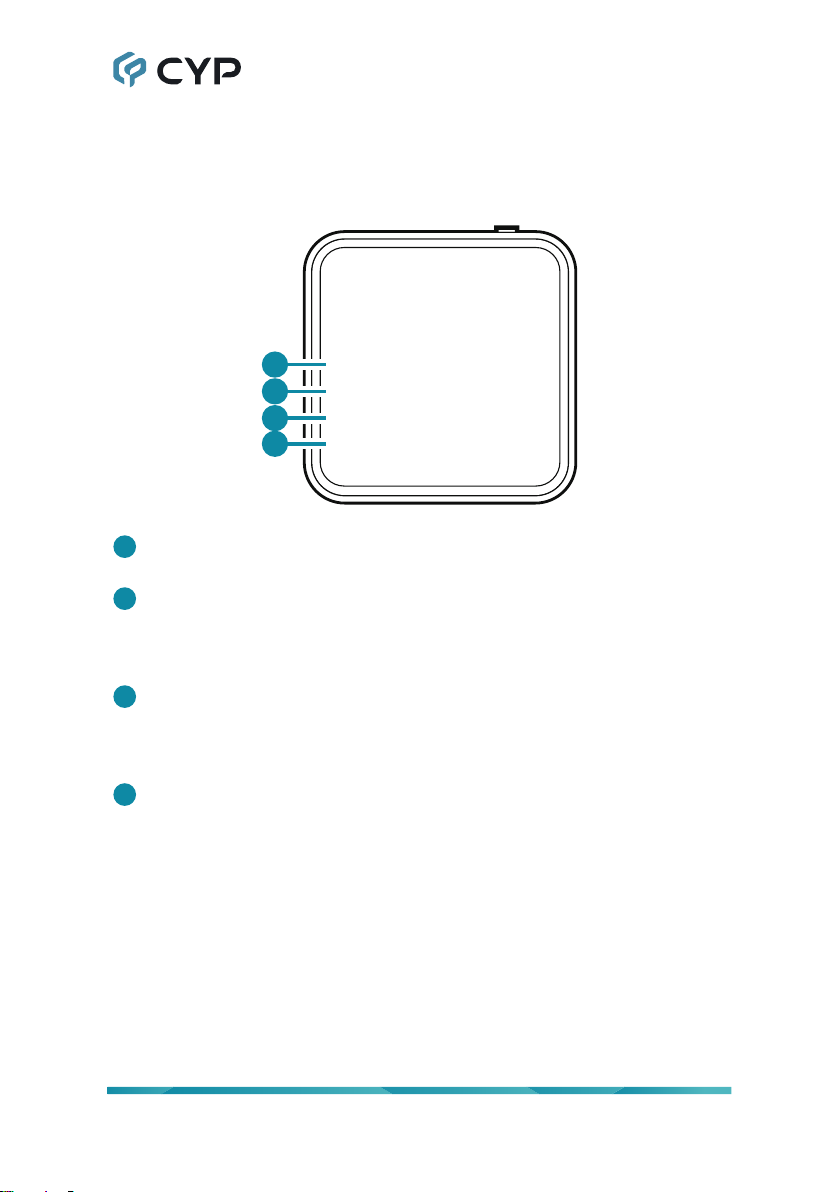

6.1 Top Panel
AUTO
MULTI-FORMAT
SWITCHER
USB-C
HDMI
MINI DP
1
2
3
4
1AUTO LED: This LED will illuminate when the auto switch function is
active.
2USB-C LED: This LED will illuminate blue when USB-C is the currently
selected input. If the input has an active source, but is not currently
selected, it will illuminate red. When no source is detected the LED will
remain o.
3HDMI LED: This LED will illuminate blue when HDMI is the currently
selected input. If the input has an active source, but is not currently
selected, it will illuminate red. When no source is detected the LED will
remain o.
4MINI DP LED: This LED will illuminate blue when Mini DisplayPort is
the currently selected input. If the input has an active source, but is not
currently selected, it will illuminate red. When no source is detected the
LED will remain o.
4
6.2 Front Panel
USB-C HDMI
IN MINI DP
1 2 3
1USB-C IN Port: Connect to USB Type-C video source equipment such
as a PC or laptop.
Note: Not all devices with USB Type-C ports can support video output.
Please verify that the device supports video output from the USB Type-C
port before connecting it.
2HDMI IN Port: Connect to HDMI source equipment such as a media
player, game console, or set-top box.
3MINI DP IN Port: Connect to DisplayPort source equipment such as a
PC or laptop.
Note: For 4K sources, use of cable that supports DisplayPort 1.2 or
higher is strongly recommended.
6.3 Rear Panel
PWRHDMI OUTIN SEL.
1 2 3
1IN SEL. Button: Press this button to sequentially switch through the
available inputs or select auto switch.
2HDMI OUT Port: Connect to HDMI source equipment such as a media
player, game console, or set-top box.
3PWR Port: Connect the provided mini USB power adapter to this port
and connect it to an AC wall outlet for power. This port is also used to
perform rmware updates.
Note: USB power sources must provide a minimum of 1.2 Amps.
5
7. CONNECTION DIAGRAM
PWRHDMI OUTIN SEL.
USB-C HDMI
IN MINI DP
Monitor Projector
or
or
or
4K TV
Mini DP
Input
USB-C Input
HDMI Input
HDMI Output
Laptop Game Console Desktop PC
POWER
Blu-ray Player
