Gofanco HD20wireless Manual de usuario

HDMI Wireless Extender

4K60Hz - 50m

User's Guide

G4-0149A

P/N:HD20wireless

Thank you for purchasing from gofanco. Our products

aim to meet all your connectivity needs wherever you

go. For optimum performance and safety, please read

the instructions carefully and keep this User's Guide for

future reference. If you need more information about

our products, please visit www.gofanco.com. For

technical support, email us at [email protected].

For drivers or manual download, please go to

www.gofanco.com/downloads.

Important Safety Notices

Pleasereadsafetyinstructionscarefullybeforeinstallation

and operation.

• Please pay close attention to all warnings and hints

for this device

• Do not expose this unit to rain, heavy moisture, or

liquid

• Do not put any items into the device or attempt to

modify its operation

• Do not repair the device or open the enclosure

without professional guidance to avoid electric

shocks. Doing so may void your warranty

• Keep the product in a well-ventilated location to

avoid damage from overheating

• Shut off power and make sure environment is safe

before installation

• Do not plug the HDMI cables and IR cables

in/out when the device is in use to avoid cable

damage. Make sure they are plugged into the

correct ports

• Use the included power adapters only. Make sure

the specification matches if using 3rd-party DC

power adapters

Introduction

The HDMI Wireless Extender 4K60Hz - 50m transmits

HDMI signals wirelessly up to 164ft (50 m) at 4K@60Hz

resolution. It requires no cables between the Transmitter

(TX) and Receiver (RX), making the installation easy and

clean. Great for homes and offices.

Note: Wireless transmission distance will vary due

to the environmental conditions. Thick walls, brick,

glass, electronic interference, and wireless signals

from other devices will shorten the wireless

transmission distance or cause signal loss.

Features

• Wireless transmission distance: 164ft (50m) at 4K

@60Hz

• Supports PCM 2-channel audio

• SupportsSSID channel pairingto avoid interference

• Supportsup to 4K@60Hz and backwardcompatible

with lower resolutions, including 2K

• HDCP 2.2/ 1.4 compliant

• Dual antenna design operating in a 5GHz wireless

spectrum

• Equipped with HDMI loopout and one-way IR

extension

• Less than 120ms latency. Not recommended for

real-time applications

PackageContents

• HDMI Wireless Extender 4K60Hz - 50m (1 TX and 1

RX)

• IR blaster cable (1pc)

• IR receiver cable (1pc)

• Antenna (4pcs)

• Power adapter (2pcs)

• Mounting accessories

• User guide

Installation Requirements

1. HDMI source device (DVD player, set top box, PC,

etc.)

2. HDMI display device (SDTV/Monitor, HDTV/

Monitor, projector, etc.)

3. HDMI cables (not included)

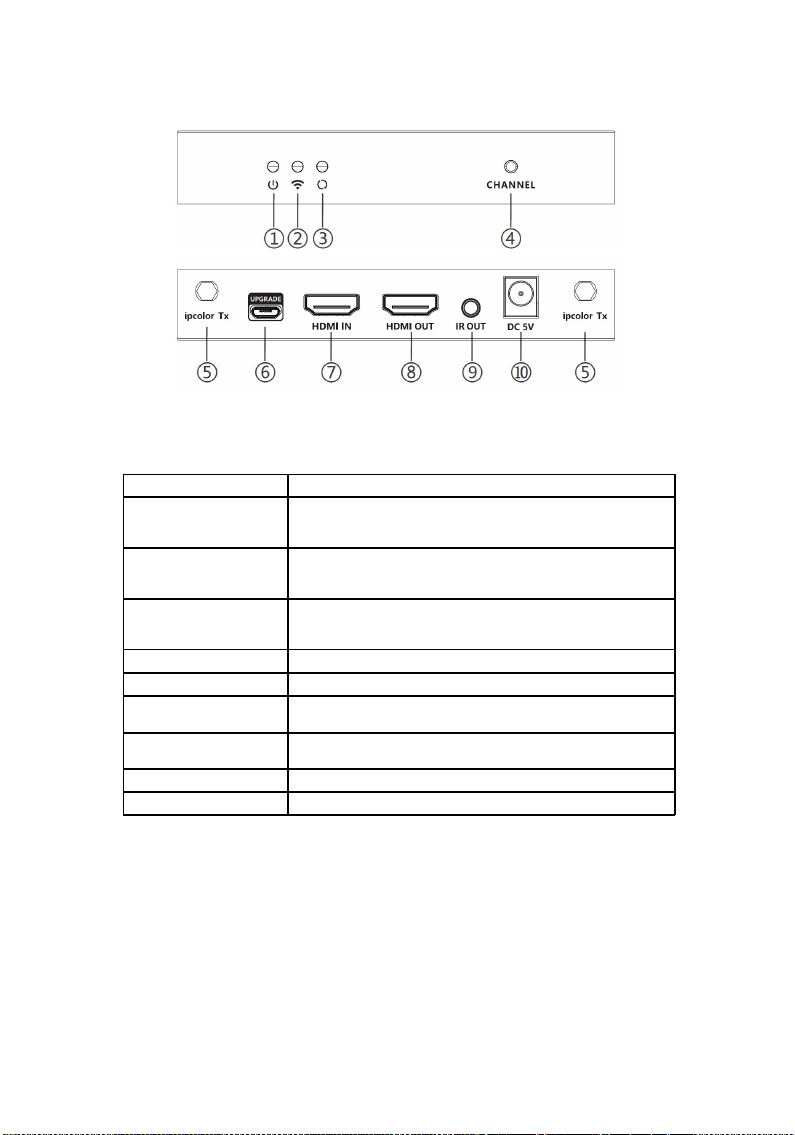

1. Power LED On when the transmitter is powererd on

2. WiFi LED

a) Slow flash: Waiting for connection

b) Solid on: Connection successful

c) Quick flash: Pairing mode

3. Signal LED

a) Light off: No HDMI signal

b) Solid on: HDMI signal transmitting

c) Quick flash: Restore factory settings

4. Channel Switching Button

a) Quick press to switch WiFi channels

b) Press and hold for 5 seconds to place into channel pairing mode

c) Press and hold for 10 seconds to restore to factory default settings

5. Antenna Connector Connect to the included antennas

6. Micro USB Port Used for firmware update

7. HDMI In Connect to your HDMI source using an HDMI cable (HDMI cable not

included)

8. HDMI Out Connect to your HDMI display using an HDMI cable for local

monitoring of the remote display device (HDMI cable not included)

9. IR Out Connect to the included IR blaster cable

10. Power Jack Connect to the included power adapter

Product Layout

Figure 1: Transmitter (TX)

*Note: TX and RX SSID channel pairing is required after

a factory reset. See SSID Channel Pairing on page 9.

1. Power LED On when the receiver is powererd on

2. WiFi LED

a) Slow flash: Waiting for connection

b) Solid on: Connection successful

c) Quick flash: Pairing mode

3. Signal LED

a) Light off: No HDMI signal

b) Solid on: HDMI signal transmitting

c) Quick flash: Restore factory settings

4. Channel Switching Button

a) Quick press to switch WiFi channels

b) Press and hold for 5 seconds to place into pairing mode

c) Press and hold for 10 seconds to restore to factory default settings

5. Antenna Connector Connect to the included antennas

6. Micro USB Port Used for firmware update

7. HDMI Out Connect to your HDMI display using an HDMI cable for local

monitoring of the remote display (HDMI cable not included)

8. IR In Connect to the included IR receiver cable

9. Power Jack Connect to the included power adapter

Figure 2: Receiver (RX)

*Note: TX and RX SSID channel pairing is required after

a factory reset. See SSID Channel Pairing on page 9.

Hardware Installation

1. Power off all devices including your HDMI source

and HDMI display.

2. Install the included antennas to the TX and RX.

3. Pair the TX and RX. See SSID Channel Pairing on

page 9.

4. Connect your HDMI source device to the

Transmitter's HDMI In connector with an HDMI

cable (HDMI cable not included).

5. Optional: Connect your HDMI display to the

Transmitter's HDMI Out connector with an HDMI

cable (HDMI cable not included). This connection

is needed only if you need to monitor the remote

display device from the source device location.

6. Optional: Connect the IR blaster cable to the

Transmitter's IR interface port. Facetheeyetowards

your HDMI source device's IR window. This

connection is needed only if you need to control

yourHDMIsourcefromtheremotedisplay location.

7. ConnectyourHDMI display to the Receiver's HDMI

Out connector with an HDMI cable (HDMI cable

not included).

8. Optional: Connect the IR receiver cable to the

Receiver's IR interface port. This connection is

needed only if you need to control your HDMI

source from the remote display location.

9. Plug the included power adapters into the

Transmitter's andReceiver's PowerJacks,thenplug

both power adapters into reliable power outlets.

10. Power on your HDMI source device and HDMI

display. The wireless extender is ready for use.

Note: For optimal signal range, install in a clear

environment with few obstacles. Wireless signals

fromotherdevicesmayinterfere with transmission.

Contact our technical support team if you have

specific questions.

Channel Switching

If you find that the extender does not provide adequate

or desired results, switching channels may help resolve

the issue. Follow the steps below to switch to the best

wireless frequency.

1. Press the channel switching button on either the

transmitter unit or receiver unit.

2. The transmitter and receiver will automatically

switch to the next best channel.

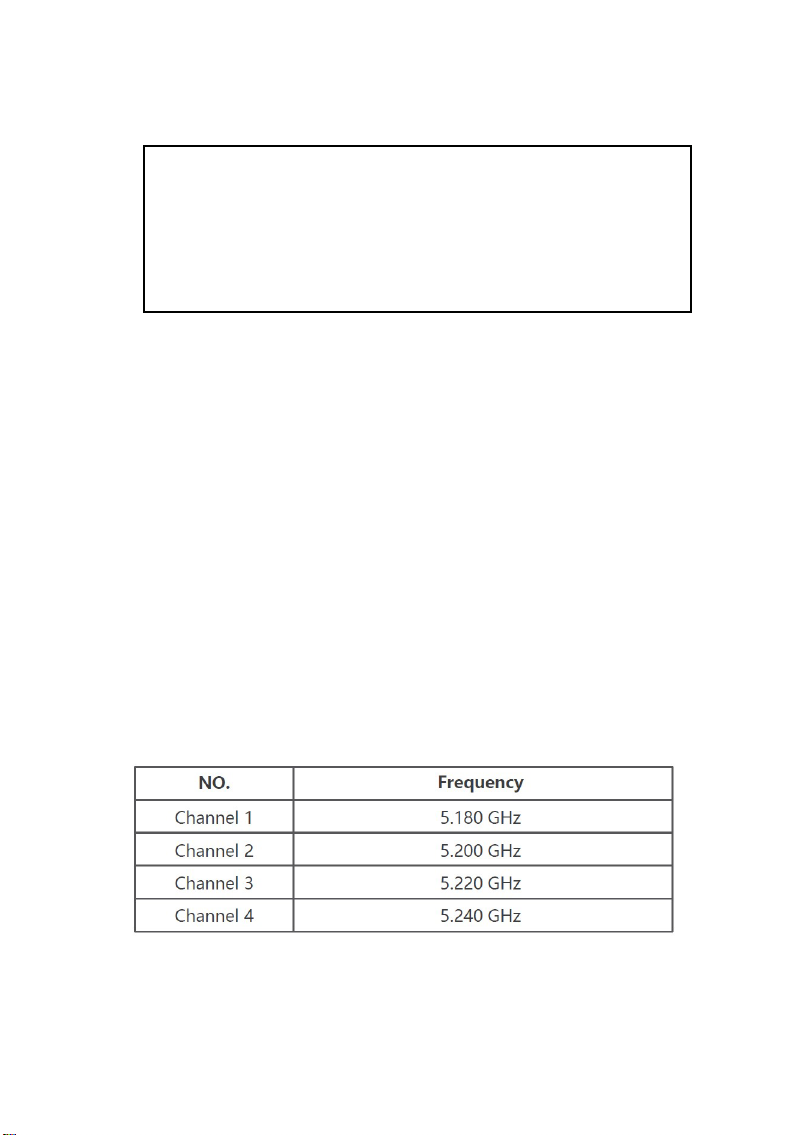

Wireless Frequency

*Note: TX and RX SSID channel pairing is required

after a factory reset. See SSID Channel Pairing on

page 9.

Factory Reset

1. Press and hold down both transmitter's and

receiver'schannel switching buttonsimultaneously

for 10 seconds. The WiFi LEDs will flash quickly.

2. The WiFi LEDs will change to solid on when factory

reset is successful.

3. Power off the TX and RX after factory reset.

SSID Channel Pairing

When there are multiple wireless extender kits operating

in close proximity, having the same SSID on each kit may

cause interference or conflicts. It is suggested to change

the SSID on one kit to help resolve the issue. Follow the

SSID channel pairing steps below.

1. Press and hold down both transmitter's and

receiver'schannel switching button simultaneously

for 5 seconds. The WiFi LEDs will flash quickly.

2. When pairing is successful the WiFi LEDs will

change to solid on.

3. Power off the TX and RX after pairing.

Note: Repeat steps 1-3 if pairing is not successful.

ConnectionDiagram

The diagram shows the typical devices used with the

wireless extender.

Figure 3: Connection Diagram

IR Blaster IR Receiver

Notice

• Wireless signals transmitted through walls, glass,

brick or other solid objects will cause signal loss

and decrease the transmission distance

• External wireless signals from microwaves,

wireless mice and wireless keyboards will interfere

with HDMI signal transmission

• Keep the unit in a well ventilated environment to

prevent it from overheating

•DO NOT expose the unit to rain, moisture, or

liquids

•DO NOT place anything on the unit

•DO NOT open the housing, doing so will void the

warranty and may cause personal injury due to

electronic hazard

•DO NOT plug-in or remove the IR cables when the
