Gofanco HDBaseT-HD20 Manual de usuario

HDBaseT HDMI 2.0

Extender with Loopout

User's Guide

G4-0066A

P/N: HDBaseT-HD20

Thank you for purchasing from gofanco. Our

products aim to meet all your connectivity needs

wherever you go. For optimum performance

and safety, please read the instructions carefully

and keep this User’s Guide for future reference.

If you need more information about our

products, please visit www.gofanco.com. For

technical support, please email us at

[email protected]. For drivers/manuals

download, please go to www.gofanco.com/

download.

Important Safety Notices

Please read safety instructions carefully before

installation and operation.

• Please pay close attention to all warnings

and hints for this device

• Do not expose this unit to rain, heavy

moisture, or liquid

• Do not repair the device or open the

enclosure without professional guidance

to avoid electric shocks. Doing so may void

your warranty

• Keep the product in a well-ventilated

location to avoid damage from overheating

• Shut off power and make sure environment

is safe before installation

• Do not plug the HDMI cables and IR cables

in/out when the device is in use to avoid

cable damage. Make sure they are plugged

into the correct ports

• Use the included DC24V power adapter

only. Make sure the specification matches

if using 3rd-party DC power adapters

Introduction

The HDBaseT HDMI 2.0 Extender with Loopout

extends Ultra High Definition 4K HDR HDMI

signals from a source device to a display device

up to 40 meters over a single CAT5e/6 cable.

Features

• TransmitsHDMIsignalsfromsourcedevice

to display device up to 40 meters using

economical CAT5e/6 cabling

• Supports bi-directional IR remote control

function to control the source device or

display device from long distances

• Supports Power over Cable (PoC)

technology,powersboththetransmitterunit

and receiver unit using only one power

adapter connected to either unit

• The Transmitter's HDMI loopout allows for

a local display and monitoring of the

extended display

PackageContents

• HDBaseTHDMI 2.0 Extender with Loopout

(1 Transmitter & 1 Receiver)

• 1x IR Blaster Extension cable and 1x IR

Receiver Extension cable

• 1x Power adapter (24VDC/1A)

• User's guide

Installation Requirements

1. HDMI source device (computer, DVD

player, XBOX, PS3, etc)

2. HDMI display device (SDTV/Monitor,

HDTV/Monitor, projector, etc.)

3. UTP/STP CAT5e/6 cable following

IEEE-568B wiring standard

Product Layout

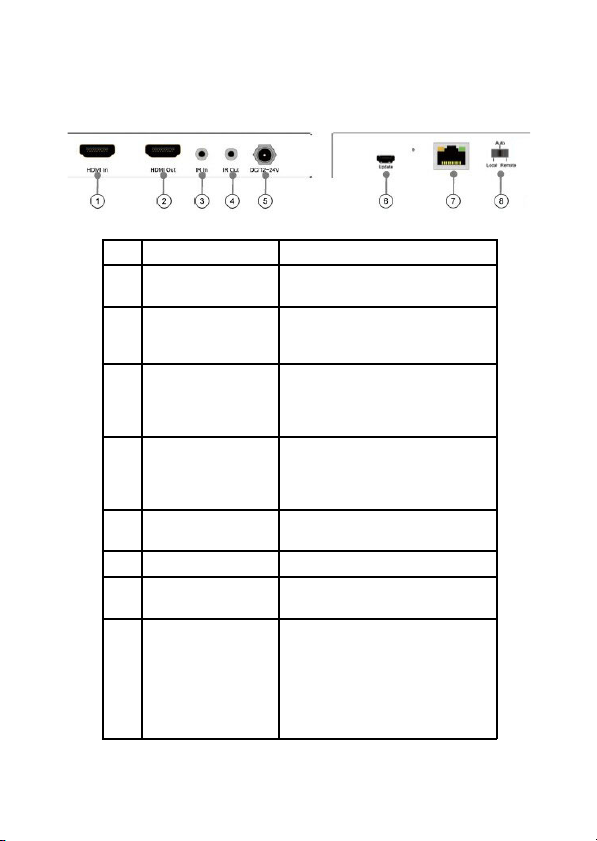

Transmitter TX Front and Rear Panel

No. Name Description

1 HDMI In Connects to your HDMI source

device

2HDMIOut

Connects to an HDMI display for

local monitoring of the remote

display device

3IRIn

Connects to the included IR

Receiver Extension cable to

control the remote display device

from the HDMI source location

4IROut

Connects to the included IR

Blaster Extension cable to control

the HDMI source device from the

remote display location

5 Power Adapter Jack Connects to the included power

adapter

6 Update USB port for firmware update

7RJ45Out Connects to the Receiver's RJ45

In using a CAT5e/6 cable

8EDID

Auto: 4K@60Hz (default)

Local: Copies the EDID from the

display connected to the

Transmitter's HDMI Out

Remote: Copies the EDID from the

remote display connected to the

Receiver's HDMI Out

Receiver RX Front and Rear Panel

No. Name Description

1 HDMI Out Connects to an HDMI display

2IROut

Connects to the included IR

Blaster Extension cable to control

the remote display device from

the HDMI source location

3IRIn

Connects to the included IR

Receiver Extension cable to

control the HDMI source device

from the remote display location

4 Power Adapter Jack Connects to the included power

adapter

5 Update USB port for firmware update

6 RJ45 In Connects to the Transmitter's

RJ45 Out using a CAT5e/6 cable

Hardware Installation

1. Power off all devices including your HDMI

source and HDMI display(s).

2. Connect your HDMI source device to the

Transmitter's HDMI In connector with an

HDMI cable (HDMI cable not included).

3. Optional: Connect an HDMI display to the

Transmitter's HDMI Out connector with an

HDMI cable (HDMI cable not included) for

local monitoring of the HDMI signal.

4. Optional: Connect the IR Extension cable to

the Transmitter's IR port. Face the IR eye

towards your HDMI device's IR window.

This connection is needed only if you need

to control your HDMI device from the

remote location. See the application

diagram on page 9 for proper cable

connection.

5. Plug your CAT5e/6 cable between the

Transmitter's RJ45 Out and Receiver's RJ45

In.

6. Connect your HDMI display to the

Receiver's HDMI Out connector with an

HDMI cable (HDMI cable not included).

7. Optional: Connect the IR Extension cable to

the Receiver's IR port. This connection is

needed only if you need to control your

HDMI device from the remote location. See

theapplication diagram on page 9 forproper

cable connection.

8. Plug the included power adapter into either

the Transmitter's or Receiver's power jack,

then plug power adapter into a reliable

power source. One power adapter will

power both the Transmitter and Receiver.

9. Power on all connected devices.

10. The HDMI extender is ready for use.

Application

Transmitter (TX)

Receiver (RX)

Specifications
