gofanco HDbitT4Pv2 Manual de usuario

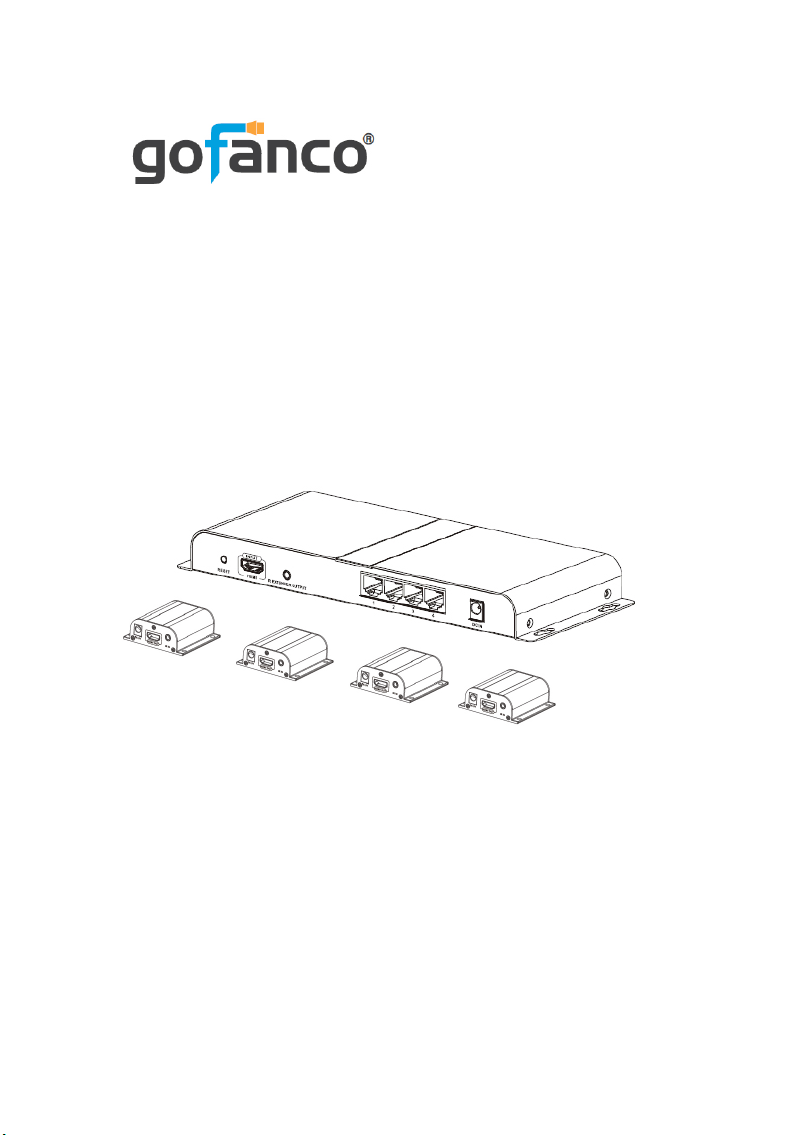

4-Port HDMI HDbitT
Extender 1080p - 120m
User's Guide
G4-0105A
P/N:HDbitT4Pv2
2
Thank you for purchasing from gofanco. Our products
aim to meet all your connectivity needs wherever you
go. For optimum performance and safety, please read
the instructions carefully and keep this User's Guide for
future reference. If you need more information about
our products, please visit www.gofanco.com. For
For drivers/manuals download, please go to http://
www.gofanco.com/downloads.
Important Safety Notices
Pleasereadsafetyinstructionscarefullybeforeinstallation
and operation.
• Please pay close attention to all warnings and hints
for this device
• Do not expose this unit to rain, heavy moisture, or
liquid
• Do not put any items into the device or attempt to
modify its operation
• Do not repair the device or open the enclosure
without professional guidance to avoid electric
shocks. Doing so may void your warranty
• Keep the product in a well-ventilated location to
avoid damage from overheating
• Shut off power and make sure environment is safe
before installation
• Do not plug the HDMI cables and IR cables
in/out when the device is in use to avoid cable
damage. Make sure they are plugged into the
correct ports
• Use the included power adapters only. Make sure
the specification matches if using 3rd-party DC
power adapters
3
Introduction
The4-Port HDMI HDbitTExtender 1080p - 120mextends
high definition 1080p signals up to 394ft (120m) over
CAT6 to 4 monitors.
Features and Benefits
• 4-Port HDMI HDMI Extender/Splitter Kit with 1
Transmitter (TX) and 4 Receivers (RX)
• ExtendsHDMI signals upto120m (394ft) overCAT6
to four HDMI monitors simultaneously
• Direct TX to RXs connection or through a Gigabit
Ethernet switch. Additional RX's, part number
HDbitTv2-RX, sold separately
• Supports up to 1080p@60Hz
• SupportsIR signal extension -controla media player
from a remote location with the included IR Blaster
and IR Receiver cables
• Surface mountable metal housing
PackageContents
• 4-Port HDMI HDbitT Extender 1080p - 120m (1 TX
& 4 RXs)
• IR Blaster cable (1pc)
• IR Receiver cable (4pcs)
• Power adapter 5V/2A (1pc)
• Power adapter 5V/1A (4pcs)
• User's guide
4
Product Layout
Figure 1: Transmitter (TX) - Back Panel
Figure 2: Transmitter (TX) - Front Panel
1 Reset: Press to reset the Transmitter
2 HDMI In: Connects to the HDMI source device
3 IR Out: Infrared 3.5mm socket. Plug the IR Blaster
Cable here. See instructions on page 7.
4 RJ45 Out (x4): Links to the Receiver's RJ45 In using
a Cat cable
5 Power Jack: Connect the included 5V/2A power
adapter here
6 LinkLED(x4):LightsupwhenRJ45signalisdetected
7 Data LED: Blinks when data transfer is detected
5
Figure 3: Receiver (RX) Layout
1 Reset: Press to reset the Receiver if the HDMI
Extender doesn't work properly
2 HDMI Out: Connects to your HDMI display with
an HDMI cable (cable not included)
3 IR In: Infrared 3.5mm socket. Plug the IR Receiver
Cable here. See instructions on page 7
4 Power Jack: Connect the included 5V/1A power
adapter here
5 Power LED: On when the Receiver is powered
6 RJ45 In: Links to the Transmitter's RJ45 Out via Cat
cable
7.Data LED Blinks during data transmission
8.Link LED: On when the Cat cable is connected/
linked properly between the Transmitter and
Receiver
6
Installation Requirements
1. HDMI source device (DVD player, set top box, PC,
etc.)
2. HDMI display device (SDTV/Monitor, HDTV/
Monitor, projector, etc.)
3. HDMI cables (not included)
4. UTP/STPCAT6/6A/7cable, following IEEE-T568B
wiring standard
Cat Cable Writing
We suggest both RJ45 connectors be wired identically
using T568B wiring standard for the best performance
and compatibility.
7
Hardware Installation
To achieve optimal performance, CAT6 cable is
recommended.
1. Power off all devices including your HDMI source
and HDMI display(s).
2. Connect your HDMI source to the Transmitter's
HDMI In connector.
3. Optional: Connect the IR Blaster Cable to the
Transmitter's IR Out port. Face the eye towards
your HDMI source device's IR window. This
connection is needed only if you need to control
your HDMI source at the remote location.
4. Plug your Cat cable between the Transmitter's
RJ45 Out and Receiver's RJ45 In. Repeat this step
for each Receiver connected.
5. Connect your HDMI display to the Receiver's
HDMI Out connector with an HDMI cable (HDMI
cable not included). Repeat this step for each
Receiver connected.
6. Optional: Connect the IR Receiver Cable to the
Receiver's IR In port. This connection is needed
only if you need to control your HDMI source at
the remote location. Repeat this step for each
Receiver connected.
7. Plug the included 5V/2A power adapter into the
Transmitter's Power Jack.
8. Plug the included 5V/1A power adapter into the
Receiver's Power Jack, then plug all power
adapters into reliable power outlets. Repeat this
step for each Receiver connected.
9. Power on your HDMI source device and HDMI
displays. The extender is ready for use.
8
ConnectionDiagram
Supports direct connection between the TX and RX or via
Dedicated Gigabit Ethernet Switch.
HDMI Source
IR Blaster
IR Receiver
Power Adapter
Transmitter
Cat cable (x4)
Display (x4)
Receiver (x4)
HDMI cable (x4)
HDMI cable
Notes:
• Supports connection through a Dedicated Gigabit
Switch. If deployed within an existing network,
create a VLAN to segregate our devices (TX and RX)
from the rest of the network device
• Additional RXs, part number HDbitTv2-RX, sold
separately
Direct Connection
9
FAQ & Solutions
Q1: No image or audio output on the display?
A: 1. Check if the display is in standby mode.
2. Make sure the display's HDMI port is properly
connected to the HDMI cable.
3. Check the Link LED indicator on the Receiver is
on.
Q2: Not all displays are receiving a signal.
A: 1. Check the Cat cables for secure and solid
connection.
2. Press the Reset button on the Transmitter and
Receiver to reset the system.
3. Re-connect the Cat cable(s) corresponding to the
display(s) that are not working properly.
Q3: TVdisplays "Waiting forConnection" on thebottom
right corner.
A: 1. Check the Cat cables for secure and solid
connection.
2. Check the power supply on both transmitter and
receiver(s) is connected and powered on.
Q4: TV displays "Please check the TX input signal".
A: 1.PleasechecktheHDMIcableisconnectedproperly
and the HDMI source device is powered on.
2. Press the reset button on the Transmitter.
3. Connect the TV directly to the HDMI source
device to verify there is signal output.
10
Specifications
Item Specification
HDMI signal HDMI 1.3 and HDCP 1.4 compatible
Input TX: 1x, 19-pin HDMI, Female
RX: 1x, RJ45; 1x, IR, 3.5mm socket
Output TX: 4x, RJ45; 1x, IR, 3.5mm socket
RX: 1x, 19-pin HDMI, Female
Resolution
480i@60Hz, 480p@60Hz, 576i@50Hz,
576p@50Hz, 720p@50/60Hz,
1080i@50/60Hz, 1080p@50/60Hz
Transmission distance Up to 394 ft (120m)
IR signal 20KHz - 60KHz
Operating temperature 32 F - 140 F (0 - 60 C)
Power adapter TX: 5VDC/2A
RX: 5VDC/1A
