gofanco PRO-HDBaseT-U Manual de usuario
PRO-HDBaseT-U
4K HDR Extender over Single Cat.X with HDBaseT, RS-232,
Bi-direconal IR, PoC, USB & ARC
ReceiverTransmier
®
Made in Taiwan
User‘s Guide
®
PRO-HDBaseT-U
Congratulaons for owning a gofanco product. Our products aim to meet all your
connecvity needs wherever you go.
Have fun with our products!
Please read this manual carefully before rst use.
If you need more informaon about our products, please visit www.gofanco.com.
For technical support, please email us at support@gofanco.com.
For drivers/manuals download, please go to hp://www.gofanco.com/download.
®
PRO-HDBaseT-U
Please read all of these instructions carefully before you use the device. Save
this manual for future reference.
The PRO-HDBaseT-U 4K HDR Extender over Single Cat.X with HDBaseT, RS-232,
Bi-directional IR, PoC, USB & ARC has been tested for conformance to safety
regulations and requirements, and has been certied for international use. How-
ever, like all electronic equipments, the PRO-HDBaseT-U should be used with
care. Please read and follow the safety instructions to protect yourself from
possible injury and to minimize the risk of damage to the unit.
• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device and assure that the placement of this
unit is on a stable surface.
• Use only the power adapter and power cords and connection cables designed for
this unit.
• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
1. Safety and Notice
Table of Contents
1. Safety and Notice ..................................................................3
2. Introduction .......................................................................4
3. Features...........................................................................5
4. Package Contents ..................................................................5
5. Specication ......................................................................6
6. Connection Diagram ...............................................................7
7. Panel Description ..................................................................8
8. IR Pass-Through...................................................................10
9. HDMIPINDenition ...............................................................11
10. Hardware Installation .............................................................11
11. Notice............................................................................12
12. Warranty .........................................................................13
3
®
PRO-HDBaseT-U
The PRO-HDBaseT-U 4K HDR Extender over Single Cat.X with HDBaseT, RS-232,
Bi-directional IR, PoC, USB & ARC boosts up your video/audio transmission dis-
tance up to 100m (330ft) in HDTV 1080p with 48-bit color depth and 70m (230ft)
at 4K-HDR. PRO-HDBaseT-U has new generation technology which makes sure
the HDBaseT extender can support HDMI2.0a and HDCP 2.2. PRO-HDBaseT-U also
supports the most advanced 3D video format complaint with HDMI specication
and therefore guarantees the highest 3D video compatibility on the market. With
only one cost-eective Cat.5/5e/6 cable, users can readily extend UHDTV sour-
ces from DVD players, Blu-ray Disc player, PS4, PC, and any other kinds of sources
compliant with TMDS to distant display monitors including HDMI or DVI enabled
TV sets or LCD PC monitors. With the advanced design for the latest HDMI tech-
nology, deep color video, DTS-HD or Dolby TrueHD audio, and HDCP support and
compatibility are all further insured. This exibility makes HDCP compliant DVD
players or PS4 transmit utmost high quality video and audio with a greater dis-
tance at the minimal cost, when integrating several components apart. In additi-
on, PRO-HDBaseT-U is also equipped with bi-directional IR pass-through path and
RS-232 serial port control. These bonus features allow users to boost IR control
distance up to 100m (330ft) through only single Cat.5/5e/6 cable including HDMI
signals. In addition, serial port and USB2.0 oer the convenient path for interac-
tive application, such as touch panels. In addition, PRO-HDBaseT-U also supports
PoC (Power over Cable) which can power both units from TX or RX with power
supply.
The PRO-HDBaseT-U includes two units: transmitting unit PRO-HDBaseT-U-TX and
receiving unit PRO-HDBaseT-U-RX. The transmitting unit is used to capture the in-
put HDMI / DVI signals with control packets. The receiving unit is responsible for
equalizing the transmitted HDMI signal and reconstructing IR and serial control
signals. PRO-HDBaseT-U oers the most convenient solution for digital signage
with long distance A/V transmission path.
2. Introduction
4
®
PRO-HDBaseT-U
5
• HDMI 2.0a compliant
• Supports 4K2K@60 4:4:4 8bits
• Supports High Dynamic Range (HDR)
• Extends the HDMI Signal up to 100m (330ft) from the HDMI source at Full HD 1080p
48-bit and 70m (230ft) at 4K2K@60 4:4:4 (4K-HDR Technology)
• USB 2.0 over Cat.5/5e/6 cable transmission
• Bi-directional PoC (Power over Cable) support. Only 1 power adapter required to
power both the TX and RX
• Supports ARC on receiver unit
• HDCP & EDID Bypass
• CEC support
• Auto equalization
• Analog audio over Cat.5/5e/6 cable transmission from transmitter to receiver
• Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
• DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
• Supports full frequency IR signal from 20KHz to 60KHz
• Bi-directional IR pass-through
• Full Duplex RS-232 control up to 115,200 bps through connector
• Wall mounting housing design for easy and robust installation
The length depends on the characteriscs and quality of the cables. Higher resoluons
and longer transmission distances require low skew cables (<25ns/100m) for best per-
formance. Unshielded CAT6 with metal RJ45 connectors is recommanded.
• 1x PRO-HDBaseT-U [TX & RX]
• 1x IR blaster
• 1x IR receiver
• 1x 12V 2A
• 4x Ear mount
• 1x User Manual
4. Package Contents
3. Features
®
PRO-HDBaseT-U
5.Specications
Item Description
Technical PRO-HDBaseT-U[Tx] PRO-HDBaseT-U[Rx]
Role of usage Transmitter [TX] Receiver [RX]
HDMI compliance HDMI 2.0a
HDCP compliance Yes (HDCP 2.2)
Video bandwidth Single-link 600MHz [18Gbps]
Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)
HDMI over UTP 1080p@60 100m (330ft) [CAT5e]
4K2K@60 (4:4:4 8bit) 70m (230ft) [CAT 5e]
Audio support Surround sound [up to 7.1ch] or stereo audio
Equalization Auto
Input TMDS signal 1.2 Volts [peak-to-peak]
Input DDC signal 5 Volts [peak-to-peak, TTL]
ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
IR pass-thru Bi-directional
RS-232 support Yes
USB support USB2.0
PoC support Yes
Input 1x HDMI, 2x 3.5mm 1x RJ-45, 1x 3.5mm
Output 1x RJ-45, 1x 3.5mm 1x HDMI, 2x 3.5mm, 1x SPDIF
In / Out 1x RS-232, 2x USB 1x RS-232, 2x USB
HDMI source control Controllable via IR pass-through from RX to TX or TX to RX with IR extenders
HDMI connector Type A [19-pin female]
RJ-45 connector WE/SS 8P8C(Reverse Mode)
USB connector Type A & Type micro-USB
3.5mm connector IR receiver / IR blaster IR receiver / IR blaster
Mechanical
Housing Metal enclosure
Dimensions
[L x D x H]
Model 150x95x20mm[5.9" x3.7" x0.8"] 150x95x20mm[5.9“ x3.7“ x0.8“]
Package 264 x 170 x 77mm[10.3“ x 6.7“ x 3“]
Carton 430 x 358 x 291mm[1‘4“ x 1‘2“ x 11.5“]
Weight Model 387g [13.6 oz] 406g [14.3 oz]
Package 1325g [2.9 lbs]
Fixedness Wall-mounting case with screws
Power supply 12V 2A DC
Power consumption 18 Watt [max]
Operation tempera-
ture 50°C [122°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
6
®
PRO-HDBaseT-U
6. Connection Diagram
7
®
PRO-HDBaseT-U
7. Panel Description
Front Panel
Rear Panel
1. HDMI IN: Connect to a HDMI source with a HDMI male-male cable
2. Stereo Input: Provide a channel to extend an external analog audio to receiver over HD-
BaseT
3. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
4. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
5. USB: Connect to USB Device
6. Micro-USB: Connect to USB Host
7. RS-232:Connect to serial port device with a DSUB-9 male-male or male-female cable
here F/W update for Valens chipset
8. DIP Switch
9. RJ45: Plug in a Cat-5/5e/6 cable that needs to be linked to the transmitting unit RX
[Green LED] Link indicator LED
[Yellow LED] When transmitting unit receive the HDMI signal, the LED light will shine
LED: Power indicator
+12V DC: Connect to a 12V DC power supply.
8
2 3 41
6 7 8 9 10 11
5
Transmitting unit PRO-HDBaseT-U-TX
DIP Switch Position Description
PIN#1 ON[]Link to USB Host (USB-micro port)
OFF[]Link to USB Device (USB Type A port)
PIN#2 PIN#3
ON[] ON[]For HDBaseT Firmware Update
ON[] OFF[]HDBaseT Monitor Mode
OFF[] ON[]For System Firmware Update
OFF[] OFF[]RS-232 Normal Use
ON[] OFF[]
10.
11.
®
PRO-HDBaseT-U
Receiving unit PRO-HDBaseT-U-RX
9
Front Panel
Rear Panel
1. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable
2. Stereo Output: External analog audio output from transmitter over HDBaseT
3. S/PDIF Output: local ARC output
4. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
5. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
6. USB: Connect to USB Device
7. Micro-USB: Connect to USB Host
8. RS-232:Connect to serial port device with a DSUB-9 male-male or male-female cable
here F/W update for Valens chipset
9. DIP Switch
RJ45: Plug in a Cat-5/5e/6 cable that needs to be linked to the transmitting unit TX
[Green LED] Link indicator LED
[Yellow LED] When receiving unit receive the HDMI signal, the LED light will shine
LED: Power indicator
+12V DC: Connect to a 12V DC power supply.
2 3 4 51
7 8 9 10 11 12
6
DIP Switch Position Description
PIN#1 ON[]Link to USB Host (USB-micro port)
OFF[]Link to USB Device (USB Type A port)
PIN#2 PIN#3
ON[] ON[]For HDBaseT Firmware Update
ON[] OFF[]HDBaseT Monitor Mode
OFF[] ON[]For System Firmware Update
OFF[] OFF[]RS-232 Normal Use
ON[] OFF[]
10.
11.
12.
®
PRO-HDBaseT-U
i

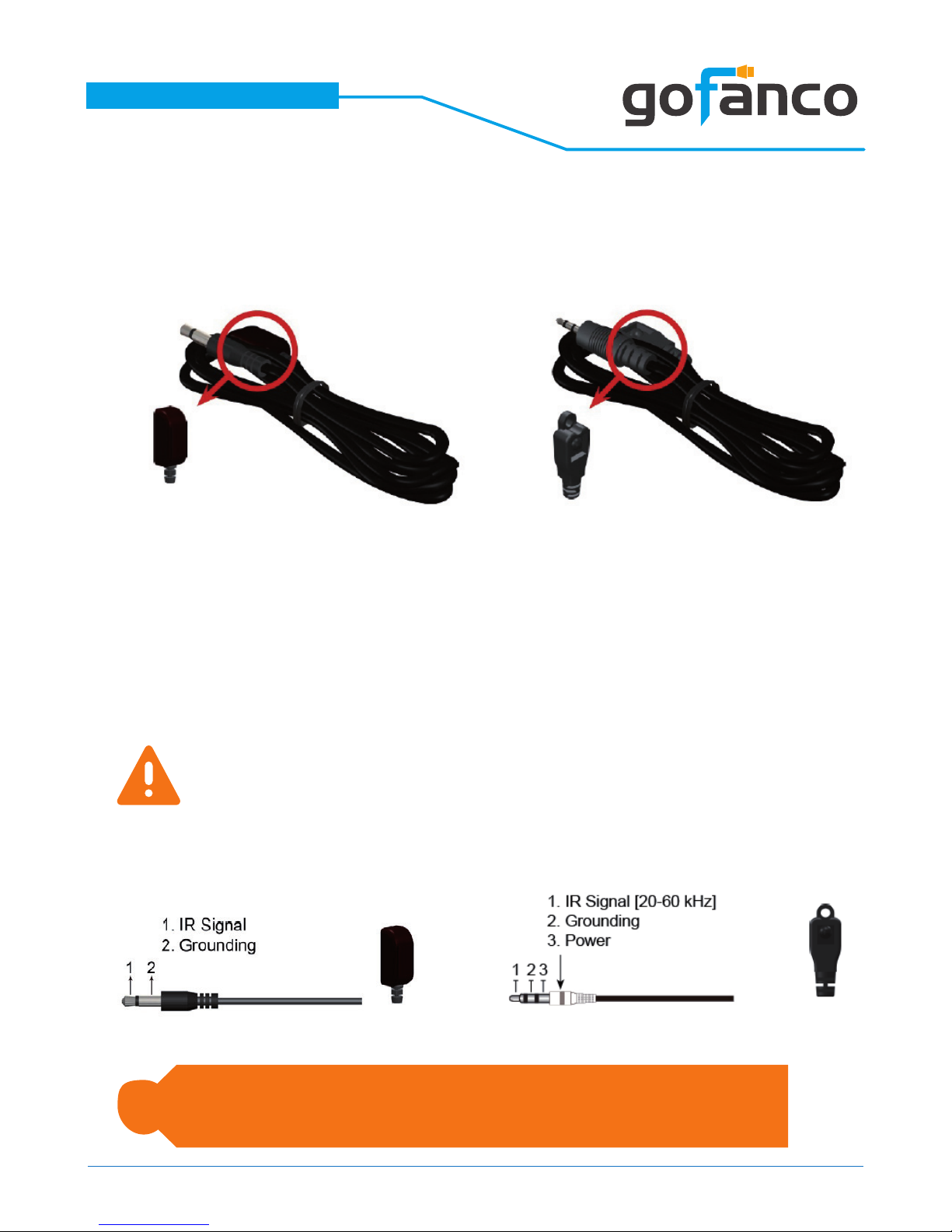

8. IR Pass-Through
IR Extenders
IR Sockets
IR Blaster IR Receiver
IR BLASTER:
plug in the IR blaster to emit all IR command signals received from the IR receiver from the
other end to control the devices corresponding to the IR signals.
IR RECEIVER:
plug in the IR receiver to receive all IR command signals from the IR remote controls of the
corresponding devices.
CAUTION
Incorrect placement of IR Blaster and Receiver may result in the failure of the
IR extenders. Please check carefully before plugging in the IR extender to the
respective IR sockets. Warranty will not cover the damage.
DenitionofIREarphoneJack
IR Blaster IR Receiver
You can buy any IR extension cables in the market that are compatible to
the definition of the IR sockets for the matrix if necessary for replacement
use. However, IR cables longer than 2m (6-ft) may not work.
10
Tabla de contenidos
Otros manuales de Extensor de gofanco
gofanco
gofanco HDExtIP4K Manual de usuario
gofanco
gofanco HDExt70 Manual de usuario
gofanco
gofanco HD20wireless Manual de usuario
gofanco
gofanco 4K120 Manual de usuario
gofanco
gofanco HDEXT120ESD Manual de usuario
gofanco
gofanco HDBaseT4P-4K Manual de usuario
gofanco
gofanco HD20Ext4P-LT Manual de usuario
gofanco
gofanco HDbitT8P Manual de usuario
gofanco
gofanco HDExtCoax Manual de usuario
gofanco
gofanco G4-0014A Manual de usuario
gofanco
gofanco HDBaseT Manual de usuario
gofanco
gofanco HDwireless1x4 Manual de usuario
gofanco
gofanco HDMIExt Manual de usuario
gofanco
gofanco HDwireless100 Manual de usuario
gofanco
gofanco HD14Ext-EDID Manual de usuario
gofanco
gofanco HDbitT4P Manual de usuario
gofanco
gofanco HDMIExtSplit Manual de usuario
gofanco
gofanco HD20Ext1xN Manual de usuario
gofanco
gofanco HDwireless100 Manual de usuario
gofanco
gofanco KVMHDExt Manual de usuario
