gofanco HDwireless100-LT Manual de usuario
1080p Wireless HDMI
Extender - 100m
User's Guide
G4-0107A
P/N:HDwireless100-LT
2
Thank you for purchasing from gofanco. Our products
aim to meet all your connectivity needs wherever you
go. For optimum performance and safety, please read
the instructions carefully and keep this User's Guide for
future reference. If you need more information about
our products, please visit www.gofanco.com. For
For drivers or manual download, please go to
www.gofanco.com/downloads.
Important Safety Notices
Pleasereadsafetyinstructionscarefullybeforeinstallation
and operation.
• Please pay close attention to all warnings and hints
for this device
• Do not expose this unit to rain, heavy moisture, or
liquid
• Do not put any items into the device or attempt to
modify its operation
• Do not repair the device or open the enclosure
without professional guidance to avoid electric
shocks. Doing so may void your warranty
• Keep the product in a well-ventilated location to
avoid damage from overheating
• Shut off power and make sure environment is safe
before installation
• Do not plug the HDMI cables and IR cables
in/out when the device is in use to avoid cable
damage. Make sure they are plugged into the
correct ports
• Use the included DC5V power adapters only. Make
sure the specification matches if using 3rd-party
DC power adapters
3
Introduction
The 1080p Wireless HDMI Extender - 100m extends
HDMIsignals wirelessly froma source deviceto a display
device up to 100 meters. It requires no cables between the
Transmitter (TX) and Receiver (RX), making the
installation easy and clean. Great for homes and offices.
Note: Wireless transmission distance will vary due
to the environmental conditions. Thick walls, brick,
glass, electronic interference, and wireless signals
from other devices will shorten the wireless
transmission distance or cause signal loss.
Features
• Transmits HDMI signals wirelessly up to 328 feet
(100m) at 1080p. Supports LPCM 2.0-ch 32KHz/
44.1KHz/48KHz audio
• Adopts H.265 high performance code technology.
HDMI 1.3, HDCP 1.4, and DVI 1.0 compliant
• IR extension allows you to recognize remote
commands from a remote location. 20-60KHz IR
frequency
• Less than 120ms latency. Not recommended for
real-time applications
• No cables required between Transmitter (TX) and
Receiver (RX)
• Operates in a 5GHz wireless spectrum
• Dual antenna design maximizes wireless reception
with stable data transmission
4
PackageContents
• 1080p Wireless HDMI Extender - 100m (1 TX and 1
RX)
• IR blaster cable (1pc)
• IR receiver cable (1pc)
• Antenna (4pcs)
• Power adapter (2pcs)
• User guide
Installation Requirements
1. HDMI source device (DVD player, set top box, PC,
etc.)
2. HDMI display device (SDTV/Monitor, HDTV/
Monitor, projector, etc.)
3. HDMI cables (not included)
Wireless Frequency
Theextenderscans then selectstheleast occupied wireless
frequency when powered on. Once the frequency is set,
itwill not changeduring operation. Toavoid interference,
power cycle the TX and RX to scan for new 5G frequency.
Channel Center Frequency (MHz) Frequency Range (MHz) Bandwidth (MHz)
36 5180 5170 - 5190 20
40 5200 5190 - 5210 20
44 5220 5210 - 5230 20
48 5240 5230 - 5250 20
149 5745 5735 - 5755 20
153 5765 5755 - 5775 20
157 5785 5775 - 5795 20
161 5805 5795 - 5815 20
165 5825 5815 - 5835 20
5
Product Layout
Figure 1: Transmitter (TX)
1. Power LED On when the Transmitter is powered on
2. Link LED
Quick flash: The TX and RX are pairing
Slow flash: The TX and RX are transmitting data
Solid on: The TX is updating firmware
Off:The TX and RX are not paired or no signal
transmission after successful pairing
3. HDMI In Connects to your HDMI source device
4. Power Jack Connects to the included power adapter
5. Antenna (x2) Connects to the included antenna
6. Pairing Button
Quick press: Resets the TX to factory settings
Enter pairing mode: Press and hold down the
pairing button on both the TX and RX for 3
seconds to enter pairing mode
7. Micro USB Firmware update port
8. IR Out Connects to the included IR blaster cable
12 3 4 567
85
6
Figure 2: Receiver (RX)
1. Power LED On when the Receiver is powered on
2. Link LED
Quick flash: The TX and RX are pairing
Slow flash: The TX and RX are transmitting data
Solid on: The TX and RX are paired successfully or
the RX is updating firmware
Off: The TX and RX are not paired or no signal
transmission after successful pairing
3. HDMI Out Connects to your HDMI display
4. Power Jack Connects to the included power adapter
5. Antenna (x2) Connects to the included antenna
6. Pairing Button
Quick press: Resets the RX to factory settings
Enter pairing mode: Press and hold down the
pairing button on both the TX and RX for 3
seconds to enter pairing mode
7. Micro USB Firmware update port
8. IR In Connects to the included IR receiver cable
12 3 4 5 6 78
5
7
Hardware Installation
1. Power off all devices including your HDMI source
and HDMI display.
2. Install the included antennas to the TX and RX.
3. Pair the TX and RX. See Pairing Instructions on
page 8.
4. Connect your HDMI source device to the
Transmitter'sHDMIInputconnector with an HDMI
cable (HDMI cable not included).
5. Optional: Connect the IR Blaster Cable to the
Transmitter's IR interface port. Facetheeyetowards
your HDMI source device's IR window. This
connection is needed only if you need to control
your HDMI source from the remote location.
6. ConnectyourHDMI display to the Receiver's HDMI
Outputconnectorwith an HDMIcable(HDMI cable
not included).
7. Optional: Connect the IR Receiver Cable to the
Receiver's IR interface port. This connection is
needed only if you need to control your HDMI
source from the remote location.
8. Plug the included power adapters into the
Transmitter's andReceiver's PowerJacks,thenplug
both power adapters into reliable power outlets.
9. Power on your HDMI source device and HDMI
display. The wireless extender is ready for use.
Note: For optimal signal range, install in a clear
environment with few obstacles. Wireless signals
from other devices may interfere with
transmission. Contact our technical support team
if you have specific questions.
8
Pairing Instructions
1. Power on the TX and RX. Place them in close
proximity to each other.
2. Simultaneously press and hold down the pairing
button on both TX and RX units for 3 seconds.
3 The Link LED on both units will begin flashing
quickly, continue holding down both pairing
buttons.
4. Release both pairing buttons when the RX's Link
LED is solid on and the TX's Link LED remains
blinking.
5. The TX are RX are successfully paired.
TX Link LED
Status
RX Link LED
Status Description
Flashing Quickly Flashing Quickly The TX and RX are
pairing
Flashing Quickly On The TX and RX are
paired successfully
Off Off
No pairing or no signal
transmission after
successful pairing
Flashing Slowly Flashing Slowly The TX and RX are
transmitting data
9

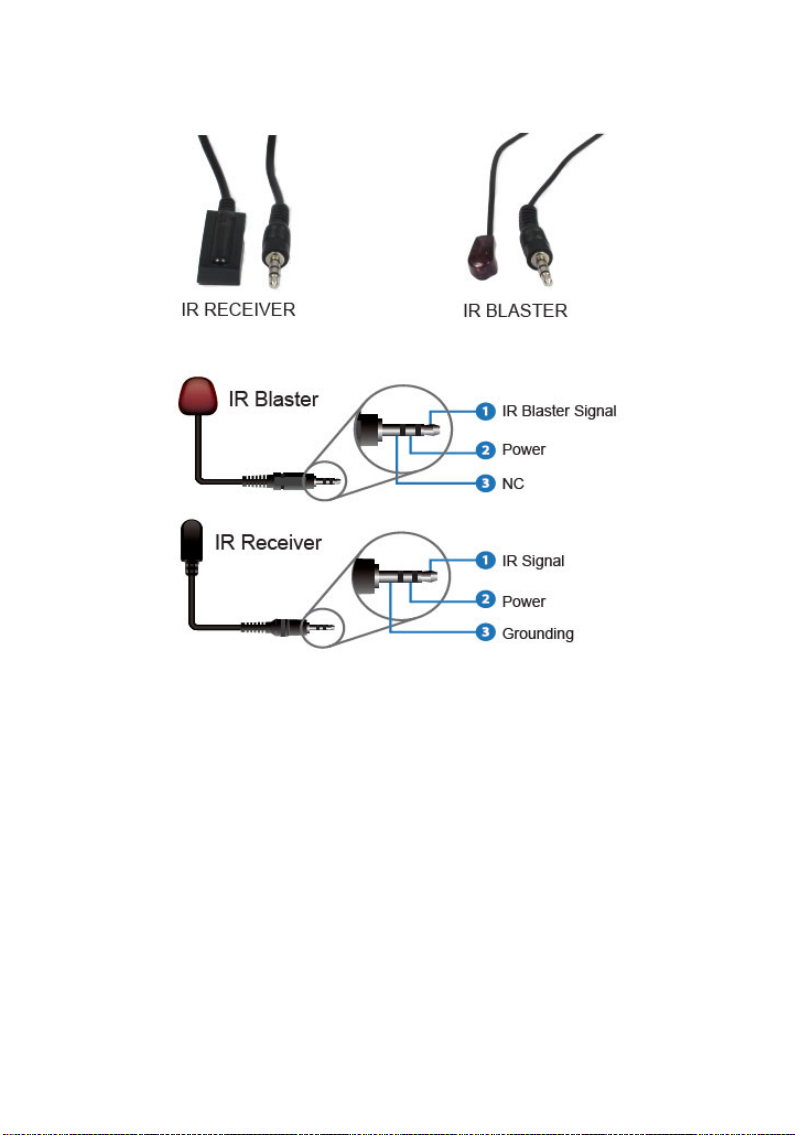

IR Cables
Figure 3: IR Cable Specifications
10
ApplicationDiagram
The diagram shows the typical devices used with the
wireless extender.
Figure 4Figure 3: Application Diagram: Application Diagram
Transmitter
Receiver
