gofanco HDwirelessMini Manual de usuario
1080p Wireless HDMI
Extender Mini - 150m
User's Guide
G4-0151A
P/N:HDwirelessMini
2
Thank you for purchasing from gofanco. Our products
aim to meet all your connectivity needs wherever you
go. For optimum performance and safety, please read
the instructions carefully and keep this User's Guide for
future reference. If you need more information about
our products, please visit www.gofanco.com. For
For drivers or manual download, please go to
www.gofanco.com/downloads.
Important Safety Notices
Pleasereadsafetyinstructionscarefullybeforeinstallation
and operation.
• Please pay close attention to all warnings and hints
for this device
• Do not expose this unit to rain, heavy moisture, or
liquid
• Do not put any items into the device or attempt to
modify its operation
• Do not repair the device or open the enclosure
without professional guidance to avoid electric
shocks. Doing so may void your warranty
• Keep the product in a well-ventilated location to
avoid damage from overheating
• Shut off power and make sure environment is safe
before installation
• Do not plug the HDMI cables in/out when the
device is in use to avoid cable damage. Make sure
they are plugged into the correct ports
3
Introduction
The1080pWirelessHDMIExtenderMini- 150m transmits
HDMI signals wirelessly up to 490ft (150m) at 1080p
resolution. It requires no cables between the Transmitter
(TX) and Receiver (RX), making the installation easy and
clean. Great for homes and offices.
Note: Wireless transmission distance will vary due
to the environmental conditions. Thick walls, brick,
glass, electronic interference, and wireless signals
from other devices will shorten the wireless
transmission distance or cause signal loss.
Features
• Wirelesstransmissiondistance:490ft(150m)at1080p
• Works in 2.4GHz and 5GHz frequency bands
• Combineshighbandwidth capacity and strongerror
correcting abilities
• Supports HDCP 1.3 and IEEE 802.11 a/b/g/n
standard
• Supports 1.485G and TMDS clock up to 148.5MHz
• HDMI cable limitation: Up to 26ft (8m) AWG26
HDMI cable standard
• Compact,portable design withpowerful embedded
antennas
4
PackageContents
• 1080p Wireless HDMI Extender Mini - 150m (1 TX
and 1 RX)
• Micro USB to USB Type-A power cables (2pcs)
• HDMI cables (2pcs)
• User guide
Installation Requirements
1. HDMI source device (DVD player, set top box, PC,
etc.)
2. HDMI display device (SDTV/Monitor, HDTV/
Monitor, projector, etc.)
5
Product Layout
Figure 1: Transmitter (TX)
*Note: TX and RX pairing is required if a new/
replacement unit is needed. See Pairing Instructions on
page 7.
Power Jack
HDMI In
Figure 2: Receiver (RX)
Power Jack
HDMI Out
6
Hardware Installation
1. Power off all devices including your HDMI source
and HDMI display.
2. Connect your HDMI source device to the
Transmitter's HDMI In connector with an included
HDMI cable.
3. ConnectyourHDMIdisplaytotheReceiver'sHDMI
Out connector with an included HDMI cable.
4. Plug the included Micro USB power cables into the
Transmitter'sand Receiver's PowerJacks, then plug
both power cables into a reliable USB 3.0 port or
wall charger.
5. The wireless extender is ready for use.
Note: For optimal signal range, install in a clear
environment with few obstacles. Wireless signals
from other devices may interfere with
transmission. Contact our technical support team
if you have specific questions.

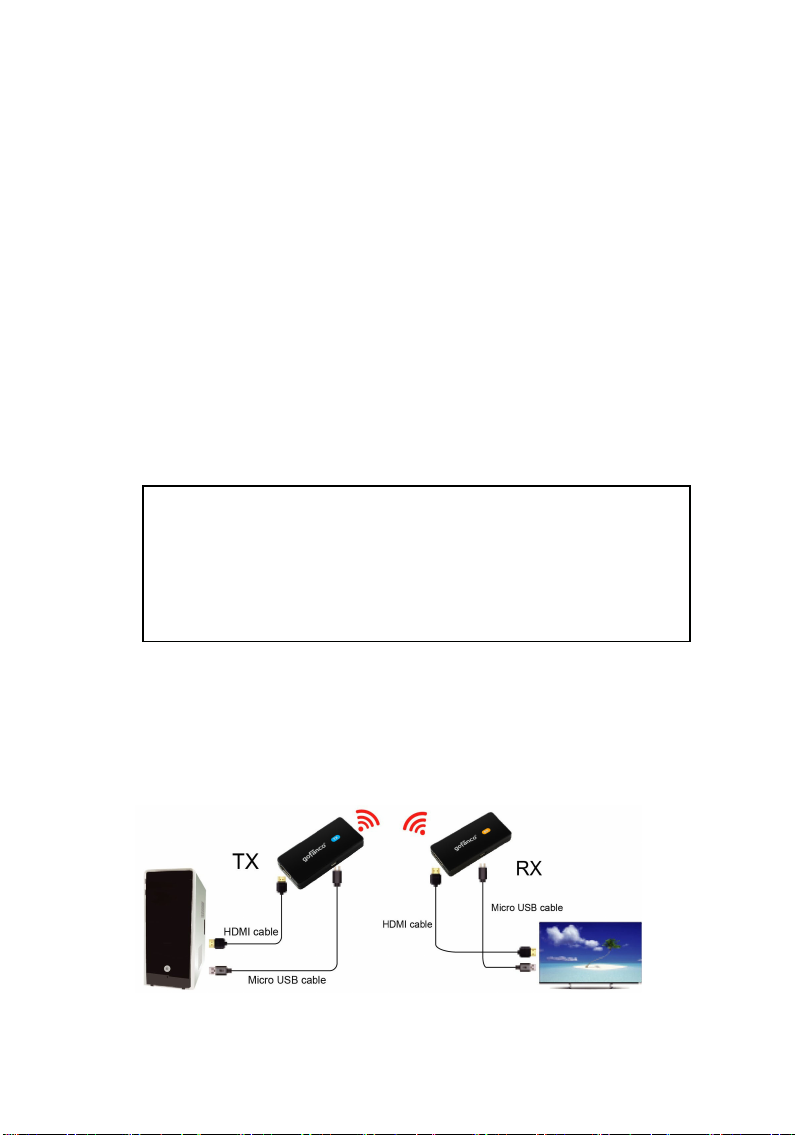

ConnectionDiagram
The diagram shows the typical devices used with the
wireless extender.
Figure 3: Connection Diagram
7
Pairing Instructions
The Transmitter and Receiver units are pre-paired at the
factory. When a replacement of a Transmitter or Receiver
is needed, follow the pairing steps below.
1. Power off and disconnect all devices.
2. Connect the TX and RX to reliable power sources
using the included Micro USB power cables.
3. Connect the transmitter's HDMI out port to the
receiver's HDMI in port using an included HDMI
cable.
4. Wait about 10 seconds for the pairing process to
complete.
5. The extender is ready for use.
Note: Repeat steps 1-5 if pairing is not successful.
Notice
• Wireless signals transmitted through walls, glass,
brick or other solid objects will cause signal loss
and decrease the transmission distance
• External wireless signals from microwaves,
wireless mice and wireless keyboards will interfere
with HDMI signal transmission
• Keep the units in a well ventilated environment to
prevent it from overheating
•DO NOT expose the unit to rain, moisture, or
liquids
•DO NOT place anything on the unit
•DO NOT open the housing, doing so will void the
warranty and may cause personal injury due to
electronic hazard
8
FAQ & Troubleshooting
Q: No video output on the remote display:
A: 1) Check the HDMI source device is powered on.
2) Check the HDMI cables for solid connection. Use
different HDMI cables if necessary.
3) Connect the HDMI source device directly to the
display to see if there is a signal.
4) Pair the transmitter unit and receiver unit. See
PairingInstructions on page7 for moreinformation.
Q: Poor video quality:
A: 1) Check the HDMI cables are connected properly.
Use different HDMI cables if necessary.
2)Adjustthepositionoftransmitterunitandreceiver
unit, and make sure they are within the required
signal range.
3) Remove other wireless signals and move any
obstacles that are blocking the signal line-of-sight.
4) Decrease the distance between the transmitter
unit and the receiver unit.
5) Pair the transmitter unit and receiver unit. See
PairingInstructions on page7 for moreinformation.
9
Specifications
Resolution Up to 1080p@60Hz
Audio 2Ch Stereo
Bandwidth 148.5MHz (max)
Transfer Rate 1.485Gbps
HDMI Cable Length Input & Output: up to 26ft (8m) each
Working Current Transmitter: 800mA
Receiver: 500mA
Operating Temperature 5 to 131 F (-15 to 55 C)
Dimensions (LxWxH) TX & RX: 2.8"x1.3"x0.5" (70x33x13 mm)
Weight (TX & RX) 0.057 lb (25.7g) each
10
Blank Page
