gofanco HDEXT120ESD Manual de usuario
HDMI CAT6 Extender with
ESD - 120m
User's Guide
G4-0081A
P/N: HDEXT120ESD
2
Thank you for purchasing from gofanco. Our
products aim to meet all your connectivity needs
wherever you go. For optimum performance
and safety, please read the instructions carefully
and keep this User’s Guide for future reference.
If you need more information about our
products, please visit www.gofanco.com. For
technical support, please email us at
please go to www.gofanco.com/download.
3
Important Safety Notices
Please read safety instructions carefully before
installation and operation.
• Please pay close attention to all warnings
and hints for this device
• Do not expose this unit to rain, heavy
moisture, or liquid
• Do not repair the device or open the
enclosure without professional guidance
to avoid electric shocks. Doing so may void
your warranty
• Keep the product in a well-ventilated
location to avoid damage from overheating
• Shut off power and make sure environment
is safe before installation
• Do not plug the HDMI cables and IR cables
in/out when the device is in use to avoid
cable damage. Make sure they are plugged
into the correct ports
• Use the included DC5V power adapters
only. Make sure the specification matches
if using 3rd-party DC power adapters
4
Introduction
The HDMI CAT6 Extender with ESD - 120m
transmits uncompressed HDMI signals up to 394
feet(120m)in1080pwithlessthan200mslatency.
Features
• HDMI 1.3, HDCP 1.4, 10.2Gbps bandwidth.
Supports 2-channel PCM audio
• ESD Protection – Prevents malfunction or
break down due to Electrostatic discharge
• IR Extension – Allows source device to
recognize remote commands from a remote
location
• Transmission Range – 120m (CAT6), 100m
(CAT5e), 80m (CAT5)
PackageContents
• Transmitter (TX)
• Receiver (RX)
• Power Adapter (2pcs)
• IR Blaster Cable (1pc)
• IR Receiver Cable (1pc)
• User's Guide
5
Installation Requirements
1. HDMI source device (computer, DVD
player, etc)
2. HDMI display device (SDTV/Monitor,
HDTV/Monitor, projector, etc.)
3. UTP/STP CAT6 cable following
IEEE-T568B wiring standard
Product Layout
Figure 1: Transmitter (TX)
1. Reset Button Press the button to reset the transmitter
2. RJ45 Output Connects to the Receiver's RJ45 Input port
using a CAT6 cable
3. Link LED Lights up when HDMI input signal detected
Flashes when no HDMI input signal detected
4. Power Jack Connects to the included power adapter
5. HDMI Input Connects to the HDMI source device
6. IR Output Connects to the IR Blaster cable
6

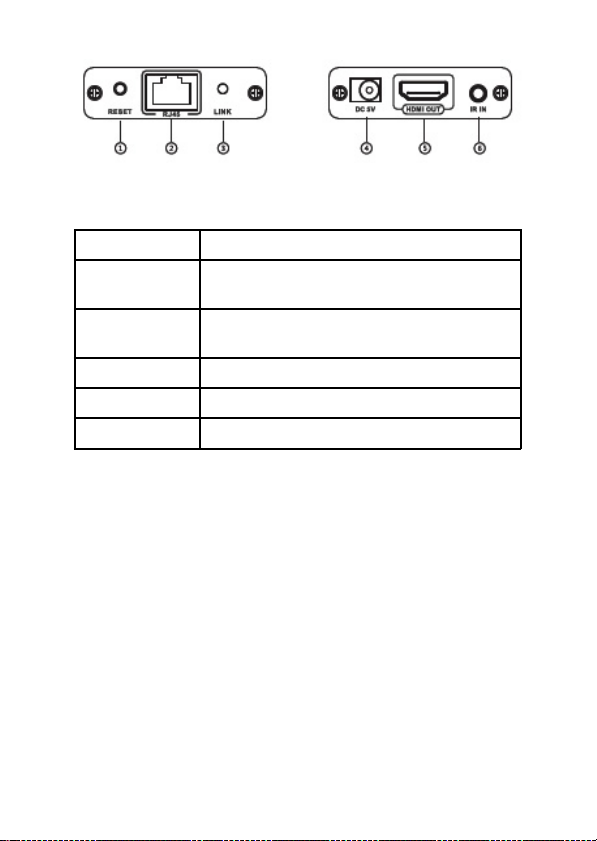

Figure 2: Receiver (RX)
1. Reset Button Push the button to reset the receiver
2. RJ45 Input Connects to the Transmitter's RJ45 Output
port using a CAT6 cable
3. Link LED Lights up when RJ45 from TX detected
Flashes when RJ45 from TX not detected
4. Power Jack Connects to the included power adapter
5. HDMI Out Connects to remote HDMI display
6. IR Input Connects to the IR receiver cable
Hardware Installation
1. Power off all devices including your HDMI
source and HDMI display.
2. Connect your HDMI source device to the
Transmitter's HDMI Input connector with
an HDMI cable (HDMI cable not included).
7
3. Optional: Connect the IR Blaster Cable to
the Transmitter's IR output port. Face the
eye towards your HDMI source device's IR
window. This connection is needed only if
you need to control your HDMI source
from the remote location.
4. Plug your CAT6 cable between the
Transmitter's RJ45 Output and Receiver's
RJ45 Input.
5. Connect your HDMI display to the
Receiver's HDMI output connector with an
HDMI cable (HDMI cable not included).
6. Optional: Connect the IR Receiver Cable to
theReceiver'sIRinputport. Thisconnection
is needed only if you need to control your
HDMI source device from the remote
location.
7. Plug the included power adapters into the
Transmitter's and Receiver's power jacks,
then plug both power adapters into a
reliable power source.
8. Power on all connected devices.
9. The HDMI extender is ready for use.
8
Application
CAT Cable Wiring
We suggest both RJ-45 connectors be wired
identically using T568B wiring standard for the
best performance and compatibility.
Transmitter (TX) Receiver (RX)
CAT6
IR Blaster Cable
IR Receiver Cable
HDMI Out
HDMI In
Display
DVD
9
FAQ & Solutions
Q: There is no video output or audio and
video display is not normal:
A: 1) Press the Receiver's reset button to reset
the unit.
2) Use a shorter network cable.
Q: The Receiver's Link LED is flashing:
A: 1) Make sure the network cable follows the
IEEE-T568B wiring standard.
2)CheckwhetherTXhasHDMIsignalinput.
3) Reset both TX & RX and reconnect.
Q: The extender is not working properly:
A: 1) Please check the cable lengths below:
- HDMI cables: Up to 5m
- Network cables (CAT6): Up to 120m
2) Press the reset button on the TX/RX and
reconnect.
Q: RX Link LED is on but there is no image:
A: 1) Press RX reset button to reset the unit.
2) Make sure the HDMI cable is firmly
connected to the display.
3) Make sure your HDMI display device is
set to the correct HDMI input.
4) Use a higher quality network cable.
10
Specifications
Item Specifications
HDMI Compliance 1.3
HDCP Compliance 1.4
Data Transmission <200ms latency
Video Bandwidth 10.2Gbps
Resolution
720x576@50Hz, 720x480@60Hz,
1280x720X60Hz, 1920x1080@60Hz,
640x480@60Hz, 800x600@60Hz,
1024x768@60Hz, 1280x800@60Hz,
1280x1024@60Hz, 1440x900@60Hz,
1680x1050@60Hz
ESD Protection
Contact discharge: Level 3
Air discharge: Level 3
Standard: IEC 61000-4-2
Audio Support PCM
IR Frequency Range 20KHz-60KHz
Power Adapter Output: 5VDC/1A
Power Consumption TX: 2W / RX: <2W
Product Dimensions 2.8" (L) x 2.3" (W) x 0.64" (H)
Weight TX: 70g
RX: 70g
Color Black
