Creality Ender-5 Manual

Ender-5 Printer

Guide Book

◆This guide book is for standard Ender-5.

◆Please plug the power cord into a three-hole power jack.

◆Detailed instructions for use are available on the TF card.

V.1.0

To be the Chief Evangelist

To make Top-quality 3D printer

Contents

1. Introduction....................................1

2. General List.....................................2

3. Assembly.......................................3

4. Cable Connection............................8

5. Screen Information........................10

6. Loading Filament...........................11

7. Bed Leveling.....................................12

8. Software Installation.......................13

9. After-Sales Services..........................14

Preface

Dear consumers,

Thank you for choosing our products. For the best experience, please read the instructions before operating the Printer.

Our 3D team will always be ready to give you the best service. Please contact us via the phone number or e-mail address

provided at the end when you encounter any problem with the Printer.

For a better experience in using our product, you may learn how to use the Printer in the following ways:

1. View the accompanied instructions and videos on the TF card.

2. Visit our official website at www.creality3d.cn You will find relevant software/hardware information, contact details and

operation and maintenance instructions on the website.

Notes

1. Do not use the printer any way other than described herein in order to avoid personal injury or

property damage.

2. Do not place the printer near any heat source or flammable or explosive objects. We suggest placing it

in a well-ventilated, low-dust environment.

3. Do not expose the printer to violent vibration or any unstable environment, as this may cause poor

print quality.

4. Before using experimental or exotic filaments, we suggest using standard filaments such as ABS or PLA

to calibrate and test the machine.

5. Do not use any other power cable except the one supplied. Always use a grounded three-prong power

outlet.

6. Do not touch the nozzle or printing surface during operation as they may be hot. Keep hands away from

machine while in use to avoid burns or personal injury.

7. Do not wear gloves or loose clothing when operating the printer. Such cloths may become tangled in

the printers moving parts leading to burns, possible bodily injury, or printer damage.

8. When cleaning debris from the printer hotend, always use the provided tools. Do not touch the nozzle

directly when heated. This can cause personal injury.

9. Clean the printer frequently. Always turn the power off when cleaning, and wipe with a dry cloth to

remove dust, adhered printing plastics or any other material off the frame, guide rails, or wheels . Use

glass cleaner or isopropyl alcohol to clean the print surface before every print for consistent results.

10. Children under 10 years of age should not use the printer without supervision.

1. Introduction

10 15

85 7

1. Hot Bed

2. Leveling screw

3. Power supply

4. Switch

5. SD Slot and USB Port

6. Display

7. Z Stepper

8. Foot pad

9. Spool Holder

10. Extrusion mechanism

11. X Stepper

12. Nozzle Assembly

13. Y Stepper

14. Z Limit Switch

15. Y Limit Switch

16. X Limit Switch

2.General List

Bottom frame

G:Bottom Frame

F:Hot Bed

D:Extruder kit

E:Filament Holder

H:Display Screen

C:2040 Profile 4Pcs

A:Top Frame

B：Z-axis Frame

No. Image Name Qty

1Wrench &

Screw

driver 1set

Card &

Reader

1set

3Spatula 1

4 Pliers 1

50.4mm

Nozzle Cleaner 1

6 Power Cable 1

7 USB Cable 1

8 PTEE Tube 1

9 Filament(200)g 1

10 Spare Parts 1set

Tool List

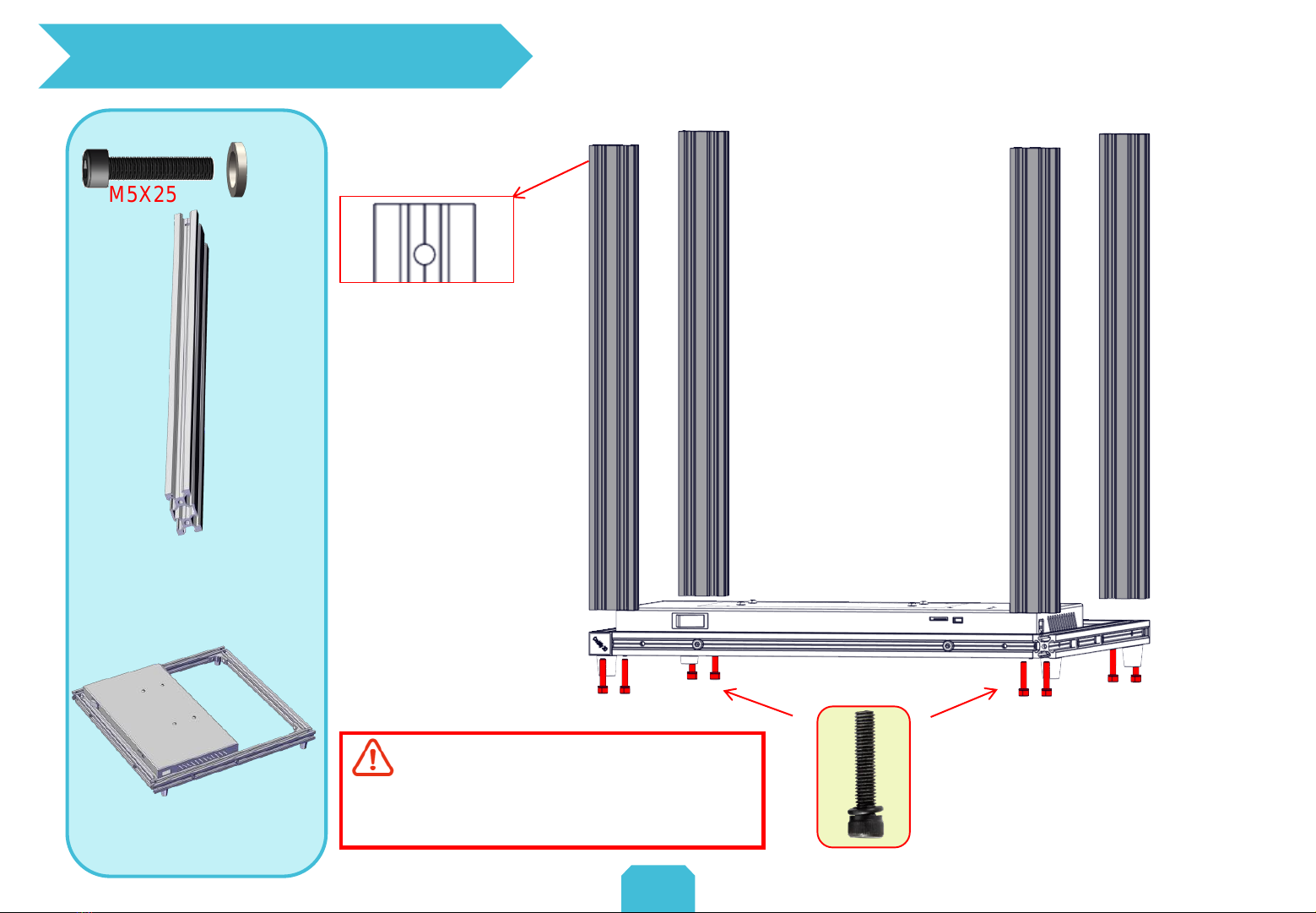

M5X25 8pcs

Place the profile hole of the

side upon, install the profile, but

not mess with the direction.

4pcs

Bottom Frame

2040 Profile

3. Assembly Step ⑴

Note: Tighten the four

screws on the top, then tight

the side screws.

8pcs

M5X25

Top Frame

3. Assembly Step ⑵

4pcs

M5X25

Note: Align the

bottom profile ,then

tighten the screws.

Z-axis Frame

3. Assembly Step ⑶

3. Assembly Step ⑷

4pcs

M4X10

Hot Bed

M4X8

2pcs 2pcs

M4X8

2pcs

M4 T-nut M4 T-nut

2pcs M5X6

2pcs

3. Assembly Step ⑸

M5 T-nut

M4X8
