Creality CR-10 Smart Pro Manual de usuario
CR-10 Smart Pro
CR-10 Smart Pro
3D Printer User Manual
V1.2
CREATE REALITY，ACHIEVE DREAMS
To Our Dear Users
Thank you for choosing Creality. To make using our products easier, please read this User Manual before you start and follow
the instructions provided carefully.
Creality is always ready to provide you with high-quality services. If you encounter any issues or have any questions when
using our products, please use the contact information at the end of this manual to contact us.
To further improve your user experience, you can find more about our devices via the following methods:
User manual: You can find instructions and videos in the SD card provided with the printer.
You can also visit our official website (https://www.creality.com) to find information regarding software, hardware,
contact information, device instructions, device warranty information, and more.
Firmware Upgrade
Please visit our official website https://www.creality.com/download, switch to your language, then select your printer and
model. Download the required firmware and install it to use it with your printer.
Instructions for Use
1
2
3
4
5
6
7
8
9
11
10
Do not use this printer by methods or operations not described in this manual, otherwise it may result in accidental injury or property damage.
Do not place this printer in a vibrating or any other unstable environment, as the printing quality will be compromised when the printer shakes.
Do not place this printer near flammable materials, explosive materials or high heat sources. Please place this printer in a ventilated, cool and low-dust environment.
Please use the power cord provided with the printer and do not use the power cord of other products. The power plug must be plugged into a three-hole socket with a ground wire.
Do not touch the nozzle, hotbed or motor while the printer is in operation, otherwise you may get burned.
Do not wear gloves or accessories while operating the printer, otherwise the moving parts may cause accidental injury including cuts and lacerations.
After the printing process is complete, please use tools to clean up the filament on the nozzle while the nozzle is still hot. Do not touch the nozzle with your hands when cleaning,
otherwise your hands may get burned.
Children under the age of 10 must not use this printer without adult supervision in order to avoid accidental injury.
This printer has a safety protection mechanism. Please do not manually move the nozzle or printing platform quickly while the printer is on, otherwise the printer will automatically
power off for protection.
Users should abide by the laws and regulations of the country and region where the equipment is located (place of use), abide by professional ethics, and pay attention to safety
obligations. It is strictly forbidden to use our products or equipment for any illegal purpose. Our company is not responsible for the relevant legal responsibilities of any violators.
Please use the filament recommended by the manufacturer, otherwise the nozzle may be clogged or the printer may be damaged.
Table of Contents
About the Printer 01-01
Device Specifications 02-02
List of Parts 03-03
04-09
Installing the 3D Printer
10-17
Using the 3D Printer
20-21
Offline Printing
22-22
Start Printing
23-23
Resetting Network
25-25
Circuit Wiring
26-26
Troubleshooting
19-19
18-18
24-24
Printer Maintenance
Creality Cloud Distribution Network Method 2
Creality Cloud Distribution Network Method 1

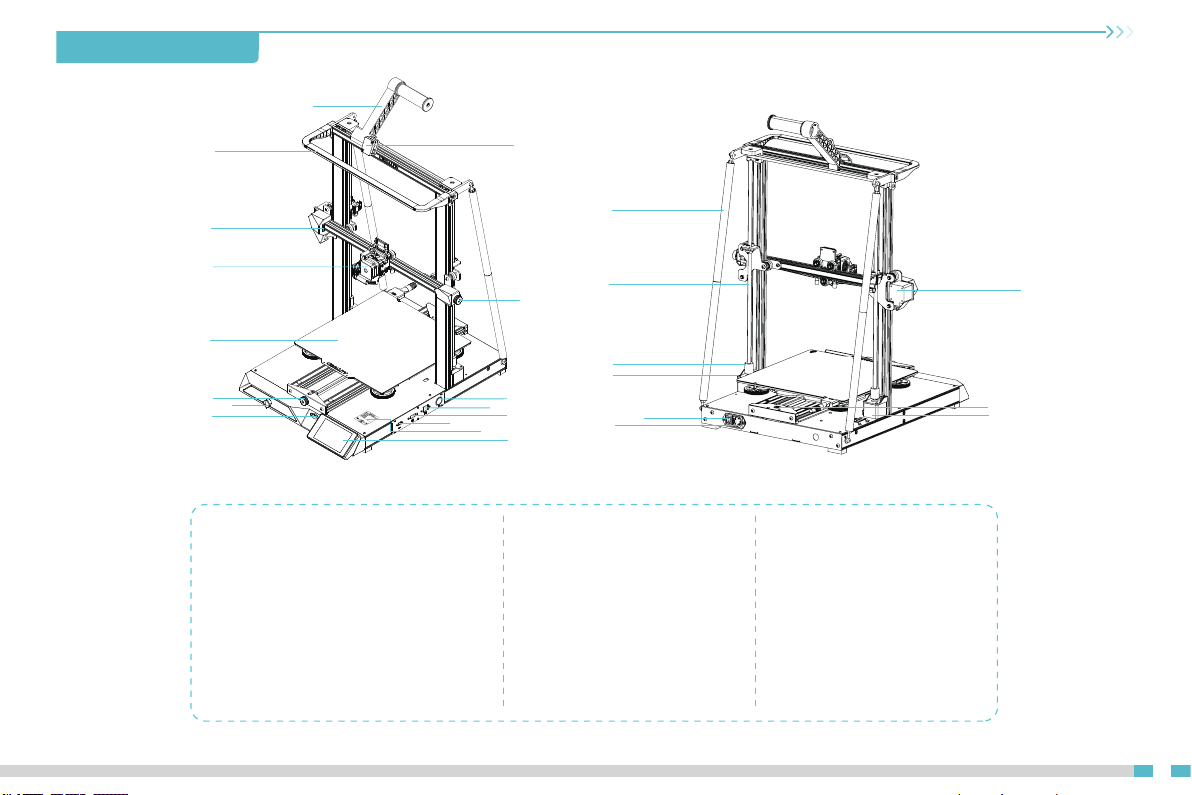

1. About the Printer
01
1 Rack Module
2 LED Light
3 Filament Detector
4 X-Axis Limit Switch
5 Nozzle Module
6 Printing Platform
7 Y-Axis Belt Adjustment Knob
8 Tool Kit
10 Touch Screen
11 Wi-Fi QR code
12 Online Port
13 Camera Port
14 Network Port
15 Power On Button
16 X-Axis Belt Adjustment Knob
17 Pull Rod
18 Screw Rod
19 Coupling
20 Z-Axis Motor
21 Power Switch
22 AC power connector
23 Y-Axis Motor
24 X-Axis Motor
www.cxsw3d.com www.creality.com
18F,JinXiuHongDuBuilding, Meilong Blvd.,
LonghuaDist.,Shenzhen, China518131
Product name: WiFi 3D Printer
Model name: CR-10 Smart Pro
ID: 941750120061A8
CXSW-FCEE120061A8
23
20
24
19
20
22 21
17
18
3
1
6
4
5
2
8
9
7
14
15
13
11
10
12
16
9Memory Card Slot
General Specifications
Model CR-10 Smart Pro
300 mm x 300 mm x 400 mm
FDM
1
0.1 to 0.4 mm
0.4 mm (standard)
±0.1mm
1.75mm PLA/ABS/TPU/PETG/Wood/Carbon/PA
STL/OBJ/AMF
Creality Slicer/Cura
Input: AC 100 to 240 V, 50/60 Hz. Output: DC 24 V
350W
≤100℃
≤300℃
Supported
Supported
Supported
Supported
English
80 to 100 mm/s
Modeling Dimensions
Modeling Technology
Number of Nozzles
Slice Layer Height
Nozzle Diameter
Printing Accuracy
Printing Material
Supported Slicing File Formats
Printing Method
Supported Slicing Software
Rated Voltage
Rated Power
Max Hotbed Temperature
Max Nozzle Temperature
Resume Printing Function
Filament Detection
Dual Z-Axis
Auto Leveling
Language
Printing Speed
Wi-Fi / Memory card offline printing or online printing
2. Device Specifications
02
Retraction Distance
≤3mm
3. List of Parts
7 910 M5x12 Hexagon Flat Round
Head Screw x 2
2
Chassis x 1
1Touch Screen x 1
35Rack x 1
4
Note: The components above are for reference only. The actual product may vary.
Pull Rod x 2
8
6
Memory Card and
Card Reader x 1
7
Blade x 1
1Nozzle Cleaner x 1
4
Cutting Pliers x 1
5
Wrench x 1
2
Hexagon Socket
Wrench x 1
6
8
Nozzle x 2
3Socket Wrench x 1
List of Tool Kit Items
14
11
13
12
03
Gantry x 1 Power Cord x 1 Teflon Tube x 1
Filament x 1 M5x45 Combination
Screw x 4
M5x20 Hexagon Flat Round
Head Screw x 2
M5 Extra Large Gasket x 2
Camera x 1 Nozzle Module x 1
4. Install the Gantry
Turn the coupling so that the X-axis rises to the position shown in Figure 16.
Install the two Z-axis profiles on the inner steps
of the Y-axis bottom profile.
9
Gantry x 1
2
Chassis x 1
1
99
16
2
1
X Axis
04
M5x45 Combination Screw x 4
5. Install the Pull Rod
10 M5x12 Hexagon Flat Round
Head Screw x 2
11 M5x20 Hexagon Flat Round
Head Screw x 2
Adjust the pull rod assembly to a suitable length and install it in the position shown in the figure.
10
11
11
10
M5 Extra Large Gasket x 2
12
12
05
6. Install the Nozzle Module
06
14 Nozzle Module x 1
14
The screws have been fixed on the nozzle
assembly, users need to disassemble and
assemble by themselves
