Creality 3D Pad Manual de usuario

Creality 3D Pad User Manual

For all FDM printers with USB connection and Marlin ﬁrmware

V1.0

1. Parts Included

5-inch high-deﬁnition

screen Resolution (480*854)

Speaker TF card slot

USB slot

Creality 3D Pad

Communication port

Screen Communication Port

3D printer USB

Communication Interface

Filament Run-out Sensor Port

Filament Run-out

Sensor Port

Communication Box

Filament Run-out Sensor

Communication Box

5V1A Charger (Not Included)

Marlin ﬁrmware FDM printer (Not Included)

Filament Run-out Sensor

2. Installation Guide of Creality 3D Pad

Creality 3D Pad

Print with 3D Pad

2. Creality 3D Pad安装说明

3. Direction of Use for Creality 3D Pad

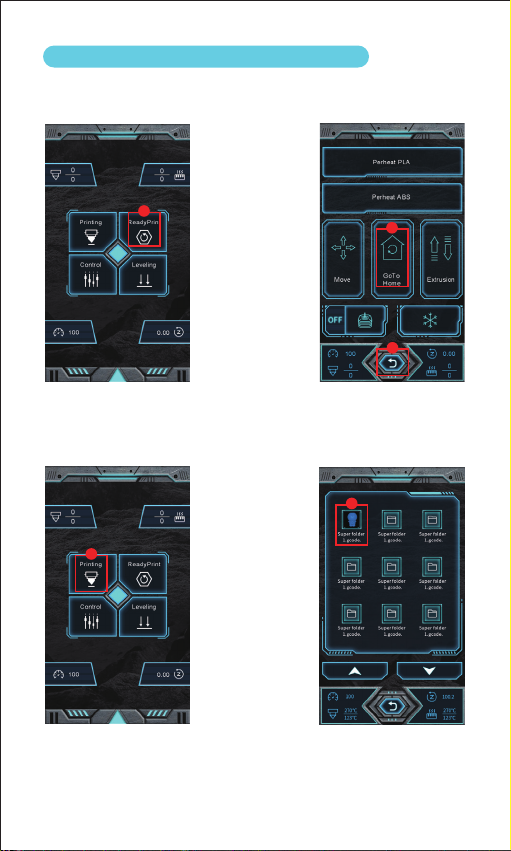

① Preparationbefore printing

④ Click to Print

② Auto Home

③ Return to Main Page

⑤ Select G-code File

1

2

3

4

5

6

⑥ Printing Adjustment

(Print head, hot bed temperature, speed & Z axis data adjustable)

7

⑦ Return to Print Page

Leveling Process

① Click to level

③ Manual leveling

② Automatic leveling

(Printer comes with automatic leveling)

1

2

3

4. Direction of Use for Creative3D Slicing Software

Double click

Creative3D

Open the App

Firmware and slicing software download URL:

https://www.creality.com/download

Creality 3D Pad bracket download URL:

https://www.crealitycloud.cn/model

3 5

2

1

4

Printer Setting

Select Gcode Preview Function

① Main Menu; ② Printer Setting; ③ Model Adjustment Window;

④ Slice Setting; ⑤ Model View

5. Matters Needing Attention and Maintenance

1. The power adapter of Creality 3D Pad is 5V/1A;

2. To avoid errors, please unplug the original screen while using

Creality 3D Pad

3. Please plug printer and Creality 3D Pad separately, make sure

that the printer is plugged earlier than Creality 3D Pad, or at the

same time at least.

4. Creality 3D Pad comes with ﬁlament run-out sensor, plug and

print. The original sensor will be disabled.

5. Creality 3D Pad works with Marlin Firmware FDM printers,

and single-hotend printers;

6. To preview models on Pad, the printing model has to be

sliced by Creality 3D Pad-v3.3.1.-10-win64-Alphaon.
