Creality CR20Pro Manual de usuario

CR20 Pro 3D Printer User Manual

This user manual is for standard CR20 Pro.

Please plug the power cable into a three-hole power jack.

Detailed instructions for use are available on the TF card. V1

NOTES

1. Do not use the printer any way other than described herein in order to avoid personal

injury or property damage.

2. Do not place the printer near any heat source or flammable or explosive objects. We

suggest placing it in a well-ventilated, low-dust environment.

3. Do not expose the printer to violent vibration or any unstable environment, as this

may cause poor print quality.

4. Before using experimental or exotic filaments, we suggest using standard filaments

such as ABS or PLA to calibrate and test the machine.

5. Do not use any other power cable except the one supplied. Always use a grounded

three-prong power outlet.

6. Do not touch the nozzle or printing surface during operation as they may be hot.

Keep hands away from machine while in use to avoid burns or personal injury.

7. Do not wear gloves or loose clothing when operating the printer. Such cloths may

become tangled in the printers moving parts leading to burns, possible bodily injury,

or printer damage.

8. When cleaning debris from the printer hotend, always use the provided tools. Do not

touch the nozzle directly when heated. This can cause personal injury.

9. Clean the printer frequently. Always turn the power off when cleaning, and wipe with

a dry cloth to remove dust, adhered printing plastics or any other material off the

frame, guide rails, or wheels . Use glass cleaner or isopropyl alcohol to clean the

print surface before every print for consistent results.

10. Children under 10 years of age should not use the printer without supervision.

CONTENTS

Dear Consumers,

Thank you for choosing our products. For the best experience, please

read the instructions before operating the Printer. Our 3D team will

always be ready to give you the best service. Please contact us via the

phone number or e-mail address provided at the end when you encounter

any problem with the Printer.

For a better experience in using our product, you may learn how to use

the Printer in the following ways:

View the accompanied instructions and videos on the TF card.

Visit our official website at www.creality3d.cn You will find relevant

software/hardware information, contact details and operation and

maintenance instructions on the website.

Introduction.............................1

General List.............................2

Device Installion.....................3

Cable Connection..................4

Screen Information................5

Loading Filament...….........…6

Platform Adjustment..............7

Software Installation..............8

First Printing...........................9

Troubleshooting...................10

Circuit Wiring.......................11

21 4

6. Nozzle Kit

7. Auto leveling（BLTouch）

8. Filament Rack

9. Extruder (E) Stepper

10. Y-axis Limit Switch

11. Y-axis Stepper

12. Coupling

13. Z-axis Stepper

14. X-axis Limit Switch

15. X-axis Stepper

1. TF Card Slot

2. USB Port

3. Platform

4. LCD Display Screen

5. Control Knob

Parameters

Model

CR-20 Pro

Printing Size

220*220*250mm

Molding Tech.

FDM

Nozzle Number

Slice Thickness

0.1mm-0.4mm

Nozzle Diameter

Standard 0.4mm

Precision

±0.1mm

Fliament

φ1.75mm PLA

File Format

STL/OBJ/AMF

Working Mode

Online or TF card offline

Slice Software

Creality Slicer/Cura/

Repetier-Host/Simplify3D

Power Supply

Input: AC 100-240V/200-240V 50/60Hz

Output:DC 24V

Total Power

270W

Bed Temp.

≤100℃

Nozzle Temp.

≤250℃

Resume Print

Yes

Auto Leveing

Yes

Filament Detector

Operating System

Windows XP/Vista//7/8/10

MAC/Linux

Printing Speed

≤180mm/s，Normal 30-60mm/s

01/

Introduction

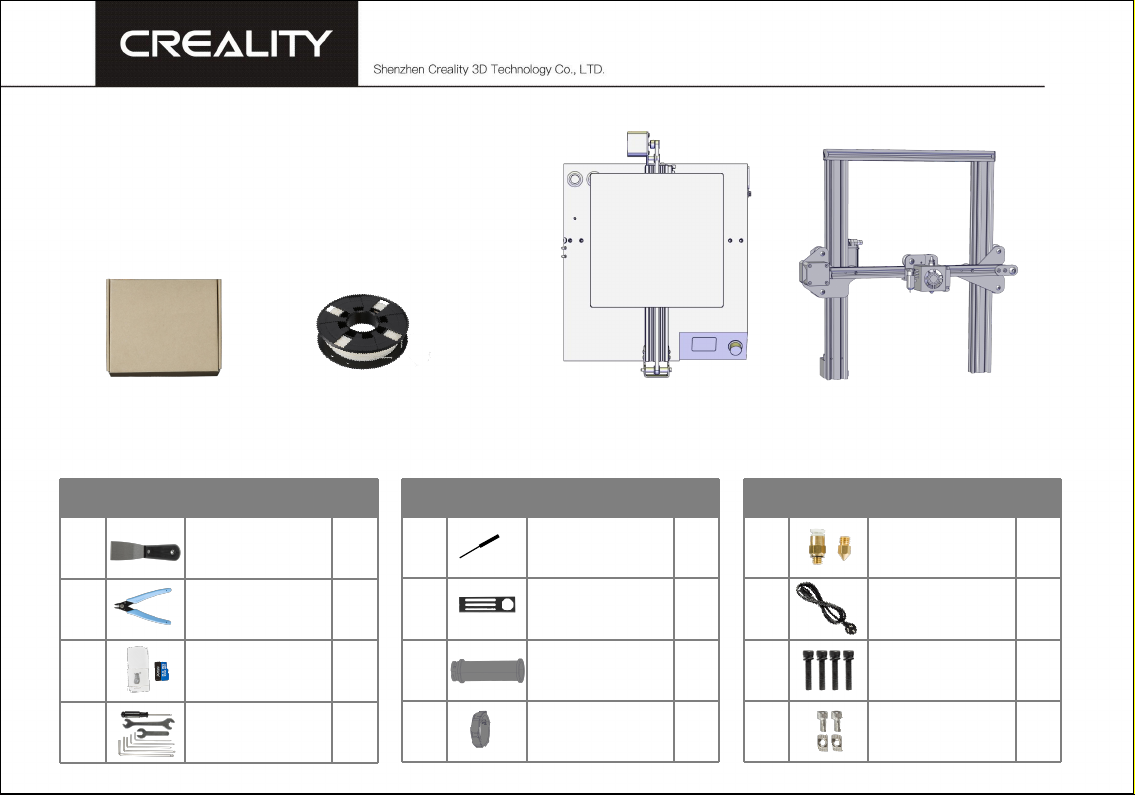

Gantry FrameBase Frame

Tool Box

uTool List

Filament （200g）

No.


Name

Qty

Scraper

Diagonal Pliers

TF Card & Card

Reader

1set

Wrench & Screw

Driver

1set

No.


Name

Qty

Nozzle Cleaner

Rack Bracket

Rack Tube

Nut

No.


Name

Qty

Spare Parts

1set

Power Cable

M5X25 Black Hex-

Bolt & Lock Washer

4set

M4X8 Screw & M4

T-type Screw

2set

02/

General List

Install the Gantry Frame

M5X25

4pcs

M5X25 4pcs

2pcsM4X8

M4 T-nut 2pcs

2pcs

M4X8 & T-nut

Install the Rack

03/

Device Installtion

*Please plug the power cable

into a three-hole power jack.

04/

Cable Connection

Model

Cooling Fan Rate

Print Progress

Print Time

Remaining Message

Push:OK/Enter

Sub Menu

Rotate:Change

Option/Value

Set Temperature of

the Nozzle

Current Temperature

of the Nozzle

Set Temperature of

the Hot Bed

Current Temperature

of the Hot Bed

Print Rate

Current Location of

the Nozzle

Screen Options

Sub Menu

Explanation

Info Screen↑

Main↑

Return

Prepare

Move axis

Moving X Y Z axis or Extruder by

given value

Auto Home

Return to the origin

Bed Leveling

Preheat PLA

Nozzle ：185℃ Bed：45℃

Preheat ABS

Nozzle ：240℃ Bed：70℃

Cool down

Close and cool down the nozzle

Set home offsets

Disable Steppers

Moving X Y Z axis by your hands

Control

Temperature

Heat the nozzle and the bed or

change fan speed by given value

Motion

Filament

BLTouch

Stroe settings

Load settings

Language

English/Chinses

No TF card/Print from TF

Printing

Tune

Speed

Adjust percentage of printing speed

Nozzle

Adjusting extrusion head

temperature

Bed

Adjusting hot bed temperature

Fan speed

Adjust fan speed

Flow

Adjust consumable flow percentage

Change Filament

Replace filament

Pause Printing

Stop printing

05/

Screen Information

Preheat

Method 1

Feeding

Method 2 Press and hold the extruder lever then insert the 1.75mm

filament through the small hole of the extruder. Continue

feeding until you see filament come out the nozzle.

Tip：How to Replace the Filament？

1、Cutting filament near the Extruder and slowly feed new

filament until they are feed into the new filament.

2、Preheating the nozzle and withdraw the filament quickly

and feed the new filament.

06/

Loading Filament

1.Prepare→Auto home，and wait to stop.

3.Control→Motion→Z Offset→write down the value of B，then rotate the knob until it comes out as: C=B+A. Return Control and Select Store settings.

2. Prepare→Move axis→Move Z→Move 0.1mm→Rotate the knob until the distance between them is about 0.2mm（as a sheet of A4 paper），write

down the value of A.

0.2mm

（ A4 paper）

07/

Bed Levelling

A<0

B<0 C<0
