Pro-Form PFEL04908.0 Manual de usuario

Serial

Number

Decal

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. eep this manual

for future reference.

Model No. PFEL04908.0

Serial No.

Write the serial number in the

space above for reference.

QUESTIONS?

If you have questions, or if parts are

damaged or missing, DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manu-

al) before contacting Customer

Care.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.proformservice.com

USERʼS MANUAL

www.proform.com

TABLE OF CONTENTS

WARNINGDECALPLACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEELLIPTICALEXERCISER ..................................................13

MAINTENANCEANDTROUBLESHOOTING ...................................................21

EXERCISEGUIDELINES ...................................................................22

PARTLIST ..............................................................................24

EXPLODEDDRAWING ....................................................................26

ORDERINGREPLACEMENTPARTS ..................................................BackCover

LIMITEDWARRANTY ..............................................................BackCover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warn-

ing decal(s). If a decal is missing or illegible,

see the front cover of this manual and

request a free replacement decal. Apply the

decal in the location shown. Note: The

decal(s) may not be shown at actual size.

PROFORM is a registered trademark of ICON IP, Inc.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. Your elliptical exerciser is intended for home

use only. Do not use your elliptical exerciser

in a commercial, rental, or institutional set-

ting.

4. eep your elliptical exerciser indoors, away

from moisture and dust. Place your elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet. Make

sure that there is at least 3 ft. (0.9 m) of clear-

ance in the front and rear of your elliptical

exerciser and 2 ft. (0.6 m) on each side.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. eep children under age 12 and pets away

from your elliptical exerciser at all times.

7. Your elliptical exerciser should not be used

by persons weighing more than 250 lbs.

(113 kg).

8. Wear appropriate exercise clothes when

exercising; do not wear loose clothes that

could become caught on your elliptical exer-

ciser. Always wear athletic shoes for foot

protection.

9. Hold the handgrip pulse sensor or the upper

body arms when mounting, dismounting, or

using your elliptical exerciser.

10. eep your back straight while using your

elliptical exerciser; do not arch your back.

11. The pulse sensor is not a medical device.

Various factors, including the userʼs move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

12. When you stop exercising, allow the pedals

to slowly come to a stop.

13. If you feel pain or dizziness while exercising,

stop immediately and cool down.

14. Use your elliptical exerciser only as

described in this manual.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical exerciser before using your elliptical

exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTANT PRECAUTIONS

Handgrip Pulse Sensor

Handlebar

Pedal Disc

Wheel

Pedal

Console

Water Bottle Holder*

Leveling Foot

Handle

Storage Latch

Storage Magnet

Fan

Pedal Arm Latch

*Water bottle is not included

BEFORE YOU BEGIN

Thank you for purchasing the PROFORM®480 LE

elliptical exerciser. The 480 LE elliptical exerciser pro-

vides an array of features designed to make your

workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of the

serial number decal are shown on the front cover of

this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

M10 x 127mm Button Screw (83)–2

M10 Locknut

(81)–2

M8 Jam Nut

(79)–5

Wave Washer

(111)–2

M8 Washer

(88)–6

M8 x 23mm Button

Screw (84)–4

M8 Split

Washer (90)–3

M8 x 41mm Button

Bolt (78)–4

M4 x 16mm

Round Head

Screw (101)–8

M4 x 32mm

Round Head

Screw (105)–6

M8 x 23mm Shoulder

Screw (115)–4

M8 x 69mm Button

Bolt (80)–1

M10 x 80mm Carriage

Bolt (82)–2

Hub Screw (87)–8

M4 Split

Washer

(112)–8 M4 Washer

(102)–8

M4 x 47mm Screw

(108)–2

M4 x 16mm

Blunt Screw

(104)–8

ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable

wrench , and a rubber mallet .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-

ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The

number following the parentheses is the quantity needed for assembly. Note: Some small parts may have

been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled.

While another person lifts the Base (1),

attach the Front Stabilizer (6) to the Base

with two M10 x 80mm Carriage Bolts (82)

and two M10 Locknuts (81).

2. Remove the indicated screw and the ship-

ping bracket from the Base (1). Discard the

screw and the shipping bracket.

Next, tighten the Base Foot (26) into the

Base (1).

Shipping

Bracket

Screw

To make assembly easier, read the

information on page 5 before you

begin.

3. Attach the Rear Stabilizer (7) to the Frame

(2) with two M10 x 127mm Button Screws

(83).

Next, hold the handle on the Frame (2),

press the Latch Button (68), and lower the

Frame until the Rear Stabilizer (7) rests on

the floor.

383

Handle

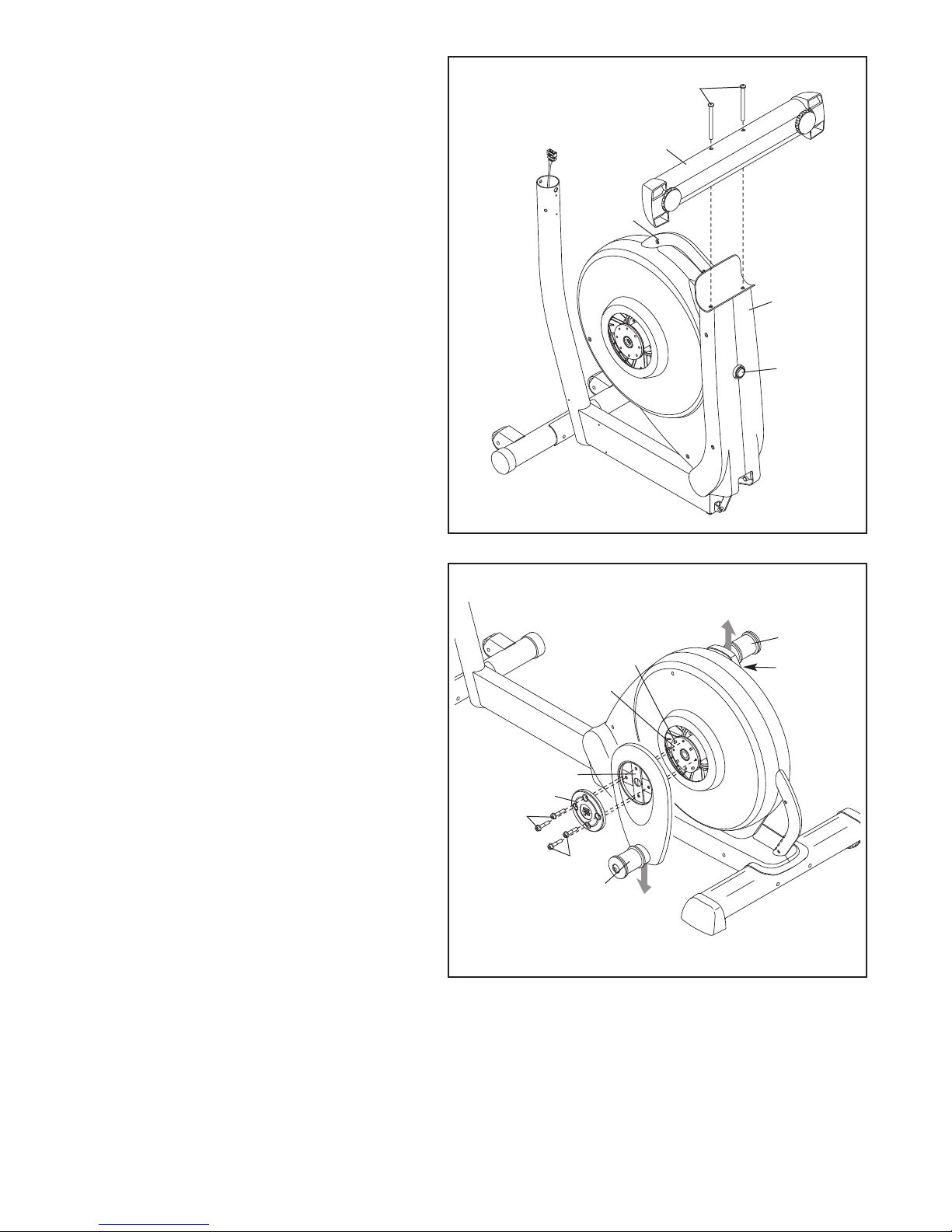

4. Hold a Hub Cover (75) and a Crank Arm

(36) against the left Crank Hub (38).

Align the holes in the Hub Cover (75) and

the Crank Arm (36) with the unused holes in

the left Crank Hub.

Insert four Hub Screws (87) into the Hub

Cover (75) and the Crank Arm (36), and fin-

ger tighten the Hub Screws into the left

Crank Hub. Tighten one Hub Screw, and

then tighten the Hub Screw across from

the first Hub Screw. Then, tighten the

remaining two Hub Screws.

Repeat this step on the right side of the

elliptical exerciser.

Make sure that the Crank Arms (36) are

oriented with the Crank Bushing Sleeves

(43) in the positions shown. Note: There

are no Pulley Screws (98) on the right side.

6. Identify the Left Upright Cover (17), which is

marked with a “Left” sticker, and hold it

against the left side of the Upright (3).

Attach the Left Upright Cover (17) with two

M4 x 16mm Round Head Screws (101).

Attach the Right Upright Cover (116) in

the same way.

5. While another person holds the Upright (3)

near the Base (1), connect the Upper Wire

Harness (48) to the Lower Wire Harness

(49).

Tip: Avoid pinching the wires. Insert the

Upright (3) into the Base (1). Attach the

Upright with an M8 x 69mm Button Bolt

(80), an M8 Split Washer (90), and an M8

Jam Nut (79). Do not tighten the Button

Bolt yet; make sure that the Jam Nut is

in the hexagonal hole in the Base.

Next, finger tighten two M8 x 23mm Button

Screws (84) and two M8 Split Washers (90)

into the Base (1). Do not tighten the

Button Screws yet.

Attach the Water Bottle Holder (22) to the

Base (1) with two M4 x 16mm Blunt Screws

(104).

116

101

90 104

Avoid pinching

the wires

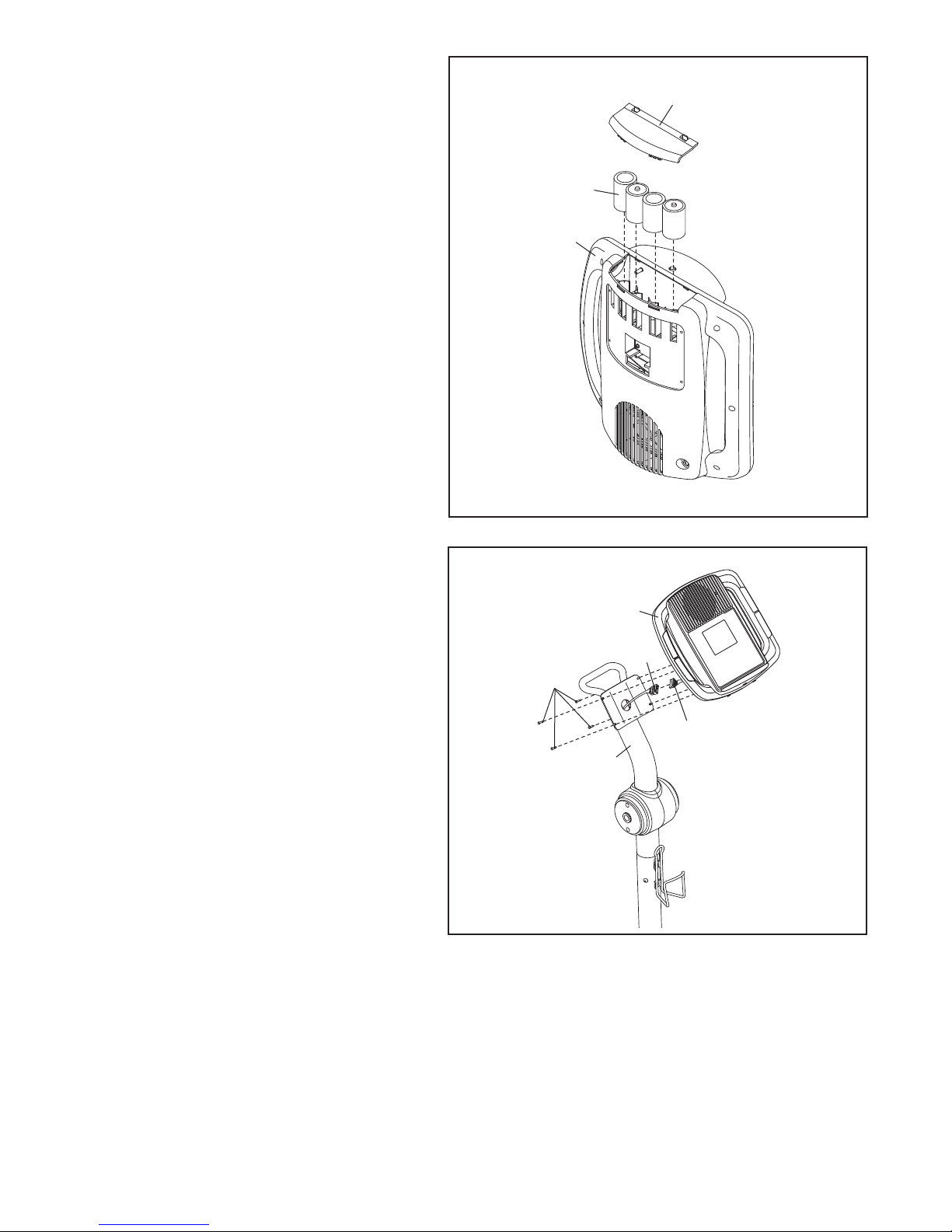

7. The Console (5) can use four D batteries

(not included); alkaline batteries are recom-

mended. IMPORTANT: If the Console has

been exposed to cold temperatures,

allow it to warm to room temperature

before inserting batteries. Otherwise,

you may damage the console displays or

other electronic components. Remove

the battery cover, insert the batteries into

the battery compartment, and reattach the

battery cover. Make sure to orient the bat-

teries as shown by the diagram inside

the battery compartment.

To purchase an optional AC adapter,

contact the store where you purchased

this product or call the telephone num-

ber on the cover of this manual. To avoid

damaging the console, use only a manu-

facturer-supplied AC adapter. Plug one

end of the AC adapter into the jack on the

console; plug the other end into an outlet

installed in accordance with all local codes

and ordinances.

Batteries

Cover

8. While another person holds the Console (5)

near the Upright (3), connect the wire har-

ness on the Console to the Upper Wire

Harness (48).

Insert the excess wire harness into the

Upright (3).

Tip: Avoid pinching the wires. Attach the

Console (5) to the Upright (3) with four M4 x

16mm Round Head Screws (101).

101

Wire

Harness

Avoid pinching

the wires

10. Insert the Pivot Axle (74) into the Upright (3)

and center it. Apply a generous amount of

the included grease to the Pivot Axle.

Orient the Left Upper Body Leg (11) as

shown, and slide it onto the left end of the

Pivot Axle (74). Slide the Right Upper Body

Leg (12) onto the right end of the Pivot

Axle.

Tighten an M8 x 23mm Button Screw (84)

with an M8 Washer (88) and a Wave

Washer (111) into each end of the Pivot

Axle (74). Make sure that the Wave

Washers are on the ends of the Pivot

Axle.

9. Identify the Left Upper Body Arm (8) and

the Left Upper Body Leg (11), which are

marked with “Left” stickers, and orient them

as shown.

Insert the Left Upper Body Arm (8) into the

Left Upper Body Leg (11).

Attach the Left Upper Body Arm (8) with two

M8 x 41mm Button Bolts (78) and two M8

Jam Nuts (79). Make sure that the Jam

Nuts are in the hexagonal holes in the

Left Upper Body Leg (11).

Attach the Right Upper Body Arm (9) to

the Right Upper Body Leg (12) in the

same way.

88 84

111

Hexagonal

Holes

Grease

Este manual sirve para los siguientes modelos

Otros manuales de Entrenador elíptico de Pro-Form

Pro-Form

Pro-Form 470 Hr Elliptical Manual de usuario

Pro-Form

Pro-Form PFEL39012 Manual de usuario

Pro-Form

Pro-Form 505 Zle Elliptical Guía de inicio rápido

Pro-Form

Pro-Form 405 CE READ DRIVE Manual de usuario

Pro-Form

Pro-Form ZE 9 Manual de usuario

Pro-Form

Pro-Form PFEVEL95910.0 Manual de usuario

Pro-Form

Pro-Form CARBON EX Manual de usuario

Pro-Form

Pro-Form 831.23744.0 Manual de usuario

Pro-Form

Pro-Form 831.285872 Manual de usuario

Pro-Form

Pro-Form 831.297470 Manual de usuario

Pro-Form

Pro-Form 470 Hr Elliptical Manual del sistema

Pro-Form

Pro-Form 590e Elliptical Manual de usuario

Pro-Form

Pro-Form 750 Rx Guía de inicio rápido

Pro-Form

Pro-Form 390 E Manual de usuario

Pro-Form

Pro-Form 10.0 Ce Elliptical Manual de usuario

Pro-Form

Pro-Form 800 Hr Heart Rate Control Elliptical Manual del sistema

Pro-Form

Pro-Form CardioCrossTrainer 820 Manual de usuario

Pro-Form

Pro-Form 1150 Rxw Manual de usuario

Pro-Form

Pro-Form 700 S Manual de usuario

Pro-Form

Pro-Form 14.0 CE Manual de usuario

Pro-Form

Pro-Form 465 S Manual de usuario

Pro-Form

Pro-Form 19.0 RE PFEL09812.0 Manual de usuario

Pro-Form

Pro-Form 500 Zle Elliptical Manual de operación y mantenimiento

Pro-Form

Pro-Form 420 Ce Elliptical Guía del usuario

Manuales populares de Entrenador elíptico de otras marcas

Weslo

Weslo Momentum 4.0 Elliptical Manual de operación y mantenimiento

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manual de usuario

Torque Fitness

Torque Fitness XPLLP Manual de usuario

Octane Fitness

Octane Fitness PRO3700C Manual de usuario

Xterra

Xterra FS5.8e Manual de usuario

Bodyguard

Bodyguard E-40 Manual de usuario

Bonn Germany

Bonn Germany Concept 2.2 Manual de usuario

Precor

Precor Resolute RSL 620 Manual de usuario

NordicTrack

NordicTrack E 9.2 Elliptical Manual de usuario

Vision Fitness

Vision Fitness X6600iNetTV Manual de usuario

Matrix

Matrix MX-A5x Manual de usuario

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manual de usuario

Sears

Sears FREE SPIRIT C249 30737 0 Manual de usuario

True

True FS-64 Manual de usuario

Sport-thieme

Sport-thieme ST 310 Manual de usuario

VIRTUFIT

VIRTUFIT CTR 1.1 Manual de usuario

Kettler

Kettler GIRO C 1 Manual de usuario

CIRCLE FITNESS

CIRCLE FITNESS E7 Manual de usuario
