Pro-Form 105 CSE Manual de usuario

Serial Number

Decal

Model No. PFIVEL15216.0

Serial No.

Write the serial number in the space

above for reference.

USER’S MANUAL

CAUTION

Read all precautions and

instructions in this manual

before using this equipment.

Keep this manual for future

reference.

CUSTOMER SERVICE

UNITED KINGDOM

Call: 0330 123 1045

From Ireland: 053 92 36102

Website: www.iconsupport.eu

E-mail: [email protected]

Write:

ICON Health & Fitness, Ltd.

Unit 1D, The Gateway

Fryers Way, Silkwood Park

OSSETT

WF5 9TJ

UNITED KINGDOM

www.iconeurope.com

IFIT and PROFORM are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of Apple Inc.,

registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The BLUETOOTH®

word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark

or registered trademark of Cisco in the U.S. and other countries and is used under license.

TABLE OF CONTENTS

WARNING DECAL PLACEMENT

WARNING DECAL PLACEMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN ........................................................................4

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY ................................................................................6

HOW TO USE THE ELLIPTICAL ...............................................................10

CONSOLE FEATURES ......................................................................11

EXERCISE GUIDELINES .....................................................................15

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

EXPLODED DRAWING ......................................................................18

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

RECYCLING INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

TECNICHAL SPECIFICATIONS ....................................................... Back Cover

115 Kg

ENGLISH

115 Kg

This drawing shows the location(s) of the warning decal(s). If

a decal is missing or illegible, see the front cover of this

manual and request a free replacement decal. Apply the

decal in the location shown. Note: The decal(s) may not be

shown at actual size.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or

persons with pre-existing health problems.

2. Use the elliptical only as described in this

manual.

3. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

4. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

5. Keep the elliptical indoors, away from

moisture and dust. Place the elliptical on a

level surface, with a mat beneath it to protect

the oor or carpet. Make sure that there is at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2 ft. (0.6 m) on each

side.

6. Inspect and properly tighten all parts

regularly. Replace any worn parts

immediately.

7. Keep children under age 12 and pets away

from the elliptical at all times.

8.The elliptical should not be used by persons

weigthing more than 253 lbs. (115kg).

9. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

10. Hold the handlebars or the upper body

arms when mounting, dismounting, or using

the elliptical.

11. The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in

determining heart rate trends in general.

12. The elliptical does not have a freewheel; the

pedals will continue to move until the

ywheel stops. Reduce your pedaling speed

in a controlled way.

13. Keep your back straight while using the

elliptical; do not arch your back.

14. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

WARNING : To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. ICON

assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

BEFORE YOU BEGIN

Thank you for selecting the new PROFORM®105 CSE

elliptical. The 105 CSE elliptical provides a selection of

features designed to make your workouts at home more

effective and enjoyable.

For your benefit, read this manual carefully before you

use the elliptical. If you have questions after reading this

manual, please see the front cover of this manual. To help

us assist you, note the product model number and serial

number before contacting us. The model number and the

location of the serial number decal are shown on the front

cover of this manual.

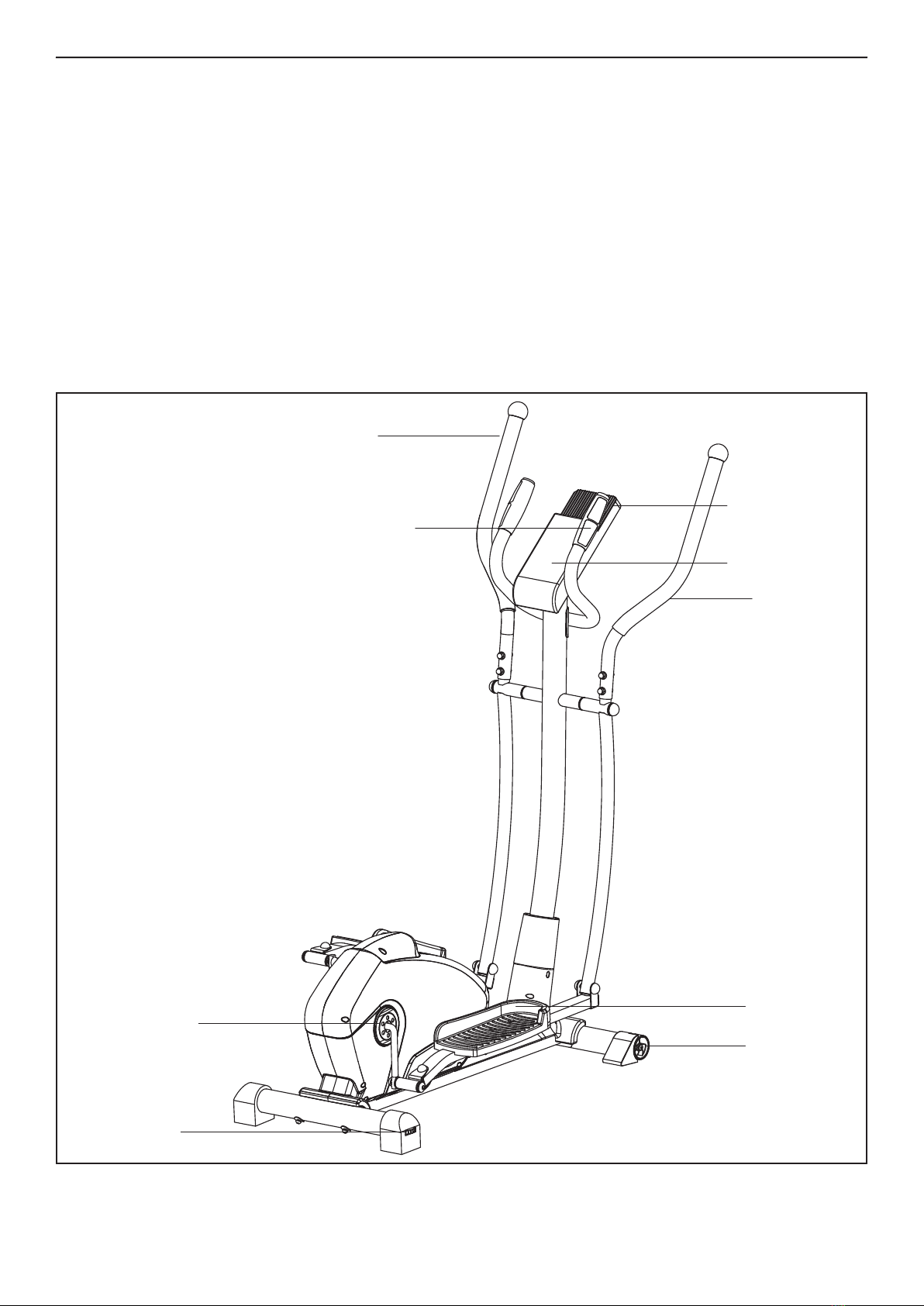

Before reading further, please familiarize yourself with the

parts that are labeled in the drawing below.

Heart Rate Monitor

Upper Body Arm

Tablet Holder

Pedal Disc

Pedal

Wheel

Console

Leveling Foot

Handlebar

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each draw-

ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number

is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see whether it has been

preassembled.

34 M8x55 2PCS 37 M6x35 6PCS

29 M8x45 4PCS

S17 S17 S19

55 M8x15 2PCS

Go to www.iconservice.ca/CustomerService/

registration and register your product.

• activates your warranty

• saves you time if you ever need to contact

Customer Service

• allows us to notify you of upgrades and offers

Note: If you do not have internet access, call

Customer Service (see the front cover of this

manual) and register your product.

STEP 1

Fix the Front bottom tube (2) and the Rear bottom

tube (3) onto the Main frame (1) with the Allen pan

head screw (7) and Curved washer (9) as shown.

ASSEMBLY

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you nish all assembly steps.

• Left and right parts are marked “L” or “Left” and “R”

or “Right.”

• To identify small parts, see page 17

• As you assemble the exercice bike, use the draw-

ings below to identify small parts. The number in

parentheses below each drawing is the key number

of the part, from the PART LIST near the end of this

manual. The number following the parentheses is

the quantity needed for assembly.

• In addition to the included tool(s), assembly requires

the following tools:

• one adjustable wrench

• one Phillips screwdriver

• Note: If a part is not in the hardware kit, check to

see if it has been preassembled.

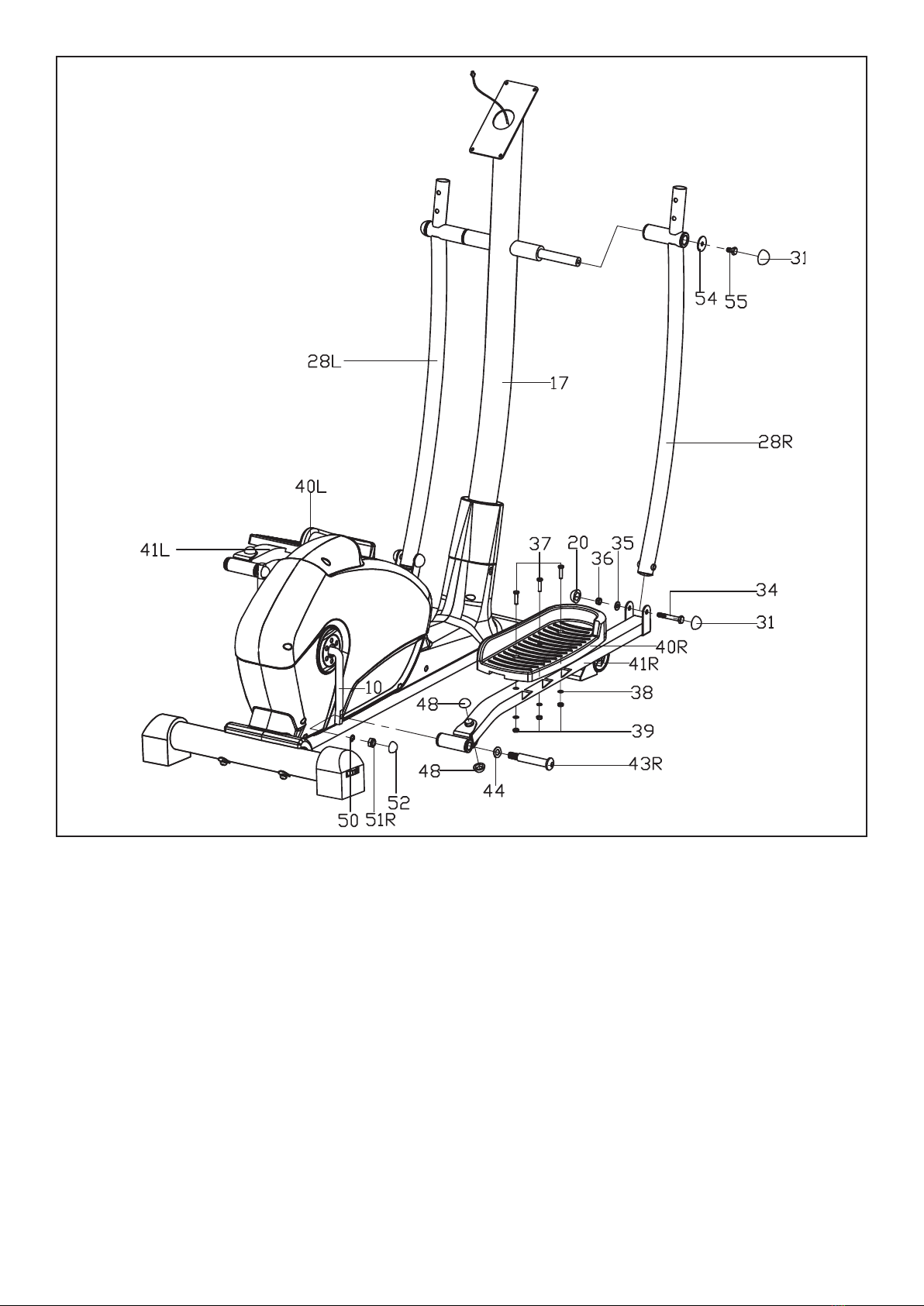

STEP 2

I. Insert the Handlebar post cover (14) into the Handlebar post (17) and then connect the Connection Wire (15)

well with the Sensor wire (12). Then fix the Handlebar post (17) on the post of the Main Frame (1) with the Allen

pan head screw (13), the Spring washer (8) and the Curved washer (9) as shown.

II. Finally, cover the Handlebar post cover (14) to the joint of Handlebar post (17) and the Main frame (1).

STEP 3

I. Fix the Right swing tube(28R) onto the Handlebar post(17) with the Bolt(55) and the Flat washer(54). Note: First

not tight them up.

II. Fix the Right pedal support tube(41R) onto the Crank(10) with the Pedal bolt(43) and the Wave shape

washer(44),and then attach the Thin spring washer(50) and the Nylon nut(51). Note: First not tight them up.

III. Connect the Right swing tube(28R) and the Right pedal support tube(41R) with the Bolt(34), Flat washer(35)

and Nylon nut(36), then tighten the Bolt(55), the Bolt(34) and Nylon nut(51), finally cover the Collar cap(31), the

Collar cap(48), the Collar cap(52) and the Collar cap(60).

IV.Fix the Right pedal(40R) onto the Right pedal tube(41R) with the Bolt(37),the Flat washer(38) and Nylon

nut(39).

V.Use the same way to fix the Left pedal tube(41L),the Left swing tube(28L) onto the Crank(10) and the Handlebar

post(17),and finally fix the Left pedal(40L) onto the Left pedal tube(41L).

STEP 5

I.Fasten the Handlebar(27R/L) with the Bolt(29),the Curved washer(30) and the Cap nut(25) onto the Swing

tube(28L/R).

II. Connect the Pulse wire (23) and the Connection wire (15) with the wires of console (19) respectively, and then

fasten the console (19) onto the console bracket of the Handlebar post (17) with the Cross pan head screw (21).

II. Insert one side of adapter into the back of console (19), and another plug insert to power supply.

Note: Before using the machine, make sure all the screws are fasten tightly

Now your machine is ready for use.

STEP 4

Pull the Pulse wire (23) out of the console bracket

hole of the Handlebar post (17), and then fasten

the handlebar (16) onto the Handlebar post (17)

with the Allen pan head screw (13) and the spring

washer (8) and Curved washer (9).

HOW TO EXERCISE ON THE ELLIPTICAL

To mount the elliptical exerciser, hold the upper body arms

and step onto the pedal that is in the lowest position. Then,

step onto the other pedal. Push the pedals until they begin

to move with a continuous motion.

Note: The pedal discs can turn in either direction. It is rec-

ommended that you move the pedal discs in the direction

shown by the arrow;however, for variety, you may turn the

pedal discs in the opposite direction.

The upper body arms are designed to add upper-body

exercise to your workouts. As you exercise, push and pull

the upper body arms to work your arms, shoulders, and

back. To focus on lower-body exercise, hold the upper

body arms but do not push or pull them as you exercise.

To dismount the elliptical exerciser, wait until the pedals

come to a complete stop.

Note: The elliptical exerciser does not have a free wheel;

the pedals will continue to move until the flywheel stops.

When the pedals are stationary, step off the highest pedal

first. Then, step off the lower pedal.

WHEN YOU ARE FINISHED EXERCISING

If the pedals do not move for several minutes and the but-

tons are not pressed, the console will turn off and the

display will be reset.

HOW TO USE THE TABLET HOLDER

IMPORTANT: The tablet

holder is designed for use

with most full-size tablets.

Do not place any other

electronic device or object

in the tablet holder.

To insert a tablet into the

tablet holder, set the bottom

edge of the tablet in the tray. Make sure that the tablet is

firmly secured in the tablet holder. Rotate the tablet holder

to the desired angle. Reverse these actions to remove the

tablet from the tablet holder.

IMPORTANT: If the elliptical has been exposed to cold

temperatures, allow it to warm to room temperature

before you plug in the power adapter. If you do not do

this, you may damage the console displays or other

electronic components.

Plug the power adapter

into the receptacle on

the frame of the elliptical.

Insert the appropriate plug

adapter into the power

adapter if necessary.

Then, plug the power

adapter into an appropri-

ate outlet that is properly

installed in accordance

with all local codes and

ordinances.

NOTE: Power hole is designed on the back of the

console

HOW TO USE THE ELLIPTICAL

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Entrenador elíptico de Pro-Form

Pro-Form

Pro-Form 585 Cse Elliptical Manual de usuario

Pro-Form

Pro-Form PFEL3905.0 Manual de usuario

Pro-Form

Pro-Form StrideSelect 600 Manual de usuario

Pro-Form

Pro-Form 280 Razor Elliptical Guía del usuario

Pro-Form

Pro-Form Trainer 7.0 Manual de usuario

Pro-Form

Pro-Form 700TR Manual de usuario

Pro-Form

Pro-Form CardioCross Trainer 831.285284 Manual de usuario

Pro-Form

Pro-Form 325 CSE Manual de usuario

Pro-Form

Pro-Form 420 Ce Elliptical Manual de usuario

Pro-Form

Pro-Form 762 Ekg Bike Manual de usuario

Pro-Form

Pro-Form 500 Ekg Elliptical Manual del sistema

Pro-Form

Pro-Form 380 Razor Elliptical Manual de operación y mantenimiento

Pro-Form

Pro-Form PFIVEL74514.0 Manual de usuario

Pro-Form

Pro-Form XP 115 831.28643.0 Manual de usuario

Pro-Form

Pro-Form 690 Hr Elliptical Manual de operación y mantenimiento

Pro-Form

Pro-Form 18.0 Re Elliptical Manual de usuario

Pro-Form

Pro-Form 6.0 Et Elliptical Manual de usuario

Pro-Form

Pro-Form 1150 Rxw Manual de operación y mantenimiento

Pro-Form

Pro-Form 465 S Manual de usuario

Pro-Form

Pro-Form PFEL6905.0 Manual de usuario

Pro-Form

Pro-Form PFEL53911.1 Manual de usuario

Pro-Form

Pro-Form 650 Cardio Cross Trainer Elliptical Manual de operación y mantenimiento

Pro-Form

Pro-Form PFEL39420 Manual de usuario

Pro-Form

Pro-Form 2105cxa Manual de usuario

Manuales populares de Entrenador elíptico de otras marcas

Weslo

Weslo Momentum 4.0 Elliptical Manual de operación y mantenimiento

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manual de usuario

Torque Fitness

Torque Fitness XPLLP Manual de usuario

Octane Fitness

Octane Fitness PRO3700C Manual de usuario

Xterra

Xterra FS5.8e Manual de usuario

Bodyguard

Bodyguard E-40 Manual de usuario

Bonn Germany

Bonn Germany Concept 2.2 Manual de usuario

Precor

Precor Resolute RSL 620 Manual de usuario

NordicTrack

NordicTrack E 9.2 Elliptical Manual de usuario

Vision Fitness

Vision Fitness X6600iNetTV Manual de usuario

Matrix

Matrix MX-A5x Manual de usuario

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manual de usuario

Sears

Sears FREE SPIRIT C249 30737 0 Manual de usuario

True

True FS-64 Manual de usuario

Sport-thieme

Sport-thieme ST 310 Manual de usuario

VIRTUFIT

VIRTUFIT CTR 1.1 Manual de usuario

Kettler

Kettler GIRO C 1 Manual de usuario

CIRCLE FITNESS

CIRCLE FITNESS E7 Manual de usuario
