SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

Model No. 831.285872

Serial No.

Write the serial number in the space

above for reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial

Number

Decal

USERÕS MANUAL

Patent Pending

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE PROFORM¨REBEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the PROFORM¨REBEL Recumbent Cycle and Elliptical Crosstrainer.

1. Read all instructions in this manual before

using the REBEL.

2. It is the responsibility of the owner to

ensure that all users of the REBEL are ade-

quately informed of all precautions.

3. Place the REBEL on a level surface, with a

mat beneath it to protect the floor or

carpet. Keep the REBEL indoors, away from

moisture and dust.

4. Inspect and tighten all parts regularly.

Replace any worn parts immediately.

5. Keep children under the age of 12 and pets

away from the REBEL at all times.

6. The REBEL should not be used by

persons weighing more than 250 pounds.

7. Wear appropriate exercise clothing when

using the REBEL. Always wear athletic

shoes for foot protection.

8. Always hold the handlebars when mounting,

dismounting and using the REBEL. Step

onto and off the pedal that is in the lowest

position when mounting and dismounting.

9. When you stop exercising, allow the pedals

to slowly come to a stop. The REBEL does

not freewheel; the pedals will continue to

move until the flywheel stops.

10. Keep your back straight when using the

REBEL. Do not arch your back.

11. If you feel pain or dizziness while exercis-

ing, stop immediately and begin cooling

down.

12. The REBEL is intended for in-home use

only. Do not use it in any commercial, rental,

or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health

problems. Read all instructions before using. ICON assumes no responsibility for personal injury

or property damage sustained by or through the use of this product.

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

BEFORE YOU BEGIN

Congratulations for selecting the revolutionary PRO-

FORM¨REBEL Recumbent Bike and Elliptical

Crosstrainer. The REBEL is an incredibly smooth

exerciser that moves your feet in a natural elliptical

path, minimizing the impact on your knees and ankles.

And the unique REBEL can easily be converted from

an elliptical crosstrainer to a recumbent bike, giving you

two machines in one. Welcome to a whole new world

of natural, elliptical-motion exercise from PROFORM.

For your benefit, read this manual carefully before

you use the REBEL. If you have additional questions,

please call our toll-free HELPLINE at 1-800-736-6879,

Monday through Saturday, 7 a.m. until 7 p.m. Central

Time (excluding holidays). To help us assist you,

please note the product model number and serial

number before calling. The model number is

831.285872. The serial number can be found on a

decal attached to the REBEL (see the front cover of

this manual).

Before reading further, please look at the drawing

below and familiarize yourself with the parts that are

labeled.

Resistance Knob Upright

FRONT

BACK RIGHT SIDE

Pedal

Handlebar

Lock Knob

(on back)

Side Shield

Pedal Leg

Base

Console

Book Holder

and Seat

Backrest

Toe Pedal

PART IDENTIFICATION CHART

Use the chart below to identify the small parts used in

assembly. The number in parenthesis below each part

is the key number of the part, from the PART LIST on

page 14. The number after the dash indicates the

quantity needed for assembly. Note: Some small

parts may have been pre-attached for shipping. If

a part is not in the parts bag, check to see if it has

been pre-attached.

M10 Nylon Locknut (54)Ñ6

1/2" Nylon Locknut (9)Ñ2

Pedal Bolt (8)Ñ2

M10 x 68mm Bolt (67)Ð4

Pedal Arm Spacer (42)Ñ2

M10 x 25mm Button Head Bolt (85)Ð2

M10 Washer (71)Ñ6

Handlebar Screw (51)Ð4

M4 x 38mm Screw (4)Ñ2

Console Mount Screw (69)Ð1

M16 Flat Washer (84)Ñ2

Plastic Sleeve (53)Ñ2

Metal Handlebar Spacer (83)Ð2

M10 x 75mm Bolt (66)Ð2

M4 x 16mm Tapping Screw (30)Ñ8

M6 x 16mm Seat Screw (28)Ð8

1. Hold the Stabilizer (68) against the saddle on the rear

of the Base (1). Attach the Stabilizer with two M10 x

75mm Bolts (66) and two M10 Nylon Locknuts (54).

2. Slide the ÒUÓ-channel on the Rail Stabilizer (37) into

the Base (1). Make sure that the Reed Switch Wire

(48) is extending from the hole formed where the

two parts meet; be careful not to damage the Reed

Switch Wire.

Insert two M10 x 68mm Bolts (67) with two M10

Washers (71) up through the Base (1) and the Rail

Stabilizer (37). Note: It may be easier to insert the

Bolts if the unit is tipped on its side.

Insert two M10 x 68mm Bolts (67) with two M10

Washers (71) up through the Rail Stabilizer (37).

ASSEMBLY

Assembly requires two persons. Place all parts of the PROFORM¨REBEL in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires a phillips screwdriver , two adjustable wrenches and a

rubber mallet (none of these is included).

ÒUÓ-channel

3. While one person holds the Upright (2), connect the

Extension Wire (49) to the Reed Switch Wire (48)

extending from the Base (1). Insert any excess wire

into the Upright or the Base.

Slide the Upright (2) onto the four M10 x 68mm Bolts

(67). Make sure that the wires do not get pinched

as you slide the Upright into place.

Hand tighten an M10 Nylon Locknut (54) onto each

M10 x 68mm Bolt (67). Tip the unit on its side and use

two spanners to tighten the Nylon Locknuts fully.

6. Attach the Seat (43) to the indicated brackets on the

Seat Bar (6) with four M6 x 16mm Seat Screws (28).

Attach the Seat Cover (35) to the Seat (43), using two

M4 x 38mm Screws (4) along the rear edge and an M4

x 16mm Tapping Screw (30) on each side.

5. Remove the Console Mount Screw (69) and slide the

Detent Ring (73) off the shaft of the Console (5).

Insert the console wire through the indicated hole in

the Seat Bar (6).

Using the included grease pack, lubricate the shaft of

the Console (5). Insert the shaft into the indicated hole

in the Seat Bar (6).

Slide the Detent Ring (73) onto the console shaft and

line up the hole in the Detent Ring with the hole in the

shaft. Secure the Console (5) with the Console Mount

Screw (69) (see the inset drawing).

Plug the console wire into the Seat Bar Wire (16).

Console

Wire

Lubricate

4. Connect the Seat Bar Wire (88) to the Handlebar Wire

(87).

Slide the Handlebar (7) onto the Seat Bar (6). Attach

the Handlebar with the four Handlebar Screws (51).

Make sure that the Handlebar Screws do not damage

the wires.

Pull both Grips (72) towards the Handlebar (7) until

they cover the Handlebar Screws (51).

9. Identify the Left Pedal Leg (3) by looking at the

Lock Pin (90) on the pre-assembled Toe Pedal (36).

The Lock Pin must be on the outside when the

Pedal Leg is mounted.

Attach a Pedal (29) to the Left Pedal Leg (3) with three

M4 x 16mm Tapping Screws (30).

Lubricate a Pedal Bolt (8) with the included grease

pack and slide it through the two pre-assembled

Bushings (39). Slide a Plastic Pedal Spacer (42) onto

the Pedal Bolt (8) and slide the Bolt into the hole in the

left Crank Arm (10). Tighten a 1/2Ó Nylon Locknut (9)

onto the Pedal Bolt (8).

Repeat this procedure for the Right Pedal Leg (70, not

shown).

8. Attach the Backrest (40) to the indicated brackets on

the Upright (2) with four M6 x 16mm Seat Screws (28).

Lubricate

7. Note: The assistance of another person is recom-

mended for this step.

While another person holds the Handlebar (7) in the

position shown, connect the Handlebar Wire (87) to

the Extension Wire (49) extending from the Upright (2).

Next, slide a Plastic Sleeve (53) onto each of the indi-

cated shafts on the Upright (2).

Slide an M10 Washer (71) onto each of the M10 x

25mm Button Head Bolts (85). Next, insert the Bolts

through the brackets on the Handlebar (7) and then

slide an M16 Flat Washer (84) and a Metal Handlebar

Spacer (83) onto each Bolt. Insert the Bolts into the

shafts on the Upright (2) and tighten them with the

included allen wrench. Be careful not to overtighten

the Bolts; the Handlebar must pivot easily.

Shaft

Bracket

HOW TO USE THE PROFORM¨REBEL

HOW TO SWITCH BETWEEN RECUMBENT BIKE

AND ELLIPTICAL CROSSTRAINER

To switch from recumbent bike to elliptical crosstrain-

er, lift the Seat (43) as far as it will go. Tighten the

Lock Knob (81, not visible) into the Upright (2). Note:

Tighten the Lock Knob fully. Push the Console (5)

in to disengage the lock, and then turn it so the dis-

play is visible when you are standing on the pedals.

To switch from elliptical crosstrainer to recumbent

bike, loosen the Lock Knob (81, not visible). Fold the

Seat (43) down and turn the Console (5) so it is visi-

ble when you are sitting on the Seat.

HOW TO EXERCISE ON THE REBEL WHEN IT IS

SET UP AS AN ELLIPTICAL CROSSTRAINER

To mount the REBEL in the crosstrainer mode, hold

the handlebars and step onto the pedal that is in the

lowest position. Next, step onto the other pedal. Push

the pedals until they begin to move with a continuous

motion. Note: The crank can turn in either direc-

tion. To get the full impact of the elliptical motion,

it is recommended that you turn the crank in the

direction shown by the arrow below; however, to

give variety to your exercise, you may choose to

turn the crank in the opposite direction.

Pedal

Crank

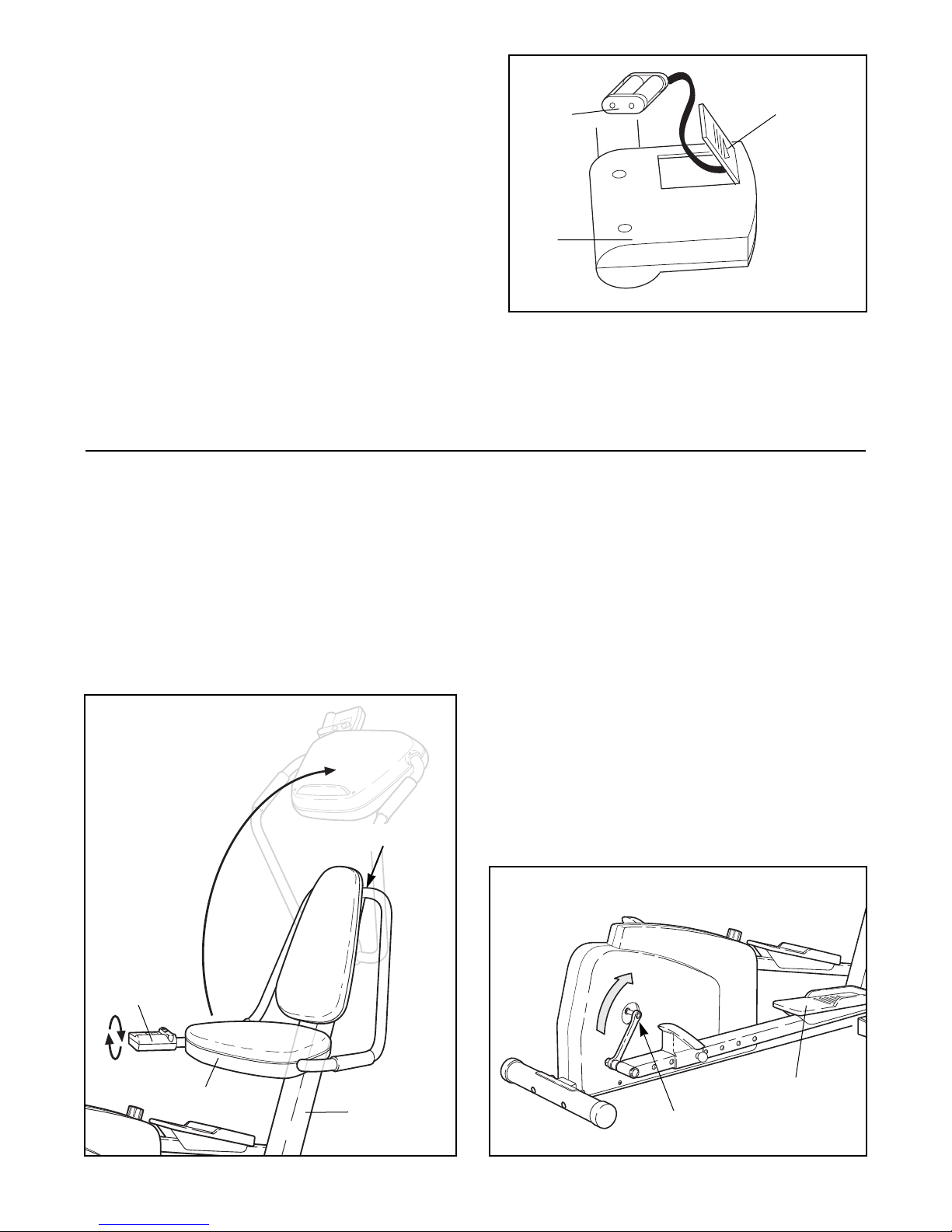

10.The Console (5) requires two ÒAAÓ batteries (not

included). Alkaline batteries are recommended.

To install batteries, first slide up the battery cover and

carefully remove the battery clip from the Console (5).

Insert two batteries into the battery clip as shown.

Make sure that the negative ends of the batteries

(marked ÒÐÓ) are touching the springs in the bat-

tery clip. Replace the battery clip and close the bat-

tery cover. 5

Battery

Clip

Battery

Cover

11. Make sure that all parts of the REBEL are properly tightened. To protect the floor or carpet from damage,

place a mat under the REBEL.

Lock Knob

To dismount the REBEL, allow the pedals to slowly

come to a stop. Important: The REBEL does not

have a freewheel; the pedals will continue to

move until the flywheel stops. When the pedals are

stationary, step off the highest pedal first. Then, step

off the lowest pedal.

HOW TO ADJUST THE TOE PEDALS

To adjust the Right Toe Pedal (89), pull out the Lock

Pin (90). Slide the Toe Pedal forwards or backwards

to the desired position. Push the Lock Pin through the

holes in the Toe Pedal and the adjustment holes in

the Pedal Leg (70). Adjust the Left Pedal (36, not

shown) in the same manner.

HOW TO ADJUST THE RESISTANCE OF THE

PEDALS

As you exercise,

you can adjust the

resistance of the

pedals with the

resistance knob.

To increase the

resistance, turn the

knob clockwise; to

decrease the resis-

tance, turn the

knob counterclock-

wise.

DESCRIPTION OF THE CONSOLE

The console is designed to help you get the most

from your workouts. As you exercise, you can watch

your progress as the display provides continuous

exercise feedback. The modes of the display are

described at the right. Note: Before the console can

be operated, two ÒAAÓ batteries must be installed

(see assembly step 10 on page 8).

SpeedÑThis mode displays your pedaling speed, in

miles per hour.

TimeÑThis mode displays the elapsed time. Note:

When you stop exercising, the time mode will pause.

DistanceÑThis mode displays the total distance you

have pedaled, in miles.

Fat CalorieÑThis mode displays the approximate

number of fat calories you have burned (see BURN-

ING FAT on page 12).

CalorieÑThis mode displays the approximate number

of Calories you have burned.

ScanÑThis mode displays the speed, time, distance,

fat calorie, and calorie modes, for 5 seconds each, in

a repeating cycle.

HOW TO OPERATE THE CONSOLE

If there is a thin sheet of clear plastic on the face of

the console, remove it.

1. To turn on the power, press the on/reset button or

simply begin pedaling. When the power is turned

on, the entire display will appear for two seconds.

The console will then be ready for operation.

2. Select one of the modes:

Scan modeÑWhen

the power is turned

on, the scan mode

will automatically be

selected. One mode

indicator will show

that the scan mode

is selected, and a

flashing mode indicator will show which mode is

currently displayed. Note: If a different mode is

selected, you can select the scan mode again by

repeatedly pressing the mode button.

Resistance Knob

Display

Mode Indicators

MAINTENANCE

CONSOLE TROUBLE-SHOOTING

If the console does not function properly, the batteries

should be replaced. To replace the batteries, see

assembly step 10 on page 8. In addition, make sure

that the console wire is connected to the seat bar

wire. See assembly step 5 on page 6.

HOW TO REMOVE THE SIDE SHIELDS

For all of the following steps, one or both Side

Shields (11 and 27) must be removed.

To remove the Left Side Shield (11), unscrew the 1/2Ó

Nylon Locknut (9) and remove the Pedal Bolt (8) and

the Plastic Pedal Spacer (42) from the Left Pedal Leg

(3). Unscrew the seven M4 x 38mm Screws (4) from

the Left Side Shield. Gently pull the Left Side Shield

out and to the side, so the Crank Arm (10) fits

through the hole in the Side Shield.

To remove the Right Side Shield (27), first remove the

Left Side Shield (11) as described above. Then

unscrew the three M4 x 38mm Screws (4) from the

lower edge of the Right Side Shield. Remove the 1/2Ó

Nylon Locknut (9), Pedal Bolt (8) and Plastic pedal

Spacer (42) from the Right Pedal Leg (70, not shown).

Gently pull the Right Side Shield over the Crank Arm.

Speed, time, distance, fat calorie or calorie

modeÑTo select one of these modes for continu-

ous display, press the mode button repeatedly. The

mode indicators will show which mode is selected.

(Make sure that the scan mode is not selected.)

3. To reset the display, press the on/reset button.

4. The console has an Òauto-offÓ feature. If the

pedals are not moved and the console buttons

are not pressed for four minutes, the power will

turn off automatically to conserve the batteries.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Entrenador elíptico de Pro-Form

Pro-Form

Pro-Form 710 E Elliptical Manual de usuario

Pro-Form

Pro-Form 880 S Manual de usuario

Pro-Form

Pro-Form 1150 Rxw Guía de inicio rápido

Pro-Form

Pro-Form 831.28645.0 Manual de usuario

Pro-Form

Pro-Form 310 Ce Elliptical Manual de usuario

Pro-Form

Pro-Form 550 Hr Elliptical Manual de operación y mantenimiento

Pro-Form

Pro-Form 795 Manual de usuario

Pro-Form

Pro-Form StrideClimber 831.23745.0 Manual de usuario

Pro-Form

Pro-Form 800 Hr Heart Rate Control Elliptical Guía de configuración

Pro-Form

Pro-Form 820 Pr Elliptical Guía de inicio rápido

Pro-Form

Pro-Form 485 E Elliptical Manual de operación y mantenimiento

Pro-Form

Pro-Form 380 Razor Elliptical Manual del sistema

Pro-Form

Pro-Form PFES80040 Manual de usuario

Pro-Form

Pro-Form 485 E Elliptical Manual de usuario

Pro-Form

Pro-Form PFEL53408.0 Manual de usuario

Pro-Form

Pro-Form 505 Zle Elliptical Guía de inicio rápido

Pro-Form

Pro-Form 660 Xt Guía del usuario

Pro-Form

Pro-Form PCEL87070 Manual de usuario

Pro-Form

Pro-Form PFIVEL87513.0 Manual de usuario

Pro-Form

Pro-Form 1200 Pro Elliptical Manual de usuario

Pro-Form

Pro-Form 720 Zle Elliptical Manual de operación y mantenimiento

Pro-Form

Pro-Form PFEL5055 Manual de usuario

Pro-Form

Pro-Form 585 Cse Elliptical Manual de usuario

Pro-Form

Pro-Form 700 CARDIOTRAINER Manual de usuario

Manuales populares de Entrenador elíptico de otras marcas

Weslo

Weslo Momentum 4.0 Elliptical Manual de operación y mantenimiento

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manual de usuario

Torque Fitness

Torque Fitness XPLLP Manual de usuario

Octane Fitness

Octane Fitness PRO3700C Manual de usuario

Xterra

Xterra FS5.8e Manual de usuario

Bodyguard

Bodyguard E-40 Manual de usuario

Bonn Germany

Bonn Germany Concept 2.2 Manual de usuario

Precor

Precor Resolute RSL 620 Manual de usuario

NordicTrack

NordicTrack E 9.2 Elliptical Manual de usuario

Vision Fitness

Vision Fitness X6600iNetTV Manual de usuario

Matrix

Matrix MX-A5x Manual de usuario

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manual de usuario

Sears

Sears FREE SPIRIT C249 30737 0 Manual de usuario

True

True FS-64 Manual de usuario

Sport-thieme

Sport-thieme ST 310 Manual de usuario

VIRTUFIT

VIRTUFIT CTR 1.1 Manual de usuario

Kettler

Kettler GIRO C 1 Manual de usuario

CIRCLE FITNESS

CIRCLE FITNESS E7 Manual de usuario
