Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better! Our 1,000-plus different models now

appear in 11 groups1that are clearly defined by function.

Thank you for purchasing the Kramer: VP-200XLTHD XGA Line Amp/CAT 5

Transmitter, VP-5THD 1:4 VGA/UXGA Distributor/CAT 5 Transmitter, and/or

VP-5R CAT 5 Receiver/1:5 VGA/UXGA Distributor which are ideal for:

•Presentation and multimedia applications

•Long range graphics distribution for schools, hospitals, security, and stores

The package includes:

•One or more VP-200XLTHD,and/or VP-5THD, and/or VP-5R

•Power cord2

•This user manual3

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high-performance high-resolution cables4

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;

GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;

GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products

2 We recommend that you use only the power cord supplied with this device

3 Download up-to-date Kramer user manuals from http://www.kramerelectronics.com

4 The complete list of Kramer cables is available at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

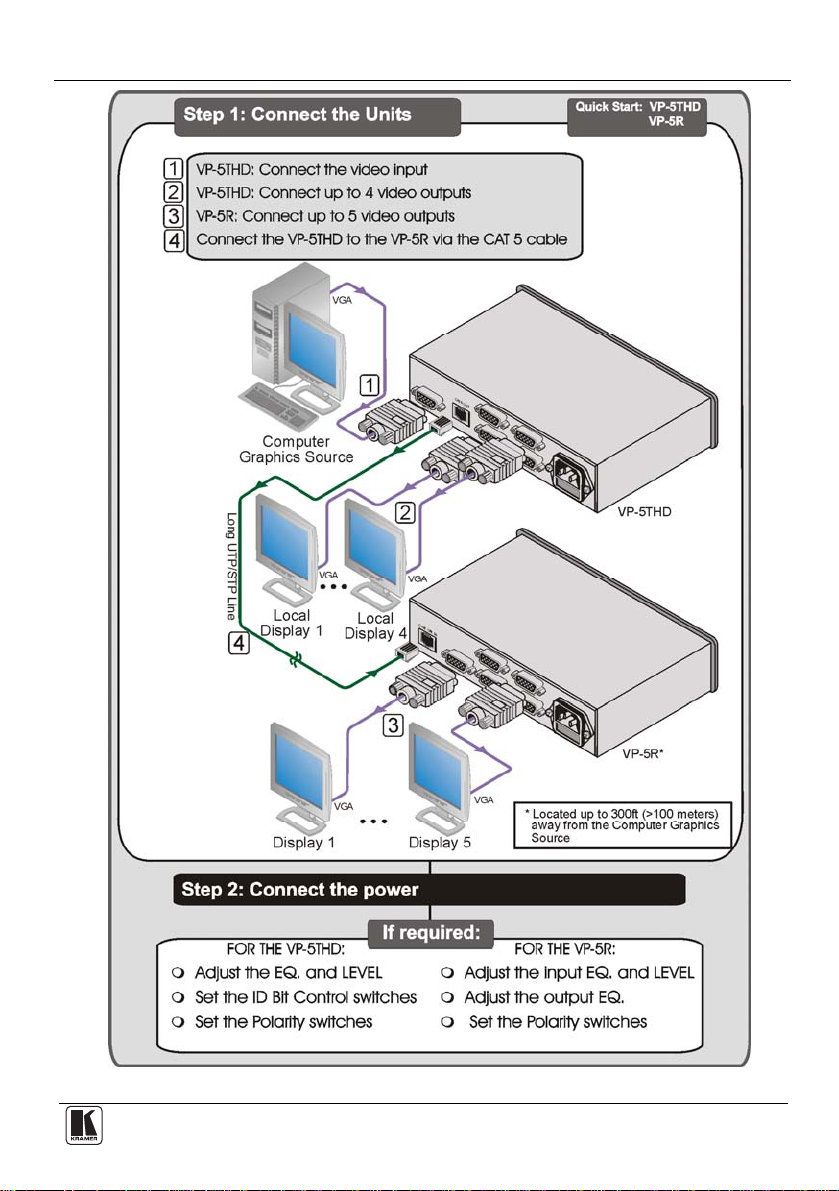

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

Getting Started

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

3 Overview

This user manual describes the following products:

•Kramer TOOLS VP-200XLTHD XGA Line Amp/CAT 5 Transmitter, which

accepts one computer graphics input and distributes the signal to its 15-pin HD

connector output, as well as transmitting it over STP cabling (CAT 5 or

similar) to its appropriate receiver (see Section 4 )

•Kramer VP-5THD 1:4 VGA/UXGA Distributor/CAT 5 Transmitter, which is a

distributor for computer graphics signals, accepting one input, and distributing

the signal to its identical 4 outputs, as well as transmitting it over CAT 5 STP

cable to its appropriate receiver (see Section 5 )

•Kramer VP-5R CAT 5 Receiver/1:5 VGA/UXGA Distributor, which is a

distributor for computer graphics signals, receiving the computer graphics

signal via CAT 5 STP cable, and distributing the signal to 5 identical 15-pin

HD outputs (see Section 6 )

This section describes:

•The Power Connect feature (see Section 3.1)

•Using Shielded Twisted Pair/Unshielded Twisted Pair cable (see Section 3.2)

•Recommendations for achieving the best performance (see Section 3.3)

3.1 About the Power Connect™ Feature

The Power Connect feature applies as long as the cable can carry power. This

feature is available when using STP cable and the distance does not exceed 50m on

standard CAT 5 cable. For longer distances, heavy gauge cable should be used1.

For units which are connected via RJ-45 connectors, make sure that the shield of

the STP cable is connected to the metal casing of the connectors on both ends of

the cable. For units which are connected via terminal block connectors, the shield

of the STP cable must be connected to a ground terminal on the units at both ends

(use the ground terminal of the power supply connection if necessary).

For a CAT 5 cable exceeding a distance of 50m, separate power supplies should

be connected to the transmitter and to the receiver simultaneously.

3.2 Shielded Twisted Pair/Unshielded Twisted Pair

We recommend that you use Shielded Twisted Pair (STP) cable. There are

different levels of STP cable available, and we advise you to use the best quality

STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is

intended for analog signals where skewing is not an issue. For cases where there is

1 CAT 5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances

Overview

skewing, our UTP skew-free cable, Kramer BC-XTP, may be used. Bear in mind,

though, that we advise using STP cables where possible, since the compliance to

electromagnetic interference was tested using those cables.

Although Unshielded Twisted Pair (UTP) cable might be preferred for long range

applications, the UTP cable should be installed far away from electric cables, motors

and so on, which are prone to create electrical interference.

However, since the use of UTP cable might cause inconformity to electromagnetic

standards,Kramer does not commit to meeting the standard with UTP cable.

3.3 Recommendations for Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables1to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables).

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality and position your Kramer product away from

moisture, excessive sunlight and dust

1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Defining the VP-200XLTHD XGA Line Amp/CAT 5 Transmitter

4 Defining the VP-200XLTHD XGA Line Amp/CAT 5 Transmitter

The VP-200XLTHD is a high-performance XGA line amp/CAT 5 transmitter that

accepts one computer graphics (XGA) input, provides necessary buffering and

isolation, and distributes the signal to the 15-pin HD connector output, as well as

transmitting it over STP cable to its appropriate receiver.

In particular, the VP-200XLTHD:

•Can also accept HD signals (high-definition resolutions: 480p, 576p, 720p,

1080i and 1080p)

•Has a transmission range of more than 300ft (100m) over STP cabling

•Has a video bandwidth exceeding 400MHz, ensuring transparency even when

operating at the highest resolutions

•Includes output level control and cable equalization control, via two trimmers

on the front panel of the unit

Figure 1 and Table 1 define the VP-200XLTHD.

Figure 1: VP-200XLTHD XGA Line Amp/CAT 5 Transmitter

Defining the VP-200XLTHD XGA Line Amp/CAT 5 Transmitter

Table 1: VP-200XLTHD XGA Line Amp/CAT 5 Transmitter Features

# Feature Function

1 12V DC Connect to the 12V DC power adapter

2 LINE OUT RJ-45 Connector Connect to1the LINE IN RJ-45 connector on the TP-1202or the VP-5R

3 XGA OUT 15-pinHDConnector Connect to the XGA acceptor

4 INPUT 15-pinHDConnector Connect to the XGA source

5 LEVEL trimmer Turn to adjust3the output signal level

6 EQ. trimmer Turn to adjust3the video EQ. (equalization) compensation

7 ON LED Lights when the VP-200XLTHD receives power

Figure 2 and Table 2 define the VP-200XLTHD.

Figure 2: VP-200XLTHD XGA Line Amp/CAT 5 Transmitter Underside

Table 2: VP-200XLTHD XGA Line Amp/CAT 5 Transmitter Underside Features

Switch Function

VS Switch Slide the switch downward to changethe VS polarity to negative polarity4; slide the

switch upward to retain the polarity (default)

HS Switch Slide the switch downward to changethe HS polarity to negative polarity4; slide the

switch upward to retain the polarity (default)

1 Using an STP CAT 5 cable with RJ-45 connectors at both ends (the pinout is defined in Table 7 and Figure 9)

2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110 available at http://www.kramerelectronics.com

3 Insert a screwdriver into the hole and carefully rotate it, to trim the level

4 Downgoing syncs

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Defining the VP-5THD 1:4 VGA/UXGA Distributor/CAT 5 Transmitter

5 Defining the VP-5THD 1:4 VGA/UXGA Distributor/CAT 5

Transmitter

The VP-5THD is a high-performance distributor for computer graphics signals,

accepting one input, providing necessary buffering and isolation, and distributing

the signal to its four identical outputs, as well as transmitting it over STP CAT 5

cable to an appropriate receiver.

In particular, the VP-5THD:

•Features front panel EQ. control

•Has switches on the underside for ID Bit control

•Has a video bandwidth exceeding 440MHz, ensuring transparency even when

operating at the highest resolutions

•Has a transmission range of more than 300ft (more than 100m) over STP cabling

•Is mains fed and housed in a half-width 19" enclosure

•Has Hs and Vs polarity switches on its underside

•Supports HD signals (high-definition resolutions: 720p, 1080i and 1080p) and

SD signals

Figure 3 and Table 3 define the VP-5THD.

Figure 3: VP-5THD 1:4 VGA/UXGA Distributor/CAT 5 Transmitter

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Transmisor de Kramer

Kramer

Kramer Cobra T2 Manual de usuario

Kramer

Kramer TP-205A Manual de usuario

Kramer

Kramer WP-121 Manual de usuario

Kramer

Kramer TOOLS TP-104 Manual de usuario

Kramer

Kramer TP-780T Manual de usuario

Kramer

Kramer TP-551N Manual de usuario

Kramer

Kramer EXT3-C-WP-XR-T Manual de usuario

Kramer

Kramer TP-594Txr Manual de usuario

Kramer

Kramer KW-14T Manual de usuario

Kramer

Kramer SWT3-41-U-T Manual de usuario

Kramer

Kramer SID-X3N Manual de usuario

Kramer

Kramer 671T Manual de usuario

Kramer

Kramer F-121 Manual de usuario

Kramer

Kramer SID-X1 Manual de usuario

Kramer

Kramer SID-X2N Manual de instalación y operación

Kramer

Kramer Cobra TS2 Manual de usuario

Kramer

Kramer F-110 Manual de usuario

Kramer

Kramer F-121UK Manual de usuario

Kramer

Kramer Cobra TS2 Manual de usuario

Kramer

Kramer TP-15 Manual de usuario

Kramer

Kramer VP-5R Manual de usuario

Kramer

Kramer TP-145 Manual de usuario

Kramer

Kramer WP-110 Manual de usuario

Kramer

Kramer WP-110xl Manual de usuario

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
