USER MANUAL

Models:

TP-581T, HDMI Line Transmitter

TP-582T, HDMI Switcher/Line Transmitter

TP-582R, HDMI Line Receiver DA

Contents

1Introduction 1

2Getting Started 1

2.1 Quick Start 2

3Overview 3

3.1 Features of the TP-581T, TP-582T and TP-582R 3

3.2 About HDBaseT™ Technology 4

3.3 Using Twisted Pair Cable 4

3.4 Recommendations for Achieving the Best Performance 5

3.5 Safety Instructions 5

3.6 Recycling Kramer Products 5

4Your HDMI Line Transmitters/Receiver 6

4.1 Your TP-581T HDMI Line Transmitter 6

4.2 Your TP-582T HDMI Switcher/Line Transmitter 7

4.3 Your TP-582R HDMI Line Receiver DA 8

5Connecting the TP-581T, TP-582T and TP-582R 9

5.1 Connecting the TP-582T or TP-581T 9

5.2 Connecting the TP-582R 10

5.3 Controlling the A/V Equipment via an IR Transmitter 12

5.4 Controlling the TP-582T via the REMOTE Terminal Block Connector 14

5.5 Connecting to a PC 14

5.6 Wiring the RJ-45 Connectors 15

5.7 Acquiring the EDID 16

6Technical Specifications 17

7Default EDID 18

Figures

Figure 1: TP-581T HDMI Line Transmitter 6

Figure 2: TP-582T HDMI Switcher/Line Transmitter 7

Figure 3: TP-582R HDMI Line Receiver DA 8

Figure 4: Connecting the TP-582T/TP-582R Transmitter/Receiver 11

Figure 5: Controlling a DVD Player via the TP-582R 12

Figure 6: Controlling an LCD Display via the TP-582T 13

Figure 7: Connecting the Contact Closure Remote Control PINs 14

Figure 8: TP PINOUT 15

Tables

Table 1: TP-581T HDMI Line Transmitter Features 6

Table 2: TP-582T HDMI Switcher/Line Transmitter Features 7

Table 3: TP-582R HDMI Switcher/Line Receiver Features 8

Table 4: Technical Specifications of the TP-581T, TP-582T and TP-582R 17

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

1,000-plus different models now appear in 11 groups

that are clearly

defined by function.

Congratulations on purchasing your Kramer MegaTOOLS®TP-581T

HDMI Line Transmitter, TP-582T HDMI Switcher/Line Transmitter or

TP-582R HDMI Line Receiver DA that are ideal for:

Home theater, presentation and multimedia applications

Rental and staging

The package includes the following:

TP-581T and/or TP-582T and/or TP-582R

Power supply (5V DC)

IR remote control transmitter (for TP-582T only)

This user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;

GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;

GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products

Download up-to-date Kramer user manuals from the Internet at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

2.1 Quick Start

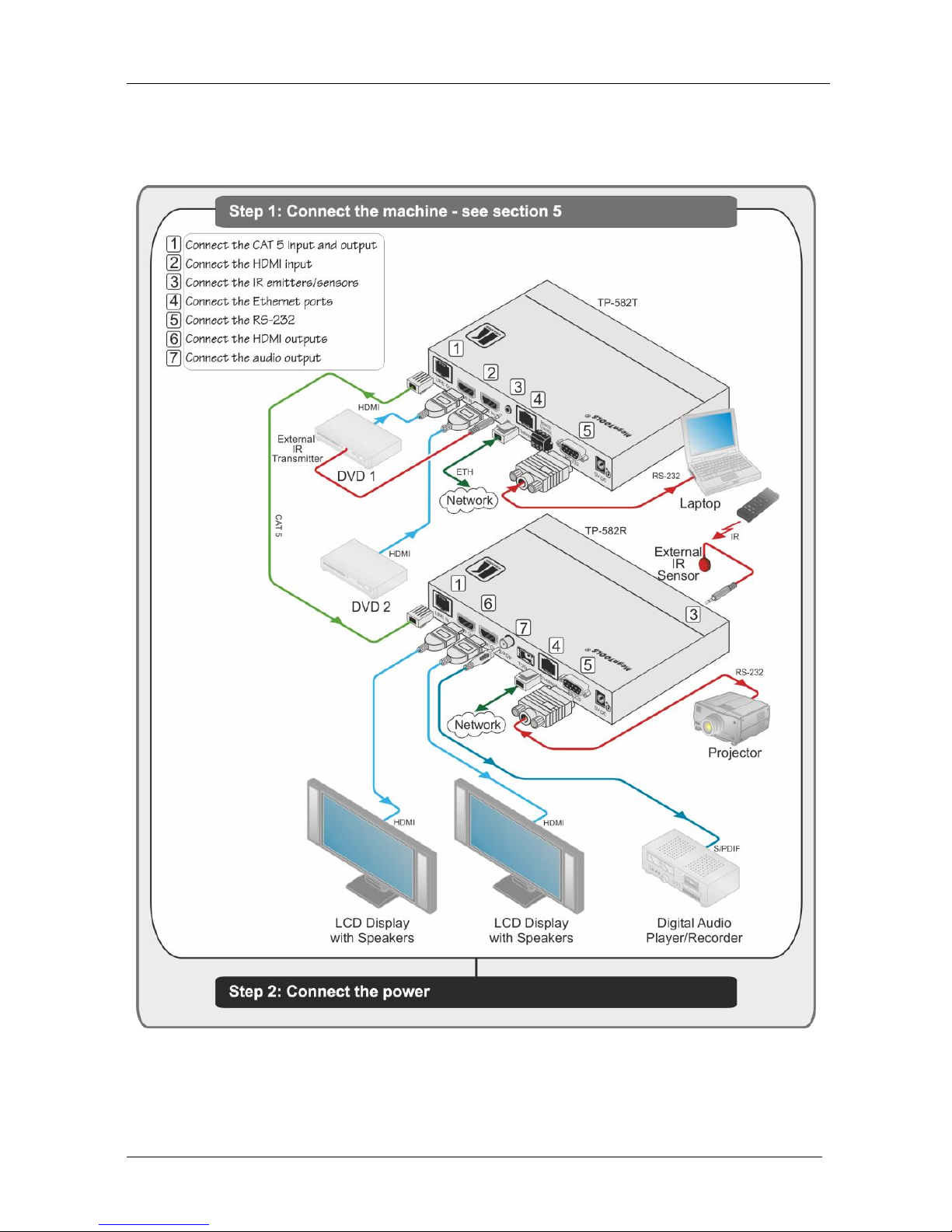

This quick start chart summarizes the basic setup and operation steps.

Overview

3 Overview

The TP-582T and TP-582R are a high-quality twisted pair transmitter and

receiver for HDMI, 100BaseT Ethernet, bidirectional RS-232 and IR

signals.

With the TP-582T you can select one of two HDMI inputs, and convert it

with the 100BaseT Ethernet, RS-232 and IR input signals to a twisted pair

signal. The TP-582R converts the twisted pair signal back to 100BaseT

Ethernet, RS-232, IR and two HDMI outputs, and de-embeds the audio to

S/PDIF and TOSLINK® audio outputs. The TP-581T is identical to the

TP-582T but has only one HDMI input

For optimum range and performance using HDBaseT™, use Kramer's BC−HDKat6a

cable. Note that the transmission range depends on the signal resolution, source and

display used. The distance using non−Kramer CAT 6 cable may not reach these ranges.

3.1 Features of the TP-581T, TP-582T and TP-582R

This transmitter/receiver pair features:

Signals of up to 6.75Gbps (up to 1080p@60Hz 36 bit) over a range of up

to 130m (430ft) when using BC−HDKat6a cables

HDTV compatibility

HDMI support (V.1.4 with Deep Color, x.v.Color™, Lip Sync, HDMI

Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC)

3D pass through

HDCP compliance

EDID PassThru, passes EDID/HDCP signals from source to display

A bidirectional RS-232 interface over which commands and data can

flow in both directions via the RS-232 interface at rates up to 115200,

allowing status requests and control of the destination unit

Bidirectional infrared interface for remote control of peripheral devices

(see Section 5.3)

100BaseT Ethernet interface for connection to a network (see Section 3.2)

LED status indicators for input, output, link and power

Two RJ-45 CAT 5 output connectors: one for the line output and the

other for the Ethernet input

Since the TP-581T has only one input, it does not have the input selection control which the TP-582T has (that is, contact

closure, IR and front panel input selection)

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

The compact MegaTOOLS® enclosures (for the transmitters and the

receiver) let you rack mount up to two units side-by-side in a 1U 19” rack

space when using the optional RK-T2B rack.

In addition to the common features:

The TP-582T HDMI Switcher/Line Transmitter also features:

Two HDMI inputs

Momentary remote contact closure for input switching

Front panel input select button

IR remote control input switching (via the Kramer IR remote control

transmitter)

Front-panel input selection

The TP-582R HDMI Line Receiver DA also features:

One RJ-45 CAT 5 input connector

Two HDMI outputs

An S/PDIF digital audio output

A TOSLINK®optical audio output

The TP-581T HDMI Line Transmitter also features:

One HDMI input

3.2 About HDBaseT™ Technology

HDBaseT™ is an advanced all-in-one connectivity technology (Supported

by the HDBaseT Alliance). It is particularly suitable in the consumer home

environment as a digital home networking alternative where it enables you

to replace numerous cables and connectors by a single LAN cable used to

transmit uncompressed full high-definition video, audio, 100BaseT

Ethernet, power over cable, as well as various control signals.

The products described in this user manual are HDBaseT certified.

3.3 Using Twisted Pair Cable

Kramer engineers have developed special twisted pair cables to best match

our digital twisted pair products; the Kramer BC−HDKat6a (CAT 6 23

AWG cable) significantly outperforms regular CAT 5 / CAT 6 cables.

We strongly recommend that you use shielded twisted pair cable.

Overview

3.4 Recommendations for Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may

adversely influence signal quality

Position your TP-581T/TP-582T/TP-582R away from moisture,

excessive sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

3.5 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

3.6 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive

2002/96/EC aims to reduce the amount of WEEE sent for disposal to

landfill or incineration by requiring it to be collected and recycled. To

comply with the WEEE Directive, Kramer Electronics has made

arrangements with the European Advanced Recycling Network (EARN)

and will cover any costs of treatment, recycling and recovery of waste

Kramer Electronics branded equipment on arrival at the EARN facility. For

details of Kramer’s recycling arrangements in your particular country go to

our recycling pages at

http://www.kramerelectronics.com/support/recycling/.

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your HDMI Line Transmitters/Receiver

4 Your HDMI Line Transmitters/Receiver

This section describes the:

TP-581T HDMI Line Transmitter, see Section 4.1

TP-582T HDMI Switcher/Line Transmitter, see Section 4.2

TP-582R HDMI Line Receiver DA, see Section 4.3

4.1 Your TP-581T HDMI Line Transmitter

Figure 1 and Table 1 define the TP-581T:

Figure 1: TP-581T HDMI Line Transmitter

Table 1: TP-581T HDMI Line Transmitter Features

Feature

Function

LINE OUT RJ-45 Connector

Connects to the CAT 5 IN RJ-45 connector on the TP-582R

HDMIINConnector

Connects to the HDMI source

IR 3.5mm Mini Jack Connector

Connects to an external infrared transmitter / sensor (receiver)

ETHERNET Connector

Connects to a network

RS-232 9-pin D-sub Connector

Connects to an RS-232 port

5V DC

+5V DC connector for powering the unit

IN LED

Lights when an HDMI input device is connected

OUT LED

Lights when an HDMI output device is detected

LINK LED

Lights when the TP connection is active

ON LED

Lights when receiving power

Your HDMI Line Transmitters/Receiver

4.2 Your TP-582T HDMI Switcher/Line Transmitter

Figure 2 and Table 2 define the TP-582T:

Figure 2: TP-582T HDMI Switcher/Line Transmitter

Table 2: TP-582T HDMI Switcher/Line Transmitter Features

Feature

Function

LINE OUT RJ-45 Connector

Connects to the CAT 5 IN RJ-45 connector on the TP-582R

HDMIIN 1Connector

Connects to the HDMI source 1

HDMIIN 2Connector

Connects to the HDMI source 2

IR 3.5mm Mini Jack Connector

Connects to an external infrared transmitter/sensor (receiver)

ETHERNET Connector

Connects to a network

REMOTE CONTROL Terminal Block

Connects to contact closure switches (see Section 5.4)

RS-232 9-pin D-sub Connector

Connects to an RS-232 port

5V DC

+5V DC connector for powering the unit

REMOTE IR Sensor

Senses commands from the Kramer IR remote control device1

IR LED

Lights when an infrared signal is detected

INPUT SELECT Switch

Press to toggle between HDMI inputs

IN 1 LED

Lights when the HDMI 1 input device is connected

IN 2 LED

Lights when the HDMI 2 input device is connected

OUT LED

Lights when an HDMI output device is detected

LINK LED

Lights when the TP connection is active

ON LED

Lights when receiving power

Note that the IR sensor is only used to select the TP-582T inputs. These IR signals cannot be transmitted to the TP-582R

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your HDMI Line Transmitters/Receiver

4.3 Your TP-582R HDMI Line Receiver DA

Figure 3 and Table 3 define the TP-582R:

Figure 3: TP-582R HDMI Line Receiver DA

Table 3: TP-582R HDMI Switcher/Line Receiver Features

Feature

Function

LINE IN RJ-45 Connector

Connects to the CAT 5 OUT RJ-45 connector on the TP-581T or

TP-582T

HDMIOUT1 Connector

Connects to the HDMI acceptor 1

HDMIOUT2 Connector

Connects to the HDMI acceptor 2

S/PDIF Connector

Connects to a digital audio acceptor

TOSLINK® Connector

Connects to an optical audio acceptor

ETHERNET Connector

Connects to a network

RS-232 9-pin D-sub Connector

Connects to an RS-232 port

5V DC

+5V DC connector for powering the unit

IR 3.5mm Mini Jack Connector

Connects to an external infrared transmitter/sensor (receiver)

IN LED

Lights when an input device is connected

OUT 1 LED

Lights when the HDMI 1 output device is connected

OUT 2 LED

Lights when the HDMI 2 output device is connected

LINK LED

Lights when the TP connection is active

ON LED

Lights when receiving power

Otros manuales para TP-581T

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Transmisor de Kramer

Kramer

Kramer 610T Manual de usuario

Kramer

Kramer WP-121 Manual de usuario

Kramer

Kramer VP-200XLTHD Manual de usuario

Kramer

Kramer TP-210A Manual de usuario

Kramer

Kramer PT-571 Manual de usuario

Kramer

Kramer PT-2UT/R-KIT Manual de usuario

Kramer

Kramer KW-14T Manual de usuario

Kramer

Kramer TP-145 Manual de usuario

Kramer

Kramer TP-551N Manual de usuario

Kramer

Kramer 691 Manual de usuario

Kramer

Kramer WP-110xl Manual de usuario

Kramer

Kramer TOOLS TP-104 Manual de usuario

Kramer

Kramer TP-185 Manual de usuario

Kramer

Kramer TP-102HD Manual de usuario

Kramer

Kramer TP-121EDID Manual de usuario

Kramer

Kramer SID-X1N Manual de usuario

Kramer

Kramer 671T Manual de usuario

Kramer

Kramer TP-202 Manual de usuario

Kramer

Kramer TP-205A Manual de usuario

Kramer

Kramer TOOLS TP-104 Manual de usuario

Kramer

Kramer TP-594Txr Manual de usuario

Kramer

Kramer TP-590Txr Manual de usuario

Kramer

Kramer SID-X3N Manual de usuario

Kramer

Kramer VP-300THD Manual de usuario

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
