Kramer PT-572HDCP+ Manual de usuario

Kramer Electronics, Ltd.

Preliminary

USER MANUAL

Models:

PT-571HDCP DVI Line Transmitter

PT-572HDCP+ DVI Line Receiver

Contents

1Introduction 1

2Getting Started 1

2.1 Quick Start 2

3Overview 2

3.1 Summarizing the DVI Line Transmitter/Receiver System 3

3.2 About the Power Connect™ Feature 3

3.3 Using Twisted Pair Cable 4

3.4 About HDCP 4

3.5 Achieving the Best Performance 4

4Your PT-571HDCP/PT-572HDCP+ 5

4.1 Your PT-571HDCP DVI Line Transmitter 5

4.2 Your PT-572HDCP+ DVI Line Receiver 6

5Connecting the PT-571HDCP and PT-572HDCP+ 7

5.1 Wiring the CAT 5 LINE IN/LINE OUT RJ-45 Connectors 8

6Technical Specifications 8

Figures

Figure 1: PT-571HDCP DVI Line Transmitter 5

Figure 2: PT-572HDCP+ DVI Line Receiver 6

Figure 3: Connecting the PT-571HDCP/PT-572HDCP+ DVI Line Transmitter/Receiver 7

Figure 4: CAT 5 PINOUT 8

Tables

Table 1: PT-571HDCP DVI Line Transmitter Features 5

Table 2: PT-572HDCP+ DVI Line Receiver Features 6

Table 3: CAT 5 PINOUT 8

Table 4: Technical Specifications 8

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range

of problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better! Our 1,000-plus different models

now appear in 11 groups1

Thank you for purchasing the Kramer PicoTOOLS™ PT-571HDCP DVI

Line Transmitter and the PT-572HDCP+DVI Line Receiver, which are

ideal for

that are clearly defined by function.

•Board, conference, and training rooms

•Presentation systems

•Signal distribution and home theater

Each package includes the following items:

•PT-571HDCP DVI Line Transmitter or PT-572HDCP+DVI Line Receiver

•Power adapter (12V DC Input) and this user manual3

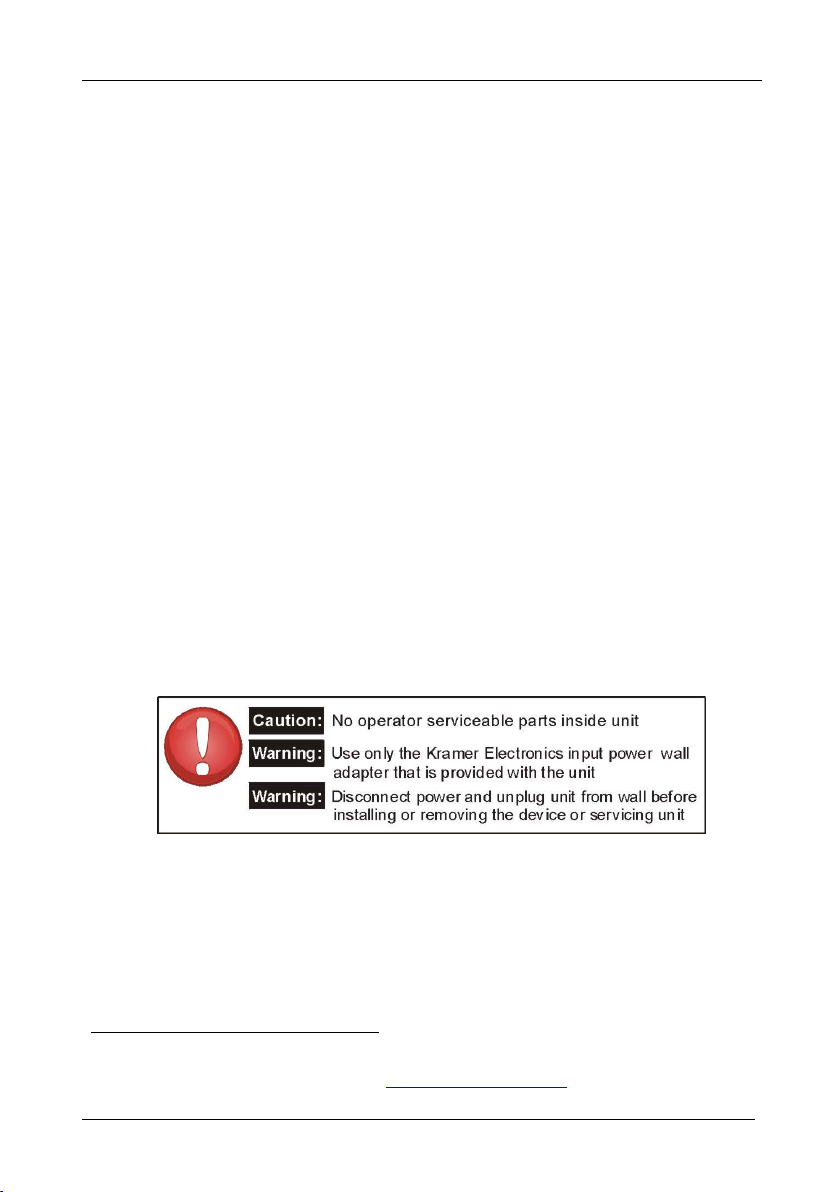

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high-performance high-resolution cables4

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;

GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;

GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products

2 Ultra-Compact PicoTOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack

adapter

3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

3 Overview

This section summarizes:

•The DVI Line Transmitter/Receiver System13.1,see section

•The power connect feature, see section 3.2

•Using Twisted Pair Cable, see section 3.3

•The HDCP standard, see section 3.4

•Recommendations for achieving the best performance, see section 3.5

1 For details of the PT-571HDCP DVI Line Transmitter and PT-572HDCP+ DVI Line Receiver, see sections 4.1 and 4.2,

respectively

Overview

3.1 Summarizing the DVI Line Transmitter/Receiver System

Using the PT-571HDCP DVI Line Transmitter with the PT-572HDCP+DVI

Line Receiver constitutes a DVI-to-twisted pair transmitter and receiver

system. The DVI Line Transmitter/Receiver system features:

•Maximum data rate/bandwidth up to 1.65Gbps

•HDTV compatibility and HDCP compliance

•EDID PassThru that passes EDID/HDCP signals from source to

display

•System Range1

•Power Connect™ that feeds 12V DC over the CAT 5 cable from

transmitter to receiver (see section

- Up to 90m (295ft) at 1080i, or up to 30m (98ft) at

1080p on shielded BC-DGKat524 cable; 90m (295ft) at 1080i, or up

to 70m (230ft) at 1080p on shielded BC-DGKat623 cable; 100m

(330ft) at 1080i or up to 90m (295ft) at 1080p on shielded

BC-DGKat7a23 cable

3.2)

•Two DVI-I connectors, that are compatible with all types of DVI

cables

Note that only the digital signal (DVI D) is available on the DVI connector.

3.2 About the Power Connect™ Feature

The Power Connect™ feature here means that only one unit in a system, the

transmitter or receiver, can be connected to a power source when the

devices are within 270 feet (90 meters) of each other. The Power Connect™

feature applies as long as the cable can carry power. The distance does not

exceed 90 meters on standard CAT 5 cable, for longer distances, heavy

gauge cable should be used2

1 Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-

Kramer CAT 5, CAT 6 and CAT 7a cables may not reach these ranges

2 CAT 5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

3.3 Using Twisted Pair Cable

Kramer engineers have developed special twisted pair cables to best match

our digital twisted pair products; the Kramer: BC-DGKat524 (CAT 5 24

AWG), the Kramer: BC-DGKat623 (CAT 6 23 AWG cable), and the

Kramer: BC-DGKat7a23 (CAT 7a 23 AWG cable). These specially built

cables significantly outperform regular CAT 5/CAT 6/CAT 7a cables.

3.4 About HDCP

The High-Bandwidth Digital Content Protection (HDCP) standard1

3.5 Achieving the Best Performance

, protects

digital video and audio signals transmitted over DVI or HDMI connections

between two HDCP-enabled devices to eliminate the reproduction of

copyrighted material. To protect copyright holders (such as movie studios)

from having their programs copied and shared, the HDCP standard provides

for the secure and encrypted transmission of digital signals.

To achieve the best performance:

•Use only good quality connection cables2

•Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer devices

away from moisture, excessive sunlight and dust

to avoid interference,

deterioration in signal quality due to poor matching, and elevated

noise levels (often associated with low quality cables).

1 Developed by Intel

2 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

Your PT-571HDCP/PT-572HDCP+

4 Your PT-571HDCP/PT-572HDCP+

This section describes the:

•PT-571HDCP DVI Line Transmitter, see section 4.1

•PT-572HDCP+DVI Line Receiver, see section 4.2

4.1 Your PT-571HDCP DVI Line Transmitter

The PT-571HDCP DVI Line Transmitter receives a DVI signal, encodes it, and

transmits it over a CAT 5 cable to the PT-572HDCP+.The PT-571HDCP has:

•A DVI input connector

•An RJ-45 CAT 5 output connector

•One power status LED

Figure 1and Table 1define the PT-571HDCP:

Figure 1: PT-571HDCP DVI Line Transmitter

Table 1: PT-571HDCP DVI Line Transmitter Features

Feature

Function

1 12V DC +12V DC connector for powering the unit

2 DVI IN Connector Connect to the DVI source

3 OUT RJ-45 Connector Connect to the IN RJ-45 connector on the PT-572HDCP+

4 ON LED Lights only when the machine is powered (whether directly from the

power adapter or via the PT-572HDCP+) and an input1

1 Note, if no input is connected the unit invokes the power save mode automatically turning off the power

is connected

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your PT-571HDCP/PT-572HDCP+

4.2 Your PT-572HDCP+ DVI Line Receiver

The PT-572HDCP+DVI Line Receiver receives an encoded signal over a

CAT 5 cable transmitted from the PT-571HDCP, decodes it, and converts

it to a DVI output.

The PT-572HDCP+has:

•A DVI output connector

•An RJ-45 CAT 5 input connector

•One power status LED

Figure 2and Table 2define the PT-572HDCP+:

Figure 2: PT-572HDCP+ DVI Line Receiver

Table 2: PT-572HDCP+ DVI Line Receiver Features

Feature

Function

1 12V DC +12V DC connector for powering the unit

2 DVI OUT Connector Connect to the DVI acceptor

3 IN RJ-45 Connector Connect to the OUT RJ-45 connector on the PT-571HDCP

4 ON LED Lights red when receiving power only, orange when output and power are

attached, and yellow when both an active input and output are attached

Connecting the PT-571HDCP and PT-572HDCP+

5 Connecting the PT-571HDCP and PT-572HDCP+

You can use the PT-571HDCP DVI Line Transmitter with the PT-572HDCP+

DVI Line Receiver to configure a DVI transmitter/receiver system.

To connect the PT-571HDCP to the PT-572HDCP+, as illustrated in the

example in Figure 3, do the following:

1. Connect the CAT 5 OUT RJ-45 connector on the PT-571HDCP to the

CAT 5 IN RJ-45 connector on the PT-572HDCP+via a CAT 5 cable

(see section 5.1).

2. On the PT-571HDCP, connect a DVI source (for example, a computer

graphics source) to the DVI IN connector.

3. On the PT-572HDCP+, connect the DVI OUT connector to a DVI

acceptor (for example, a display).

4. Connect the 12V DC power adapter to the power socket on the

PT-571HDCP or the PT-572 HDCP + and connect the adapter to the

mains electricity (not shown in Figure 3).

Figure 3: Connecting the PT-571HDCP/PT-572HDCP+ DVI Line Transmitter/Receiver

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Technical Specifications

5.1 Wiring the CAT 5 LINE IN/LINE OUT RJ-45 Connectors

Table 3and Figure 4define the CAT 5 pinout, using a straight pin-to-pin

cable with RJ-45 connectors (note, that the cable Ground shielding must

be connected/soldered to the connector shield):

Table 3: CAT 5 PINOUT Figure 4: CAT 5 PINOUT

781 2 5

145 78632

EIA /TIA 568A EIA /TIA 568B

Wire Color

1 Green/White 1 Orange/White

2 Green 2 Orange

3 Orange/White 3 Green/White

4 Blue 4 Blue

5 Blue/White 5 Blue/White

6 Orange 6 Green

7 Brown/White 7 Brown/White

8 Brown 8 Brown

Pair 1 4 and 5 Pair 1 4 and 5

Pair 2 3 and 6 Pair 2 1 and 2

Pair 3 1 and 2 Pair 3 3 and 6

Pair 4 7 and 8 Pair 4 7 and 8

6 Technical Specifications

ThePT-571HDCP/PT-572HDCP+ technical specifications are shown in

Table 4.

Table 4: Technical Specifications1

PT-571HDCP PT-572HDCP+

INPUTS: 1 DVI, 1.2Vpp on a DVI Molex

24pin female connector; DDC

signal 5Vpp (TTL)

1 RJ-45 connector

OUTPUTS: 1 RJ-45 connector 1 DVI, 1.2Vpp on a DVI Molex 24-pin

female connector; DDC signal 5Vpp (TTL)

BANDWIDTH: Supports up to 1.65Gbps

POWER SOURCE: 12V DC, 250mA 12V DC, 250mA

DIMENSIONS: 6.2cm x 5.2cm x 2.4cm (2.4" x 2.1" x 1") W, D, H.

WEIGHT: 0.14kg (0.3lbs)

ACCESSORIES: Power supply, mounting bracket

OPTIONS: 19” RK-4PT rack adapter, Kramer DVI cables

1 Specifications are subject to change without notice

and BC-DGKat524 (CAT 5 24

AWG), BC-DGKat623 (CAT 6 23 AWG) and BC-DGKat7a23 (CAT 7a 23 AWG)

cables

2 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Transmisor de Kramer

Kramer

Kramer WP-871xr Manual de usuario

Kramer

Kramer TP-580CT Manual de usuario

Kramer

Kramer Cobra T2 Manual de usuario

Kramer

Kramer TP-102HD Manual de usuario

Kramer

Kramer TP-45EDID Manual de usuario

Kramer

Kramer 617T Manual de usuario

Kramer

Kramer TP-210 Manual de usuario

Kramer

Kramer 691 Manual de usuario

Kramer

Kramer TP-590Txr Manual de usuario

Kramer

Kramer TP-410 Manual de usuario

Kramer

Kramer TP-205A Manual de usuario

Kramer

Kramer KW-14T Manual de usuario

Kramer

Kramer TP-125 Manual de usuario

Kramer

Kramer TP-202 Manual de usuario

Kramer

Kramer TP-583Txr Manual de usuario

Kramer

Kramer 610T Manual de usuario

Kramer

Kramer VP-200XLT Manual de usuario

Kramer

Kramer WP-121 Manual de usuario

Kramer

Kramer TP-581T Manual de usuario

Kramer

Kramer F-121UK Manual de usuario

Kramer

Kramer 622T Manual de usuario

Kramer

Kramer Cobra TS2 Manual de usuario

Kramer

Kramer DigiTOOLS KW-11T Manual de usuario

Kramer

Kramer 611T Manual de usuario

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
