Kramer WP-110 Manual de usuario

KRAMER ELECTRONICS LTD.

USER MANUAL

MODELS:

WP-110,

XGA Line Transmitter

PT-120, XGA Line Receiver

TP-120, XGA Line Receiver

P/N: 2900-300180 Rev 1

WP-110, PT-120, TP-120 – Contents i

Contents

1Introduction 1

2Getting Started 2

2.1Achieving the Best Performance 2

3Overview 3

3.1WP-110 XGA Line Transmitter 3

3.2PT-120 XGA Line Receiver 3

3.3TP-120 XGA Line Receiver 4

3.4About the Power Connect™ Feature 4

3.5Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) 4

4Your XGA Line Transmitter(s) / Receiver 6

4.1Your WP-110 XGA Line Transmitter 6

4.2Your PT-120 XGA Line Receiver 7

4.3Your TP-120 XGA Line Receiver 8

5Using the XGA Line Transmitter(s)/Receiver 9

5.1Installing the WP-110 XGA Line Transmitter 9

5.2Connecting the WP-110 to the TP-120 9

5.3Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 11

6Technical Specifications 12

Figures

Figure 1: WP-110 XGA Line Transmitter 6

Figure 2: PT-120 XGA Line Receiver 7

Figure 3: TP-120 XGA Line Receiver 8

Figure 4: Connecting the WP-110 to a TP-120 10

Figure 5: CAT 5 PINOUT 11

WP-110, PT-120, TP-120 - Introduction 1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Thank you for purchasing the Kramer wall plate WP-110 XGA Line Transmitter,

Kramer Pico TOOLS PT-120 XGA Line Receiver, and/or Kramer TOOLS TP-120

XGA Line Receiver, which are ideal for:

•Presentation and multimedia applications

•Long-range graphics distribution for schools, hospitals, security, and stores

2 WP-110, PT-120, TP-120 - Getting Started

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high performance high resolution cables

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

•Do not secure the cables in tight bundles or roll the slack into tight coils

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

•Position your Kramer WP-110, PT-120 or TP-120 away from moisture,

excessive sunlight and dust

Caution: No operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning: Disconnect the power and unplug the unit from the wall

before installing

WP-110, PT-120, TP-120 - Overview 3

3 Overview

This section describes:

•A summary of the WP-110 XGA Line Transmitter,see Section 3.1

•A summary of the PT-120 XGA Line Receiver, see Section 3.2

•A summary of the TP-120 XGA Line Receiver, see Section 3.3

•The power connect feature, see Section 3.4

•Using shielded twisted pair (STP) / unshielded twisted pair (UTP), see

Section 3.5

3.1 WP-110 XGA Line Transmitter

The Kramer Wall Plate WP-110 is an XGA line transmitter that receives an XGA

signal and transmits it over a CAT 5 cable to the PT-120 or TP-120 receiver. The

WP-110 is available in three versions: one for USA, one for Belgium and Germany,

and one for UK and most of Europe (excluding Belgium and Germany). In

particular, the WP-110:

•Has a resolution of up to UXGA

•Can use the simplest UTP CAT 5 cables, however, it benefits from better

quality cables

•Has the power connect feature and is 12V DC fed

3.2 PT-120 XGA Line Receiver

The Kramer Pico TOOLS PT-120 is an XGA line receiver that receives a coded

CAT 5 signal transmitted by the WP-110, decodes it and converts it to an XGA

output. In particular, the PT-120:

•Has an operating range of more than 300ft (more than 100m) using standard

CAT 5 cable and the WP-110

•Includes EQ. and level controls

•Has the power connect feature and is 12V DC fed

4 WP-110, PT-120, TP-120 - Overview

3.3 TP-120 XGA Line Receiver

The Kramer TOOLS TP-120 is an XGA line receiver that receives a coded CAT 5

signal transmitted by the WP-110, decodes it and converts it to an XGA output. In

particular, the TP-120:

•Has an operating range of more than 300ft (more than 100m) using standard

CAT 5 cable and the WP-110

•Includes EQ. and level controls

•Has the power connect feature and is 12V DC fed

3.4 About the Power Connect™ Feature

The Power Connect feature applies as long as the cable can carry power. This

feature is available when using STP cable and the distance does not exceed 50m

(164ft) on standard CAT 5 cable. For longer distances, heavy gauge cable should

be used (TP cable is still suitable for the video/audio transmission, but not for

feeding the power at these distances). For units which are connected via RJ-45

connectors, make sure that the shield of the STP cable is connected to the metal

casing of the connectors on both ends of the cable. For units which are connected

via terminal block connectors, the shield of the STP cable must be connected to a

ground terminal on the units at both ends (use the ground terminal of the power

supply connection if necessary).

For a TP cable exceeding a distance of 50m, separate power supplies should be

connected to the transmitter and to the receiver simultaneously.

3.5 Shielded Twisted Pair (STP) / Unshielded Twisted Pair

(UTP)

We recommend that you use Shielded Twisted Pair (STP) cable, and stress that

the compliance to electromagnetic interference was tested using STP cable. There

are different levels of STP cable available, and we advise you to use the best

quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP

is intended for analog signals where skewing is not an issue.

WP-110, PT-120, TP-120 - Overview 5

In cases where there is skewing, our Unshielded Twisted Pair (UTP) skew-free

cable, Kramer BC-XTP, may be advantageous, and UTP cable might also be

preferable for long range applications. In any event when using UTP cable, it is

advisable to ensure that the cable is installed far away from electric cables, motors

and so on, which are prone to create electrical interference.

6 WP-110, PT-120, TP-120 - Your XGA Line Transmitter(s) / Receiver

4 Your XGA Line Transmitter(s) / Receiver

This section defines the XGA Line Transmitter(s)/Receiver:

•WP-110 XGA Line Transmitter (see Section 4.1)

•PT-120 XGA Line Receiver (see Section 4.2)

•TP-120 XGA Line Receiver (see Section 4.3)

4.1 Your WP-110 XGA Line Transmitter

The WP-110 is available in three versions: US, Belgium and Germany, and UK

and most of Europe (excluding Belgium and Germany), as defined in Figure 1:

Figure 1: WP-110 XGA Line Transmitter

WP-110, PT-120, TP-120 - Your XGA Line Transmitter(s) / Receiver 7

# Feature Function

1 ON LED Illuminates when receiving power

2 XGA IN 15-pin HD (F)

Connector

Connect to the XGA source

3 POWER

SUPPLY

GND PIN Connect (-) to the Ground

+12V DC PIN Connect (+) to the connector for powering the unit

4 LINE OUT RJ-45

Connector

Connects to the LINE IN RJ-45 connector on the PT-120 or

TP-120 XGA Line Receiver

Use a UTP cable with CAT 5 connectors at both ends (the

PINOUT is defined in Figure 5)

5 HS Switch Slide the switch to the left (by default, both switches are set

to the right) to change the HS (horizontal sync) polarity to

(NEG.) negative polarity (down-going syncs); slide the

switch to the right (NORM.) to retain the polarity

6 VS Switch Slide the switch to the left to change the VS (vertical sync)

polarity to (NEG.) negative polarity; slide the switch to the

right (NORM.) to retain the polarity

4.2 Your PT-120 XGA Line Receiver

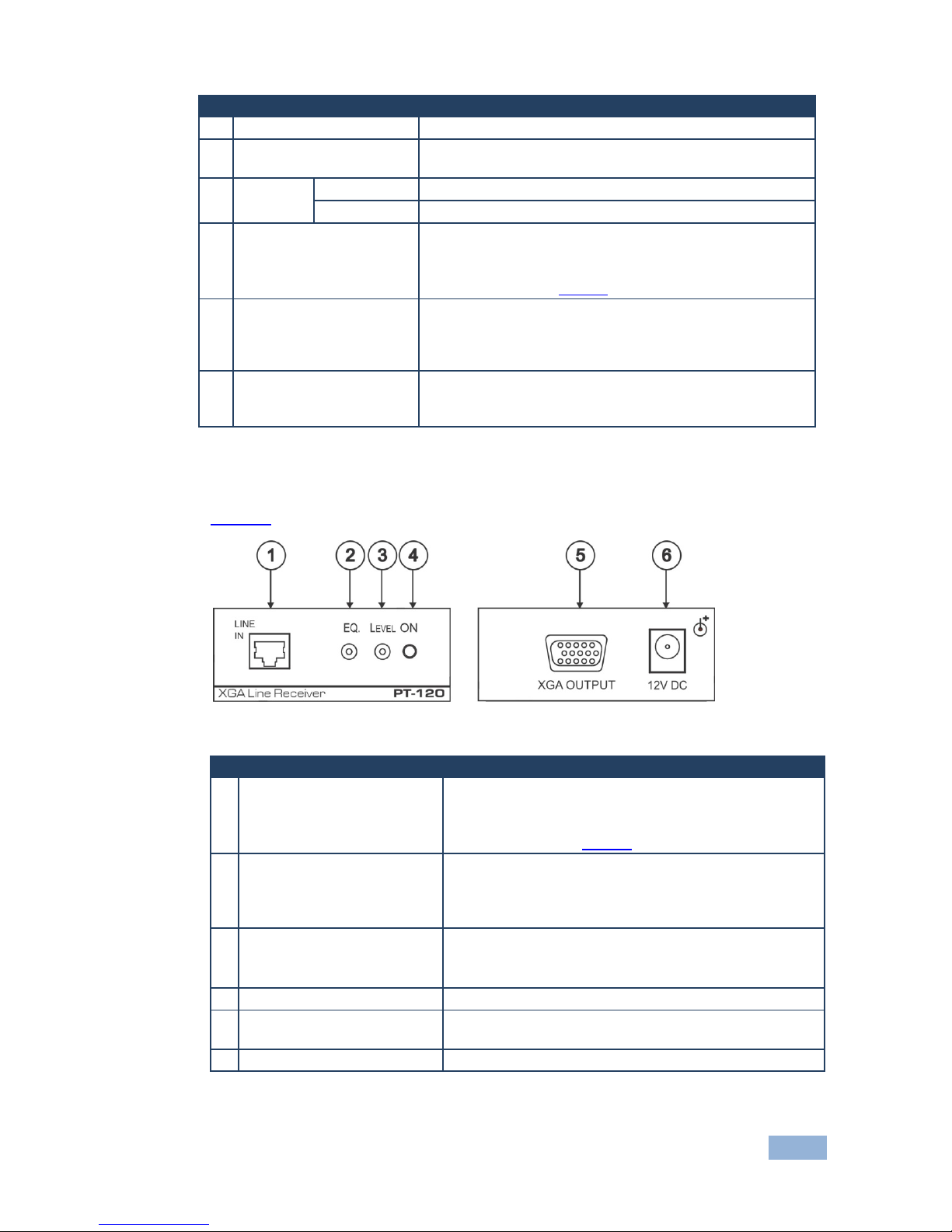

Figure 2 defines the PT-120 XGA Line Receiver:

Figure 2: PT-120 XGA Line Receiver

# Feature Function

1 LINE IN RJ-45 Connector Connects to the LINE OUT RJ-45 connector on the

WP-110 XGA Line Receiver

Using a UTP cable with CAT 5 connectors at both ends (the

PINOUT is defined in Figure 5)

2 EQ. Trimmer Adjusts the cable compensation equalization level

Degradation and VGA/XGA signal loss can result from using

long cables (due to stray capacitance), sometimes leading

to a total loss of sharpness in high-resolution signals

3 LEVEL Trimmer Adjusts the output signal level

Use a screwdriver to carefully rotate the trimmer, adjusting

the appropriate level

4 ON LED Illuminates when receiving power

5 XGA OUTPUT 15-pin HD (F)

Connector

Connect to the XGA acceptor

6 12V DC +12V DC connector for powering the unit

8 WP-110, PT-120, TP-120 - Your XGA Line Transmitter(s) / Receiver

4.3 Your TP-120 XGA Line Receiver

Figure 3 defines the TP-120 XGA Line Receiver:

Figure 3: TP-120 XGA Line Receiver

# Feature Function

1 EQ Trimmer Adjusts the cable compensation equalization level

2 LEVEL Trimmer Adjusts the output signal level

3 ON LED Illuminates when receiving power

4 LINE IN RJ-45 Connector Connects to the LINE OUT RJ-45 connector on

the WP-110 XGA Line Receiver

5 XGA OUT 15-pin HD (F) Connector Connect to the XGA acceptor

6 12V DC +12V DC connector for powering the unit
