WP-789T Quick Start Guide

This guide helps you install and use your WP-789T for the first time.

Go to www.kramerav.com/downloads/WP-789T to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

WP-789T HDMI 4K Wall-Plate Line Transmitter

1 Quick start guide

Installation accessories

1 Power adapter (with open DC head) and cord

Frame (or frame set) and faceplate

Step 2: Get to know your WP-789T

Feature

Function

HDMI™ IN Connector

Connects to an HDMI source.

STATUS LED

LED Color

HDBT Connected

Source Detected

Acceptor Detected

Blue

Yes

Green

Yes

Yellow

Yes

N/A

White

Device is powered with no detected connections.

STATUS LED is off only when the device does not receive power.

RS-232 (G, Rx, Tx, PROG)

4-pin Terminal Block Connector

Connects to an RS-232 port (see Step 5: Configure the WP-789T).

IR (Rx, Tx-1, Tx-2), 3-pin

Terminal Block Connectors

Connect to an external IR infrared emitter (see Step 5: Configure the WP-789T).

Ring Tongue Terminal

Grounding Screw

Connect to grounding wire (optional).

HDBT OUT RJ-45 Connector

Connect to the HDBT IN connector on a receiver (for example, TP-789R).

Power Supply 2-pin Terminal

Block Connector

Connect to a power supply (if required). Connect GND to GND, +12V to +12V.

Step 3: Install the WP-789T

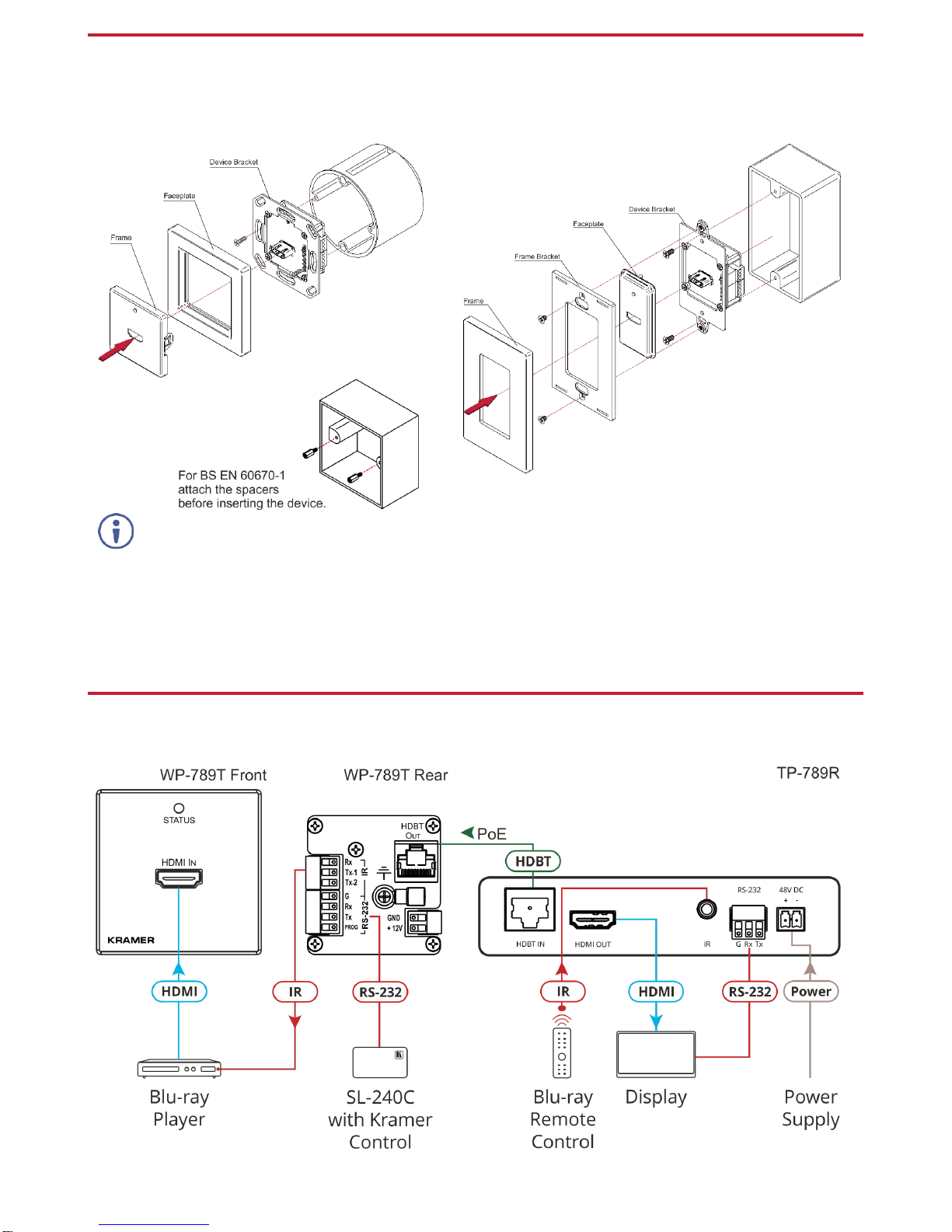

Insert the device into the in-wall box (note that first you need to connect the HDBT cable and power) and connect the parts as

shown in the illustrations below:

EU/UK Version

US-D Version

DECORA® design frames are included in US-D models.

We recommend that you use any of the following standard 1 Gang in-wall junction boxes (or their equivalent):

•US-D: 1 Gang US electrical junction boxes.

•EU: 1 Gang in-wall junction box, with a cut-hole diameter of 68mm and depth that can fit in both the device and the

connected cables (DIN 49073).

•UK: 1 Gang in-wall junction box, 75x75mm (W, H) and depth that can fit in both the device and the connected cables

(BS 4662 or BS EN 60670-1 used with supplied spacers and screws).

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your WP-789T. For best results, we recommend that you

always use Kramer high-performance cables to connect AV equipment to the WP-789T.

Step 5: Configure the WP-789T

RS-232 Configuration

Required Function

RS-232 Wiring

Extend 2-way RS-232 communication, via HDBT, between an RS-232

controller (for example, Kramer SL-240C) and an acceptor (for

example, a display) that is connected to the RS-232 port of the HDBT

receiver (for example, Kramer TP-789R).

To do so, connect the wires to the RS-232 port of a controller.

Perform device firmware upgrade using a laptop.

To do so, connect the wires to the RS-232 port of a laptop.

IR Configuration

Both the transmitter and receiver need to have identical IR frequency settings.

Required Function

IR Wiring

Emit a 38kHz IR signal, received via HDBT, to control a device that is

connected to WP-789T (for example, a Blu-ray player source).

To do so, connect the wires to an IR emitter cable.

Emit a wide-range modulated IR signal, received via HDBT, to control

a device that is connected to WP-789T (for example, a Blu-ray player

source).

To do so, connect the wires to an IR emitter cable.

Send IR commands, via HDBT, from the IR port of a controller (for

example, the Kramer SL-240C) to an acceptor (for example, a

display) that is connected to the IR port of the HDBT receiver (for

example, Kramer TP-789R) via IR emitter cable.

To do so, connect the wires to the IR port of a controller.

RJ-45 Pinout

FW Programming RS-232 Configuration

For the HDBT connector, see the wiring diagram

below:

PIN EIA /TIA 568b

Wire Color

RS-232 FW Programming

Orange / White

Baud Rate:

115,200

Orange

Data Bits:

Green / White

Stop Bits:

Blue

Parity:

None

Blue / White

Command Format:

ASCII

Green

Brown / White

Brown

For optimum range and performance use the recommended Kramer cables available at

www.kramerav.com/product/WP-789T.

Step 6: Connect the power

When accepting power over HDBaseT from a PoE provider (for example, the TP-789R), there is no need to connect the 12V

DC power supply.

Otherwise, connect the 12V power adapter to the device and plug the power supply into the mains electricity.

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the Kramer Electronics power supply that is provided with the unit.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

See www.KramerAV.com for updated safety information.

Technical Specifications

Inputs

HDMI

On a female HDMI connector

On 2-pin terminal block connectors (Tx-1 or Tx-2 and G) for signal

extension over HDBT line

Outputs

HDBT

On a female RJ-45 connector

On 2-pin (Rx (on IR), G) terminal block connectors for emitting

signal received from HDBT line

Ports

RS-232

On 3-pin terminal block connectors (G, Rx, Tx) for signal

extension over HDBT line

On 3-pin terminal block connectors (G, Rx, PROG) for upgrading

the FW

Video

Max Bandwidth

10.2Gbps

Max Resolution

4K@60 (4:2:0)

Compliance

HDMI 2.0, HDCP 1.4 and 2.2 pass-through, EDID and CEC

pass-through

Extension Range

4k@60 (4:2:0)

Up to 40m (130ft)

Full HD (1080p@60Hz)

Up to 70m (230ft)

Extended RS-232

Baud Rate

300 to 115200 baud

Extended IR

Frequency

Wide-range modulated: 20kHz to 100kHz

Fixed: 38kHz

Power

Consumption with Power Adapter

12V DC, 250mA

Source

12V DC, 2A with DC head open

Environmental

Conditions

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RHL non-condensing

Regulatory

Compliance

Safety

Environmental

RoHs, WEEE

Enclosure

Net Dimensions (W, D, H)

US-D: 7cm x 3.1cm x 11.4cm (2.8" x 1.2" x 4.5)

EU: 8cm x 3.1cm x 8cm (3.1" x 1.2" x 3.1)

UK: 8.6cm x 3.1cm x 8.6cm (3.4" x 1.2" x 3.4")

Shipping Dimensions (W, D, H)

23.2cm x 13.6cm x 10cm (9.1" x 5.4" x 3.9")

Net Weight

0.17kg (0.4lbs)

Shipping Weight

0.56kg (1.2lbs) approx.

Type

Aluminum

Cooling

Convection ventilation

Accessories

Included

1 Power adapter, 1 power cord, installation accessories

For the US version: 2 US-D frame sets and faceplates (in black

and in white)

For the European version: 1 EU white frame, 1 UK white frame, 1

EU/UK white faceplate

Specifications are subject to change without notice at www.kramerav.com

DECORA® is a registered trademark of Leviton Manufacturing Co., Inc.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator,

Inc.
