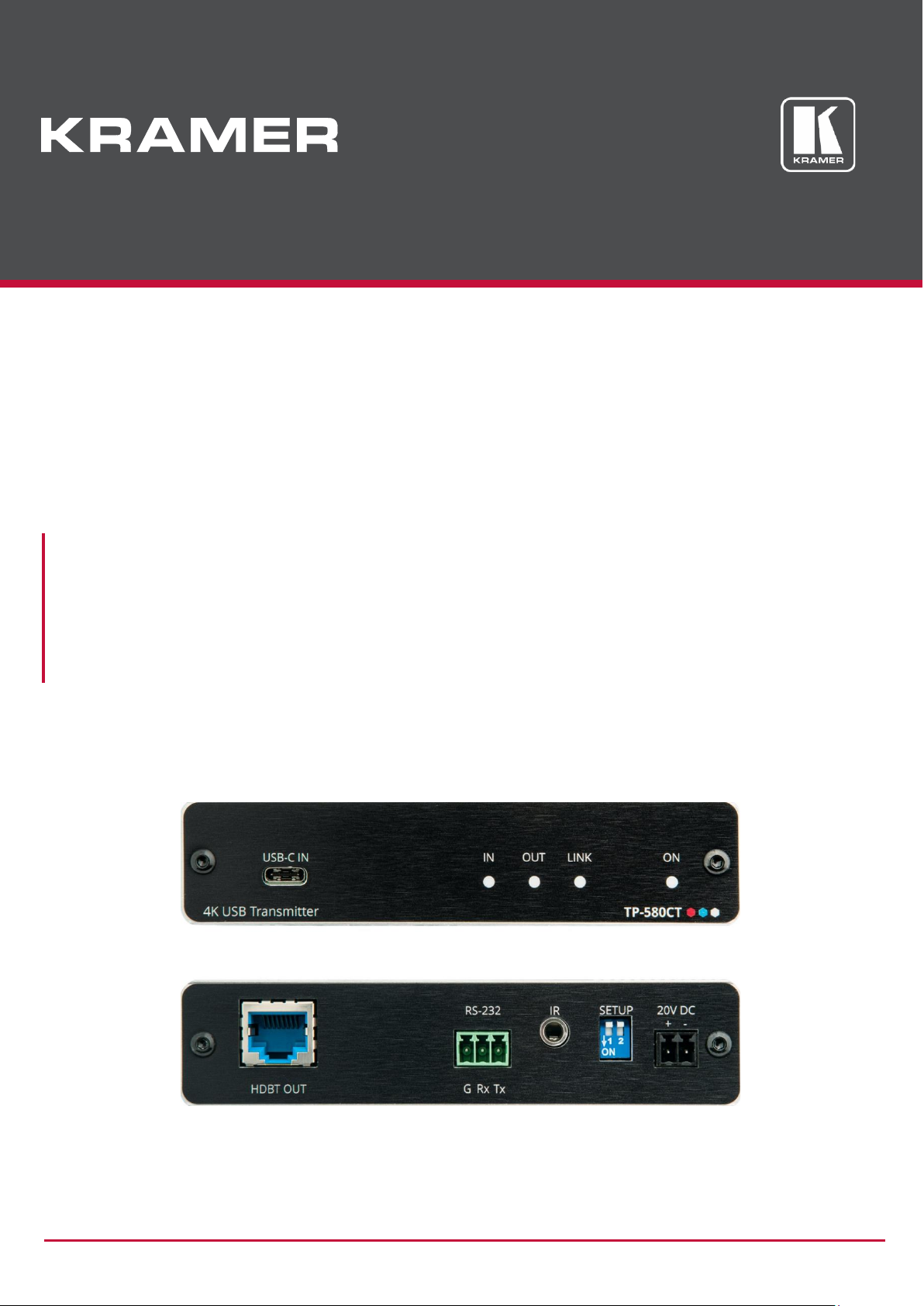

Kramer TP-580CT Manual de usuario

P/N: 2900-301511 Rev 1 www.kramerAV.com

USER MANUAL

MODEL:

TP-580CT

4K USB Transmitter

Kramer Electronics Ltd.

TP-580CT –Contents

Contents

Introduction 1

Getting Started 1

Overview 2

Typical Applications 3

Defining TP-580CT 4K USB Transmitter 4

Mounting TP-580CT 5

Connecting TP-580CT 6

Connecting to TP-580CT via RS-232 7

Wiring RJ-45 Connectors 7

Setting the DIP-Switches 7

Powering via USB-C Port 8

Powering TP-580CT 8

Charging a USB-C-Enabled Device 8

Technical Specifications 9

Kramer Electronics Ltd.

TP-580CT –Introduction

Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world

of unique, creative, and affordable solutions to the vast range of problems that confront the

video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we

have redesigned and upgraded most of our line, making the best even better!

Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging materials for

possible future shipment.

•Review the contents of this user manual.

Go to www.kramerav.com/downloads/TP-580CT to check for up-to-date user manuals,

application programs, and to check if firmware upgrades are available (where appropriate).

Achieving Best Performance

•Use only good quality connection cables (we recommend Kramer high-performance,

high-resolution cables) to avoid interference, deterioration in signal quality due to poor

matching, and elevated noise levels (often associated with low quality cables).

•Do not secure the cables in tight bundles or roll the slack into tight coils.

•Avoid interference from neighboring electrical appliances that may adversely influence

signal quality.

•Position your Kramer TP-580CT away from moisture, excessive sunlight and dust.

Safety Instructions

Caution:

•This equipment is to be used only inside a building. It may only be connected to other

equipment that is installed inside a building.

•For products with relay terminals and GPI\O ports, please refer to the permitted rating

for an external connection, located next to the terminal or in the User Manual.

•There are no operator serviceable parts inside the unit.

Warning:

•Use only the power cord that is supplied with the unit.

•To ensure continuous risk protection, replace fuses only according to the rating

specified on the product label which is located on the bottom of the unit.

Kramer Electronics Ltd.

TP-580CT –Introduction

Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce

the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected

and recycled. To comply with the WEEE Directive, Kramer Electronics has made

arrangements with the European Advanced Recycling Network (EARN) and will cover any

costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on

arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular

country go to our recycling pages at www.kramerav.com/il/quality/environment.

Overview

Congratulations on purchasing your Kramer TP-580CT 4K USB Transmitter.

TP-580CT, which is connected directly to USB-C-enabled chargeable sources, is a high-

performance, long-reach HDBaseT transmitter for 4K@60Hz (4:2:0) HDMI video, RS-232 and

IR signals over twisted pair.

TP-580CT converts the USB-C input video signal, along with all other input signals, into the

transmitted HDBaseT signal. It extends video signals to up to 40m (130ft) over CAT copper

cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for

lower HD video resolutions.

TP-580CT provides exceptional quality, advanced and user-friendly operation, and flexible

control.

Exceptional Quality

•High-Performance Standard Extender –Professional HDBaseT extender for providing

long-reach signals over twisted-pair copper infrastructures. TP-580CT is a standard

extender that can be connected to any market-available HDBaseT-compliant extension

product. For optimum extension reach and performance, use recommended Kramer

cables.

•HDMI Signal Extension –HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip

sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as

specified in HDMI 2.0.

Advanced and User-friendly Operation

•BYOD Ease and Convenience –Connect any DP-Alt-Mode-capable USB-C device as

an AV presentation source, while providing the connected device (if PD-2.0-capable)

with up to 60 watts of power.

•Easy Installation –Compact DigiTOOLS® fan-less enclosure for dropped-ceiling

mounting, TBUS IN-table mounting, or side-by-side mounting of 3 units in a 1U rack

space with the recommended rack adapter.

Kramer Electronics Ltd.

TP-580CT –Introduction

Flexible Connectivity

•Multi-channel Audio Extension –Up to 8 HD channels of digital stereo uncompressed

signals for supporting studio - grade surround sound.

•EDID signals are passed through between the source and the display.

•Bidirectional RS-232 Extension –Serial interface data flows in both directions, allowing

data transmission and device control.

•Bidirectional Infrared Extension –IR interface data flows in both directions, allowing

remote control of peripheral devices located at either end of the extended line.

Typical Applications

TP-580CT is ideal for the following typical applications:

•BYOD presentations in enterprise meeting rooms and education classrooms.

•Long-distance AV signal extension in conference rooms, boardrooms, classrooms, and

lecturing facilities.

Kramer Electronics Ltd.

TP-580CT –Defining TP-580CT 4K USB Transmitter

Defining TP-580CT 4K USB

Transmitter

This section defines TP-580CT.

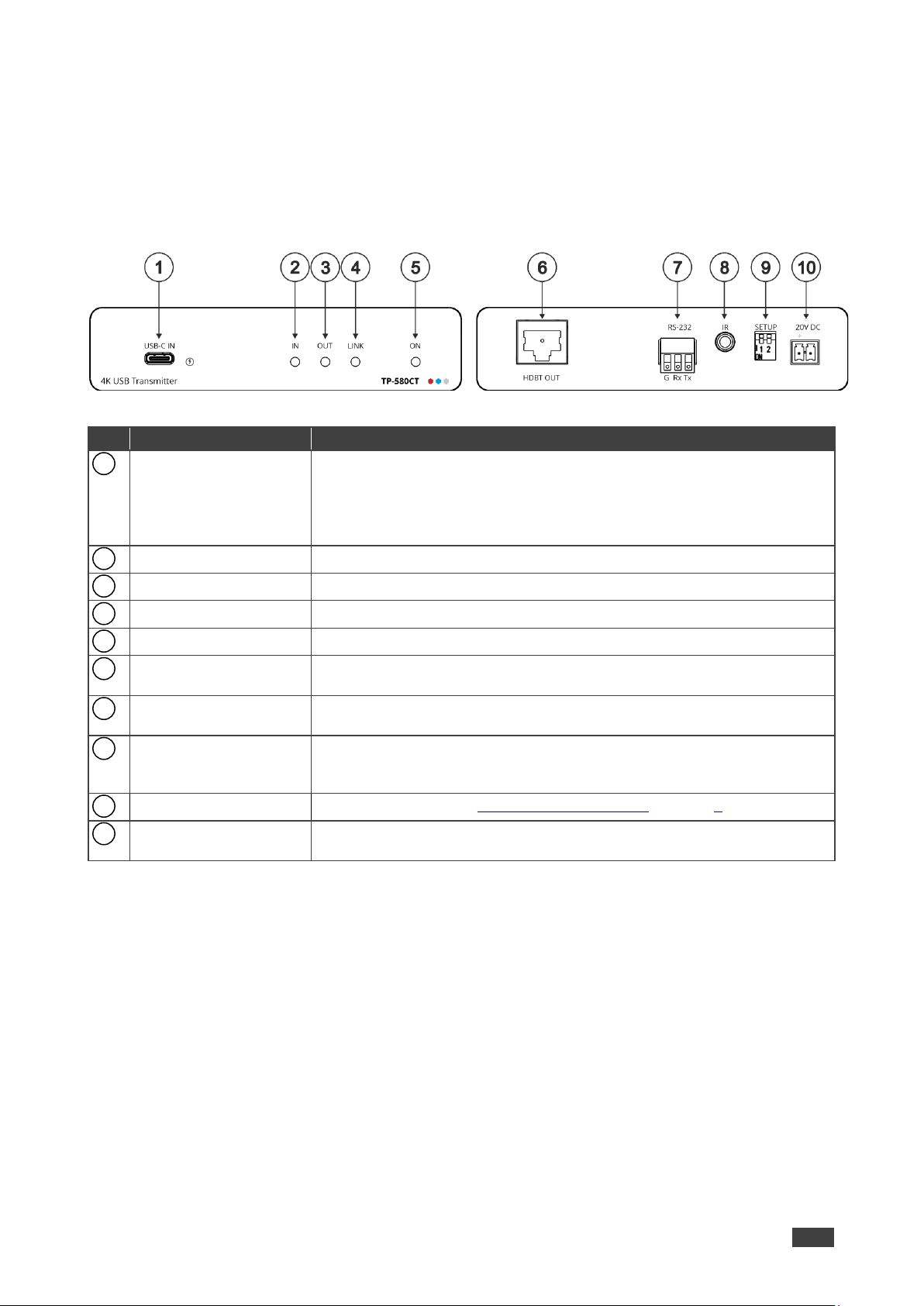

Figure 1: TP-580CT 4K USB Transmitter Front Panel

Feature

Function

USB-C IN Connector

Connect to a USB-C AV source (that supports DisplayPort Alternate

Mode). Charges sources (that support USB Power Delivery 2.0) up to

60W.

While charging, the charging icon (to the right of the connector) becomes

visible and lights orange.

IN LED

Lights blue when a USB-C input device is connected.

OUT LED

Lights blue when an HDMI output device is detected on the receiver side.

LINK LED

Lights green when the HDBT connection is active.

ON LED

Lights green when receiving power.

HDBT OUT RJ-45

Connector

Connects to the HDBT IN RJ-45 connector on a receiver (for example, TP-

580R).

RS-232 3-pin Terminal

Block Connector

Connects to a PC/serial controller to control the remote controlled unit (for

example, the display on the receiver).

IR 3.5mm Mini Jack

Bidirectional IR connection. Outputs a received IR signal (from the HDBT

receiver) to connected IR emitter or transmits an IR signal (from IR sensor)

to the HDBT receiver.

SETUP DIP-Switches

Set DIP-switches. (see Setting the DIP-Switches on page 7).

20V DC

+20V DC 6A connector for powering the unit and charging the connected

input device.

Kramer Electronics Ltd.

TP-580CT –Mounting TP-580CT

Mounting TP-580CT

This section provides instructions for mounting TP-580CT. Before installing, verify that the

environment is within the recommended range:

•Operation temperature –0to 40C (32 to 104F).

•Storage temperature –-40to +70C (-40 to +158F).

•Humidity –10% to 90%, RHL non-condensing.

Caution:

•Mount TP-580CT before connecting any cables or power.

Warning:

•Ensure that the environment (e.g., maximum ambient temperature & air flow) is

compatible for the device.

•Avoid uneven mechanical loading.

•Appropriate consideration of equipment nameplate ratings should be used for avoiding

overloading of the circuits.

•Reliable earthing of rack-mounted equipment should be maintained.

•Maximum mounting height for the device is 2 meters.

Mount TP-580CT in a rack:

•Use the recommended rack adapter

(see www.kramerav.com/product/TP-580CT).

Mount TP-580CT on a surface using one of the following methods:

•Attach the rubber feet and place the unit on a flat surface.

•Fasten a bracket (included) on each side of the unit and attach it to

a flat surface. For more information go to

www.kramerav.com/downloads/TP-580CT.

Kramer Electronics Ltd.

TP-580CT –Connecting TP-580CT

Connecting TP-580CT

Always switch off the power to each device before connecting it to your TP-580CT. After

connecting your TP-580CT, connect its power and then switch on the power to each device.

Figure 2: Connecting to the TP-580CT

To connect TP-580CT as illustrated in the example in Figure 2:

1. Connect a USB-C source (for example, a laptop) to the USB-C port on the front

panel.

The USB-C port can provide power to the connected source or power the TP-580CT

(see Powering TP-580CT on page 8).

2. Connect the HDBT OUT port on the TP-580CT to the HDBT IN port on the receiver

side (for example, Kramer TP-580R).

3. On the receiver side (TP-580R in this example) connect an acceptor (for example, a

display that is connected to the HDMI OUT connector).

4. Control the display on the receiver side:

▪Connect a room controller (for example, Kramer SL-240C) to the RS-232 3-pin

terminal block connector .

The display on the receiver side can be controlled by sending serial commands from

the controller via HDBT to the display.

▪Connect an IR sensor to the IR 3.5mm mini jack .

The display on the receiver side can be controlled by pointing the display IR remote-

control transmitter to the IR sensor. The IR signal passes, via HDBT to an IR emitter

that is connected to the display.

5. Connect the power adapter to TP-580CT and to the mains electricity.

Kramer Electronics Ltd.

TP-580CT –Connecting TP-580CT

Connecting to TP-580CT via RS-232

You can connect to TP-580CT via an RS-232 connection using, for example, a PC.

TP-580CT features an RS-232 3-pin terminal block connector allowing the RS-232 to control

TP-580CT.

Connect the RS-232 terminal block on the rear panel of TP-580CT to a PC/controller, as

follows:

From the RS-232 9-pin D-sub serial port connect:

•Pin 2 to the TX pin on the TP-580CT RS-232 terminal block

•Pin 3 to the RX pin on the TP-580CT RS-232 terminal

block

•Pin 5 to the G pin on the TP-580CT RS-232 terminal block

RS-232 Device TP-580CT

Wiring RJ-45 Connectors

This section defines the HDBT pinout, using a straight pin-to-pin cable with RJ-45 connectors.

For HDBT cables, it is recommended that the cable ground shielding be connected/soldered

to the connector shield.

EIA /TIA 568B

Wire Color

Orange / White

Orange

Green / White

Blue

Blue / White

Green

Brown / White

Brown

Setting the DIP-Switches

Set DIP-switches. Changes in DIP-switch settings apply immediately.

All DIP-switches are set to OFF (up) by default.

DIP #

Description

State

IR output

modulation

OFF (up) –default

IR pass-through is disabled (38KHz modulation to IR

output signal is added).

ON (down)

IR pass-through is enabled.

OFF (up) –default

Normal operation.

ON (down)

FW upgrade via RS-232 is enabled.

Kramer Electronics Ltd.

TP-580CT –Powering via USB-C Port

Powering via USB-C Port

Use USB-C port for:

•Powering TP-580CT on page 8.

•Charging a USB-C-Enabled Device on page 8.

Powering TP-580CT

TP-580CT can be powered by USB-C IN port when a source, that is capable of PD, is

connected to the USB-C IN port and TP-580CT is not connected to a power source.

Charging a USB-C-Enabled Device

A chargeable USB-C-enabled source (that supports, at least, USB Power Delivery 2.0) that is

connected to the USB-C IN port can be charged (according to USB PD rev. 3.0 rules) when

TP-580CT is connected to the 20V DC power adapter, as specified in the following table.

Device Active Power

Supply Source

USB-C Source

Charging Voltage

Max Charging Current

Max Total USB

Charging Power

Connected 20VDC/6A

PSU

5VDC

15W

9VDC

27W

15VDC

45W

20VDC

60W

Otros manuales para TP-580CT

Tabla de contenidos

Otros manuales de Transmisor de Kramer

Kramer

Kramer TP-114 Manual de usuario

Kramer

Kramer WP-110xl Manual de usuario

Kramer

Kramer TP-112HD Manual de usuario

Kramer

Kramer WP-580Txr Manual de usuario

Kramer

Kramer VP-200XLT Manual de usuario

Kramer

Kramer 610T Manual de usuario

Kramer

Kramer TP-583Txr Manual de usuario

Kramer

Kramer 610T Manual de usuario

Kramer

Kramer SID-VGA Manual de usuario

Kramer

Kramer TP-581T Manual de usuario

Kramer

Kramer TP-590Txr Manual de usuario

Kramer

Kramer 691 Manual de usuario

Kramer

Kramer VP-428H2 Manual de usuario

Kramer

Kramer F-121 Manual de usuario

Kramer

Kramer TP-205A Manual de usuario

Kramer

Kramer WP-110xl Manual de usuario

Kramer

Kramer TP-410 Manual de usuario

Kramer

Kramer 622T Manual de usuario

Kramer

Kramer TP-121EDID Manual de usuario

Kramer

Kramer TP-205A Manual de usuario

Kramer

Kramer VP-200XLTHD Manual de usuario

Kramer

Kramer TP-145 Manual de usuario

Kramer

Kramer PT-571 Manual de usuario

Kramer

Kramer TP-210A Manual de usuario

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
