EK-608 Local Interface Kit

INSTALLATION MANUAL

A88A-9550-00

Applied Machines: C368/C308/367/287/227

COLOR MFP: 36 ppm/30 ppm

MFP: 36 ppm/28 ppm/22 ppm

Product Code: A7PU/A7PY/A789/A7AH/A7AK

1. Accessory parts

* This part is used only when this option is

installed to 367/287/227.

Note:

• When installing the keyboard, connect its cable

to the USB port added to the machine.

• If none of the later steps instruct you to use the

parts including screw and cover that you

removed following the instructions described in

this manual, discard them.

• This manual provides the illustrations of the

accessory parts and machine that may be

slightly different in shape from yours. In that

case, instead of the illustrations, use the

appearance of your machine to follow the

installation procedure. This does not cause any

significant change or problem with the proce-

dure.

2. Installation procedures

(1) Turn OFF the power switch and unplug the

power cord from the power outlet.

(2) Open the right door of the machine.

(3) Remove the control panel right cover.

(Two screws)

No. Name Shape Q’ty

1. Local interface

board unit

2. Harness

3. Wire saddle *

4. Screw 1

5. Label

6. Installation

manual

1 set

Keep this bag away from babies and

children. Do not use in cribs, beds,

carriages, or playpens.

The thin film may cling to nose and

mouth and prevent breathing. This bag is

not a toy.

Follow the installation procedures starting on page

E-1.

Follow the installation procedures starting on page

E-4.

E-2

(4) Remove the two seals from the control panel

right cover.

(5) Remove the two caps from the control panel left

cover.

(6) Remove the five screws and two tabs and

remove the control panel front cover.

Note:

Do not use too much force to remove the cover as

the harness is connected.

(7) Disconnect the connector from the board on the

control panel front cover.

(8) Connect the supplied harness to the local inter-

face board unit and route the harness inside the

edge cover.

Note:

• Insert the black connector into the local inter-

face board unit connector.

• Route the harnesses so that the cable tie is

located at the position shown in the illustration.

(9) Remove the USB cable from the main body.

(Two screws)

Note:

The two removed screws are used in later step.

Do not discard them.

Tab

Cable tie

E-3

(10) Connect the USB cable removed in step (9) to

the local interface board unit.

(11) Attach the Local interface board unit to the

main body. (One supplied screw and two

screws removed in step (9))

Note:

Be careful not to pinch the harness.

(12) Connect the harness connector to the main

body relay connector and route the harness

inside the wire saddle.

(13) To install the covers, connector, and others

removed in steps (2) to (7), reverse the removal

procedure.

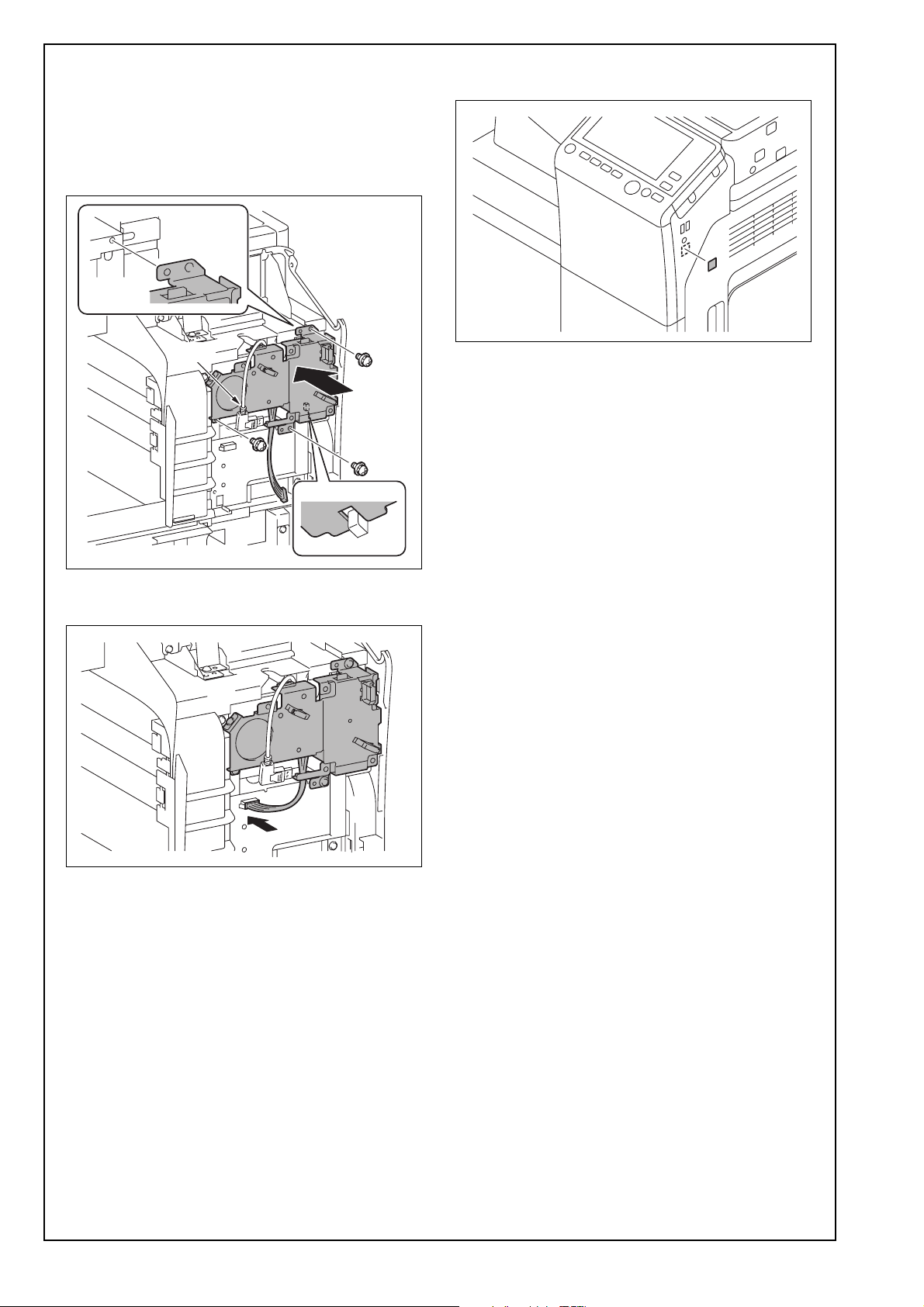

(14) Affix the label furnished with the local interface

kit to the position shown below.

* The installation procedure for models C368/

C308 is complete.

Label

E-4

(1) Turn OFF the power switch and unplug the

power cord from the power outlet.

(2) Connect the supplied harness to the local inter-

face board unit and route the harness inside the

edge cover.

Note:

• Insert the black connector into the local inter-

face board unit connector.

• Route the harness so that the cable tie is

located at the position shown in the illustration.

(3) Install the three supplied wire saddles to the local

interface board unit.

Note:

Install the wire saddles so that the lock faces out-

ward.

(4)

Remove the two screws and remove the cover

on the back side of the keypad. Disconnect the

connector and remove the keypad.

<When the optional Keypad KP-101 is not

mounted>

Remove the cover from the main body as shown

in the illustration. (Two screws)

(5) Open the front door of the main body.

Cable tie

E-5

(6) Remove the three screws, release the six tabs,

and remove the control panel assembly.

Note:

Do not use too much force when removing as the

cable is connected.

(7) Remove the cable from the control panel assem-

bly.

(8) Remove the bracket shown in the illustration.

(Two screws)

Note:

Discard the removed screws.

(9) Remove the bracket from the USB cable.

(Two screws)

Note:

The two removed screws are used in later step.

Do not discard them.

(10) Connect the USB cable removed in step (9) to

the local interface board unit.

(11)

<When mounting the Authentication Unit AU-201S

to the Working Table WT-506>

Refer to the installation manual for the Authenti-

cation Unit AU-201S and install the authentica-

tion unit.

<When mounting the Authentication Unit AU-102 to

the Working Table WT-506>

Refer to the installation manual for the Authenti-

cation Unit AU-102 and install the authentication

unit.

(12)

<When installing the Upgrade Kit UK-212 at the

same time>

Refer to the installation manual for the Upgrade

Kit UK-212 and install the upgrade kit.

E-6

(13) Attach the local interface board unit to the main

body.(One supplied screw and two screws

removed in step (9))

Note:

• Be careful not to pinch the harness.

• Route the control panel cable through toward

the front of the unit.

(14) Connect the harness of the local interface

board unit to the main body.

(15)

<When installing the AU-201S by using the Mount

Kit MK-735>

Refer to the installation manual for the Mount Kit

MK-735 and install the authentication unit.

(16) To install the covers and other parts removed in

steps (4) to (7), reverse the removal procedure.

(17) Affix the label supplied with the local interface

kit to the position shown below.

Cable
