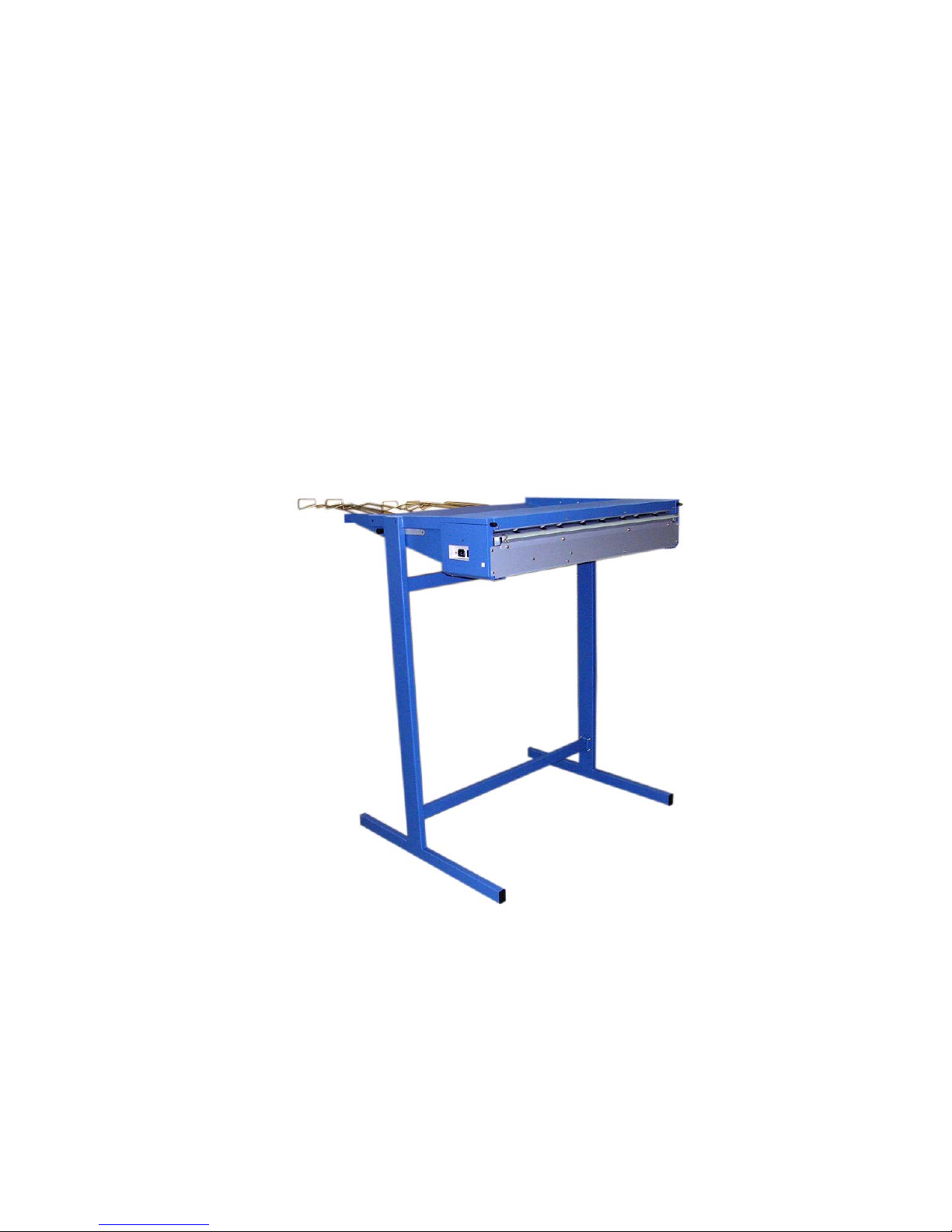

Auto Stacker

(K-113)

USER’S MANUAL

Version A.0 March 20, 2007

(1)

Thank you for purchasing the Auto Stacker (K-113).

This USER'S MANUAL contains functional and operational explanations for the Auto Stacker (K-

113).

Please read this USER'S MANUAL carefully before using the Auto Stacker (K-113).

Please keep this USER'S MANUAL for future reference.

Installed in USA

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) This device must accept

any interference received, including interference that may cause undesired operation.

Installed in Europe

This equipment complies with the requirements in Pub.22 of CISPR Rules for a Class B

computing device.

Operation of this equipment in a residential area may cause unacceptable interference to radio

and TV reception requiring the operator to take whatever steps are necessary to correct the

interference.

Do not install the Machine around other electric equipment or precision instruments.

This may be affected by electrical noise or vibration during operation.

If the Machine is installed near other electric equipment, such as TV or radio, interference to

said equipment, such as noise or flickering may occur.

Use a separate power line and install the Machine as far as possible from said equipment.

The International ENERGY STAR ® Office Equipment Program is an international program that

promotes energy saving through the penetration of energy efficient computers and other office

equipment. The program backs the development and dissemination of products with functions that

effectively reduce energy consumption. It is an open system in which business proprietors can

participate voluntarily. The targeted products are office equipment such as computers, monitors,

printers, facsimiles, copiers, scanners, and multifunction devices. Their standards and logos are

uniform among participating nations.

The symbol shown indicates that this product conforms to Directive

2002/96/EC of the European Parliament and the council of 27

January 2003 on waste electrical and electronic equipment (WEEE)

and does not apply to countries outside of EU.

As an ENERGY STAR ® Partner, Katsuragawa Electric Co., Ltd. has determined

that this product meets the ENERGY STAR ® guidelines for energy efficiency.

(2)

Safety Warnings

The following warnings are very important in order to safely use this machine.

These notes are important in preventing danger to the operator or operation of the product.

The following symbols are found throughout the USER’S MANUAL and have the following

meaning:

WARNING

This WARNING mark means that there is a possibility of death or serious

injury if you ignore or do not follow the said instruction.

CAUTION

This CAUTION mark means that there is a possibility of injury or physical

damage if you ignore or do not follow the said instruction.

When marked with this symbol, “DO NOT ATTEMPT”

When marked with this symbol, “pay close attention to”

(3)

WARNING

1. The power source should be as follows:

100-240VAC, 50/60Hz, 3A or higher

2. Use a circuit with a dedicated breaker.

3. Install the machine as close to the wall outlet as possible.

4. If you want to move the machine, contact your service personnel.

Ground the machine with a correct ground source or you may be

electrically shocked.

1. Do not plug in the machine into a multi-wire connector in which some

other equipment is plugged into.

It may cause a fire due to outlet overheating.

2. Do not damage the power cord by stepping on or placing heavy objects

on it.

If the power cord is damaged, it may cause a fire or you may receive an

electrical shock. REPLACE THE CORD IF DAMAGED!

1. Do not put a flower vase, a flowerpot or any water-filled objects on the

machine.

Spilt water could cause a fire or an electrical shock.

2. If the machine generates an unusual smell or noise, turn it off and

unplug it from the wall electrical outlet immediately.

1. Do not remove the screw and do not open the cover if not said to do so

in this User’s Manual. If you ignore this warning, you may be burnt or

receive an electrical shock due to a hot part or electrically charged part

inside.

2. Do not disassemble or tamper with the machine.

It may result in a fire or an electrical shock.

When disconnecting the power cord, be sure to hold its plug, or the

power cord is damaged and a fire or electric shock might be suffered.

(4)

CAUTION

Do not install the machine in a humidified room or a dusty room.

Also, do not install the machine on an unstable floor as injuries may occur.

1. Unplug the power cord before moving the equipment.

The power cord may damage and it may result in a fire or an electrical

shock.

2. If you do not use the machine for a long duration (holidays, company

shutdown) turn off and unplug the printer from the outlet for safety.

(5)

TABLE OF CONTENTS

1 Before Use page

1. 1 Installation Requirements 1

1. 2 Specifications 2

1. 3 Appearance 3

2 Basic Operation page

2. 1 Turning On 4

2. 2 Turning Off 4

2. 3 Stacking Support 4

3 Troubleshooting page

3. 1 Paper Jam 5

1 Before Use

1. 1 Installation Requirements

The following conditions have to be satisfied when installing the Auto Stacker (K-113).

1. Satisfy the following input power condition.

Voltage 100-240VAC

Current 3A or higher

Frequency 50 / 60Hz.

The Auto Stacker (K-113) can be supplied with any voltage within 100V to 240V. If the voltage is

within this range, please connect to the outlet simply. (No setting has to be changed.)

2. Make sure to connect the power plug to the outlet that is provided with the Ground Terminal.

3. To completely disconnect the machine from the power source, draw the power plug from the

outlet.

The outlet must be easily accessible near the equipment.

4. The temperature must be within the range from 10 to 32.5 degrees centigrade, and the humidity

must be 20 to 85% RH.

5. Prevent the machine away from water, fire, dust or direct sunlight.

If it is impossible to avoid the direct sunlight, please pull the curtain to intercept the sunlight.

6. The floor must be enough strong to withstand machine’s weight (About 47kg).

7. Keep enough space around the machine as follows.

(The following values are the least requirements. Please keep a wider space if possible.)

More than 73cm

60cm

Machine

Printer

60cm More than

More than

1. 2 Specifications

Configuration Console

Acceptable media width 914mm (36”) maximum

Stacking Capacity 200 sheets of plain paper

Wait time 0.5 second

Input power Voltage: 100-240VAC

Current: 0.5A (at 100V)

Frequency: 50/60Hz

Power consumption 50W maximum

Environmental conditions 10-32.5 degrees centigrade, 20-85%RH (Non condensing)

Acoustic noise 57 db or less (during operation with an integrated printer)

Maschinenlärminformations-Verordnung 3. GPSGV:

Der höchste Schalldruckpegel beträgt 70 dB(A) oder weniger

gemäß EN ISO 7779

Outer dimension 1,069mm (Width) x 865.6mm (Depth) x 1,312mm (Height)

(1,436mm in depth for using ST Wire Tray)

Weight Approximately 46.8kg (103.2 lbs)

NOTE

Auto Stacker (K-113) accepts the inlet voltages of 100 to

240VAC without additional voltage transformation.

NOTE

Auto Stacker (K-113) is intended for the exclusive use of the KIP Color 80 Digital Color

Printer (K-107).

NOTE

These specifications are subject to change without notice.

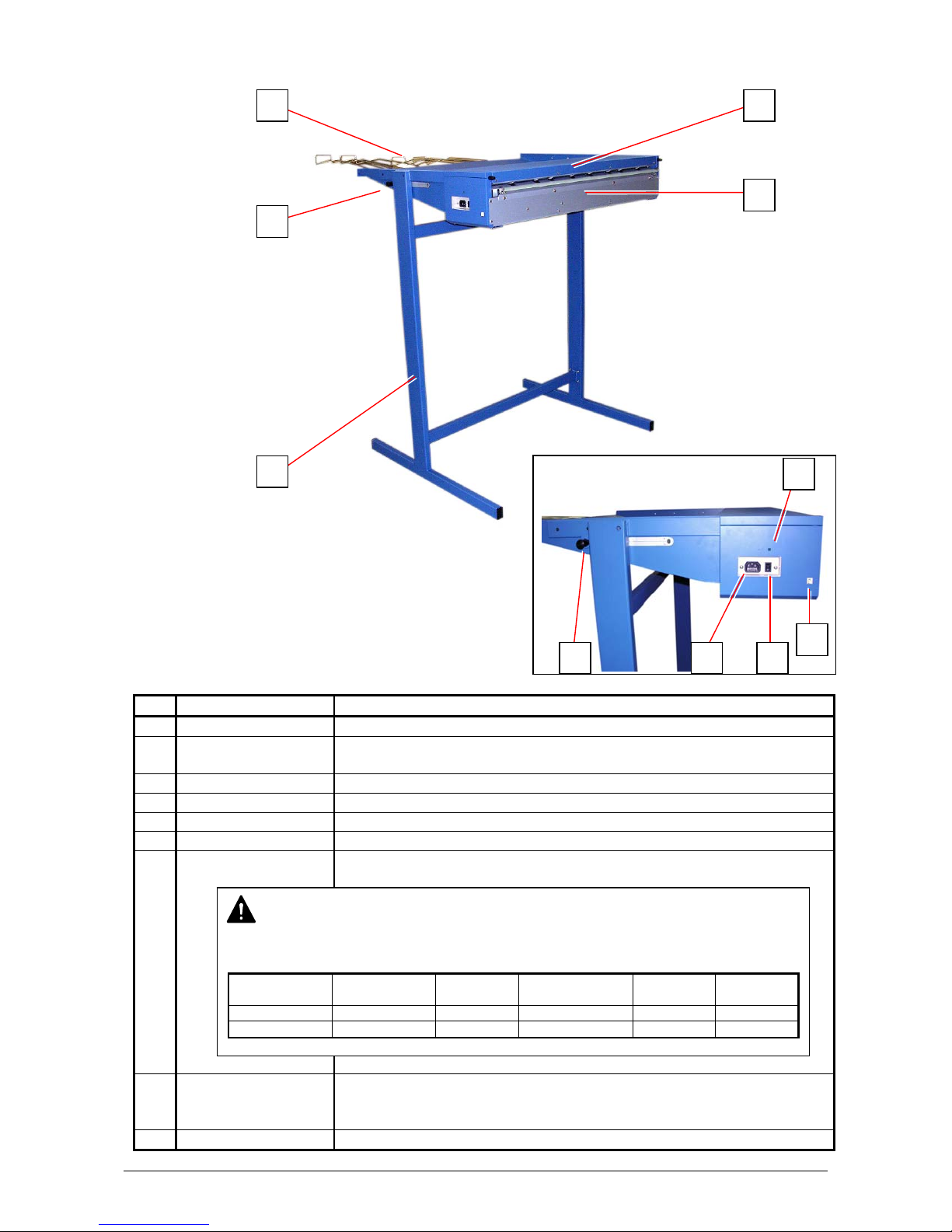

1. 3 Appearance

No. Part Name Function

1 Stacker Unit Prints are stacked here

2 Upper Panel Assy Contains feed rollers to eject prints

Will be opened to remove a jammed print

3 ST Wire Tray Supports large print stacking

4 Stacker Stand

5 ST Tray Stopper Locks/unlocks Stacker Unit

6 Power Switch Turns on/off the machine

7 AC Inlet Connect a power cord here

8 Modular Connector Connect Modular Cable here

Exclusive use for communication with the KIP Color 80 (K-107)

(Do not connect a telephone line) (RJ-11 5VDC max, less than 3m)

9 Power Indicator Indicates the machine’s power on

5 67 8

NOTE

One of the following power cords is included in the product accessory.

Voltage

(minimum) Plug Socket Length

(maximum) Remarks

US 115VAC / 7A NEMA5-15 IEC60320: C13 2.4m UL-Listed

Europe / Asia 250VAC / 10A KP-4819D KS-31A 4.8m VDE

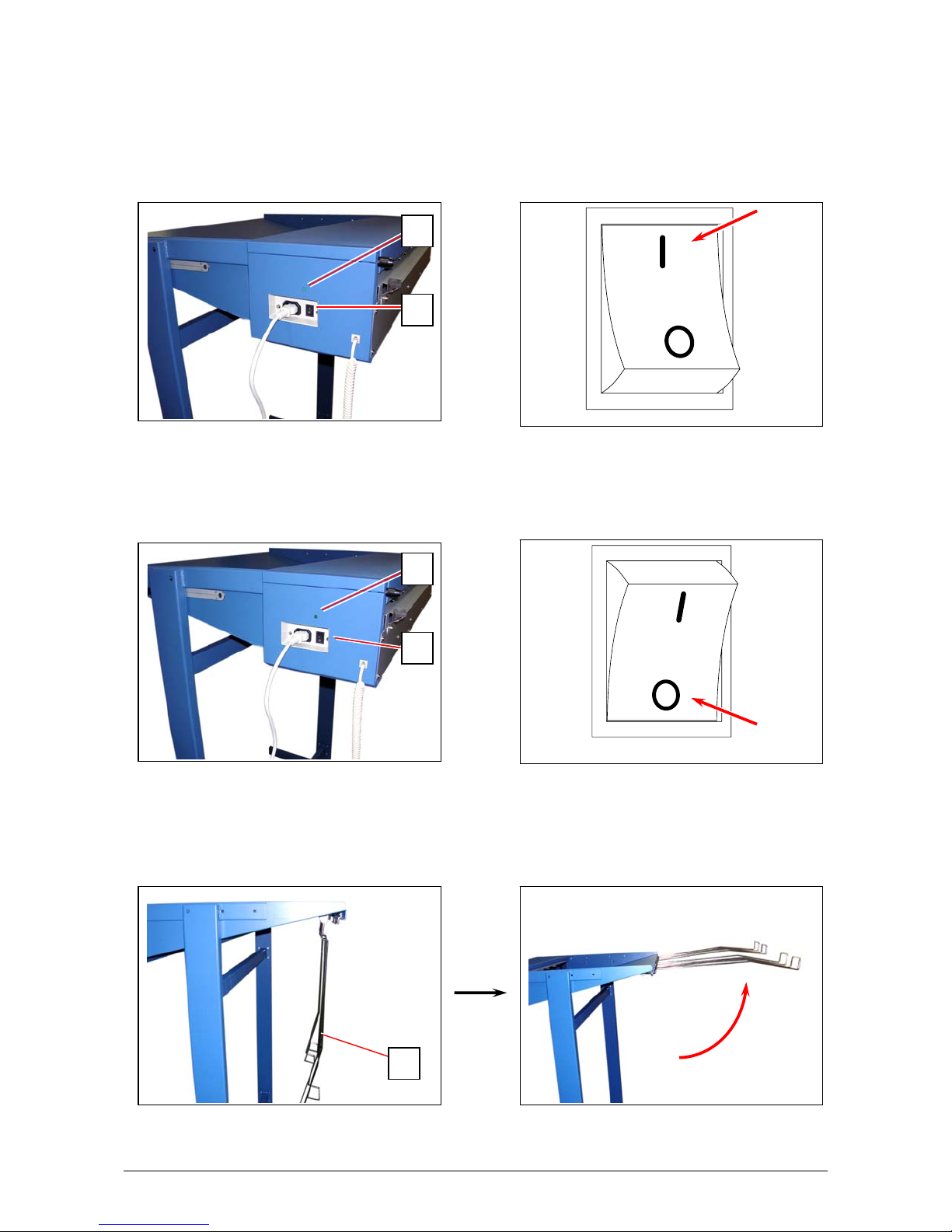

2 Basic Operation

2. 1 Turning On

Press “I” side of the Power Switch (1) on the left.

LED (2) lights when ready.

2. 2 Turning Off

Make sure of completion of the print transportation. Press “O” side of the Power Switch (1) on the

left. LED (2) goes off.

2. 3 Stacking Support

For a print of between 594mm (24”) and 1,189mm (36”) in length, pull ST Wire Trays (1) up until

they lock.
