Konica Minolta JS-506 Manual de usuario

E-1

JS-506 Job Separator

INSTALLATION MANUAL

A2YV-9551-00

Applied Machines: C554e/C454e/C364e/C284e/C224e/C554/C454/C364/C284/C224/C368/C308/554e/454e/364e/

284e/224e/367/287/227

COLOR MFP: 55 ppm/45 ppm/36 ppm/30 ppm/28 ppm/22 ppm

MFP: 55 ppm/45 ppm/36 ppm/28 ppm/22 ppm

Product Code: A5AY/A5C0/A5C1/A5C2/A5C4/A2XK/A4FJ/A161/A4FK/A4FM/A7PU/A7PY/A61D/A61E/A61F/A61G/

A61H/A789/A7AH/A7AK

1. Accessory parts *1 This part is used only when the Job Separator

is installed to 367/287/227.

*2 This part is used only when the Job Separator

is installed to C554e/C454e/C364e/C284e/

C224e/C554/C454/C364/C284/C224/C368/

C308/554e/454e/364e/284e/224e.

Note:

• This manual provides the illustrations of the

accessory parts and machine that may be

slightly different in shape from yours. In that

case, instead of the illustrations, use the

appearance of your machine to follow the

installation procedure. This does not cause any

significant change or problem with the proce-

dure.

• If none of the later steps instruct you to use the

parts including screw and cover that you

removed following the instructions described in

this manual, discard them.

No. Name Shape Q’ty

1. Upper tray

2. Sensor unit

3. Film

4. Hook*1

5. Regulating

plate*1

6. Screw A

(3 x 8 mm) 1

7. Screw B

(3 x 10 mm) 3

8. Screw C

(3 x 16 mm)*2 2

9. Screw D

(4 x 8 mm)*1 1

10. Installation

manual

1 set

Keep this bag away from babies and

children. Do not use in cribs, beds,

carriages, or playpens.

The thin film may cling to nose and

mouth and prevent breathing. This bag is

not a toy.

E-2

2. Installation procedures

<C554e/C454e/C364e/C284e/C224e/C554/C454/

C364/C284/C224/C368/C308/554e/454e/364e/284e/

224e>

(1) Turn OFF the power switch and unplug the

power cord from the power outlet.

(2) Remove protective tape and protective materials

and take out accessory parts.

Note:

When installing this option to C554e/C454e/C554/

C454/554e/454e, the following steps (3) to (9) are

performed only if the optional Output Tray OT-506

is installed.

(3) Check whether the output tray has the snap-fit

hook illustrated below or not.

< When the machine has the snap-fit hook >

Go to step (6).

< When the machine does not have the snap-fit

hook >

Go to step (4).

(4) Open the front door of the main unit.

(5) Remove the upper left cover from the main unit.

(Three screws)

<C554e/C454e/C364e/C284e/C224e/C554/C454/

C364/C284/C224/C368/C308/554e/454e/364e/

284e/224e>

Follow the installation procedures starting on page

E-2.

<367/287/227>

Follow the installation procedures starting on page

E-7.

< With the

snap-fit hook >

< Without the

snap-fit hook >

E-3

(6) Remove the output tray from the main unit.

(7) Reattach the upper left cover removed in step (5)

to the main unit. (Three screws)

(8) Close the front door of the main unit.

(9) Remove the guide from the main unit.

(10) Remove the cover from the main unit as shown

in the illustration. (Two screws)

<C554e/C454e/C364e/C284e/C224e/C554/C454/

C364/C284/C224/554e/454e/364e/284e/224e>

(11) Remove the knockout from the cover removed

in step (10) with nippers.

< With the snap-fit hook >

< Without the snap-fit hook >

E-4

(12) Remove the cover from the main unit as shown

in the illustration. (One screw)

(13) Remove the knockout from the cover removed

in step (12) with nippers.

(14) Remove the paper backing from the supplied

film and attach it to the main unit as shown in

the illustration.

Note:

• Alignment in vertical direction:

Align the lower edge of the film with the surface

of the cover in the exit section.

• Alignment in back and forth direction:

± 2 mm from both edge of the depression on

the cover of the exit section

(15) Attach the supplied sensor unit to the main unit

by fitting the two tabs into the holes.

(16) Secure the sensor unit with the supplied

screw A.

(17) Conduct the following procedure to connect the

sensor unit's connector to the main unit.

<C554e/C454e/C364e/C284e/C224e/C554/C454/

C364/C284/C224/554e/454e/364e/284e/224e>

a) Remove the connector from the wire saddle

shown in the illustration.

± 2 mm

Connector

Wire saddle

E-5

b) Connect the sensor unit’s connector to the con-

nector described in step a).

c) Route the harness through the wire saddles A,

B, and the edge cover.

Note:

Position the connector under the wire saddle A as

shown in the illustration.

a) If present, disconnect the relay connector from

the sensor unit connector.

b) Connect the sensor unit connector to the con-

nector as shown in the illustration.

c) Route the sensor unit harness through the wire

saddle and the edge cover.

(18) Reattach the cover removed in step (12) to the

main unit. (One screw removed in step (12))

Connector

Wire saddle B

Wire saddle A

Edge cover

Wire saddle

E-6

(19) Install the supplied upper tray into the main unit

by fitting the tab into the hole.

Note:

Fit the two protrusions on the upper tray into the

notch on the cover shown in step (18) and into the

depression on the main unit’s surface as shown in

the illustration.

(20) Secure the upper tray with three supplied

screws B.

(21) Reattach the cover removed in step (10). (Two

screws removed in step (10))

(22) Attach the job separator by fitting the three tabs

into the holes.

(23) Secure the job separator with two supplied

screws C.

(24) Remove the cover shown in the illustration from

the back of the main unit. (One screw)

Protrusion

Notch

Protrusion

Tab

Depression

E-7

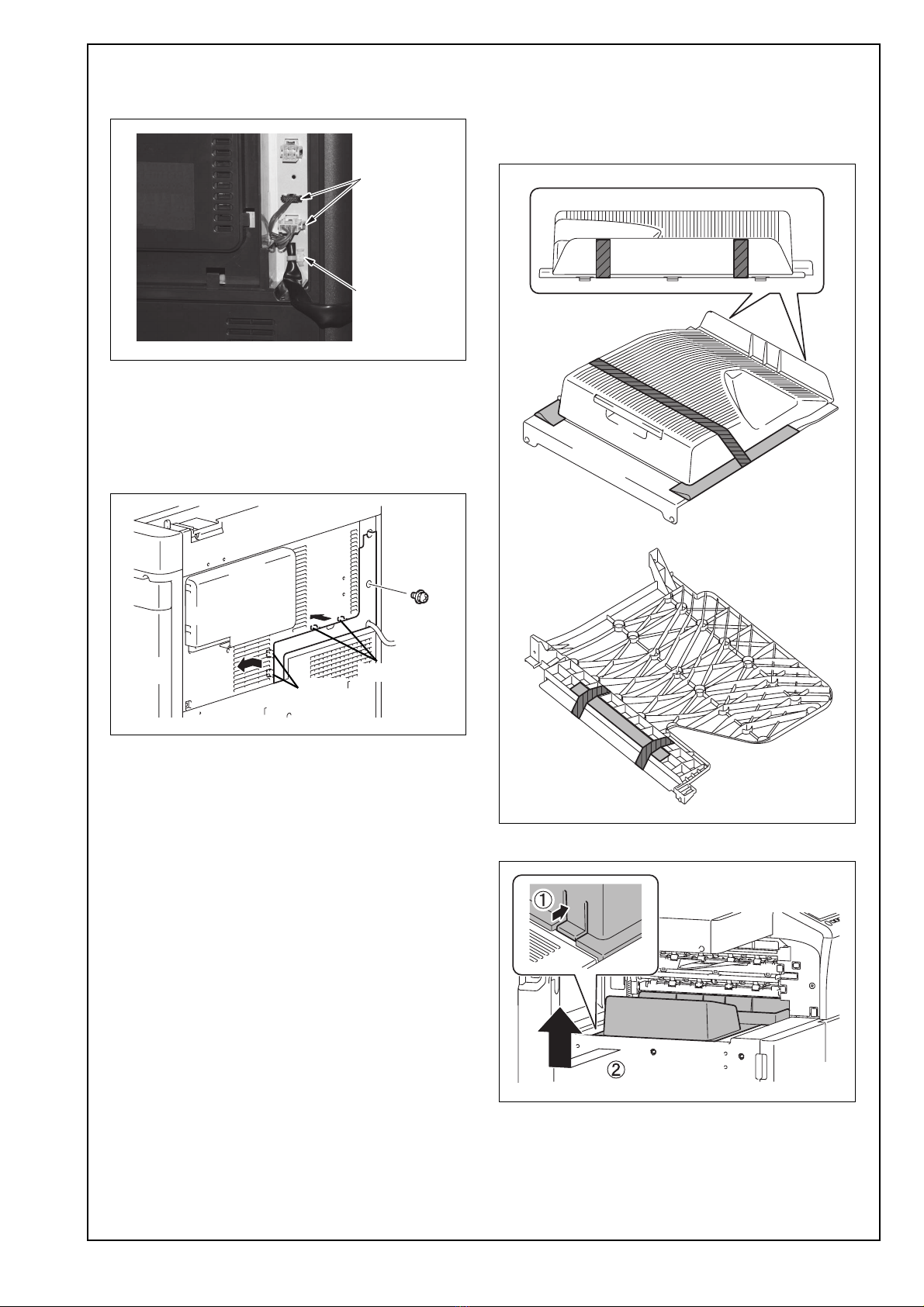

(25) Plug in the two connectors of the job separator.

Fit the head of the cable tie into the mounting

hole on the main unit.

(26) Reattach the cover removed in step (24). (One

screw)

Note:

• Be careful not to pinch the harness.

• Insert two tabs A into the holes on the main unit

cover first. Then fit two tabs B into the holes.

* The installation procedure for models C554e/

C454e/C364e/C284e/C224e/C554/C454/C364/

C284/C224/C368/C308/554e/454e/364e/284e/

224e is complete.

<367/287/227>

(1) Turn OFF the power switch and unplug the

power cord from the power outlet.

(2) Remove protective tape and protective materials

and take out accessory parts.

(3) Remove the output tray from the main unit.

Connector

Cable tie

Tab B

Tab A

E-8

(4) Remove the guide from the main unit.

(5) Remove the cover from the main unit as shown

in the illustration. (One screw)

(6) Remove the knockout from the cover removed in

step (5) with nippers.

(7) Remove the cover from the main unit as shown

in the illustration.

(8) Remove the paper backing from the supplied film

and attach it to the main unit as shown in the

illustration.

Note:

• Alignment in vertical direction:

Align the lower edge of the film with the surface

of the cover in the exit section.

• Alignment in back and forth direction:

0 to 2 mm from the edge of the metal sheet

(9) Attach the supplied sensor unit to the main unit

by fitting the two tabs into the holes.

(10) Secure the sensor unit with the supplied

screw A.

0 to 2mm

E-9

(11) Conduct the following procedure to connect the

sensor unit's connector to the main unit.

a) If present, disconnect the relay connector from

the sensor unit connector.

b) Connect the sensor unit connector to the con-

nector as shown in the illustration.

c) Route the sensor unit harness through the two

wire saddles.

(12) Install the supplied upper tray into the main unit

by fitting the tab into the hole.

Note:

Fit the two protrusions on the upper tray into the

portion where the cover has been removed in step

(7) and into the depression on the main unit’s sur-

face as shown in the illustration.

(13) Secure the upper tray with three supplied

screws B.

Protrusion

Tab

Notch

Protrusion

E-10

(14) Reattach the cover removed in step (5). (One

screw removed in step (5))

(15) Mount the supplied regulating plate to the

machine at the position shown in the illustra-

tion.

(16) Remove the cover shown in the illustration from

the job separator. (Two screws)

(17) Install the supplied hook into the job separator

according to the following procedure.

a) Press the hook into the job separator.

b) Secure the hook by turning it in the direction

indicated by the arrow in the illustration.

(18) Attach the job separator by fitting the three tabs

into the holes.

Note:

Make sure that the hook installed in step (17) is

secured at the proper position.

Hook
