Kogan KAMN34XQUCLA Manual de usuario

34" IPS ULTRAWIDE USB-C

FREESYNC HDR GAMING

MONITOR

3440 x 1440 144Hz

KAMN34XQUCLA

•Read all instructions before using the monitor and retain for reference.

•Unplug the monitor before cleaning it.

•Use a clean, slightly dampened cloth to wipe the monitor body.

•To clean the screen: turn it off, unplug it and wait for it to cool completely, then

wipe it with a dry microfibre cloth.

•Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.

•This monitor is designed with ventilation holes on the back of the casing. Do not

cover or block them.

•Do not insert any object or spray any liquid into the vents.

•Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat,

as well as in rooms lacking adequate ventilation.

•Do not position the monitor in unsafe locations. If the monitor falls, it may be

damaged and may injure nearby people.

•Unplug the monitor if it is not going to be used for an extended period.

•Do not place heavy objects on the monitor, its power cord or any connected cable.

•Do not open the back panel of the monitor, as it contains a high-voltage current

even when not plugged in.

The terms HDMI and HDMI High-Definition Multimedia Interface,

and the HDMI Logo are trademarks or registered trademarks of

HDMI Licensing Administrator, Inc. in the United States and other

countries.

SAFETY & WARNINGS

Monitor Stand Stem

Stand Base Screws VESA connectors

VESA Screws Display Port Cable USB cable

Type-C cable Power Cable User Guide

COMPONENTS

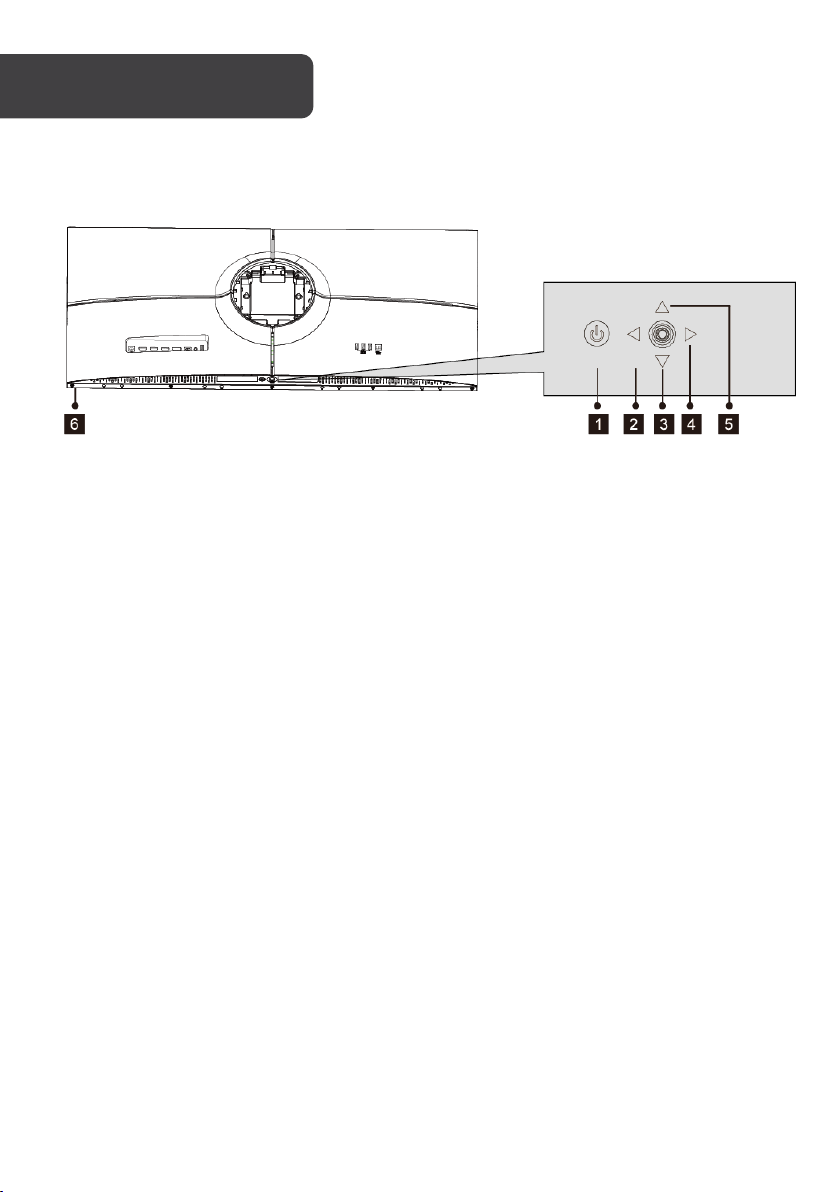

Controls

1 Power On/Off

2 Scene Mode Switching

3 LED Effects

4 Main Menu

5 Crosshairs Display

6 LED Indicator

OVERVIEW

Ports

7 Power Port

8 HDMI Ports

9 Display Port

10 Type-C

11 Audio Output

12 USB for Aftersales Service

13 USB Out

14 USB In

Installing the Stand Base

1. Take out the two main parts of the stand. Then use the screwdriver and the screws

to fasten base to the stem.

2. Take out the monitor and put it on the flat foam, insert the stand on the back of

monitor.

3. Use both hands to stand the assembled monitor on a flat desktop.

INSTALLATION

Note: Ensure you have all the components before disposing of any

packaging materials.

1. Open the package, remove the monitor keeping the protection foam attached.

Gently place it on a desktop.

2. Remove the upper foam.

3. Remove the wall decoration cover from the attaching.

4. Using a screwdriver, lock the 4 PM4*16 screws in the M4 thread holes as shown in

the below image.

5. The monitor is now ready to be attached to a wall-mounting bracket. The wall

mount is not included the package. For wall mounting instructions, follow the user

guide supplied with the wall mount.

VESA MOUNT

Wall Decoration

Cover

PM4*16 VESA

Screws

Note: VESA mount or mounting accessories are not included.

Power Cable

Connect the included power cable to the power connector, and then plug the other end into

a power outlet.

Earphones

Plug in your earphones to receive audio signals from your monitor. If your earphones are

connected to the monitor and audio devices are connected to your computer at the same

time, the audio devices will not produce sound. Earphones and other audio devices are not

included in the package.

Display Port

To receive display port signals from the computer, use the Display Port cable to connect the

monitor to the computer.

CONNECTIVITY

HDMI Ports

To receive HDMI signals from the computer, use the HDMI cable to connect the monitor to

the computer.

Type-C Port

Connect your computer to this monitor using the Type-C cable (included) to receive a

high-quality digital video signal.

USB IN

Connect the computer to UHB port via USB cable (included).

(Not included)
