Kogan KAMN24QUCMA Manual de usuario
USB-C QHD FREESYNC 75Hz
MONITOR (2560 x 1440)
KAMN24QUCMA
•Read all instructions before using the appliance and retain for reference.
•Unplug the monitor before cleaning it.
•Use a clean, slightly-dampened cloth to wipe the main monitor body.
•To clean the screen: turn it off, unplug it and wait for it to cool completely, then
wipe it with a dry microfibre cloth.
•Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
•This monitor is designed with ventilation holes on the back of the casing. Do not
cover or block them.
•Do not insert any object or spray any liquid into the vents.
•Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat,
as well as in rooms lacking adequate ventilation.
•Do not position the monitor in unsafe locations. If the monitor falls, it may be
damaged and may injure nearby people.
•Unplug the monitor if it is not going to be used for an extended period.
•Do not place heavy objects on the monitor, its power cord or any connected cable.
•Do not open the back panel of the monitor, as it contains a high-voltage current
even when not plugged in.
SAFETY & WARNINGS
LED monitor
Stand Base Quick Start Guide
HDMI cable Power Cable Adapter
COMPONENTS
Controls
1. Menu/Enter
2. Volume/Down
3. Brightness/Up
4. Input select/Exit
5. Power On/Off
6. LED indicator
Ports
1. HDMI
2. DisplayPort
3. USB-C
4. USB1
5. USB2
6. EARPHONE
7. Power input (DC 24V)
OVERVIEW
Installing the Stand Base
1. Clear a table and place a piece of soft cloth on it to prevent the LED monitor from
being scratched.
2. Lay the LED monitor flat on the table with the LED screen facing down.
3. Insert stand into the monitor, then secure the base by turning clockwise as below.
4. Stand the LED monitor up.
Disconnecting the Stand Base
1. Clear a table and place a piece of soft cloth on it to prevent the LED monitor from
being scratched.
2. Lay the LED monitor flat on the table with the LED screen facing down.
3. Press the release button and pull away the monitor to remove the stand from the
monitor.
4. Pull the release lever and turn anticlockwise to remove the base from stand. Press
the release button.
STAND ASSEMBLY
Follow the steps below to install onto a monitor arm or wall mount (not included)
1. Place the mounting plate onto the back of the LED monitor, lining up the holes of
the plate with the holes in the back of the monitor.
2. Insert the 4 screws into the holes and tighten.
3. Assemble the mount as per the instructions provided with the mount.
4. Connect the power and display cables to the monitor.

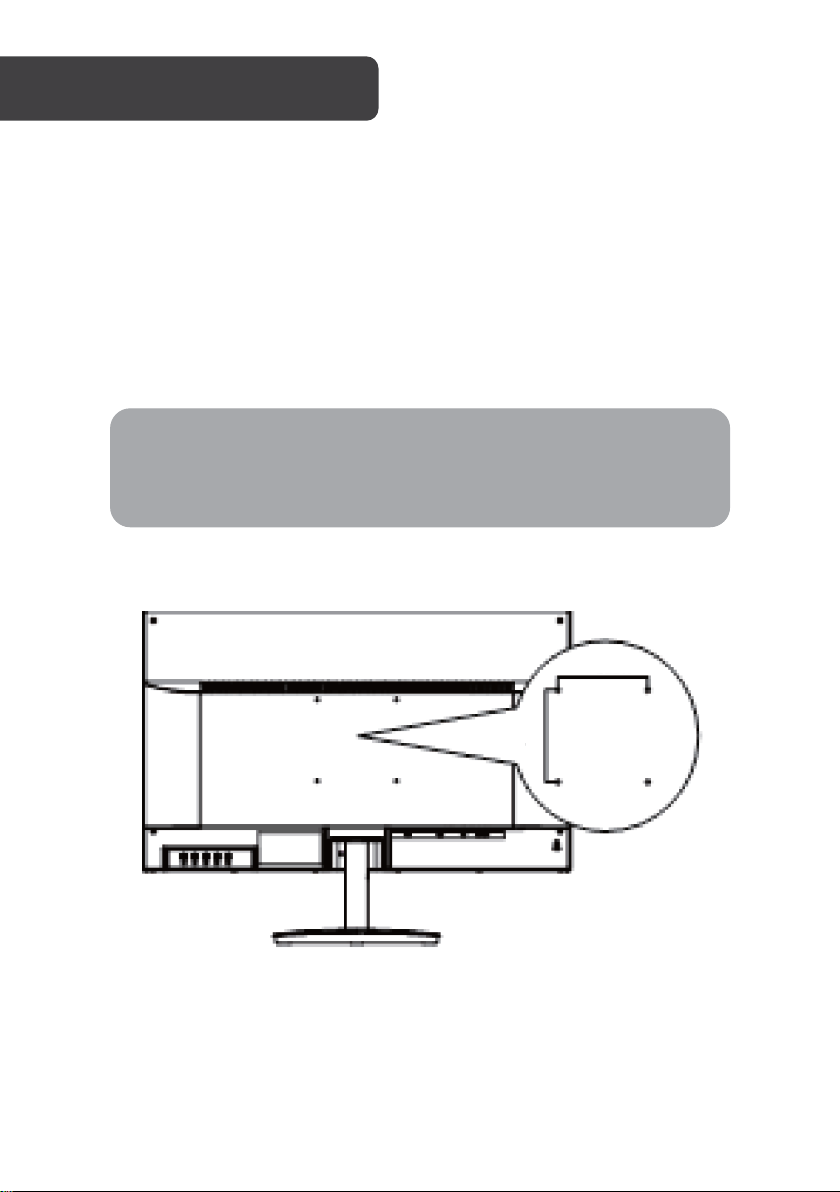

VESA MOUNT
Note:
100 x 100mm VESA high hole (n=4), M4, pitch=0.7mm, screw mounting kit
not included.
100mm
100mm
Before using the LED monitor
•Connect external equipment properly.
•Insert the power plug: the power LED indicator will glow orange,without signal
input.
Setup
1. Connect the HDMI, DP or USB Type-C cable from your monitor to the computer.
2. Connect the adapter to a properly grounded AC outlet, then to the monitor.
3. Power ON the computer and then power ON the monitor.
4. Set the timing mode on your computer. Recommended resolution and refresh rate
are 2560x1440 @75Hz.
OPERATION
USB-C Connection
This monitor supports the following simultaneous connections via USB Type-C:
•Display via DisplayPort™ 1.2 alternate mode
•Data via USB 3.1
•Power delivery (20V/3.25A, 15V/3A, 9V/3A, 5V/3A)
NOTE: Type-C is not supported on versions of Windows prior to Windows 10.
USB-C Setup
1. Connect the USB Type-C cable from your monitor to the computer.
2. Connect the adapter to a properly grounded AC outlet, then to the monitor.
3. Power ON the computer and then power ON the monitor.
4. Set the timing mode on your computer. Recommended resolution and refresh rate
are 2560 x 1440 @60Hz.
Power ON/OFF
•Press the power button on the front of the monitor: the power LED indicator light
will be blue when the LED monitor is on.
Using the OSD menu
•Use OSD menus to adjust settings by using the menu button on the front of the
LED monitor.
Displays main menu
Enter OSD menu
Selects between HDMI, DP and USB-C. Exit OSD menu
Select the desired item when in OSD menu
When not in the OSD menu, directly enters Volume Menu
Select the desired item when in OSD menu
When not in the OSD menu, directly enters Brightness Menu
