Safety & Warnings 3

Overview 4

Using Cover Case 5

Connectivity 6

Operation 10

Cleaning & Care 13

Specifications 14

Troubleshooting 16

Notes 18

•Read these instructions. All safety and operating instructions must be read before this

product is operated.

•Keep these instructions – Retain this manual for future reference.

•All warnings on the device and in the operating instructions must be adhered to.

•Do not use this equipment near water. The appliance must not be used near water or

moisture (for example, in a wet basement or near a swimming pool).

•Clean only with a dry cloth. Do not use solvents or petroleum-based fluids.

•Only use attachments and accessories specified by the manufacturer.

•Unplug the device during lightning storms or when unused for long periods of time.

•Refer all servicing to qualified personnel. Servicing is required when the product has

been damaged in any way, such as when liquid has been spilled, when objects have

fallen into the product, when it has been exposed to rain or moisture, when it does not

operate normally or has been dropped.

•Do not remove the safety covers. There are no user serviceable parts inside. Trying to

service the unit yourself is dangerous and may invalidate the product’s warranty.

•Only qualified personnel should service this device.

•Contact help.Kogan.com for assistance if required.

SAFETY & WARNINGS

WARNING: To reduce the risk of fire or electric shock, do not expose

this product to rain or moisture. The product must not be exposed to

dripping or splashing and objects filled with liquids, such as vases,

must not be placed on the product.

A 15.8" LED Portable Monitor F Secondary USB-C port (Only for a peripheral)

B Case cover G Headset hole

C Luma key H Type-C full function (Connect PD power

supply)

D Volume button I Type-C full function

E OSD/Power Button J Mini HDMI

OVERVIEW

The cover case has a built-in magnet that can be attached to the monitor. Attach the case

by following the below steps:

By using the cover case as a stand, the main unit can be used at an angle as shown below:

USING COVER CASE

Back side

(with one line)

Align the hole in the

protective shell with the

hole in the portable screen

and install screws

Fold the LED side of

the cover case over

the LED display

Fold the cover case

outward

Attached to rear

of monitor

Plugging in

If the device you’re connecting to has a USB-C port, connect one end of the USB-C to USB-

C cable to the device and the other end to the portable monitor.

Some devices may not provide enough power to the monitor. Check the USB-C port on your

device for the symbols shown in the table below.

If you have one of the green checked symbols, then your USB-C port should provide both

data and enough power to the monitor.

If the monitor won’t turn on, connect a USB-A to USB-C cable along with an HDMI cable.

CONNECTIVITY

Note:

MacBook ports should be compatible even if there are no symbols next to the port.

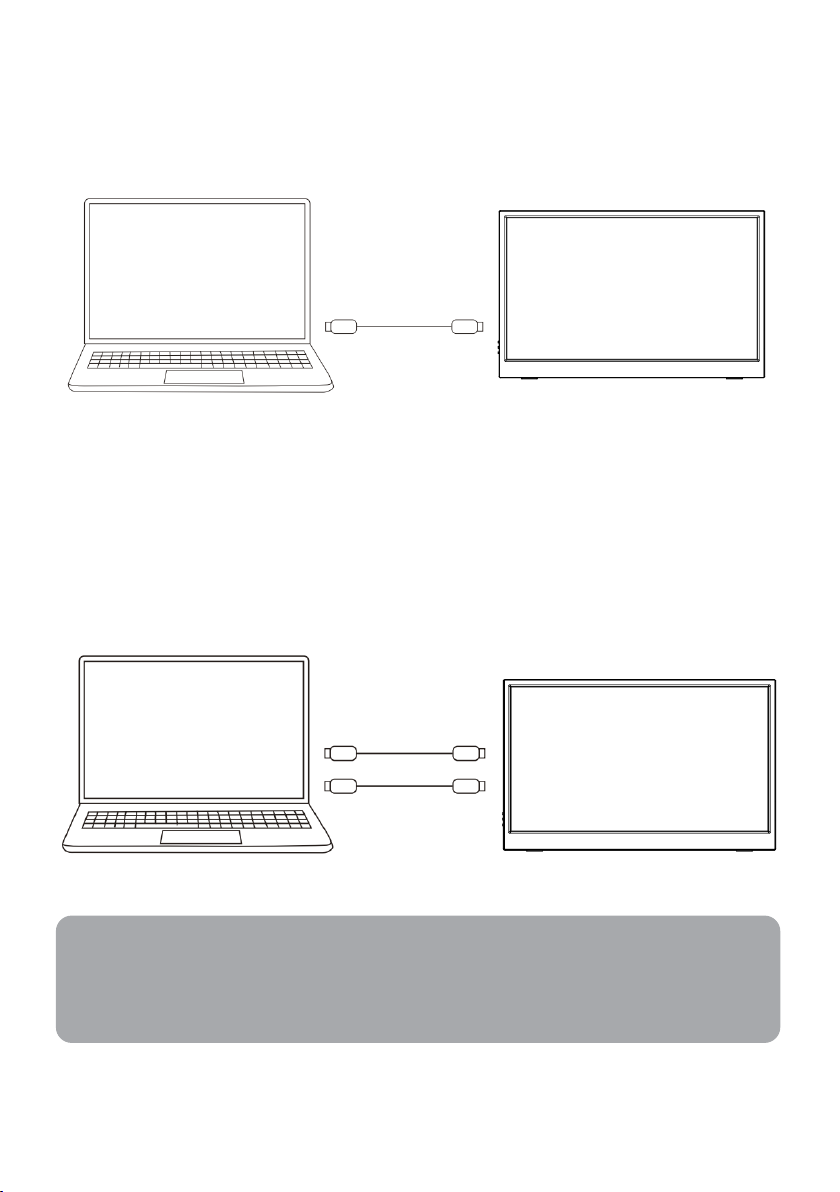

Computer (via USB-C)

The portable monitor can be connected to a compatible computer using the supplied USB-

C cable. This must be connected to the primary USB-C port on the monitor’s left side. The

computer will provide power and signal to the monitor and can be used for extended display

or duplicated display use.

Computer (via HDMI & USB-A)

If connecting to a computer without a USB-C port, you can utilise HDMI as long as you also

provide a power supply. There are two options for this. The first is to connect the supplied

HDMI-to-Mini HDMI cable between the computer and the portable monitor, while also

connecting to the computer via USB to provide power. Connect the USB-A from the

computer to the primary USB-C port on the monitor’s left side.

Note:

Depending on the power supplied by the USB port on the computer (display requires

5V/2A), additional power may need to be supplied to the monitor through the

secondary USB-C port on the right of the monitor.

Computer without

USB-C port

Computer with full-

function USB-C port

USB-C to USB-C

Display

USB-A to USB-C

HDMI to Mini HDMI

Display

Computer (via HDMI & power adapter)

The second option for HDMI connection is to connect the supplied HDMI-to-Mini HDMI

cable between the computer and the portable monitor, while also connecting the monitor

directly to an external power adapter (supplied) via USB. For this, you can use either the

primary USB-C port on the monitor’s left side or the secondary USB-C port on the monitor’s

right side.

Mobile phone (via USB-C)

If there is no external power supply connected to the secondary USB-C socket on the right

of the monitor, the mobile phone battery will supply power to the display. To reduce power

usage, the energy-saving mode will be activated and the display brightness will be reduced

to 30%. You can adjust the brightness and volume of the monitor according to the output

power of the mobile phone.

When connected to an external power supply through the secondary USB-C port, the

display will provide power to the mobile phone through the external power supply. The

brightness of the monitor will automatically be adjusted to 85% when connecting with

external power.

Note:

If using a power bank (not supplied) as an external power source, it must be larger than

16W. Power banks can be used as external power for every connection shown here, not

just mobile phones.

Computer without

USB-C port HDMI to Mini HDMI Display

USB-C to power adapter

Mobile

Phone

USB C to USB C Display

External power

supply of 5V/2A

or more

Other devices (via HDMI & USB or power adapter)

If connecting to a device without a USB-C port, you can utilise HDMI as long as you also

provide a power supply. There are two options for this. The first is to connect the supplied

HDMI-to-Mini HDMI cable between the device and the portable monitor, while also

connecting to the device via USB to provide power. Connect the USB-A from the device to

the primary USB-C port on the monitor’s left side.

The second option for HDMI connection is to connect the supplied HDMI-to-Mini HDMI

cable between the device and the portable monitor, while also connecting the monitor

directly to an external power adapter (supplied) via USB. For this, you can use either the

primary USB-C port on the monitor’s left side or the secondary USB-C port on the monitor’s

right side.

Note:

When connecting a device using HDMI, to ensure the smooth transmission of the

signal be sure to connect the power cable first, then connect the HDMI.

HDMI to Mini HDMI

USB-C to USB-A

Display

External power

supply if USB

power insufficient

OSD Control (Non-Touchscreen)

•Power button: Power (long press) / signal source / Return / long press and 90 degrees

screen rotation

•Dial button

•Dial button up / Down

•Dial button (Down Button): Down / Volume

Operation Method

Step 1: Press Down the dial button to enter the OSD menu.

Step 2: Rotate the dial button up and down to choose features.

Step 3: Press the power button to exit.

Brightness / Contrast Menus

•Brightness: Adjust the brightness of the screen. Adjustment range (0-100).

•Contrast: Adjust the contrast level of the image. Adjustment range (0-100).

•ECO Mode: Adjust display mode. Standard / Games / Movies / Photos.

•Dynamic Contrast: Toggle dynamic contrast function On/Off.

•Sharpness: Adjust sharpness. Adjustment range 0-4.

OPERATION
