Kogan KAMN32F7USA Manual de usuario

32” FULL HD 75HZ USB-C

FREESYNC MONITOR

(1920 x 1080)

KAMN32F7USA

• Read all instructions before using the appliance and retain for reference.

• Unplug the monitor before cleaning it.

• Use a clean, slightly dampened cloth to wipe the main monitor body.

• To clean the screen, turn it off unplug it and wait for it to cool completely, then wipe it

with a dry micro-fibre cloth.

• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.

• This monitor is designed with ventilation holes on the back of the casing. Do not cover

or block them.

• Do not insert any object or spray any liquid into the vents.

• Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as

well as in rooms lacking adequate ventilation.

• Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged

and may injure nearby people.

• Unplug the monitor if it is not going to be used for an extended period.

• Do not place heavy objects on the monitor, its power cord or any connected cable.

• Do not open the back panel of the monitor, as it contains a high-voltage current even

when not plugged in.

The terms HDMI and HDMI High-Definition Multimedia

Interface and the HDMI Logos are trademarks or registered

trademarks of HDMI Licensing Administrator, Inc. in the United

States and other countries.

SAFETY & WARNINGS

Monitor

Stand arm

Base

Stand screw

(M6x16mm) (x1)

VESA screws (x4)

HMDI cable

USB-C cable

Power cable

User guide

COMPONENTS

Button

Function

Power

a. Press and hold the “Power” button for 6 seconds to turn the monitor

on/off.

b. When the monitor is on, press the "Power " to wake up the main

menu for one second.

c. Select "direction key" to select the items to be adjusted up and

down in the main menu. After selecting the items, click " Power " to

adjust. Click " Power " again to save and return to the upper menu.

Directional

Use to navigate menus. Pressing left and right while on a progress bar

will reduce and increase the functions respectively.

Shortcut button

a. Press the “Power” button right: source selection menu. Select the

signal source using the directional buttons and then press "Power"

button to confirm.

b. Press the “Power” button left: display mode menu. Select the

display mode using the directional buttons and then press "Power"

button to confirm.

c. Press the “Power” button up: Gameplus timer shortcut. Select the

desired timing length and then press "Power" button to confirm. To

exit, repeat the "Power" button up.

d. Press the “Power” button down: Gameplus sight shortcut. Select

the desired sight and then press "Power" button to confirm. To exit,

repeat the "Power" button up.

OVERVIEW

Button

Function

HDMI input

USB-C input

Audio out

Power input

1. Carefully remove the monitor, stand

arm and stand base from the box.

2. Attach the stand base to the stand

arm using the supplied M6 screw.

3. Insert the connection block into the

back cabinet and push down until

ﬁrmly connected.

4. Lift monitor up straight and remove

the bottom foam. Stand the monitor

up on the installed base.

ASSEMBLY

WARNING: The panel of the monitor is fragile. Keep the foam

underneath the monitor screen while assembling the stand.

VESA mounting pattern 75 x 75mm, screw size M4.

Note: VESA mount or mounting accessories are not included.

1. Open the box, take out the monitor with protection foam attached and gently

place it on a desktop or table. Ensure all components are removed from the foam

covering. Press the quick release button to remove the stand plate.

If the monitor is already attached to the stand, remove the stand before

proceeding with VESA mount assembly.

2. Assemble the mount as per the instructions provided with the mount.

Note: To prevent the monitor on the mount from failing, please install it firmly and protect it

fully. Do not place or hang any object on the mount. Ensure the height of the mount is less

than 2 meters.

VESA MOUNT

Stand base

Monitor

Stand plate

Button

Mount (not included)

Foam

Stand connector

Power cable

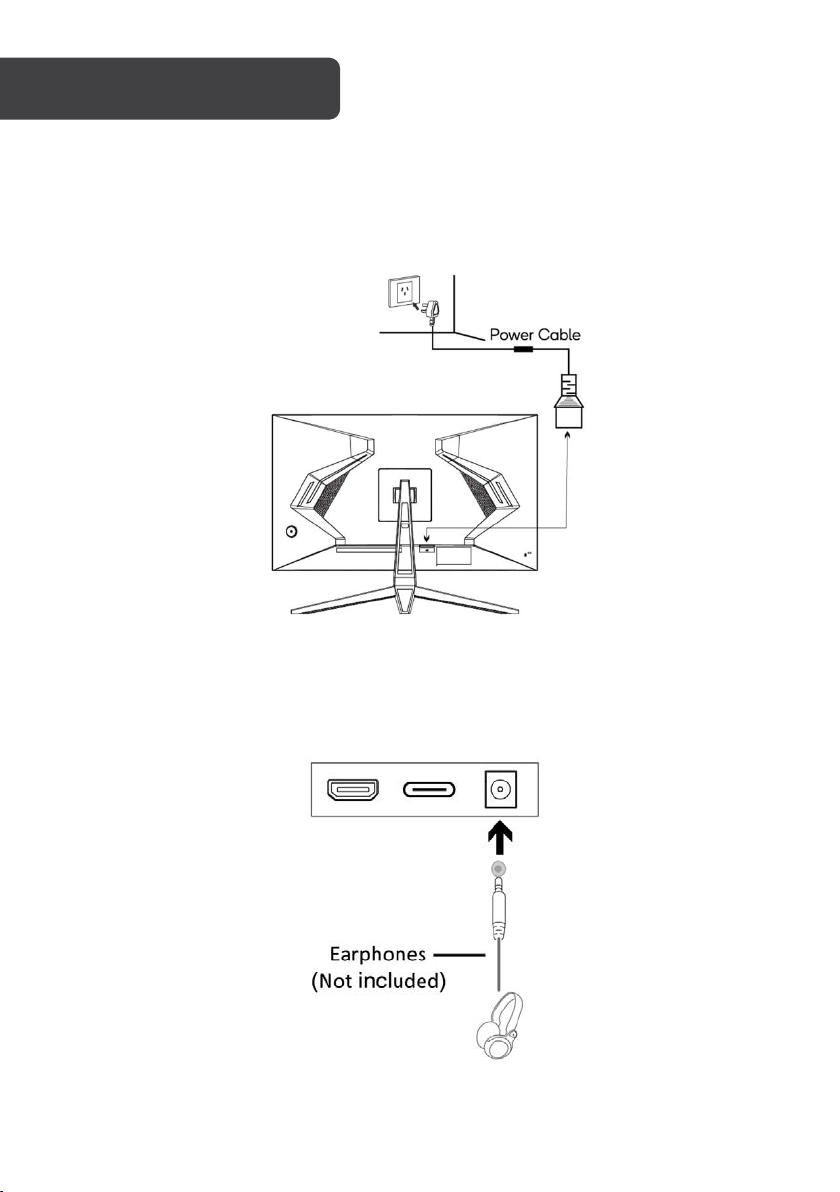

Connect the included power cable to the monitor power port, then connect the other end to

a power outlet.

Earphones (Audio Out)

Connect an audio cable to the 3.5mm audio port on the monitor (Audio In) and the 3.5mm

audio port on your computer.

CONNECTIVITY

USB-C

In order for the monitor to receive USB-C signals from the computer, use the USB-C cable to

connect the monitor to the computer.

HDMI

In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to

connect the monitor to the computer.
