Kogan KAMN34RQUCSA Manual de usuario
34” CURVED WQHD ULTRAWIDE
144HZ USB-C FREESYNC HDR
GAMING MONITOR (3440 x 1440)
KAMN34RQUCSA
• Read all instructions before using the monitor and retain for future reference.
• Unplug the monitor before cleaning it.
• Use a clean, slightly dampened cloth to wipe the main monitor body.
• To c l e a n t h e s c r e e n , t u r n i t o f f u n p l u g i t a n d w a i t f o r i t t o c o o l c o m p l e t e l y, t h e n w i p e
it with a dry micro-fibre cloth.
• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
• This monitor is designed with ventilation holes on the back of the casing. Do not
cover or block them.
• Do not insert any object or spray any liquid into the vents.
• Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat.
• Place monitor in well ventilation room.
• Do not position the monitor in unsafe locations. If the monitor falls, it may be
damaged and may injure nearby people.
• Unplug the monitor if it is not going to be used for an extended period.
• Do not place heavy objects on the monitor, its power cord or any connected cable.
• Do not open the back panel of the monitor, as it contains a high-voltage current
even when not plugged in.
• Before disposing of any packaging, place all items on a soft, clean and flat surface
to ensure all components are accounted for.
The terms HDMI and HDMI High-Definition Multimedia
Interface and the HDMI Logos are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc. in the
United States and other countries.
SAFETY & WARNINGS
Monitor
Stand arm
Stand base
Stand base screw
(M6 x 16mm)
VESA screws (x4)
(M4 x 10mm)
DisplayPort cable
USB upstream cable
USB-C cable
Power adapter &
Power cable
User guide
COMPONENTS
1
Power button
2
Power input
3
HDMI
4
DisplayPort
5
USB-C
6
USB upstream
7
USB 3.0
8
USB 3.0
9
Audio out (3.5mm jack)
OVERVIEW

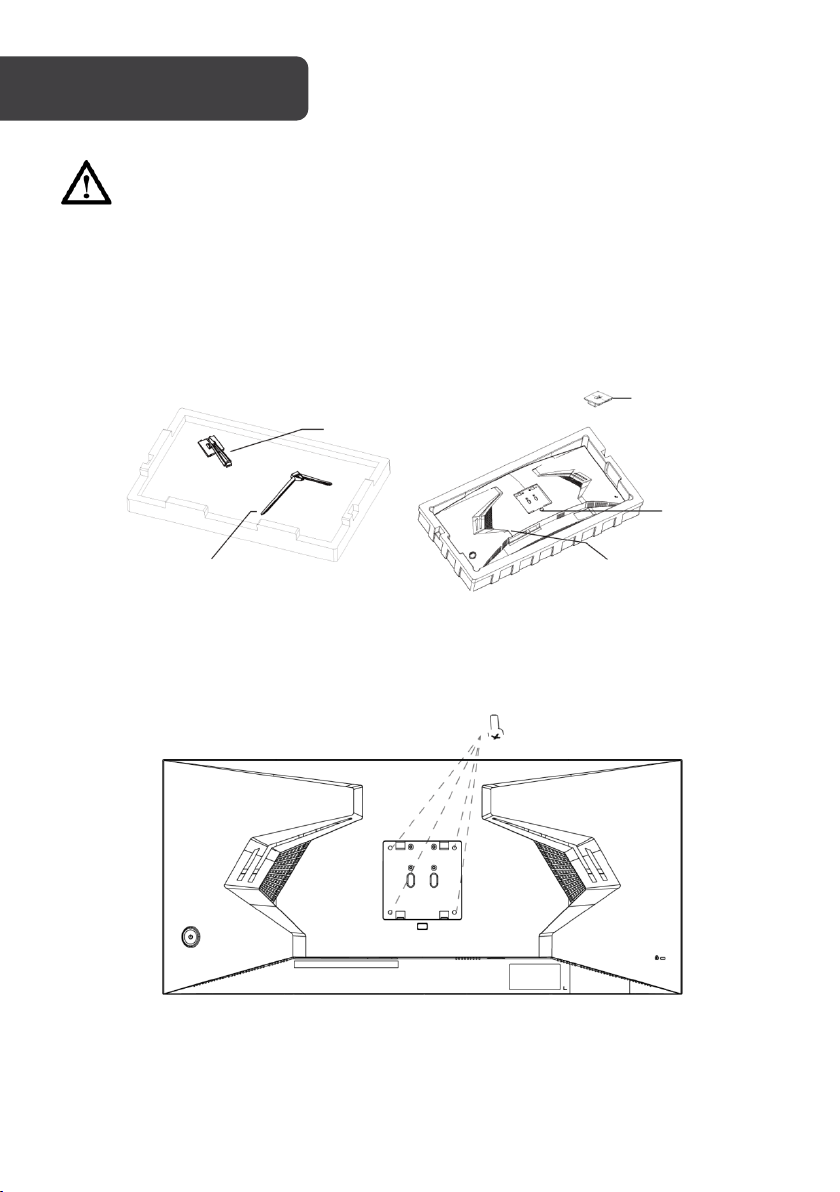

Before disposing of any packaging, place all items on a soft, clean and flat surface to
ensure all components are accounted for.
1.
Carefully remove the monitor, stand
arm and stand base from the box.
2.
Attach the stand base to the stand
arm using the provided M6 screw.
3.
Insert the stand arm into the rear of
the monitor and push down until it
is firmly connected.
4.
Lift the monitor up straight and
remove the bottom foam. Stand the
monitor up on the installed base.
ASSEMBLY
WARNING: The panel of the monitor is fragile. Keep the foam
underneath the monitor screen while assembling the stand.
Open
1. Open the box, remove the monitor keeping the protection foam attached and gently
place it on a desktop or table.
2. Remove the foam covering the rear of the monitor. Press the release button to remove
the stand plate. If the monitor is already attached to the stand, remove the stand.
3. Assemble the mount as per the instructions provided with the mount.
VESA mounting pattern 100 x 100mm, screw size M4.
Note:
VESA mount or mounting accessories are NOT included.
Stand base
Monitor
Stand arm
Stand plate
Button
VESA MOUNT
Power
1. Connect the included power cable to the monitor power port.
2. Connect the power cable to the power adapter.
3. Connect the power adapter to the power outlet.
Audio
1. Connect a 3.5mm audio cable to the audio out on the monitor.
2. Connect the audio cable to the 3.5mm port on your headphones or speakers.
Note: The monitor may need to be set as the PC’s default sound output device.
CONNECTIVITY
Earphones (not included)
Power cable
Power adapter
USB Upstream
Before using the two USB 3.0 ports you will first need to connect the monitor to your
computer through the USB upstream input.
USB
The two USB 3.0 ports can be used to connect USB accessories to the monitor.
USB upstream cable (included)
USB cable (included)
USB-C
Use the included USB-C cable to connect the monitor to your computer.
DisplayPort
Use the included DisplayPort cable to connect the monitor to your computer.
DP cable (included)
USB-C cable (included)
