Kogan KAMN15TFULA Manual de usuario

15.6" TOUCHSCREEN FULL HD IPS

LED PORTABLE USB-C MONITOR

(1920 x 1080)

KAMN15TFULA

Safety instructions 3

Components 4

Product overview 5

Base adjustment 6

Connection options 7

Guide to connections 10

External Controls 11

Operation 12

Power Saving Mode 15

Display Data Channel 15

Specifications 16

Troubleshooting 17

Cleaning & maintenance 19

CONTENTS

•Read all instructions before using the monitor and retain this user guide for future

reference.

•Unplug the monitor before cleaning it.

•Use a clean, slightly dampened cloth to wipe the main monitor body.

•To clean the screen: Turn it off, unplug it and wait for it to cool completely, then

wipe it with a dry micro-fibre cloth.

•Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.

•This monitor is designed with ventilation holes on the back of the casing. Do not

cover or block them.

•Do not insert any object or spray any liquid into the vents.

•Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat,

as well as in rooms lacking adequate ventilation.

•Do not position the monitor in unsafe locations. If the monitor falls, it may be

damaged and may injure nearby people.

•Unplug the monitor if it is not going to be used for an extended period.

•Do not place heavy objects on the monitor, its power cord or any connected cable.

•Do not open the back panel of the monitor, as it contains a high-voltage current

even when not plugged in.

WARNING: To reduce the risk of fire or electric shock, do not expose this device to rain or

moisture. The device must not be exposed to dripping or splashing, and objects filled

with liquids, such as vases, must not be placed on the device.

The terms HDMI and HDMI High-Definition Multimedia

Interface and the HDMI Logos are trademarks or registered

trademarks of HDMI Licensing Administrator, Inc. in the

United States and other countries.

SAFETY & WARNINGS

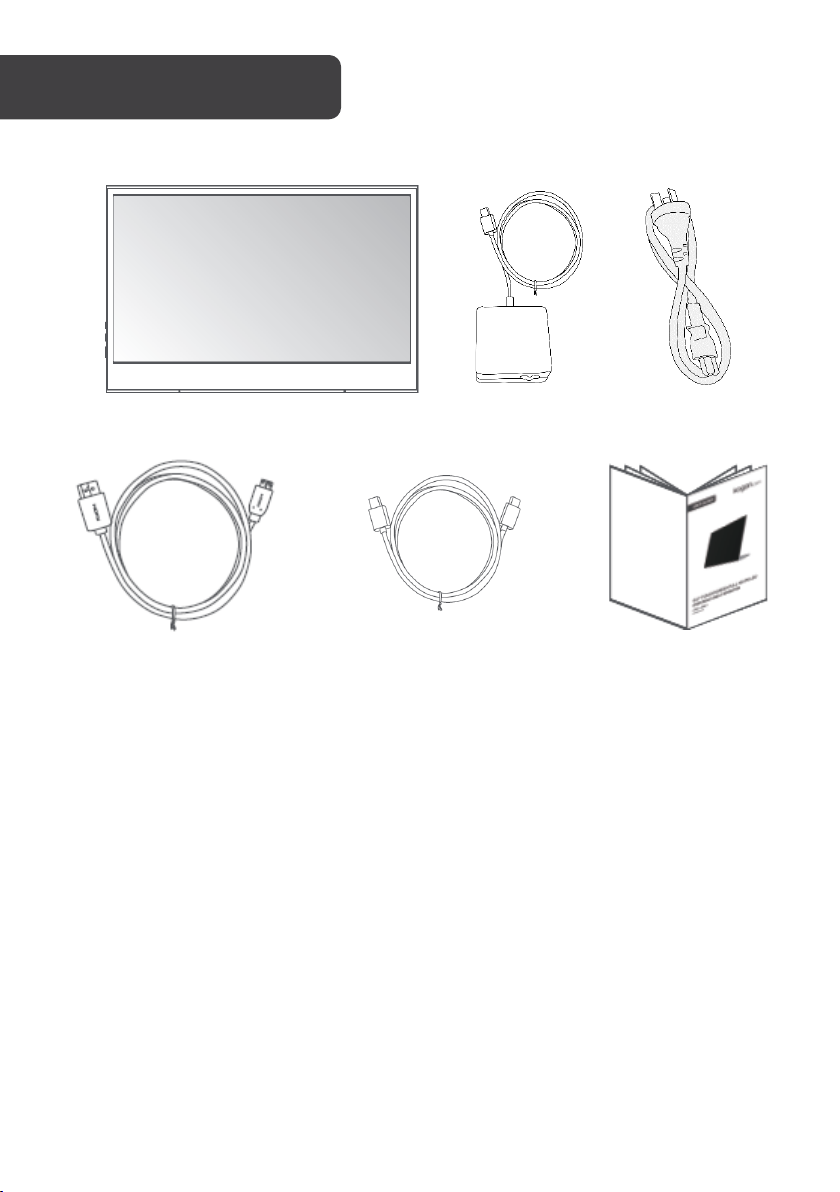

15.6” Touchscreen LED

Portable Monitor

USB-C

Power Adapter

Power Plug

Mini HDMI Cable

USB-C Cable

User Guide

COMPONENTS

15.6” Touchscreen LED

Portable Monitor

Mini HDMI port

Up button

Primary USB-C port

(full function)

Down button

Secondary USB-C port

(charging only)

Power button

3.5mm headphone jack

LED indicator

Left and Right speakers

PRODUCT OVERVIEW

The portable monitor comes equipped with an adjustable base featuring a full 180° range,

allowing it to be completely flat (180°), upright (90°), and any other configuration between

0-180°.

BASE ADJUSTMENT

Computer (via USB-C)

The portable monitor can be connected to a compatible computer using the supplied

USB-C to USB-C cable. This must be connected to the monitor’s primary USB-C port. The

computer will provide power and signal to the monitor and can be used for extended display

or duplicated display use.

Computer (via HDMI with external power)

The second option for HDMI connection is to connect the supplied HDMI-to-Mini HDMI

cable between the computer and the portable monitor, while also connecting the monitor

directly to an external power adapter (supplied) via USB. For this, you can use either the

primary or secondary USB-C ports.

CONNECTION OPTIONS

Note:

When connecting the monitor and laptop through full-function USB-C port (one cable

solution), the brightness of the monitor will be automatically set low to ensure it can be

sufficiently powered by one cable. You can adjust the brightness higher, but the

maximum brightness may be limited to a certain amount.

Ensure the laptop’s USB-C port provides over 5V 1A power.

Mobile phone (via USB-C)

If there is no external power supply connected to the secondary USB-C port, the mobile

phone battery will supply power to the display. The mobile phone’s USB-C output must be

larger than 5V 1A to provide power without external power. To reduce power usage, the

energy-saving mode will be activated and the display brightness will be automatically set

low. Yo u can adjust the brightness and volume of the monitor according to the output power

of the mobile phone.

When connected to an external power supply through the secondary USB-C port, the

display will provide power to the mobile phone through the external power supply. The

brightness of the monitor will automatically adjusted when connecting with external power.

Note:

If using a power bank (not supplied) as an external power source, it must be larger than

18W. Power banks can be used as external power for every connection shown here, not

just mobile phones.

Other devices (via HDMI & USB or power adapter)

If connecting to a device without a USB-C port, you can utilise HDMI as long as you also

provide a power supply. Connect the supplied HDMI-to-Mini HDMI cable between the

device and the portable monitor, while also connecting the monitor directly to an external

power adapter (supplied) via USB. For this, you can use either the primary or secondary USB-

C ports.

Note:

When connecting a device using HDMI, to ensure the smooth transmission of the signal

be sure to connect the power cable first, then connect the HDMI.

Notes:

•The touchscreen can only be achieved through USB-C port. The HDMI port cannot

support touchscreen.

•The touchscreen function may vary across different devices dependant on their

compatibility and operation systems.

•Touchscreen function on MacBook may be limited.

External

device

External

device port Monitor port Power

supply

Touchscreen

function

Laptop USB-C Primary USB-C Laptop Yes

Laptop

USB-C Primary USB-C

Yes

Charging USB-C port

to adapter Adapter

Laptop

HDMI Mini HDMI

Charging USB-C port

to adapter Adapter

Smartphone

USB-C

Primary USB-C

Yes

Charging USB-C port

to adapter Adapter

USB-C

compatible

gaming

console

USB-C Primary USB-C

Charging USB-C port

to adapter Adapter

Other

gaming

consoles

HDMI

Mini HDMI

Charging USB-C port

to adapter Adapter

GUIDE TO CONNECTIONS
