Kogan KAMN30FUSA Manual de usuario
30" CURVED 21:9 ULTRAWIDE
75Hz MONITOR
(2560 x 1080)
KAMN30FUSA
•Read all instructions before using the appliance and retain for reference.
•Unplug the monitor before cleaning it.
•Use a clean, slightly dampened cloth to wipe the main monitor body.
•To clean the screen: turn it off, unplug it and wait for it to cool completely, then
wipe it with a dry micro-fibre cloth.
•Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
•This monitor is designed with ventilation holes on the back of the casing. Do not
cover or block them.
•Do not insert any object or allow any liquid to enter the ventilation.
•Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat,
as well as in rooms lacking adequate ventilation.
•Do not position the monitor in unsafe locations. If the monitor falls, it may be
damaged and may injure nearby people.
•Unplug the monitor if it is not going to be used for an extended period.
•Do not place heavy objects on the monitor, its power cord or any connected cable.
•Do not open the back panel of the monitor, as it contains a high-voltage current
even when not plugged in.
The terms HDMI and HDMI High-Definition Multimedia Interface
and the HDMI Logos are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the United States and other
countries.
SAFETY & WARNINGS
Monitor
Stand connector
Stand base
Stand base screws
(M4*10mm x 4, M4*16mm x 2)
VESA screws (x4)
DisplayPort cable
Power cable
User guide
PARTS
Monitor Controls
1
M Menu button
Press to display the OSD menu or enter sub-menus.
2
Forward button
Press to move forward in the menu or increase parameters.
3
Back button
Press to move back in the menu or decrease parameters.
4
E Exit button
Press to exit.
5
Power button
Press to turn the monitor on/off.
Monitor Ports
6
AUDIO OUT
7
DP Connector
8
HDMI1 2.0
9
HDMI2 1.4
10
HDMI3 1.4
11
Power Connector
OVERVIEW
Attention: Panel is fragile. Keep the foam underneath the monitor while assembling the
stand.
1. Carefully remove the monitor from the packaging with the protective foam
attached and place it face down on a soft cloth spread across a stable surface
such as a table.
2. Remove and assemble the stand base and connector using the included screws.
3. Remove the connection block from the back of the monitor by pressing the detach
button.
4. Insert the Connection Block into the back cabinet, then push down until it snaps
into place.
5. Remove the bottom foam and place the monitor on the desk or other location
intended for use: installation is complete.
STAND ASSEMBLY
1. Carefully remove the monitor from the packaging with foam attached and place it
face down on a soft cloth spread across a stable surface such as a table.
2. Remove the connection block from the back of the monitor by pressing the detach
button. If the stand is attached, remove it.
3. Assemble the mount as per the instructions provided with the mount.
VESA MOUNT
Stand base
Monitor
Stand Stem
Stand plate
Button
Mount (Not included)
VESA 100*100mm, Screw size (M4 screw needed for VESA Mount)
Note: VESA mount or mounting accessory are NOT included.

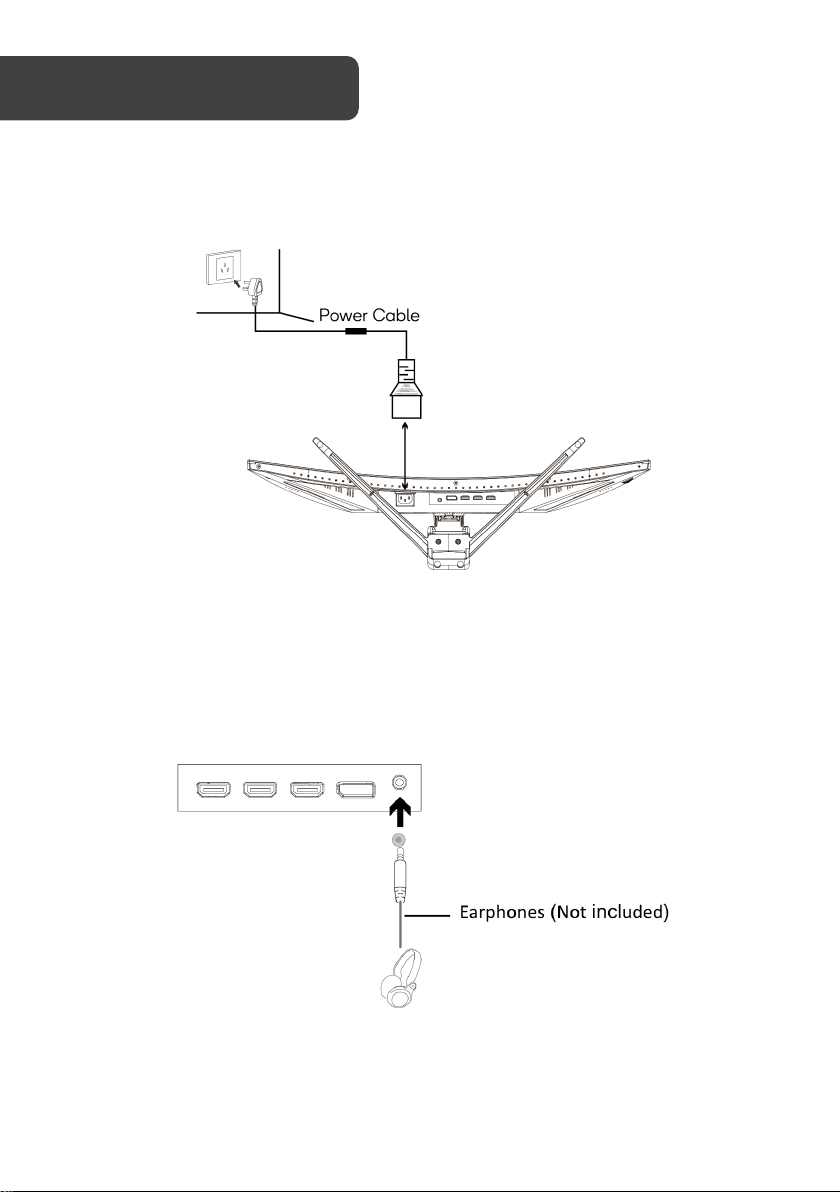

Power Cable
Connect the included power cable to the monitor power port and then connect the other
end to a power outlet.
Earphones (Audio Out)
You can connect earphones or another audio device to the 3.5mm output on the monitor.
You may need to set the Kogan monitor as your PC’s sound output device.
CONNECTIVITY
HDMI
Connect an HDMI cable from the computer’s display output to the monitor’s display input.
DisplayPort
Connect a DisplayPort cable from the computer’s display output to the monitor’s display
input.
1. Connect the monitor to your input device via HDMI or DisplayPort.
2. Connect the power cable to your monitor and then connect the other end directly
to a power socket.
3. Use the power button to turn the monitor on.
FreeSync
•The feature is disabled by default when setting a 75Hz refresh rate.
•In order to use this feature, ensure your hardware has FreeSync capability and the
graphics drivers are fully up to date.
•After connecting, you may receive a prompt to enable the feature on your
computer. If you do not receive the prompt, you may need to enable the function in
your graphics card menu.
•See your graphics card manufacturer’s documentation for instructions on how to
turn on and/or enable FreeSync.
BASIC OPERATION
