Kogan KAMN27QFSB Manual de usuario

27" QHD IPS FREESYNC 75HZ

FRAMELESS MONITOR

2560 x 1440

KAMN27QFSB

Safety & Warnings 3

Components 4

Overview 5

Stand Assembly 6

VESA Mount 8

Connectivity 9

Operation 12

Cleaning & Care 17

Specifications 18

Notes 19

Ensure to read all instructions and warnings in this user guide prior to first use. Retain this

user guide for future reference.

•Do not open the back panel of the monitor as it contains a high-voltage current even

when unplugged.

•Do not position the monitor on unstable surfaces. If the monitor falls, it may become

damaged and may cause injury to those within its vicinity.

•Do not place the monitor near heat sources (for example, heaters, stoves, fireplaces).

•Do not place the monitor in areas lacking adequate ventilation.

•Do not place heavy objects on the monitor, power cord, or connected cables as this

may cause damage.

•This monitor is designed with ventilation holes on the back panel. To maintain optimal

performance, do not cover or block these holes.

•Do not insert or spray anything into the vents.

•Ensure the monitor is unplugged before cleaning.

•Do not expose cleaning alcohol, ammonia-based liquids, or other harsh cleaners to

this monitor.

•Unplug the monitor if it will not be used for an extended period.

•The VESA mount and mounting accessories are not included.

The terms HDMI and HDMI High-Definition Multimedia

Interface and the HDMI Logos are trademarks or registered

trademarks of HDMI Licensing Administrator, Inc. in the

United States and other countries.

SAFETY & WARNINGS

AMonitor (x1)

B Stand connector (x1)

C Stand base (x1)

D 16mm M6 stand base screw (x1)

E VESA screw (x4)

DisplayPort cable (x1)

Power cable (x1)

User guide (x1)

COMPONENTS

Monitor controls

Ports

Power button

Directional arrows

Power port

DP connector

DVI port

VGA connector

HDMI port

Audio input

OVERVIEW

1. Carefully remove the monitor (A) from the packaging with the foam attached, and

place it face down on a soft cloth spread across a stable surface.

2.Attach the stand base to the stand connector using the 16mm M6 stand base screw

(D) provided.

STAND ASSEMBLY

Note:

The monitor is fragile. Keep the foam underneath the monitor while assembling the

stand.

3.Insert the stand connector (B) onto the back of the monitor (A). Push down until firmly

connected.

4.Lift the monitor (A) straight up and remove the foam on the bottom. Stand the

monitor (A) on the installed base.

1. Open the box and gently take out the monitor with the protection form attached and

place it on a desktop or table. Remove the extra components and the foam covering

the back of the monitor.

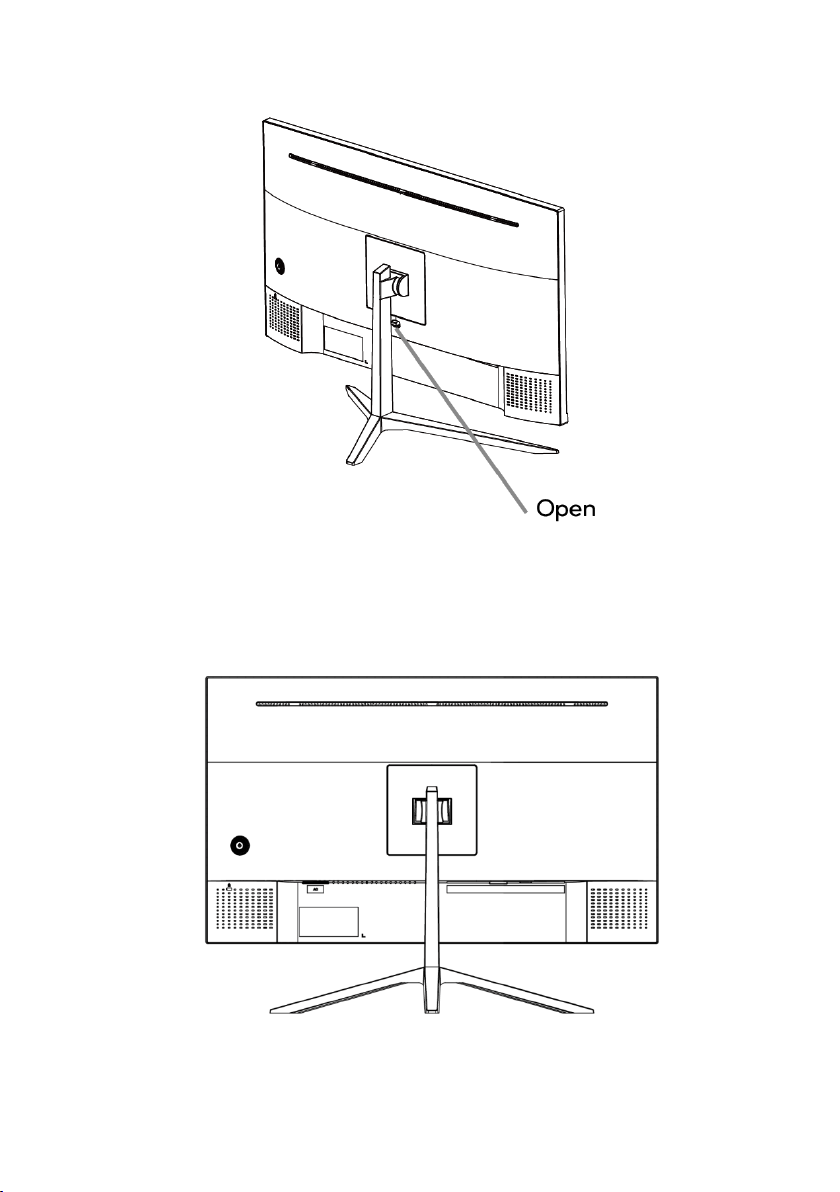

Press the release button to remove the stand plate. If the monitor was already

attached to the stand, remove the stand.

2.Assemble the mount as per the instructions provided with the mount.

VESA MOUNT

Stand connector

Release button

Foam

Stand plate

Stand base

Notes:

•VESA mounting pattern 100 x 100mm, screw size M6.

•VESA mount and mounting accessories are not included.

Monitor

Power cable

Connect one end of the power cable into the monitor’s power port, then connect the other

end to a power outlet.

Audio input

Connect the audio end of an audio to 3.5mm cable (not included) into the audio input on

the monitor. Connect the 3.5mm end into your computer.

CONNECTIVITY

VGA

For the monitor to receive VGA signals from the computer, plug one end of a VGA cable

(not included) into the VGA connector on the monitor. Connect the other end into the

computer’s VGA output.

DisplayPort

For the monitor to receive DisplayPort signals from the computer, plug one end of the

DisplayPort cable into the DP connector on the monitor. Connect the other end into the

computer’s DP port.
