Kogan KAMN27RQ1LA Manual de usuario

27" CURVED FREESYNC

HDR GAMING MONITOR

(2560 x 1440 144Hz)

KAMN27RQ1LA

• Read all instructions before using the appliance and retain for reference.

• Unplug the monitor before cleaning it.

• Use a clean, slightly dampened cloth to wipe the main monitor body.

• To c l e a n t h e s c r e e n : t u r n i t o f f , u n p l u g i t a n d w a i t f o r i t t o c o o l c o m p l e t e l y, t h e n

wipe it with a dry microfibre cloth.

• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.

• This monitor is designed with ventilation holes on the back of the casing. Do not

cover or block them.

• Do not insert any object or spray any liquid into the vents.

• Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat,

as well as in rooms lacking adequate ventilation.

• Do not position the monitor in unsafe locations. If the monitor falls, it may be

damaged and may injure nearby people.

• Unplug the monitor if it is not going to be used for an extended period.

• Do not place heavy objects on the monitor, its power cord or any connected cable.

• Do not open the back panel of the monitor, as it contains a high-voltage current

even when not plugged in.

The terms HDMI and HDMI High-Definition Multimedia Interface,

and the HDMI Logo are trademarks or registered trademarks of

HDMI Licensing Administrator, Inc. in the United States and other

countries.

SAFETY & WARNINGS

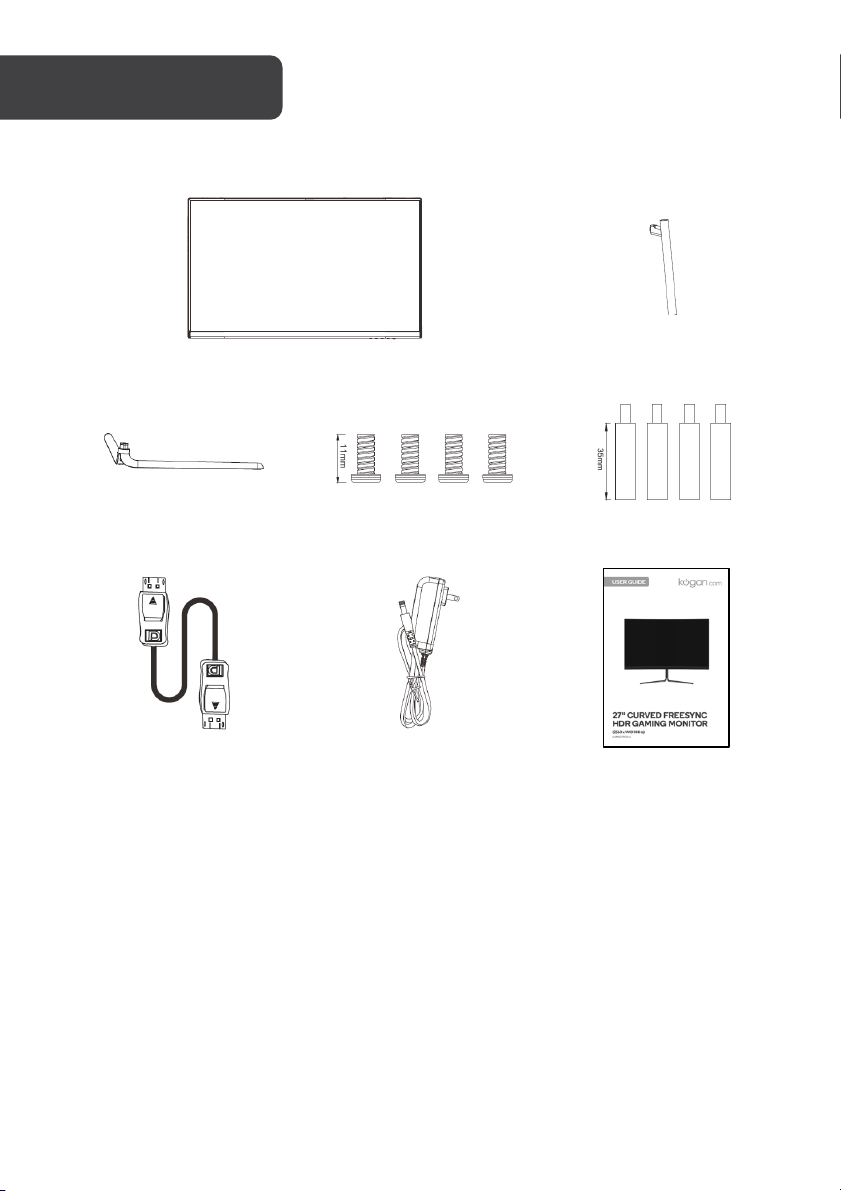

Monitor

Stand Arm

Stand Base

Screws (x4)

VESA Connectors (x4)

DisplayPort Cable

Power Adapter

User Guide

COMPONENTS

Monitor Controls

Menu/Enter Button:

Press to display the OSD menu or enter sub-menus.

Down Button:

Press to move down in the menu.

Up Button:

Press to move up in the menu.

Exit Button:

Press to exit.

Power Button:

Press to turn the monitor on/off.

LED Indicator:

Changes colour to indicate status.

Monitor Ports

7. Audio Output

8. DisplayPort Connector

9. HDMI Connector

10. Power Connector

OVERVIEW

Indicator Light

• A solid blue light indicates power is on and the monitor is operating normally.

• A flashing blue light indicates no video source is detected.

If no video source is detected, ensure your computer is on and all video cables are fully

inserted and/or connected.

Attention: Curved panel is fragile. Keep the foam underneath the monitor while

assembling the stand.

1. Open the packaging, remove the stand pole and base, and lock them with a screw.

Then remove the shaft assembly and attach it to the stand with two screws.

2. Remove the upper foam with the monitor laying on the lower piece. Insert the base

assembly into the rotating shaft of the monitor.

The base assembly can be removed by pulling the quick release button upwards by

hand.

ASSEMBLY

1. Open the package, take out the product with foam still attached, and gently place

it on a desktop or table. Remove the extra parts and the foam covering the back

of the monitor. Press the release button to remove the stand plate. If the monitor

was already attached to the stand, remove the stand.

2. Remove the original screws from the opening in the back of the monitor as per (1)

below.

Follow the directions received with your mount, stand, or accessory to connect. Use

the included 4 screws when mounting the monitor.

3. Follow the directions received with your mount, stand or accessory and install the

monitor on the wall or fixture as desired.

VESA MOUNT

Removable Rear Panel

This monitor features a removable rear panel that covers the input ports. It may be easier to

remove this panel before attempting to connect or remove cables from the monitor.

Power Cable

Connect the included power cable to the monitor power port, then connect the other end

into a power outlet.

CONNECTIVITY

Rear Panel

Earphones

You c an c on ne ct e ar ph on es or another audio dev ice to th e 3. 5m m output o n the mon itor.

You may need to set the Kogan monitor as your PC’s sound output device.

HDMI

Connect a device HDMI output such as a computer, DVD/Blu-ray player or console to the

monitor via an HDMI cable.

DisplayPort

Connect a DisplayPort output to the monitor via a DisplayPort cable.
