Kogan KAMN32UCFLA Manual de usuario

32" UHD CURVED GAMING

MONITOR

USER GUIDE

3840x2160 60Hz

KAMN32UCFLA

SAFETY & WARNINGS

Read all instructions before using the appliance and retain for reference.

This monitor is designed with ventilation holes on the back of the casing. Do not cover or

block them.

Do not insert any object or spray any liquid into the vents.

Avoid placing the monitor near heaters, stoves, ﬁreplaces or other sources of heat, as

well as in rooms lacking adequate ventilation.

Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged

and may injure nearby people.

Unplug the monitor if it is not going to be used for an extended period.

Do not place heavy objects on the monitor, its power cord or any connected cable.

Do not open the back panel of the monitor, as it contains a high-voltage current even

when not plugged in.

There is a polarizer layer (not a protective ﬁlm) on the surface of the screen. Do not peel it

o, or the product may be damaged and the warranty will be invalid.

The terms HDMI and HDMI High-Deﬁnition Multimedia

Interface, and the HDMI Logo are trademarks or registered

trademarks of HDMI Licensing Administrator, Inc. in the

United States and other countries.

COMPONENTS

Power cable User guideDP cableHeadphone stand

Monitor

BaseStand arm

32" UHD CURVED GAMING

MONITOR

USER GUIDE

3840x216060Hz

KAMN32UCFLA

Stand screws

(PM5*11 x4)

VESA screws

(M4*12 x4)

Solid Blue Power is on and the monitor operating normally.

Flashing Blue

Indicator Status

No video input signal or the monitor is in standby.

Ensure your computer is turned on and operates normally and check

that all video cables are fully plugged in and/or connected to the

monitor.

Indicator

OVERVIEW

Button Function

Menu button: Conﬁrm/call up the main menu.

Down button: Move down in the menu/quickly enter the GamePlus.

Up button: Move up in the menu/quickly enter the ECO.

Exit button: Exit/return to the previous menu/quickly enter the RGB Range.

Power button: Turn on/o the monitor.

M E

Indicator

1. Open the carton, remove the stand arm, base and headphone stand. Leave the monitor

in foam.

Secure the stand arm to the base using one of the screws.

Attach the headphone stand to the stand arm.

2. Remove the bottom half of the protective foam from the monitor.

Press the quick release button and remove the stand plate then attach it to the stand

assembly using two screws.

ASSEMBLY

Headphone stand

Headphone

stand

Screw

Screws

Stand Plate

Stand arm Stand

arm

Stand

base

Stand

base

Note:

When handling the monitor, do not pinch the screen with your hand to avoid

damaging the display.

3. Attach the stand plate and stand assembly back onto the rear of the monitor.

Remove the remaining protective foam and stand the monitor upright.

Note: To remove the stand from the monitor, slide the quick-release button up and

pull the stand assembly outwards.

Quick-

release

button

VESA mounting pattern 75x 75mm, screw size M4.

Note: VESA mount or mounting accessories are not included.

1. Open the box, take out the monitor with protection foam attached and gently place it

on a desktop or table. Ensure all components are removed from the foam covering.

Press the quick release button to remove the stand plate.

If the monitor is already attached to the stand, remove the stand before proceeding

with VESA mount assembly.

2. Remove the four screws from the rear case. Do not remove the monitor from the foam at

this stage.

VESA MOUNT

Quick release

button

Protective foam

Screws

3. Remove the four VESA screws from the accessory bag and attach them to the rear

casing.

4. During hanging of the product, do not pinch the screen with your hand to avoid

damaging the screen.

Instructions for attaching to the speciﬁc wall mount will be included with the mount.

Notes: To prevent the monitor on the mount from failing, please install it ﬁrmly and protect it

fully. Do not place or hang any object on the mount. Ensure the height of the mount is less

than 2 meters.

VESA screws

Mount (not supplied)

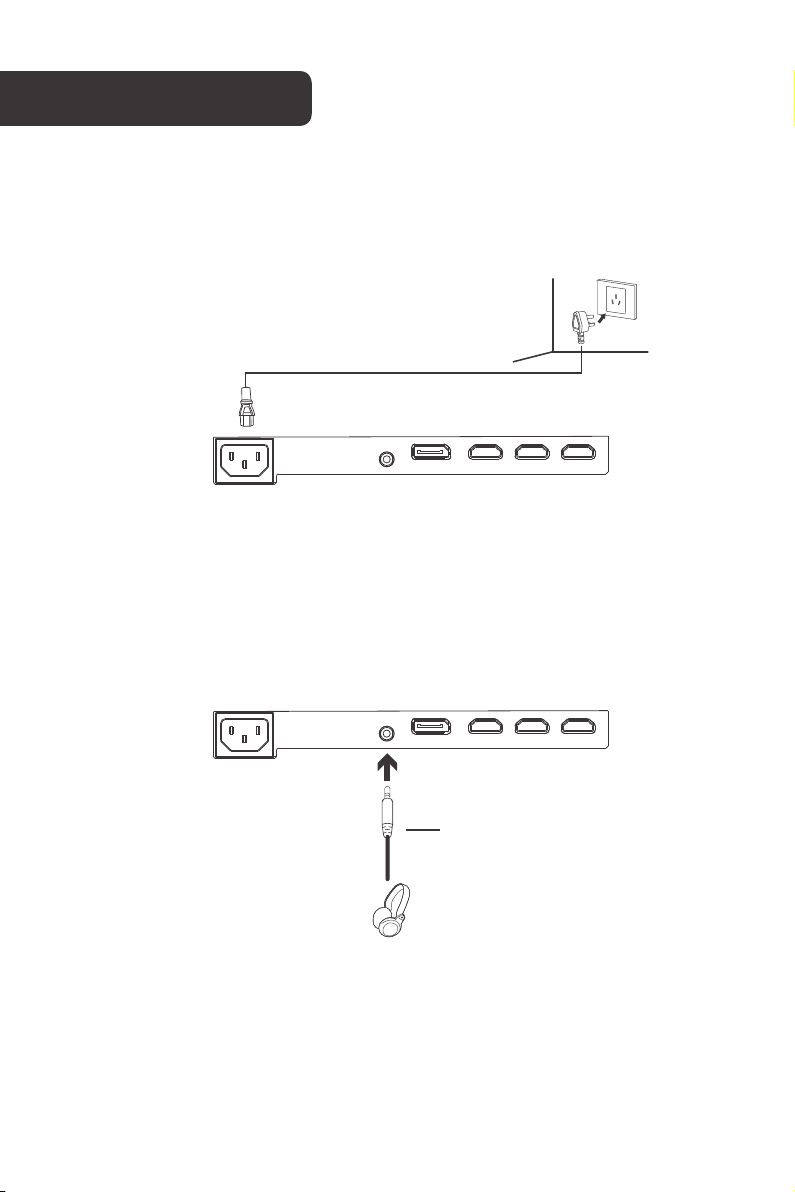

Power Cable

Connect the included power cable to the monitor power port and then connect the other

end to a power outlet.

Audio Out

Connect an audio output device (speakers, headphone etc.) to the 3.5mm audio port on the

monitor.

Headphone/speakers

(not included)

Power cable

CONNECTIVITY
