Kogan KAMN40XQUCLA Manual de usuario

40" WQHD IPS ULTRAWIDE

HDR GAMING MONITOR

3440 X 1440, 144HZ

KAMN40XQUCLA

Safety & warnings 3

Components 4

Overview 5

Stand assembly 7

VESA mount assembly 8

Connectivity 9

Settings 12

Specifications 18

•Read all instructions before using the appliance and retain for reference.

•Do not open the back panel of the monitor, as it contains a high-voltage current even

when not plugged in.

•Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as

well as in rooms lacking adequate ventilation.

•Do not place heavy objects on the monitor, its power cord or any connected cable.

•Unplug the monitor if it is not going to be used for an extended period.

•This monitor is designed with ventilation holes on the back of the casing. Do not cover

or block them.

•Do not insert any object or spray any liquid into the vents.

•Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged

and may injure nearby people.

•Unplug the monitor before cleaning it.

•Use a clean, slightly dampened cloth to wipe the main monitor body.

•To clean the screen: turn it off, unplug it and wait for it to cool completely, then wife it

with a dry microfibre cloth.

•Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.

The terms HDMI and HDMI High-Definition Multimedia Interface and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing

Administrator, Inc. in the United States and other countries.

SAFETY & WARNINGS

A40" Ultrawide Monitor (x1)

B Stand stem (x1) CStand base (x1) D15mm screws (x3)

E VESA adapter (x1) F16mm VESA screws (x4) GPower cable (x1)

HDisplayPort cable (x1) IType-C USB cable (x1) JUser guide (x1)

COMPONENTS

Controls

Left button (scene mode switching)

2 Down button (LED effects)

Right button (main menu)

4 Power On/Off

5 Up button (display crosshairs)

OVERVIEW

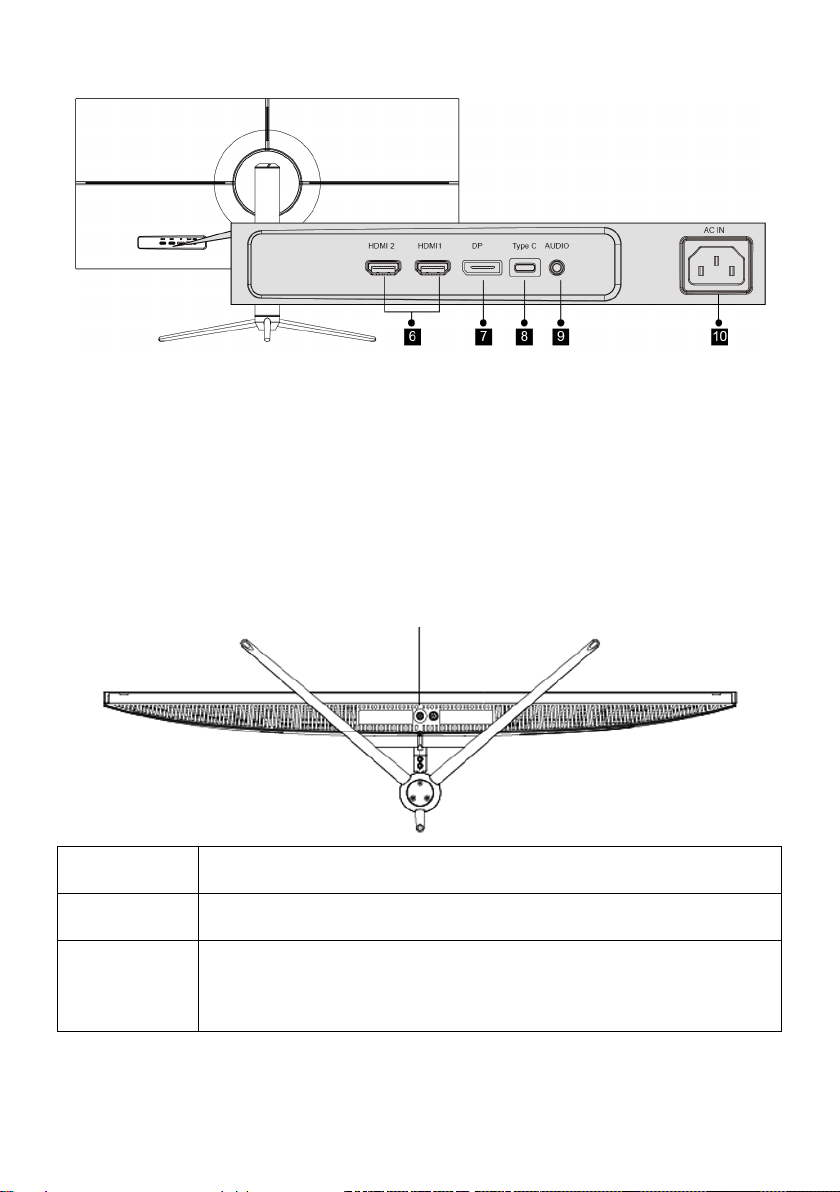

Ports

6 HDMI port 9Audio out (3.15mm) port

7 DisplayPort port 10 AC power input

8 Type-C USB port

Indicator Light

Light Status

Solid blue Power is on and the monitor is operating normally.

Flashing red No video source.no horizontal or vertical signal has been detected.

Please ensure your computer is on and all video cables are fully

inserted and/or connected.

Indicator light

Step 1: Attach the Stand stem (B) to the Stand base (C) with x3 15mm screws (D). Use a

screwdriver (not supplied) to secure the screws.

Step 2: Place the monitor (A) face down on the flat foam. Insert the stand assembly to the

back of the monitor.

Step 3: Use both hands to stand the assembled monitor on a flat desktop.

STAND ASSEMBLY

Base

Screws (15mm x 3)

Stem

Step 1: Remove the monitor from the packaging, keeping the protective foam attached.

Gently place it face-down on a flat surface and remove the upper foam.

Step 2: Place the VESA adapter (E) over the opening at the back of the monitor. Using a

screwdriver, secure the VESA adapter to the monitor with x4 16mm screws (F).

Step 3: The monitor is now ready to be attached to a wall-mounting bracket or monitor

mount (not supplied). For wall mounting instructions, follow the user guide supplied with the

wall mount.

VESA

adapter

PM4*16mm

VESA screws

Mount

(not included)

VESA MOUNT ASSEMBLY

Note:

Wall mount or mounting accessories are not included.

Power input

Connect the included power cable (G) to the power input, then plug the other end into a

wall outlet and turn on.

DisplayPort connection

For the monitor to receive DisplayPort signals from the computer, use the supplied

DisplayPort cable (H) to connect the monitor to the computer.

CONNECTIVITY

Power cable

DisplayPort output (computer)

DP cable (included)

DisplayPort port (monitor)

HDMI connection

For the monitor to receive HDMI signals from the computer, use an HDMI cable (not

supplied) to connect the monitor to the computer.

Type-C USB connection

Connect to this monitor from your compatible computer using a Type-C USB cable

(included) to receive a high-quality digital video signal.

HDMI cable

(not included)

HDMI OTPUT

Type-C cable (included)

TYPE-C OUTPUT
