Keysight Technologies I7090 Manual de usuario

Keysight i7090 Board Test

System

System Installation

Notices

No part of this manual may be

reproduced in any form or by any

means (including electronic storage

and retrieval or translation into a

foreign language) without prior

agreement and written consent from

Keysight Technologies as governed by

United States and international

Manual Part Number

Q3000-96001

Edition

Edition 1, January 2021

Printed in Malaysia

Published by:

Keysight Technologies

1400 Fountaingrove Parkway

Santa Rosa, CA 95403-1738

United States

Warranty

THE MATERIAL CONTAINED IN THIS

DOCUMENT IS PROVIDED "AS IS,"

AND IS SUBJECT TO BEING

CHANGED, WITHOUT NOTICE, IN

FUTURE EDITIONS. FURTHER, TO THE

MAXIMUM EXTENT PERMITTED BY

APPLICABLE LAW, KEYSIGHT

DISCLAIMS ALL WARRANTIES, EITHER

EXPRESS OR IMPLIED WITH REGARD

TO THIS MANUAL AND ANY

INFORMATION CONTAINED HEREIN,

INCLUDING BUT NOT LIMITED TO THE

IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR

A PARTICULAR PURPOSE. KEYSIGHT

SHALL NOT BE LIABLE FOR ERRORS

OR FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES IN

CONNECTION WITH THE

FURNISHING, USE, OR

PERFORMANCE OF THIS DOCUMENT

OR ANY INFORMATION CONTAINED

HEREIN. SHOULD KEYSIGHT AND THE

USER HAVE A SEPARATE WRITTEN

AGREEMENT WITH WARRANTY

TERMS COVERING THE MATERIAL IN

THIS DOCUMENT THAT CONFLICT

WITH THESE TERMS, THE WARRANTY

TERMS IN THE SEPARATE

AGREEMENT WILL CONTROL.

Technology Licenses

The hardware and/or software

described in this document are

furnished under a license and may be

used or copied only in accordance with

the terms of such license.

U.S. Government Rights

The Software is "commercial computer

software," as defined by Federal

Acquisition Regulation ("FAR") 2.101.

Pursuant to FAR 12.212 and 27.405-3

and Department of Defense FAR

Supplement ("DFARS") 227.7202, the

U.S. government acquires commercial

computer software under the same

terms by which the software is

customarily provided to the public.

Accordingly, Keysight provides the

Software to U.S. government

customers under its standard

commercial license, which is embodied

in its End User License Agreement

(EULA), a copy of which can be found at

http://www.keysight.com/find/sweula.

The license set forth in the EULA

represents the exclusive authority by

which the U.S. government may use,

modify, distribute, or disclose the

Software. The EULA and the license set

forth therein, does not require or

permit, among other things, that

Keysight: (1) furnish technical

information related to commercial

computer software or commercial

computer software documentation that

is not customarily provided to the

public; or (2) relinquish to, or otherwise

provide, the government rights in

excess of these rights customarily

provided to the public to use, modify,

reproduce, release, perform, display, or

disclose commercial computer software

or commercial computer software

documentation. No additional

government requirements beyond

those set forth in the EULA shall apply,

except to the extent that those terms,

rights, or licenses are explicitly required

from all providers of commercial

computer software pursuant to the FAR

and the DFARS and are set forth

specifically in writing elsewhere in the

EULA. Keysight shall be under no

obligation to update, revise or

otherwise modify the Software.

Safety Notices

A WARNING notice denotes a hazard.

It calls attention to an operating

procedure, practice, or the like that, if

not correctly performed or adhered to,

could result in personal injury or death.

Do not proceed beyond a WARNING

notice until the indicated conditions are

fully understood and met.

A CAUTION notice denotes a hazard.

It calls attention to an operating

procedure, practice, or the like that, if

not correctly performed or adhered to,

could result in damage to the product

or loss of important data. Do not

proceed beyond a CAUTION notice until

the indicated conditions are fully

understood and met.

i7090 System Installation 3

System Installation

Safety Notices 4

Before Installation 5

Install Monitor, Mouse and Keyboard 5

Release Press Safety Brackets 6

Install Tower Light 7

Connect Air Supply and SMEMA Cables 9

Connect to Network 10

Open Shutters for Board Access 11

Adjust Conveyor Height and Alignment 12

Power Up the System 13

This guide describes the installation of the Keysight i7090 board test system.

These tools are needed in addition to the tools supplied with the system shipment:

•Allen wrench set (metric)

•12” adjustable wrench

•Ladder

4i7090 System Installation

Safety Notices

The following general safety instructions must be followed when using,

maintaining, and repairing this equipment. If these instructions are not strictly

followed, the user may be exposed to hazards, or equipment damage may occur.

Keysight Technologies assumes no liability for injury or damage if these instructions

are not followed.

Installation

Before you turn on the power, verify that the AC mains supply voltage

matches the voltage marked on the system specifications plate on the back

of the equipment.

This equipment must be connected to a properly installed earth ground. Do

not operate the equipment until it has been properly earthed by a qualified

electrician.

Overcurrent protection must be provided for this equipment. See the

installation instructions for overcurrent recommendations. Do not operate

the equipment until proper overcurrent protection has been installed by a

qualified electrician.

This equipment is not intended for use near explosive or corrosive hazards.

Operation

Printed circuit board assemblies (PCBAs) may be electrically charged

during the normal test cycle. Do not touch any parts which may be

electrically charged.

Do not remove covers or parts of the equipment enclosure. There are no

operator-serviceable parts inside.

Do not operate damaged equipment.

Servicing

All fuses must be replaced only with fuses of the specified type. Do not

modify the equipment or use unapproved replacement parts.

Before Installation

i7090 System Installation 5

Before Installation

1Verify that site preparation tasks are completed.

2Check the system and the contents of all crates and boxes against the order

and any packing lists.

Install Monitor, Mouse and Keyboard

Install the monitor arm and monitor following the manufacturer’s instructions.

Place the keyboard and mouse on the keyboard tray and connect them to the

system connectors.

6i7090 System Installation

Release Press Safety Brackets

1Open the top front door.

2Unlock the yellow press safety bracket by turning it backwards to release it from

the latch. Do the same on the other side.

Locked

Unlocked

Press safety bracket

Install Tower Light

i7090 System Installation 7

Install Tower Light

1Tighten the nut on the tower light bracket using the adjustable wrench.

2Remove the screws securing the front top panel and remove the panel.

3Remove the two screws for the tower light.

Tighten the nut

Front top panel

8i7090 System Installation

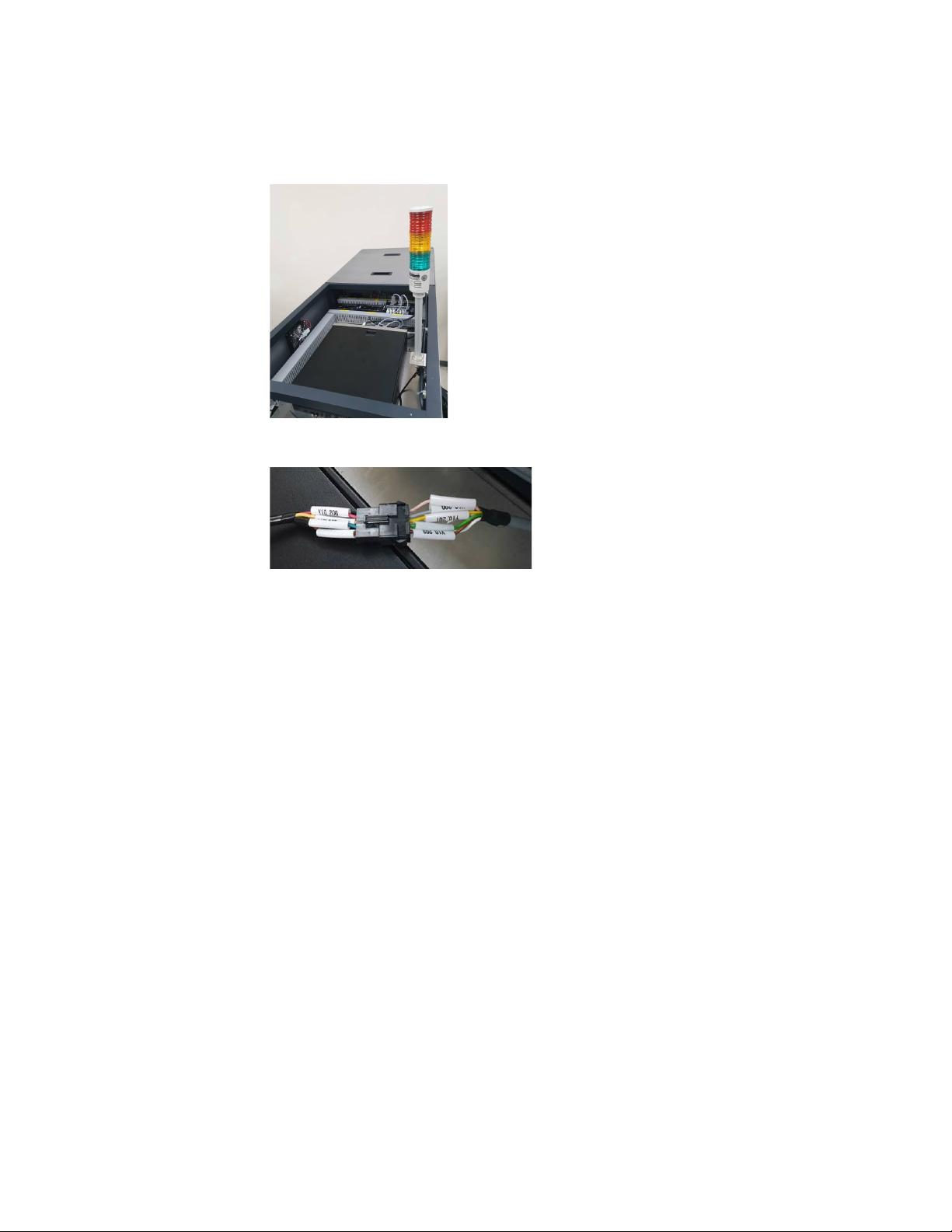

Install Tower Light

4Secure the tower light using the two screws.

5Connect the tower light and system connectors.

6Replace the front top panel.

Connect Air Supply and SMEMA Cables

i7090 System Installation 9

Connect Air Supply and SMEMA Cables

1Remove the bottom rear panel.

2Connect the compressed air supply.

3Use 5-wire SMEMA connections to the upstream and downstream systems.

Main air supply

SMEMA Out

SMEMA In

(behind main power switch)

10 i7090 System Installation

Connect to Network

If the system will be connected to a network, connect the LAN cable. The LAN port

is near the SMEMA Out.
