Keysight Technologies EXA Manual de instalación y operación

Notice: This document contains references to Agilent.

Please note that Agilent’s Test and Measurement

business has become Keysight Technologies. For more

information, go to www.keysight.com.

Keysight EXA Signal Analyzer

Option EXM, External Mixing Upgrade

Kit

Installation Note

Notice.

The information contained in this document is subject to change without notice.

Keysight Technologies makes no warranty of any kind with regard to this material, including but

not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Keysight Technologies shall not be liable for errors contained herein or for incidental or

consequential damages in connection with the furnishing, performance, or use of this material.

Edition 1, February 2015

Published in USA

Installation Note N9010-90041 3

Option EXM, External Mixing Upgrade Kit

Software and test equipment is required for making adjustments and for performance verification

testing.

Information on how to obtain this software can be found at:

www.keysight.com/find/calibrationsoftware

While Keysight does recommend that a full calibration be performed after the installation of this

upgrade, the end user must ultimately determine whether they want this service or not. If a full

calibration is required, arrangements regarding the level of calibration must be made between the

end user and the calibration provider.

Products Affected: EXA N9010A

Serial Numbers: MY/SG/US51440000 and above

(Options 532 and 544)

To Be Performed By: (X) Keysight Service Center

(X) Personnel Qualified by Keysight

( ) Customer

Estimated Installation Time:

Estimated Adjustment Time:

Estimated Verification Time:

1.5 Hours

1.0 Hoursa

a. To ensure that these newly installed options are functioning properly, the procedure that follows

includes the requirement of performing certain adjustments and performance verification tests.

However, the completion of these tests does not guarantee that the instrument meets all advertised

specifications.

4Installation Note N9010-90041

Option EXM, External Mixing Upgrade Kit

Introduction

This kit includes parts to upgrade an EXA signal analyzer with frequency range option 532 or 544

and serial number MY/SG/US51440000 or later to add Option EXM, External Mixing.

In addition to installing the hardware to support Option EXM, a license for the following option will

also be installed:

— N9010A-EXM, External Mixing

Installation Note N9010-90041 5

Option EXM, External Mixing Upgrade Kit

Installation Kit Parts List

Quantity Description Keysight Part

Number

1 Adapter- Coaxial Straight Female-SMA to Female-SMA, 50W 1250-1666

1 Washer, Lock, Internal Tooth, ¼ inch 2190-0067

1 Nut-Hex-Double-Chamfer 1/4-36-THD.125-IN-THK, Stainless Steel 2950-0223

1 50 Ohm Termination, SMA male 1810-0118

1 Opt EXM Cable Kit with Wire Markers

(includes cable W26, listed below)

N9010-60009

1 Cable Assembly, External Mixing, Front Panel (W27) N9020-20166

1 Cable Assembly, mmW Front End to W27 (W28)

(for use in millimeter wave analyzers)

N9020-20198

1 Cable Assembly, Coaxial 275 mm LG (W26)

(for use in millimeter wave analyzers) 8120-2025awith ends

labeled ‘903’ and ‘13’

a. This cable is included in the Opt EXM Cable Kit with Wire Markers, p/n N9010-60009.

1 Label, Warning N9030-80018

5 Cable Ties 1400-0249

1 Entitlement Certificate 5964-5178

1 Entitlement Certificate Envelope 5967-7169

1 Installation Note This note

6Installation Note N9010-90041

Option EXM, External Mixing Upgrade Kit

Tools Required

— T-10 TORX Driver

— T-20 TORX Driver

— 5/16-inch torque wrench

— ¼-inch open-end wrench

—Diagonalcutters

— Keysight Calibration and Adjustment Software, N7814A (revision E.10.00 or later)

— Test equipment and computer supported by the X- Series Performance Tests and Adjustment

Software

— EXA Signal Analyzer Service Guide. This manual is available as:

— N9010A Option OBW or

— Keysight part number N9010-90050

— Microsoft Windows based personal computer with internet access and USB port

— USB storage device with > 2 GB free memory

Initial Instrument Functionality Check

Power on the instrument and allow the instrument to boot up. Run an alignment and display the

measurement screen. (The instrument will probably display a spectrum analyzer screen and you will

see the instrument sweeping.)

There should be no alignment failures. If there are failures, investigate and fix the problem before

continuing.

WARNING Before you disassemble the instrument, turn the power switch to

Standby. After the instrument has completely shut down, unplug the

instrument. Failure to unplug the instrument can result in personal

injury.

CAUTION Electrostatic discharge (ESD) can damage or destroy electronic components.

All work on electronic assemblies should be performed at a static-safe

workstation. Refer to the documentation that pertains to your instrument for

information about static-safe workstations and ordering static-safe

accessories.

Installation Procedure

1. Connect a power cord to the analyzer and turn on the analyzer.

Installation Note N9010-90041 7

Option EXM, External Mixing Upgrade Kit

2. After the analyzer has completed turning on, press System, Show, System. Make note of the

following information from the Show System screen:

Product Number: _____________

Serial Number: ______________

Instrument S/W Revision: ______________

3. Check for the presence of one of the following frequency range options listed below in the

Show System. Put a check mark or “X” after the frequency range option listed below that

appears in the Show System menu.

N9010A-503_____

N9010A-507_____

N9010A-513_____

N9010A-526_____

N9010A-532_____

N9010A-544_____

4. If the analyzer is equipped with any of the following frequency range options (refer to the data

in step 3 above):

N9010A-503

N9010A-507

N9010A-513

N9010A-526

do not proceed with the installation of this upgrade kit.

An RF or microwave EXA is not compatible with Option EXM.

8Installation Note N9010-90041

Option EXM, External Mixing Upgrade Kit

Analyzer Disassembly

CAUTION If the instrument is placed on its face during any of the following procedures,

be sure to use a soft surface or soft cloth to avoid damage to the front panel,

keys, or input connector.

NOTE Make sure any adapters on the front panel are removed.

NOTE If the analyzer has Option PRC, Portable Configuration, refer to the "Option

PRC." section on page 10 to remove the outer case.

Standard Instrument

1. Disconnect the instrument from ac power.

2. Refer to Appendix Figure 1, “Instrument Outer Case Removal,”. Using the T-20 driver, remove

the 4 screws (1) (two on each side) that attach the handle strap (2) on each side of the

instrument.

3. Remove the four key locks from the instrument four bottom feet.

4. Remove the four instrument bottom feet.

5. Using the T-20 driver, remove the four screws (including washers) (3) that hold the rear feet

(4) in place.

6. Pull the instrument cover (5) off towards the rear of the instrument.

Installation Note N9010-90041 9

Option EXM, External Mixing Upgrade Kit

Figure 1 Instrument Outer Case Removal

10 Installation Note N9010-90041

Option EXM, External Mixing Upgrade Kit

Option PRC

1. Disconnect the instrument from ac power.

2. Refer to Appendix Figure 2, “Bail Handle Removal,”. Using the T-20 driver, remove the four

screws (two on each side) (1) that hold the bail handle (2) to the front frame.

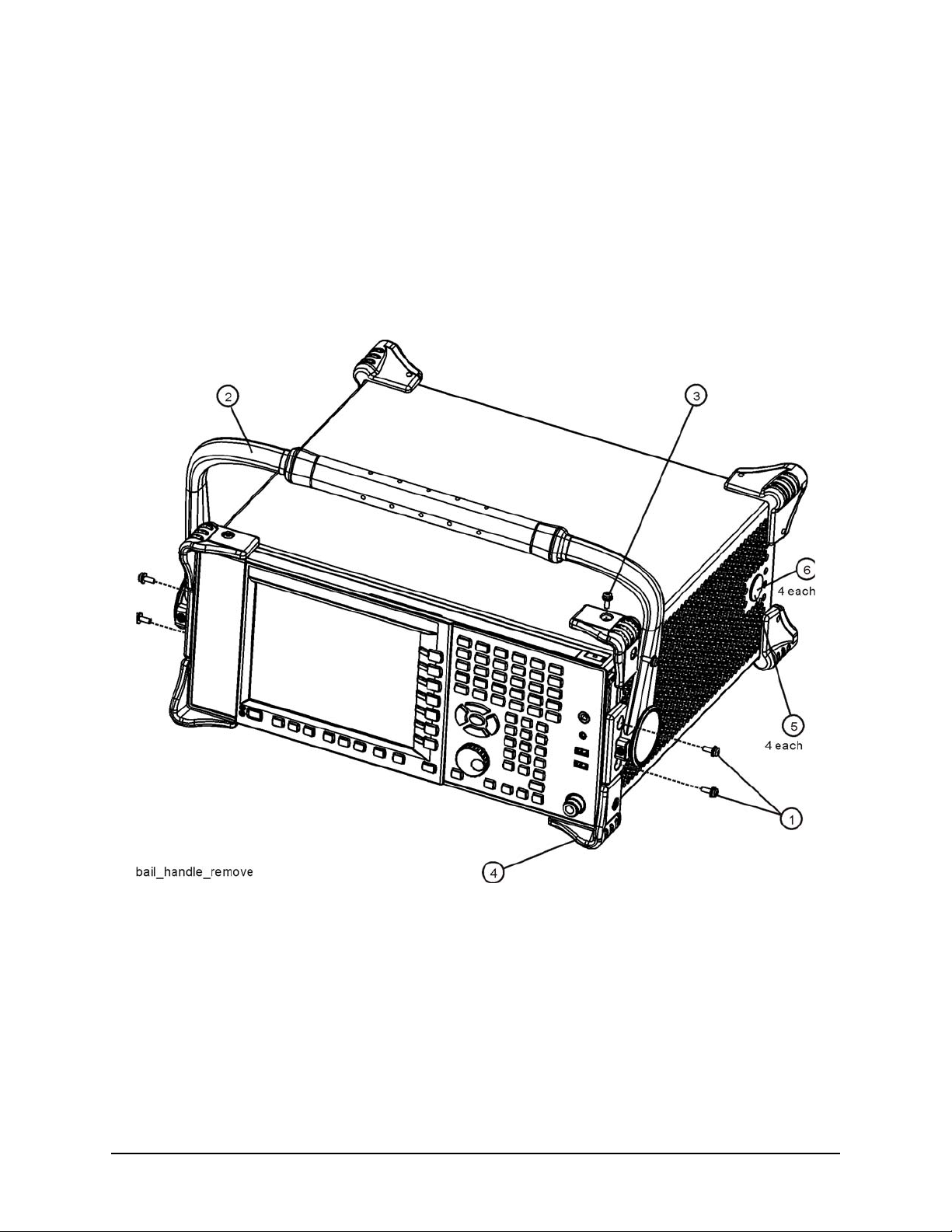

Figure 2 Bail Handle Removal

3. Using the T-20 driver, remove the four screws (two on each side) (6) that hold the strap

handle plugs (5) in place.
