Gofanco HDwireless100 Manual de usuario

Wireless HDMI Extender

Kit 1080p - 100m

User's Guide

G4-0077A

P/N:HDwireless100

Thank you for purchasing from gofanco. Our products

aim to meet all your connectivity needs wherever you

go. For optimum performance and safety, please read

the instructions carefully and keep this User's Guide for

future reference. If you need more information about

our products, please visit www.gofanco.com. For

technical support, email us at [email protected].

For drivers or manual download, please go to

www.gofanco.com/download.

Important Safety Notices

Pleasereadsafetyinstructionscarefullybeforeinstallation

and operation.

• Please pay close attention to all warnings and hints

for this device

• Do not expose this unit to rain, heavy moisture, or

liquid

• Do not put any items into the device or attempt to

modify its operation

• Do not repair the device or open the enclosure

without professional guidance to avoid electric

shocks. Doing so may void your warranty

• Keep the product in a well-ventilated location to

avoid damage from overheating

• Shut off power and make sure environment is safe

before installation

• Do not plug the HDMI cables and IR cables

in/out when the device is in use to avoid cable

damage. Make sure they are plugged into the

correct ports

• Use the included DC5V power adapters only. Make

sure the specification matches if using 3rd-party

DC power adapters

Introduction

The Wireless HDMI Extender Kit 1080p - 100m extends

HDMIsignals wirelessly froma source deviceto a display

device up to 100 meters. It requires no cables between the

Transmitter (TX) and Receiver (RX), making the

installation easy and clean. Great for homes and offices.

Note: Wireless transmission distance will vary due

to the environmental conditions. Thick walls, brick,

glass, electronic interference, and wireless signals

from other devices will shorten the wireless

transmission distance or cause signal loss.

Features

• Transmits HDMI signals in 1080p up to 328ft (100

meters) wirelessly

• HDMI loop-out on the transmitter to connect a local

display, allows easy monitoring of the source signal

• IR extension allows you to control the source device

from a remote location

• No cables required between Transmitter (TX) and

Receiver (RX)

• Less than 0.5 seconds latency, not recommended for

real-time applications such as PC gaming

• Dual antenna maximizes wireless reception with

stable data transmission

PackageContents

IR Blaster Cable (1pc)

Receiver (RX) (1pc) DC5V/2A Power

Adapter (2pcs)

Transmitter (TX) (1pc)

IR Receiver Cable (1pc) User's Guide (1pc)

Installation Requirements

1. HDMI source device (DVD player, set top box, PC,

etc.)

2. HDMI display device (SDTV/Monitor, HDTV/

Monitor, projector, etc.)

3. HDMI cables (not included)

Antenna (4pcs)

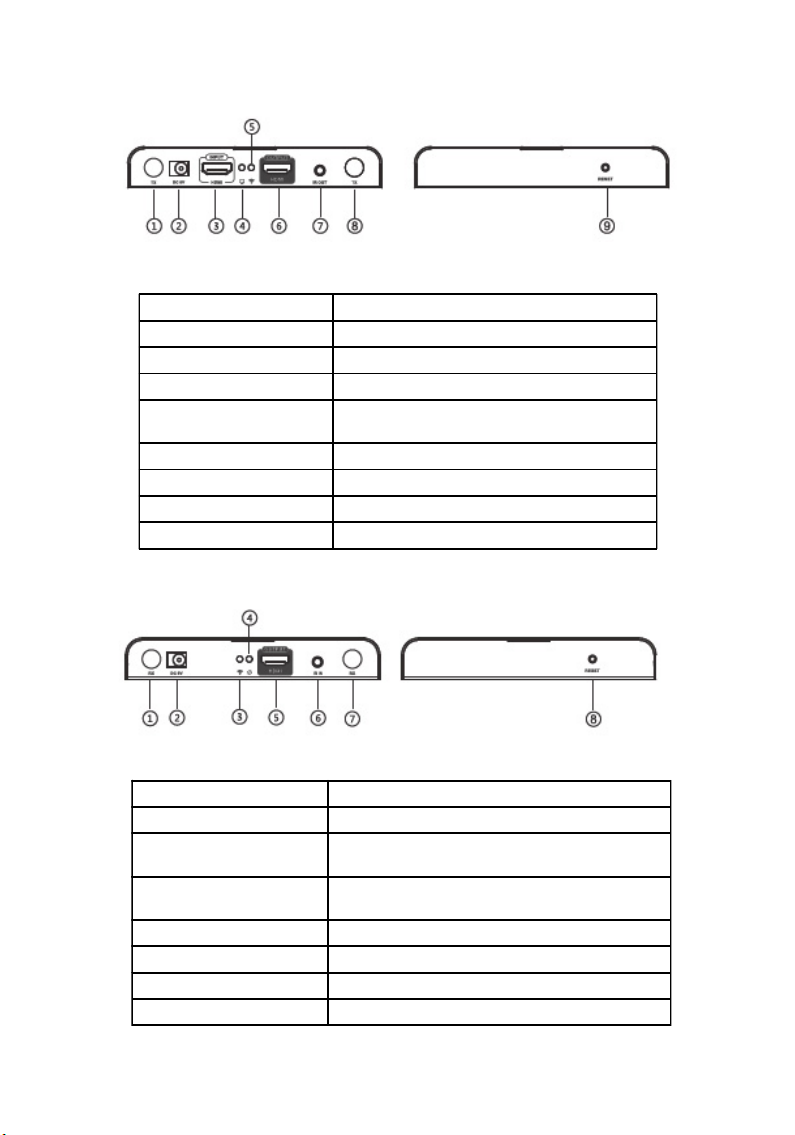

Product Layout

Figure 1: Transmitter (TX)

Figure 2: Receiver (RX)

1. Antenna Connects to an included antenna

2. Power Jack Connects to an include Power Adapter

3. HDMI Input Connects to an HDMI source device

4. HDMI Signal LED On when the HDMI source signal is detected

5. Wireless Connection LED On: The Transmitter and Receiver are linked

Off: The Transmitter and Receiver are not linked

6. HDMI Output Connects to an HDMI display

7. IR Output Connects to the IR Blaster Cable

8. Antenna Connects to an included antenna

9. Reset Button Press the button to reset the Transmitter

1. Antenna Connects to an included antenna

2. Power Jack Connects to an included power adapter

3. Wireless Connection LED On: The Receiver and Transmitter are linked

Off: The Receiver and Transmitter are not linked

4. Data Transmission LED Blinks slowly: Detecting wireless signal

Blinks fast: Successfully linked or transmitting data

5. HDMI Output Connects to an HDMI display

6. IR Input Connects to the IR Receiver Cable

7. Antenna Connects to an included antenna

8. Reset Button Press the button to reset the Receiver

Hardware Installation

1. Power off all devices including your HDMI source

and HDMI display(s).

2. Install the included antennas to the TX and RX.

3. Connect your HDMI source device to the

Transmitter'sHDMIInputconnectorwithanHDMI

cable (HDMI cable not included).

4. Optional: Connect your HDMI display to the

Transmitter's HDMI Output connector with an

HDMI cable (HDMI cable not included). This

connection allows you to monitor the HDMI signal

from the source device location.

5. Optional: Connect the IR Blaster Cable to the

Transmitter's IR interface port. Face the eye

towards your HDMI source device's IR window.

This connection is needed only if you need to

control your HDMI source from the remote

location.

6. Connect your HDMI display to the Receiver's

HDMI Output connector with an HDMI cable

(HDMI cable not included).

7. Optional: Connect the IR Receiver Cable to the

Receiver's IR interface port. This connection is

needed only if you need to control your HDMI

source from the remote location.

8. Plug the included power adapters into the

Transmitter's and Receiver's Power Jacks, then

plug both power adapters into reliable power

outlets.

ApplicationDiagram

Figure 3: Application Diagram

9. Power on your HDMI source device and HDMI

display(s). The wireless extender is ready for use.

Note: For optimal signal range, install in a clear

environment with few obstacles. Wireless signals

from other devices, such as microwaves, wireless

mice and keyboards, etc. may interfere with

transmission. Contact our technical support team

if you have specific questions.

Local Display

HDMI source

Transmitter Receiver

IR Blaster

IR Receiver

Display

Power Adapter

Notice

• Wireless signals transmitted through walls, glass,

brick or other solid objects will cause signal loss

and decrease the transmission distance

• Externalwireless signals frommicrowaves, wireless

mice and wireless keyboards will interfere with

HDMI signal transmission

• Keep the unit in a well ventilated environment to

prevent it from overheating

•DO NOT exposetheunit to rain,moisture, or liquids

•DO NOT place anything on the unit

•DO NOT open the housing, doing so will void the

warranty and may cause personal injury due to

electronic hazard

•DO NOT plug-in or remove the IR extension cables

when the unit is powered on

FAQ & Troubleshooting

Q: The Wireless Connection LED is on, but no video

output on the remote display:

A: 1) Check the HDMI source device is powered on.

2) Check the transmitter's HDMI Signal LED is on.

3) Check the HDMI cables for solid connection. Use

different HDMI cables if necessary.

4) Press the Reset button on both TX and RX.

5) Connect the HDMI source device directly to the

display to see if there is a signal.

Q: Poor video quality:

A: 1) Check the HDMI cables are connected properly.

Use different HDMI cables if necessary.

2)Changetheangleof the antenna on the transmitter

unit and receiver unit. Generally, the antenna angle

should be positioned as far apart as possible.

3)Adjustthepositionoftransmitter unit and receiver

unit, and make sure they are within the required

signal range.

4) Press the "Reset" button on the transmitter unit

and receiver unit and reconnect.

5) Remove other wireless signals and move any

obstacles that are blocking the signal line-of-sight.

6) Decrease the distance between the transmitter

unit and the receiver unit.

Specifications

Item Specification

Wireless Frequency 5GHz

Wireless Latency <500ms

Resolution (Input & Output)

480i@60Hz, 480P@60Hz, 576i@50Hz,

576p@50Hz, 720p@50/60Hz,

1080i@50/60Hz, 1080p@50/60Hz

Compliance HDMI 1.3

HDCP 1.2

IR Remote Control Supports 20KHz~60KHz IR remote devices

Transmission Distance Up to 100 meters

Operating Temperature 32° - 122° F (0° - 50° C)

Power Adapter Output: DC5V/2A

Power Consumption TX: <7W / RX: <5W

Housing Material Metal

Product Dimensions (TX & RX) 5.20" (L) x 4.78" (H) x 0.85" (W)

Weight TX: 0.68 lbs / RX: 0.68 lbs

Color Black
