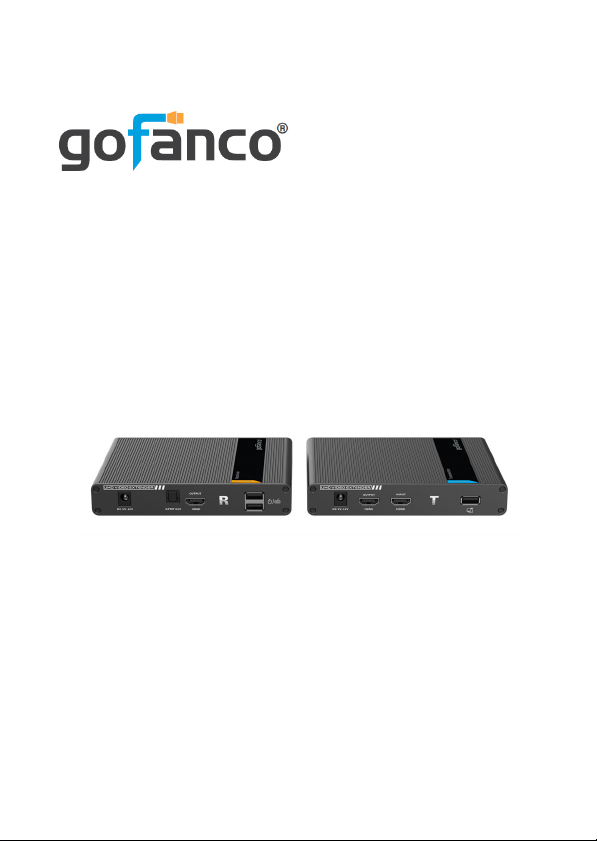

Gofanco KVMHD20Ext Manual de usuario

HDMI 2.0 USB KVM CAT

Extender - 70m

User's Guide

G4-0114A

P/N: KVMHD20Ext

Thank you for purchasing from gofanco. Our

products aim to meet all your connectivity needs

wherever you go. For optimum performance

and safety, please read the instructions carefully

and keep this User’s Guide for future reference.

If you need more information about our

products, please visit www.gofanco.com. For

technical support, please email us at

[email protected]. For drivers/manuals

download, please go to www.gofanco.com/

downloads.

Important Safety Notices

Please read safety instructions carefully before

installation and operation.

• Please pay close attention to all warnings

and hints for this device

• Do not expose this unit to rain, heavy

moisture, or liquid

• Do not repair the device or open the

enclosure without professional guidance

to avoid electric shocks. Doing so may void

your warranty

• Keep the product in a well-ventilated

location to avoid damage from overheating

• Shut off power and make sure environment

is safe before installation

• Do not plug the HDMI cables in/out when

the device is in use to avoid cable damage.

Make sure they are plugged into the correct

ports

• Use the included DC5V power adapters

only. Make sure the specification matches if

using 3rd-party DC power adapters

Introduction

The HDMI 2.0 USB KVM CAT Extender - 70m

extends HDMI and USB signals up to 70 meters

(230ft) over a single CAT6/7 cable.

Features

• Supports up to 4K@60Hz and HDR with

nearly zero latency

• KVM extension with 2 USB 1.1 keyboard

and mouse ports to control a PC at a remote

location

• HDMI lopout on theTransmitter (TX) for a

local HDMI display

• Supports up to 5.1ch HDMI audio with

Toslink audio extraction on Receiver (RX)

• Metal housing provides durability and

higher level of RF/EMI shielding

PackageContents

• 1 Transmitter (TX) and 1 Receiver (RX) unit

• Power adapter (2pcs)

• USB Type-A to Type-A cable (1pc)

• Mounting accessories

• User's guide (1pc)

Product Layout

Figure 1: Transmitter (TX)

1KVMLED

Off: No PC connection or no USB signal detected

On: PC connected and USB detected properly

Flashing: USB signal transmission detected

2 Reset Press to restart the Transmitter (TX) unit

3 RJ45 Out Connects to the Receiver's RJ45 port using a CAT cable

4PowerLED Flashing: Powered on, no HDMI signal detected

On: Powered on, HDMI signal detected

5 Power Jack Connects to the included power adapter

6 HDMI Out Connects to a local HDMI display

7 HDMI In Connects to PC's HDMI output

8 USB Port Connects to the computer's USB port

Figure 2: Receiver (RX)

1 KVM LED Off: No USB device connected

On: USB device connected

2 Reset Button Press to reset the Receiver (RX) unit

3 RJ45 In Connects to the Transmitter's RJ45 port using a CAT cable

4 Power LED Flashing: Powered on, no HDMI signal detected

On: Powered on, HDMI signal detected

5 Power Jack Connects to the included power adapter

6 S/PDIF Out Toslink digital audio output connects to speakers or AVR

7 HDMI Out Connects to an HDMI display

8 USB Port (x2) Connects to your keyboard and mouse

Hardware Installation

1. Power off all devices including your PC

and HDMI display(s).

2. Connect your PC's HDMI output to the

Transmitter's HDMI In connector with an

HDMI cable (HDMI cable not included).

3. Connect the Transmitter's USB port to the

PC's USB port using the included USB

Type-A to Type-A cable.

4. Optional: Connect an HDMI display to the

Transmitter's HDMI out connector with an

HDMI cable (HDMI cable not included) for

local monitoring of the HDMI signal.

5. Plug your CAT cable between the

Transmitter's RJ45 Out and Receiver's RJ45

In.

6. Connect your HDMI display to the

Receiver's HDMI out connector with an

HDMI cable (HDMI cable not included).

7. Plug your keyboard and mouse into the

USB ports of the Receiver (RX) unit.

8. Plug the included power adapters into the

Transmitter's and Receiver's power jack,

then plug the power adapters into a reliable

power source.

9. Power on all connected devices.

10. The extender is ready for use.

CAT Cable Wiring

We suggest both RJ-45 connectors be wired

identically following T568B wiring standard for

the best performance and compatibility.

Application Diagram

FAQ & Solutions

Q: There is no video output or video is not

normal:

A: 1) Check all cable connections.

2) Press the reset button on the Transmitter

and Receiver units.

Q: The extender is not working properly:

A: 1) Please check the cable lengths below:

- HDMI cables: Up to 3 meters

- Network cables: Up to 70 meters

2) Press the reset button on bothTX & RX.

Q: KVM LED is on but there is no image:

A: 1) Press reset button on both TX & RX.

2) Make sure the HDMI cable is firmly

connected to the display.

3) Use a 100% solid copper network cable.

Specifications

HDMI Compliance HDMI 2.0

HDCP Compliance HDCP 2.2

Resolution

480i@60Hz, 480p@60Hz, 576i@50Hz,

576p@50Hz, 720p@50/60Hz, 800x600,

1024x768, 1280x768, 1280x800, 1280x960,

1360x768, 1366x768, 1600x900,

1680x1050, 1080i@50/60Hz,

1080p@50/60Hz,

3840x2160@24/25/30/50/60Hz,

4096x2160@24/25Hz

Transmission Distance Cat6/7: < 70 meters

Input and Output TMDS

Signal 0.7 - 1.2Vp-p (TMDS)

Input and Output DDC

signal 5Vp-p (TTL)

Power Supply (2pcs) 5VDC / 2A (output)

Power Consumption TX: < 4W

RX: < 4W

Operating Temperature -20 - 60 C

Storage Temperature -30 - 70 C

Humidity 0 - 90%
