CTA ADD-ADMA Manual de usuario

Articulating Desk Mount Arm with VESA Plate

ADD-ADMA

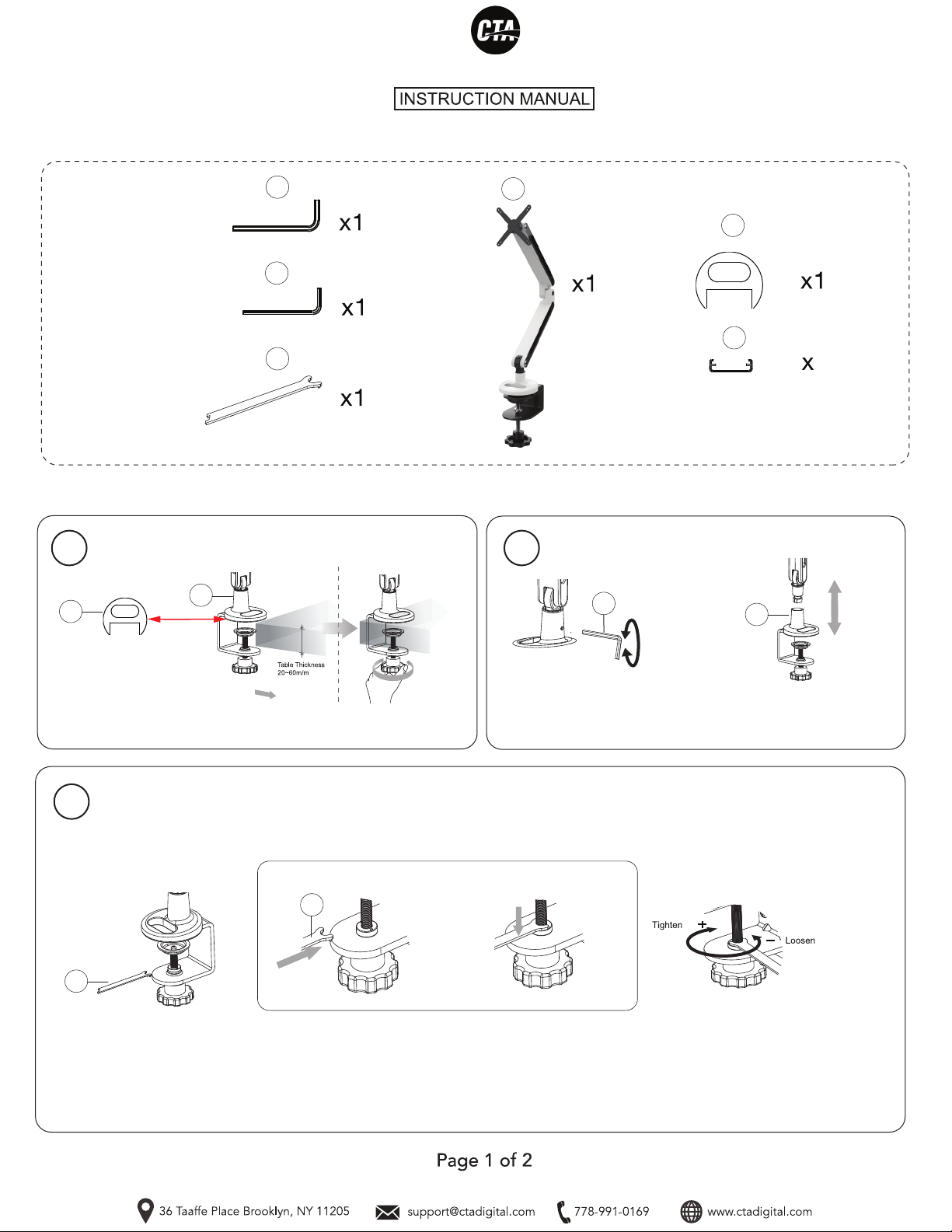

CONTENTS:

INSTRUCTIONS:

2A. When the C-Clamp is securely

attached to a surface, use the

provided security tool (C), attach to

security component, and rotate

closewise to put the C-Clamp in an

‘locked’ state. To loosen, rotate

counterclockwise with the security

tool.

Remove arm (D) from the

base clamp mount. Repeat

steps in reverse order to

re-install connection

2B. Align the (2) dimples on the underneath of the

security tool into the two holes on the security

component on the clamp as shown above

2C. Rotate counter-clockwise to

loosen and place the clamp in an

‘unlocked’ state. Continue rotating

until there is enough slack to rotate

the knob.Turn it clockwise to tighten

and place the clamp in a ‘locked’

state.

2

BASE CLAMP SECURITY SETUP

BASE MOUNT INSTALLATION ARM & BASE CLAMP

ADJUSTMENTS

If you need to remove the arm

from the base clamp, take the

provided tool (B), rotate, and

loosen connection.

12

3

Find the included base

pad (E) and peel off the

backing. Align to the

underneath of the

C-Clamp (D) and apply

pad. While the clamp is in unlocked mode, rotate the

knob at the bottom (as shown above) to loosen

or securely tighten to the table top.

ALIGNING SECURITY TOOL WITH SECURITY COMPONENT

A

B

C

D

E

F

E

DB

D

C

C

Articulating Desk Mount Arm with VESA Plate

ADD-ADMA

Each hinge of the product can be

adjusted easily with the provided tool (A).

Loosen to adjust and securely tighten

after preferred position is set.

When all hinges and joints are tightened, do not attempt to

forcibly flex the angles or positioning without loosening. Any

attempt to do so will possibly have an effect on product integrity

and CTA and manufacturer will not be responsible for any

mishandling.

JOINT ADJUSTMENTS

4

When routing cables from

device to the power source, use

provided clips (F) as shown to keep

the cables organized and tight to

the arms to avoid any slack.

CABLE

ROUTING

5

F

A
