CTA PAD-HSKSB Manual de usuario

Hyperflex Security Kiosk Stand for Tablets

PAD-HSKSB / PAD-HSKSW

INSTALLATION - MANUAL

INSTALLATION:

1. Assembling Base

3. Attaching and Setting up Enclosure

2. Cable Managing

1A. Align holes at the base (B)

with the holes on the base of

the body (A). Screw in bolts (E)

with the provided allen key tool

(J) as shown.

2A. Identify the hole at the bottom of the

base (B) through where cable routing

should go. Then, fish the cable.

2B. Fish the cord through the base and out of the top

to properly tuck away cord as shown above.

CONTENTS:

I

x3

Foam Adapter & Sheet Bundle

K

x1

J

x1

M5 Allen Key

A

x1

B

x1

E

x4

M5 x 8

D

x2

F

x4

M5 x 12

G

x4

M5 Hex Nut

H

x3

C

x1

E

AA

B

B

A

G

C

F

J

3A. Screw in the (4) screws (H) from behind through the enclosure and VESA,

while holding the hex nuts (I) from the front using the allen key tool (J) until

securely tightened.

3B. Once the enclosure is attached, fish the cable

through its rear holes to charge the device.

**Cables shown for illustration

and NOT INCLUDED.

**Cables shown for illustration

and NOT INCLUDED.

3C. Make sure to pop out and off the opening

covers in order to use enclosure at full capacity

and have access to key ports and openings.

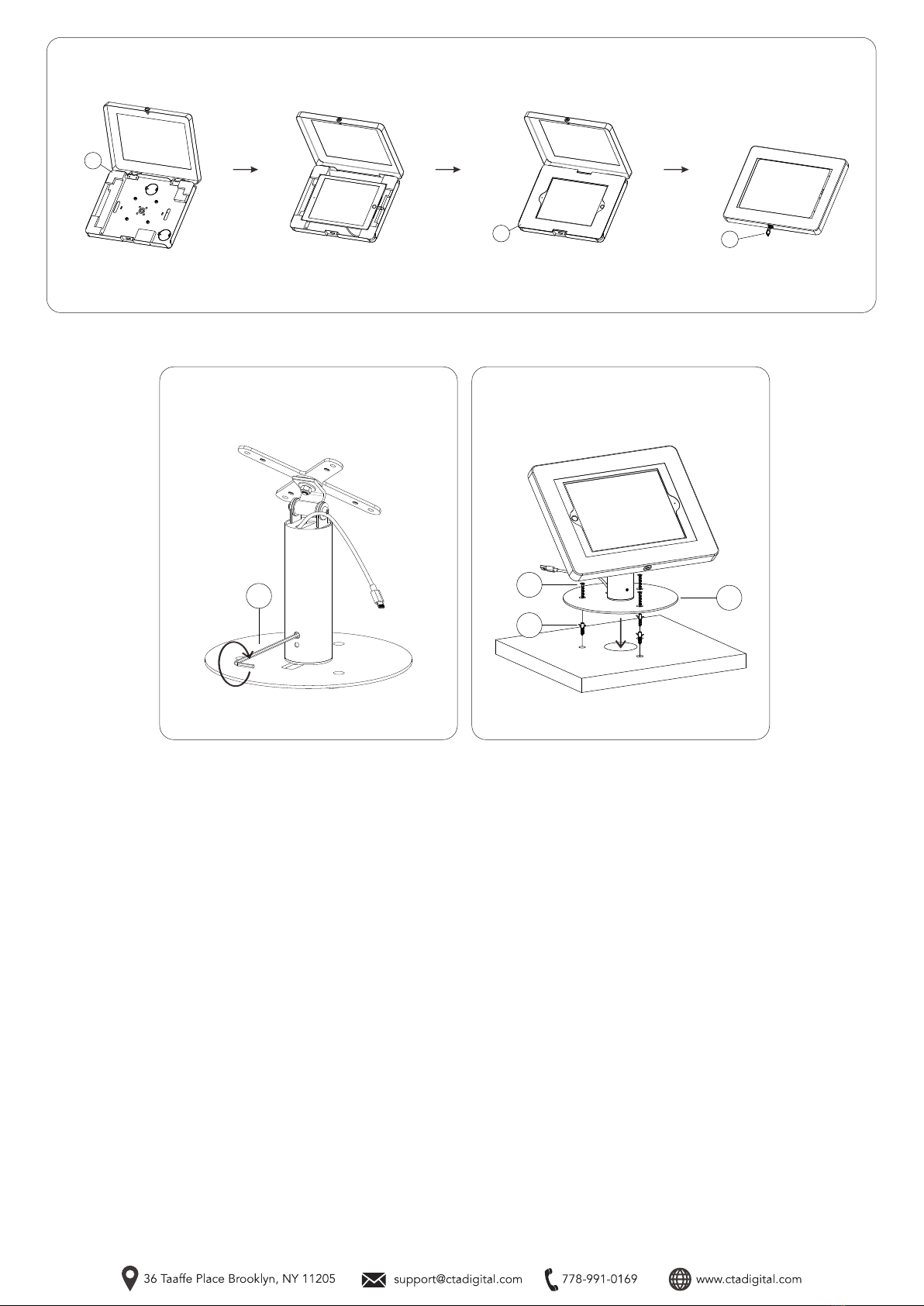

Setting Up Device & Enclosure

**Tablet shown for illustration

and NOT INCLUDED.

Insert the appropriate foam piece (K)

that is compatible with your tablet.

Insert tablet as shown. Plug in power

cable to tablet and cable route

through the back.

Place the appropriate provided tablet

cover (K) to match your tablet.

Close the enclosure and lock it

with the included set of keys (D).

K

KD

Optional

Locking Base Rotation

Optional

Mounting into Surface

Turn clockwise to prevent body rotation

using the provided allen key tool (J).

Insert the anchors (H) and then drill in the nails

(I) to the mounting surface as shown above.

B

I

H

J
