Creality Ender 3 Pro Manual de usuario
Version 1.0
Creality Ender 3 Pro Assembly Instructions V1.0 2 www.rb42.blog
Ender 3 Pro Assembly Instructions
Version: 1.0
Release Date: 13.7.2021
Author: RB42
The following assembly instructions are for the Creality Ender 3 Pro desktop 3D printer. The
steps outlined in this manual are based on the following two manufacturers’ manuals:
• Ender-3 Pro assembly instruction_EN V-2-2
and
• Ender-3 Pro_EN V.2.2
Please reference these manufacturers manuals for further information regarding the
assembly process for this particular printer. Both documents are available from the Creality
website.
Use correct safety practices, appropriate tools (in good and working condition) and suitable
personal protective equipment while assembling the 3D printer as risk of personal injury or
property damage may result. The Author (RB42) takes no responsibility for injury or
property damage as a result of user error while following the steps outlined in this manual.
This document is the PDF version of assembly instructions originally published on the RB42
website. For further information please visit the assembly instruction website at the
following link: https://rb42.blog/creality-ender-3-assembly-instructions/
This document may be copied for personal use only, it may also be copied for educational
purposes with permission from the author and under licence agreement for commercial
use and for-profit purposes.
If you have any further questions or want to suggest an amendment, please contact the
author via email [email protected]
Creality Ender 3 Pro Assembly Instructions V1.0 3 www.rb42.blog
Table of Contents
4
Tools
4
Fixings
4
Consumables
5
Parts
9
Step 1 – Z-axis Profiles
12
Step 2 – Power Supply and Display
14
Step 3 – Z-axis limit switch
15
Step 4 – Z-axis lead screw
17
Step 5 – X-axis and Extruder (XE) stepper motor assembly
19
Step 6 – X-axis Synchronous Belt
21
Step 7 – Hot-end carriage and Z-axis passive block
23
Step 8 – X-axis idler pulley
25
Step 9 – Installing of X-axis gantry onto the Z-axis vertical uprights.
27
Step 10 – Top profile
29
Step 11 – Spool Holder
31
Step 12 – Wiring loom and Bowden tube
33
Step 13 – Powering up
34
Step 14 – Auto homing
35
Step 15 – Stepper motor directions
44
Step 16 - Loading filament and priming the hot-end
47
Step 17 - Levelling the bed
53
Step 18 - Slice and load G-code onto microSD
54
Step 19 - Load SD card and print G-code
56
Document Revisions
Creality Ender 3 Pro Assembly Instructions V1.0 4 www.rb42.blog

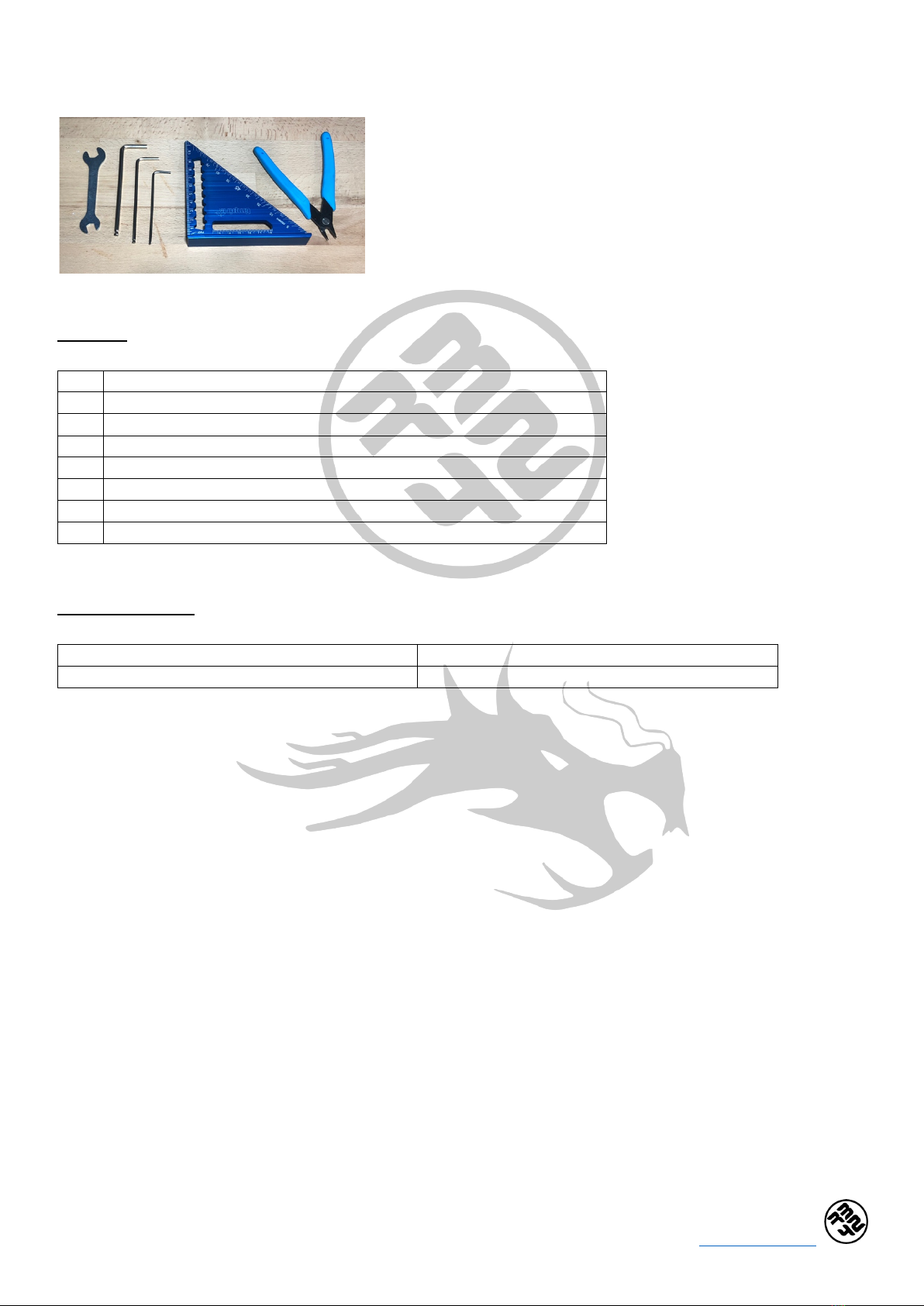

Tools
• M5 Hex Key (Allen Keys)
• M4 Hex Key (Allen Keys)
• M2.5 Hex Key (Allen Keys)
• Open Ended Wrench (included in kit)
• Side Cutters
• Square (machinist square, set square, rafters square etc.)
Fixings
QTY
Fixing
4
M5x45 hex socket cap screw
4
M5x8 hex socket button head screw
4
M5x25 hex socket cap screw
2
M5 T-Slot nut
2
M4x20 hex socket cap screw
4
M4x16 hex socket button head screw w/ captive washer
1
1.75mm Bowden Coupler fitting
Consumables
Loctite 222
*Optional
Cable ties (2.5mm x 100mm)
Creality Ender 3 Pro Assembly Instructions V1.0 5 www.rb42.blog
Parts
01
LCD display screen
02
Printer Base
03
Power supply
04
Z-axis passive block
05
Extruder carriage
Creality Ender 3 Pro Assembly Instructions V1.0 6 www.rb42.blog
06
XE stepper motor kit
07
X-axis idler pulley
08
Z-axis motor assembly
09
Z-axis limit switch kit
10
Spool holder tube
Creality Ender 3 Pro Assembly Instructions V1.0 7 www.rb42.blog
11
Spool holder frame
12
2020 Endcap (x2)
13
IEC mains power cable
14
Synchronous Belt (77cm)

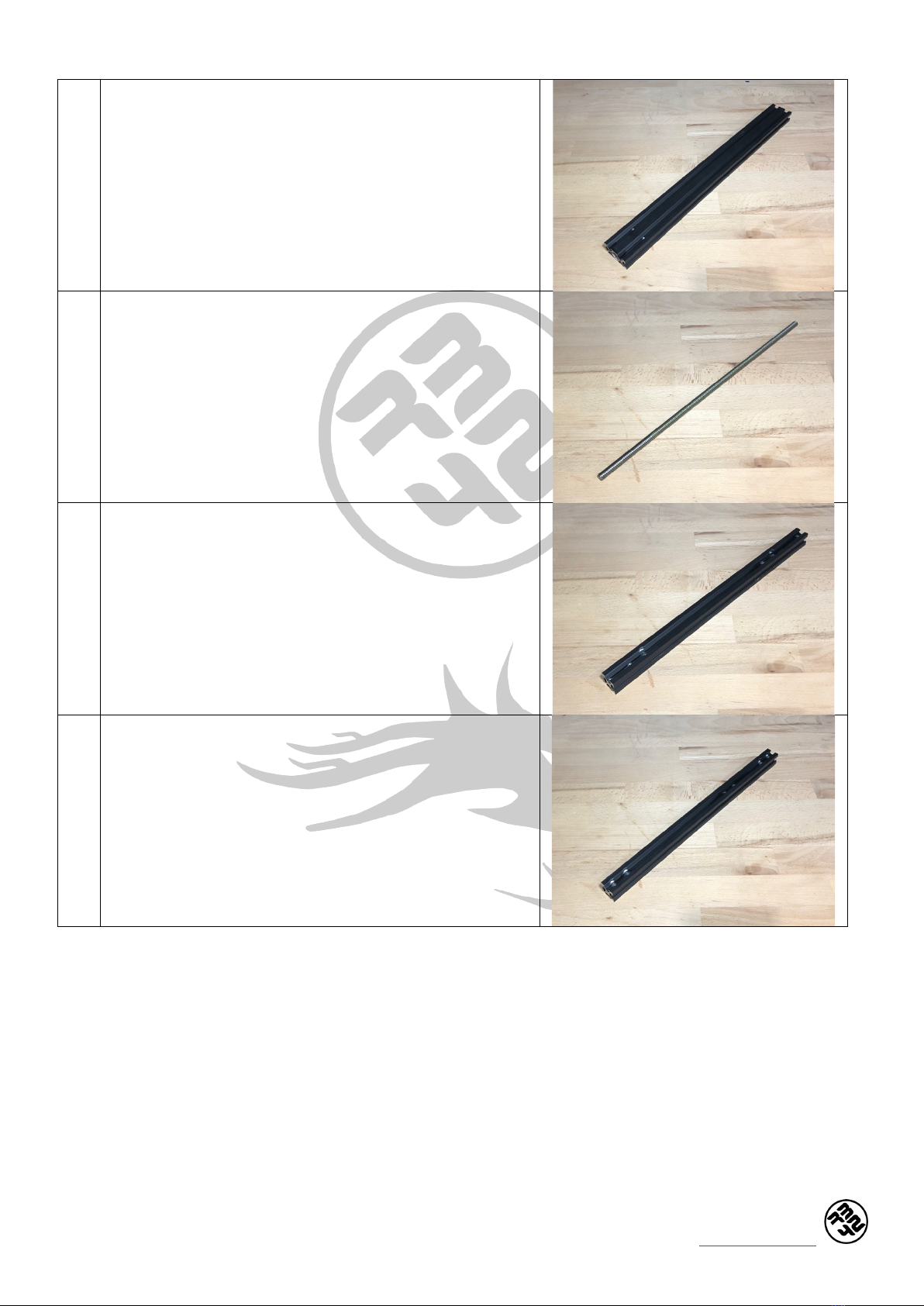

15
Z-axis profile left (2040)
Creality Ender 3 Pro Assembly Instructions V1.0 8 www.rb42.blog
16
Z-axis profile right (2040)
17
Z-axis lead screw (T-type, T8xM8 370mm)
18
X-axis profile (2020)
19
Top profile (2020)
Creality Ender 3 Pro Assembly Instructions V1.0 9 www.rb42.blog
Step 1 - Z axis profiles
Tools for this
step
M4 Hex Key (Allen Key)
Square
Parts for this
step
1x (02) Printer Base
1x (15) Z-axis vertical profile left (2040)
1x (16) Z-axis vertical profile right (2040)
Fixings
4x M5x45 hex socket cap screw
Consumables
Loctite 222
Process
1.1
From the underside of the (02) Printer Base, insert 2x M5x45
hex socket cap screws through the predrilled holes on the left
of the frame, so the thread is sticking out through the top face
of the aluminium profile
1.2
Identify each of the Z-axis vertical profiles to be used in this
step: (15) Z-axis vertical profile left (2040) and (16) Z-axis
vertical profile right (2040). While they may look the same there
are subtle differences:
The (15) left vertical profile can be Identified as having two
threaded holes, one next to the other, positioned close to the
end. The end with these two holes is the base of the upright and
will be attached to the (02) Printer base;
The (16) right vertical profile features two threaded holes, one
on-top of the other. Positioning of these screw holes are not
symmetrical, with the hole closest to the end of the profile
being the bottom hole. This end, with the screw hole closest to
the end, is the base of the upright and will be attached to the
(02) Printer base.
Creality Ender 3 Pro Assembly Instructions V1.0 10 www.rb42.blog
1.3
Position (15) Z-axis profile left on the left-hand side of the (02)
Printer Base, directly above the two M5x45 cap screws (from
step 1.1) protruding through the base. Using an M4 hex key
(Allen key), proceed to screw the M5 cap screws into the base
of the Z-axis upright and tighten until upright held firmly in
position.
1.4
Repeat the process for the opposite side and (16) Z-axis profile
right. The process will remain the same albeit now on the right-
hand side of the base. Orient the upright so the channel with
the holes is closest to the printer bed
