Creality LD-002R Manual de usuario

3D Printer

LD-002R

User Manual

Dear customer,

Thank you for purchasing our product. Please read the following instructions carefully

before first use and keep this user manual for future reference. Pay particular attention

to the safety instructions. If you have any questions or comments about the device,

please contact the customer line.

✉www.alza.co.uk/kontakt

✆+44 (0)203 514 4411

Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

Notes

1. Do not use the printer any way other than described herein to avoid personal injury

or properly damage.

2. Do not place the printer near any heat source or flammable or explosive objects. We

suggest placing in a well-ventilated, low-dust environment.

3. Do not expose the printer to violent vibration or any unstable environment, as this

may cause poor print quality.

4. Please use recommended resin to in case damage of machine.

5. Do not use any other power cable except the once supplied. Always use a grounded

three-prong power outlet.

6. Please do not open the plastic cover during usage, otherwise the printing will be

interrupted.

7. Do not wear cotton gloves when operating the printer. Such cloths may become

tangled in the printers moving parts leading to burns, possible bodily injury, or printer

damage.

8. Please wait a moment after the print is finished. And please wear gloves to take out

the print by tools.

9. Clear the printer frequently. Always turn the power off when cleaning and wipe with a

dry cloth to remove dust, adhered printing plastics or any other material of the frame,

guide rails or wheels. Use glass cleaner or isopropyl to clean the print surface.

10. Children under 10 years should not use the printer without supervision.

Equipment Introduction

1) Hexalobular socket screw 5) Resin vat 9) Air filter

2) Leveling screw 6) Touch screen 10) Power socket

3) Platform plate 7) Metal power switch 11) 5.5-inch screen port

4) Hexalobular socket screw 8) Limit sensor 12) USB port

Equipment parameters

Model

LD-002R

Software language

English

Print method

U disk

X/Y-axis resolution

1440*2560

Z-axis precision

0,03-0,05mm (layer thickness)

Print speed

6-18s (layer height)

Special filaments

Common rigid photosensitive resin, Standard resin, High

elasticity, High hardness, High toughness, Dental model

resin.

Light source

configuration

UV integrated lamp bead (wavelength 405nm)

Operation system

Windows XP and above systems

Nominal power

72W

Print size

119*65*160mm (length, width, and height)

Machine size

221*221*403mm

Package size

295*295*545mm

Machine weight

7kg

Gross weight

8,7kg

Display screen

3.5inch

Package Content

1) Print platform 2) Resin vat 3) 3D printer

Tool list

1) U disk x1 2) 2#, 2.5#, 3# x1 3) Gloves x2 4) Brush x1

5) Plastic blade x1 6) Paper funnel x4 7) Release film x1 8) Mask x2

9) Metal blade x1 10) Power adapter x1

Assemble the 3D Printer

1) Machine Body

2) Plastic Cover

NOTE: Put the plastic cover on the machine body and the installation is completed.

Interface Information

Tools

1) Home

2) Up

3) Down

4) Stop

5) Back

NOTE: The UI information is only for reference, the actual UI may be different.

System

NOTE: The UI information is only for reference, the actual UI may be different.

1) Turn up 1) Delete

2) Turn down 2) Print / Stop

3) Back 3) Back

NOTE: The UI information is only for reference, the actual UI may be different.

Level Platform 1

1. First raise the platform, then loosen rubber screws on the left and right sides of the

resin vat and take out the resin vat.

2. Tool > Manual > Home, and check whether the platform sticks into the printing

screen.

NOTE: The printing platform has been leveled at the factory. IF it needs leveling due to

transportation or other reasons, please follow the steps below to adjust the printing

platform.

Level Platform 2

In the platform does not stick to the print screen, do as the following:

1) After unscrewing the screw, press “Home” to keep the platform and the print screen

parallel.

2) Gently press the platform and tighten 4 screws clockwise, ant the platform can be

leveled successfully.

3) Level up the z-axis a proper position, put the resin vat in, align the screw holes at both

ends of the resin vat, and then tighten the fixing screws at both ends of the resin vat.

Load Resin

Pour the UV photosensitive resin into the resin vat. The slot capacity is 140ml / 170ml /

225ml / 285 ml.

TIPS:

How to change resin:

Takt out the resin vat slowly, pour out the remaining resin into the container, clean the

resin vat, pour in new resin, and then install the resin vat to the machine.

CAUTION:

Resin may cause skin irritation or an allergic skin reaction. Please wear gloves before use

to avoid direct contact with the skin.

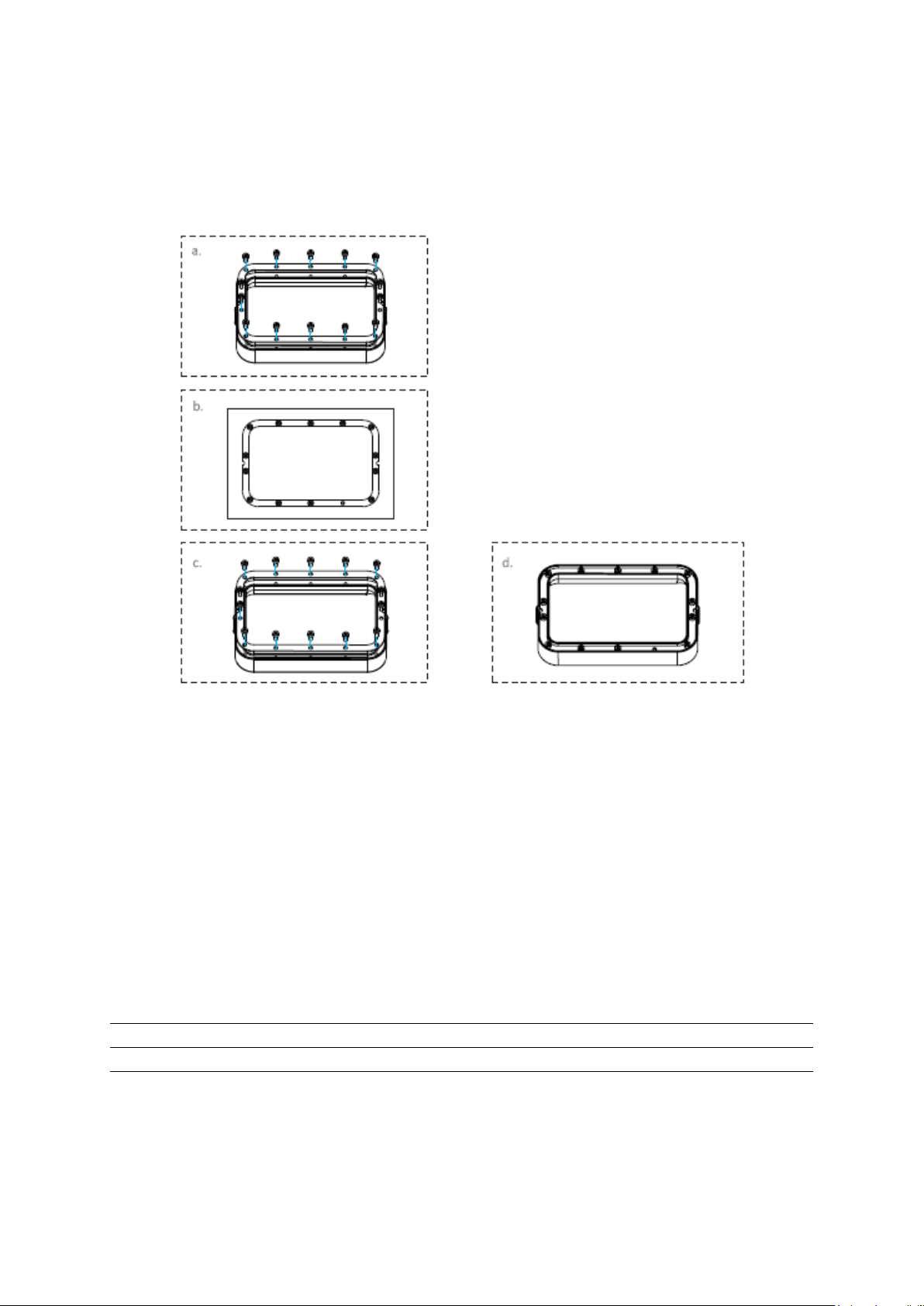

Release Film Instructions

Installation steps:

a) First, remove the 14 screws at the bottom of the tray and take out broken release film.

b) Then place the release film between the two steel frames.

c) Finally, put the assembled steel frame back into the tray and tighten 14 screws.

d) The installed release film is as shown.

Parameters

Size

140mm*200mm

Thickness

0.15-0.2mm

Light Transmittance

95%

Start Printing

1) Slice

1) Open the slice software of LCD 3D Printer, click “open” on the left of the screen, and

add model file.

2) If the model needs to add support, click the upper right icon to set corresponding

parameters.

3) Click icon -> click “Settings” -> setting slice parameters (recommend setting

parameters of bottom layer as 10-20).

4) Click “Slice” -> waiting for slice to be finished -> save the sliced file (You are welcome to

find more details of slicing tutorial on the official website www.creality.com).

2) Print

1) Generate G-code and save the g-code file to U disk.

2) Insert the U disk -> press the print button.
